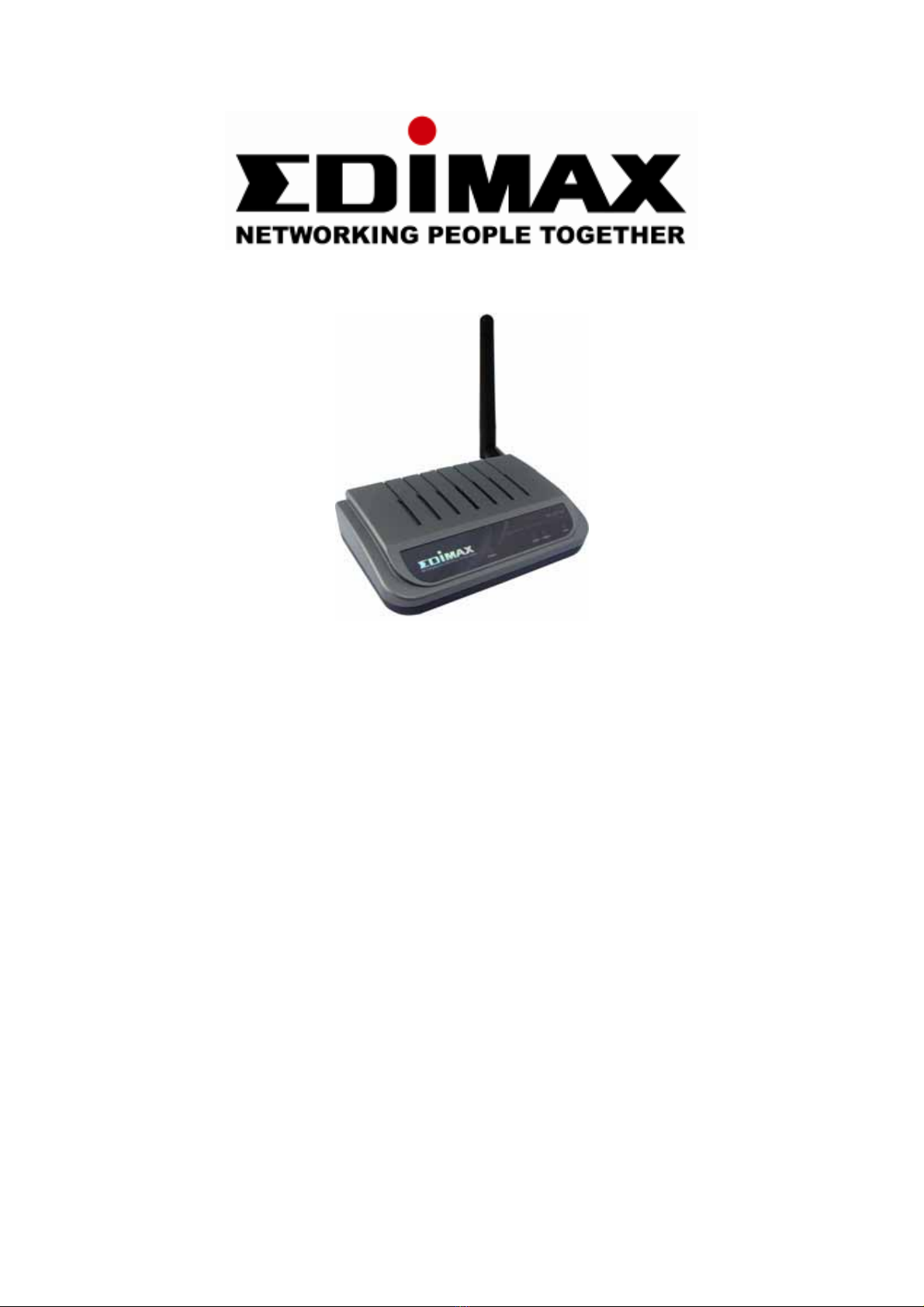

Edimax PS-2207SU Bedienungsanleitung

(

)

Quick Installation Guide

Version: 1.0

(January, 2007)

-L

Če

ký

ý: Anglického průvodce rychlou instalací aleznete na

přiloženém CD s ovladači

:Finden Sie bitte das englische QIG beiliegend in

der Treiber CD (German)

añ

ño

l:Incluido en el CD el QIG en Ingles.

nç

ça

:Veuillez trouver l’anglais QIG ci-joint dans le CD

driver

:Incluso nel CD il QIG in Inglese.

Az angol telepítési útmutató megtalálható a

mellékelt CD-n

s: De engelstalige QIG treft u aan op de

bijgesloten CD

i: Skrócona instrukcja instalacji w języku angielskim

znajduje sięna załączonej płycie CD

y: Anglického sprievodcu rýchlou inštaláciou

nájdete na priloženom CD s ovládačmi.

uê

ês

s:Incluído no CD o QIG em inglês.

Ру

ус

сс

ск

ки

ий

й:

Найдите QIG на анлийском языке на

приложеном CD

1. Product Introduction

Thank you for purchasing and using our Print Server with Storage Server

(NAS) product. This product provides two USB 2.0 ports. User can connect

the USB mass storage or printer to each USB port. When the USB mass

storage is connected, the device can be a NAS (Network Attached Storage)

system allowing user to share files in the storage. When the printer is

connected, the device can be a print server allowing user to share printer

through the network.

Main Features

 Comply with IEEE 802.3, IEEE 802.3u Wired Ethernet and IEEE 802.11g/b

(2.4GHz) Wireless LAN standards.

 Share USB Mass Storage or Printer to all PCs through Wired or Wireless

Network.

 Compatible with all major operating systems (Windows 98SE/Me/2000/XP,

MAC OS and Unix/Linux).

 Easy to configure through the Setup wizard and Web Management tool.

Print Server

 Supports LPR, IPP and Raw printing protocols.

 High compatibility with the popular brands of printers.

FTP/File Server (NAS)

 Share USB Hard Disk or Flash Drive through the network.

 Support FAT16, FAT 32, Ext2, Ext3 and NTFS (Read Only for NTFS) file

systems.

 Built-in Samba/FTP Server.

 Support account management and user authorization for file folders.

 Release USB storage through hardware buttons.

2. Product Package

This package contains the following components:

 One Print Server with Storage Server (NAS)

 One Dipole Antenna (only for Wireless model)

 One Power Adapter

 One Quick Installation Guide

 One CD-ROM (Including all the software utilities, drivers and User’s

Manual)

3. Hardware Installation

Step 1. Connect the server to your LAN network

Connect the server to your PC, hub or switch by attached the Ethernet cable

to the LAN port of the server.

Step 2. Connect the USB devices to the USB ports of the server

You could connect the USB mass storage or printer to any one of two ports for

files or printer sharing.

Note 1: Please plug the external power to your USB mass storage devices.

Note 2: Please plug the USB mass storage dedicated to this server in the USB

port 1 for disk management such as Add/Delete Partitions or Format the disk. If

you just want to share the USB mass storage, you can plug the storage in USB

port 1 or 2.

Note3: USB Flash Disk has to be plugged to USB port 2.

Step3: Connect the power adapter to the server

You must use the power adapter shipped along with the server, do NOT use

any other power adapter from other sources.

4. Setup Wizard

This Setup Wizard is for you to configure the server’s IP Address. This wizard

can be run in Windows 98SE/Me/2000/XP. The following procedures are

operated in Windows XP. (Procedures are similar for Windows

98SE/Me/2000.)

1. Insert the CD shipped along with the server into your CD-ROM drive. The

Autorun.exe program should be executed automatically. If not, run

Autorun.exe manually from “Autorun” folder in the CD.

2. The following screen will be displayed. Click “Setup Utility”.

3. The wizard will search for all the servers within the network and list the

connected device in each port of the servers. Please select the server you

want to configure and click “Next”.

4. Please enter user name and password to login the server. By default, the

user name is “Admin” and password is “1234”. Click “Next” to continue.

5. The wizard will try to determine your network settings automatically. If a

DHCP Server is present within the network, the wizard will automatically

obtain and configure the network settings assigned by the DHCP Server to

the server. The assigned IP Address will be shown in the IP Address fields.

If no DHCP Server is present within the network, please assign the

network settings of the server manually. Please click “Next” once you have

found appropriate network settings for the server. By default, the network

settings are as follows.

IP Address: 192.168.2.5

Subnet Mask: 255.255.255.0

6. Review the network settings of the server. If there is no problem, click

“Save” to save the settings and reboot the server.

7. The server is saving the settings and rebooting, please wait for a while.

8. The configuration is finished. For more settings, please click “Advanced

Settings” to get into the web management of the server. Or click “Finish” to

close the wizard.

5. Print Server Installation

This server provides a Print Server Setup tool for you to add the network port

of the server to your computer automatically. After you have added the

network port, you can run the standard “Add Printers” procedures in the

Windows to install the printer with the print server.

The program can be performed on Windows 98SE/Me/2000/XP/2003 with the

same user interface. Before installation, please confirm that your PC has

already connected to the network and installed TCP/IP network protocol.

Please follow the steps below to start installation.

1. Insert the CD shipped along with the server into your CD-ROM drive. The

Autorun.exe program should be executed automatically. If not, run

Autorun.exe manually from “Autorun” folder in the CD.

2. The following screen will be displayed. Click “Print Server Utility”.

3. The “PrintServer Utilities” window will be displayed. Click “Next”.
