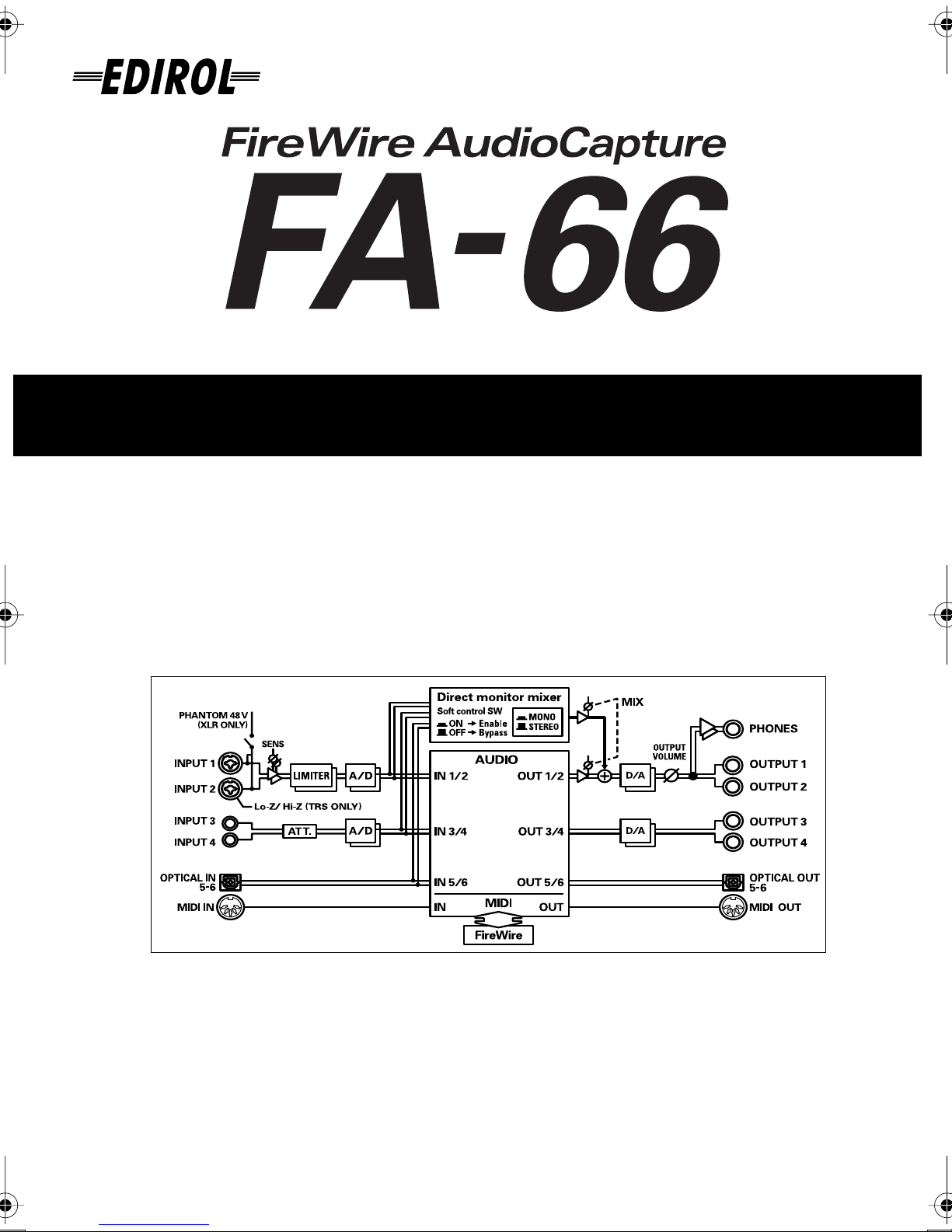

Edirol FA-66 Bedienungsanleitung

OWNER’S MANUAL

201a

Before using this unit, carefully read the sections entitled: “USING THE UNIT

SAFELY” and “IMPORTANT NOTES” (p. 3–p. 6). These sections provide important

information concerning the proper operation of the unit. Additionally, in order to

feel assured that you have gained a good grasp of every feature provided by your

new unit, OWNER’S MANUAL should be read in its entirety. The manual should be

saved and kept on hand as a convenient reference.

without the written permission of ROLAND CORPORATION.

FA-66_e.book 1 ページ２００６年１月１２日　木曜日　午前１１時３２分

IMPORTANT: THE WIRES IN THIS MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE.

BLUE:

BROWN:

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying

the terminals in your plug, proceed as follows:

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK.

The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED.

Under no circumstances must either of the above wires be connected to the earth terminal of a three pin plug.

NEUTRAL

LIVE

For the U.K.

This product complies with the requirements of European Directive 89/336/EEC.

For EU Countries

For Canada

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.

NOTICE

AVIS

For the USA

FEDERAL COMMUNICATIONS COMMISSION

RADIO FREQUENCY INTERFERENCE STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee

that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.

– Increase the separation between the equipment and receiver.

– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

– Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that may cause undesired operation.

Unauthorized changes or modification to this system can void the users authority to operate this equipment.

This equipment requires shielded interface cables in order to meet FCC class B Limit.

For the USA

DECLARATION OF CONFORMITY

Compliance Information Statement

Model Name :

Type of Equipment :

Responsible Party :

Address :

Telephone :

FA-66

FireWire Audio Interface

Roland Corporation U.S.

5100 S. Eastern Avenue Los Angeles, CA 90040-2938

(323) 890 3700

FA-66_e.book 2 ページ２００６年１月１２日　木曜日　午前１１時３２分

USING THE UNIT SAFELY

001

• Before using this unit, make sure to read the

instructions below, and the Owner’s

Manual.

...................................................................................................................

002c

• Do not open (or modify in any way) the unit

or its AC adaptor.

...................................................................................................................

003

• Do not attempt to repair the unit, or replace

parts within it (except when this manual

provides specific instructions directing you

to do so). Refer all servicing to your retailer, the

nearest Roland Service Center, or an authorized

Roland distributor, as listed on the “Information”

page.

...................................................................................................................

004

• Never use or store the unit in places that

are:

• Subject to temperature extremes (e.g.,

direct sunlight in an enclosed vehicle,

near a heating duct, on top of heat-gener-

ating equipment); or are

• Damp (e.g., baths, washrooms, on wet

floors); or are

• Humid; or are

• Exposed to rain; or are

• Dusty; or are

• Subject to high levels of vibration.

...................................................................................................................

007

• Make sure you always have the unit placed

so it is level and sure to remain stable.

Never place it on stands that could wobble,

or on inclined surfaces.

...................................................................................................................

008c

• Be sure to use only the AC adaptor supplied

with the unit. Also, make sure the line

voltage at the installation matches the input

voltage specified on the AC adaptor’s body. Other

AC adaptors may use a different polarity, or be

designed for a different voltage, so their use could

result in damage, malfunction, or electric shock.

...................................................................................................................

008e

• Use only the attached power-supply cord.

Also, the supplied power cord must not be

used with any other device.

..................................................................................................................

009

• Do not excessively twist or bend the power

cord, nor place heavy objects on it. Doing so

can damage the cord, producing severed

elements and short circuits. Damaged cords are fire

and shock hazards!

..................................................................................................................

010

• This unit, either alone or in combination

with an amplifier and headphones or

speakers, may be capable of producing

sound levels that could cause permanent hearing

loss. Do not operate for a long period of time at a

high volume level, or at a level that is uncom-

fortable. If you experience any hearing loss or

ringing in the ears, you should immediately stop

using the unit, and consult an audiologist.

..................................................................................................................

011

• Do not allow any objects (e.g., flammable

material, coins, pins); or liquids of any kind

(water, soft drinks, etc.) to penetrate the

unit.

..................................................................................................................

012b

• Immediately turn the power off, remove the

AC adaptor from the outlet, and request

servicing by your retailer, the nearest

Roland Service Center, or an authorized Roland

distributor, as listed on the “Information” page

when:

• The AC adaptor, the power-supply cord, or the

plug has been damaged; or

• If smoke or unusual odor occurs

• Objects have fallen into, or liquid has been

spilled onto the unit; or

• The unit has been exposed to rain (or otherwise

has become wet); or

• The unit does not appear to operate normally or

exhibits a marked change in performance.

..................................................................................................................

Used for instructions intended to alert

the user to the risk of injury or material

damage should the unit be used

improperly.

* Material damage refers to damage or

other adverse effects caused with

respect to the home and all its

furnishings, as well to domestic

animals or pets.

Used for instructions intended to alert

the user to the risk of death or severe

injury should the unit be used

improperly.

The ●symbol alerts the user to things that must be

carried out. The specific thing that must be done is

indicated by the design contained within the circle. In

the case of the symbol at left, it means that the power-

cord plug must be unplugged from the outlet.

The symbol alerts the user to important instructions

or warnings.The specific meaning of the symbol is

determined by the design contained within the

triangle. In the case of the symbol at left, it is used for

general cautions, warnings, or alerts to danger.

The symbol alerts the user to items that must never

be carried out (are forbidden). The specific thing that

must not be done is indicated by the design contained

within the circle. In the case of the symbol at left, it

means that the unit must never be disassembled.

FA-66_e.book 3 ページ２００６年１月１２日　木曜日　午前１１時３２分

012d

• Immediately turn the power off, and

request servicing by your retailer, the

nearest Roland Service Center, or an autho-

rized Roland distributor, as listed on the “Infor-

mation” page when:

• If smoke or unusual odor occurs

• Objects have fallen into, or liquid has been

spilled onto the unit; or

• The unit has been exposed to rain (or otherwise

has become wet); or

• The unit does not appear to operate normally or

exhibits a marked change in performance.

...................................................................................................................

013

• In households with small children, an adult

should provide supervision until the child

is capable of following all the rules essential

for the safe operation of the unit.

...................................................................................................................

014

• Protect the unit from strong impact.

(Do not drop it!)

...................................................................................................................

015

• Do not force the unit’s power-supply cord

to share an outlet with an unreasonable

number of other devices. Be especially

careful when using extension cords—the total power

used by all devices you have connected to the

extension cord’s outlet must never exceed the power

rating (watts/amperes) for the extension cord.

Excessive loads can cause the insulation on the cord

to heat up and eventually melt through.

...................................................................................................................

016

• Before using the unit in a foreign country,

consult with your retailer, the nearest

Roland Service Center, or an authorized

Roland distributor, as listed on the “Information”

page.

...................................................................................................................

023

• DO NOT play a CD-ROM disc on a conven-

tional audio CD player. The resulting sound

may be of a level that could cause

permanent hearing loss. Damage to speakers or

other system components may result.

...................................................................................................................

101b

• The unit and the AC adaptor should be

located so their location or position does not

interfere with their proper ventilation.

..................................................................................................................

102c

• Always grasp only the plug on the AC

adaptor cord when plugging into, or

unplugging from, an outlet or this unit.

..................................................................................................................

103b

• At regular intervals, you should unplug the

AC adaptor and clean it by using a dry cloth

to wipe all dust and other accumulations

away from its prongs. Also, disconnect the power

plug from the power outlet whenever the unit is to

remain unused for an extended period of time. Any

accumulation of dust between the power plug and

the power outlet can result in poor insulation and

lead to fire.

..................................................................................................................

104

• Try to prevent cords and cables from

becoming entangled. Also, all cords and

cables should be placed so they are out of

the reach of children.

..................................................................................................................

106

• Never climb on top of, nor place heavy

objects on the unit.

..................................................................................................................

107c

• Never handle the AC adaptor or its plugs

with wet hands when plugging into, or

unplugging from, an outlet or this unit.

..................................................................................................................

108b

• Before moving the unit, disconnect the AC

adaptor and all cords coming from external

devices.

..................................................................................................................

108c

• Disconnect all cords coming from external

devices before moving the unit.

..................................................................................................................

109b

• Before cleaning the unit, turn off the power

and unplug the AC adaptor from the outlet.

..................................................................................................................

110b

• Whenever you suspect the possibility of

lightning in your area, disconnect the AC

adaptor from the outlet.

..................................................................................................................

118a

• Should you remove the ground terminal

screw, keep them in a safe place out of

children's reach, so there is no chance of

them being swallowed accidentally.

..................................................................................................................

120

• Always turn the phantom power off when

connecting any device other than condenser

microphones that require phantom power.

You risk causing damage if you mistakenly supply

phantom power to dynamic microphones, audio

playback devices, or other devices that don't require

such power. Be sure to check the specifications of

any microphone you intend to use by referring to

the manual that came with it.

(This instrument's phantom power:

48 V DC, 20 mA Max)

..................................................................................................................

FA-66_e.book 4 ページ２００６年１月１２日　木曜日　午前１１時３２分

IMPORTANT NOTES

291a

In addition to the items listed under “USING THE UNIT SAFELY” on page 3, please read and

observe the following:

Power Supply

301

• Do not connect this unit to same electrical

outlet that is being used by an electrical

appliance that is controlled by an inverter

(such as a refrigerator, washing machine,

microwave oven, or air conditioner), or that

contains a motor. Depending on the way in

which the electrical appliance is used, power

supply noise may cause this unit to

malfunction or may produce audible noise. If

it is not practical to use a separate electrical

outlet, connect a power supply noise filter

between this unit and the electrical outlet.

302

• The AC adaptor will begin to generate heat

after long hours of consecutive use. This is

normal, and is not a cause for concern.

307

• Before connecting this unit to other devices,

turn off the power to all units. This will help

prevent malfunctions and/or damage to

speakers or other devices.

Placement

351

• Using the unit near power amplifiers (or other

equipment containing large power trans-

formers) may induce hum. To alleviate the

problem, change the orientation of this unit;

or move it farther away from the source of

interference.

352a

• This device may interfere with radio and

television reception. Do not use this device in

the vicinity of such receivers.

352b

• Noise may be produced if wireless communi-

cations devices, such as cell phones, are

operated in the vicinity of this unit. Such noise

could occur when receiving or initiating a call,

or while conversing. Should you experience

such problems, you should relocate such

wireless devices so they are at a greater

distance from this unit, or switch them off.

355b

• When moved from one location to another

where the temperature and/or humidity is

very different, water droplets (condensation)

may form inside the unit. Damage or

malfunction may result if you attempt to use

the unit in this condition. Therefore, before

using the unit, you must allow it to stand for

several hours, until the condensation has

completely evaporated.

Maintenance

401a

• For everyday cleaning wipe the unit with a

soft, dry cloth or one that has been slightly

dampened with water. To remove stubborn

dirt, use a cloth impregnated with a mild,

non-abrasive detergent. Afterwards, be sure

to wipe the unit thoroughly with a soft, dry

cloth.

402

• Never use benzine, thinners, alcohol or

solvents of any kind, to avoid the possibility

of discoloration and/or deformation.

Additional Precautions

553

• Use a reasonable amount of care when using

the unit’s buttons, sliders, or other controls;

and when using its jacks and connectors.

Rough handling can lead to malfunctions.

556

• When connecting / disconnecting all cables,

grasp the connector itself—never pull on the

cable. This way you will avoid causing shorts,

or damage to the cable’s internal elements.

557

• A small amount of heat will radiate from the

unit during normal operation.

558a

• To avoid disturbing your neighbors, try to

keep the unit’s volume at reasonable levels.

You may prefer to use headphones, so you do

not need to be concerned about those around

you (especially when it is late at night).

FA-66_e.book 5 ページ２００６年１月１２日　木曜日　午前１１時３２分

IMPORTANT NOTES

559a

• When you need to transport the unit, package

it in the box (including padding) that it came

in, if possible. Otherwise, you will need to use

equivalent packaging materials.

562

• Use a cable from Roland to make the

connection. If using some other make of

connection cable, please note the following

precautions.

• Some connection cables contain resistors.

Do not use cables that incorporate resistors

for connecting to this unit. The use of such

cables can cause the sound level to be

extremely low, or impossible to hear. For

information on cable specifications, contact

the manufacturer of the cable.

Handling CD-ROMs

801

• Avoid touching or scratching the shiny

underside (encoded surface) of the disc.

Damaged or dirty CD-ROM discs may not be

read properly. Keep your discs clean using a

commercially available CD cleaner.

851

• Unauthorized recording, distribution, sale,

lending, public performance, broadcasting, or

the like, in whole or in part, of a work

(musical composition, video, broadcast, public

performance, or the like) whose copyright is

held by a third party is prohibited by law.

852a

• When exchanging audio signals through a

digital connection with an external

instrument, this unit can perform recording

without being subject to the restrictions of the

Serial Copy Management System (SCMS).

This is because the unit is intended solely for

musical production, and is designed not to be

subject to restrictions as long as it is used to

record works (such as your own composi-

tions) that do not infringe on the copyrights of

others. (SCMS is a feature that prohibits

second-generation and later copying through

a digital connection. It is built into MD

recorders and other consumer digital-audio

equipment as a copyright-protection feature.)

853

• Do not use this unit for purposes that could

infringe on a copyright held by a third party.

We assume no responsibility whatsoever with

regard to any infringements of third-party

copyrights arising through your use of this

unit.

204

* Microsoft and Windows are registered trademarks of Microsoft Corporation.

206e

* The screen shots in this document are used in compliance with the guidelines of the

Microsoft Corporation.

206j

* Windows

is known officially as: “Microsoft

Windows

operating system.”

207

* Apple and Macintosh are registered trademarks of Apple Computer, Inc.

209

* Mac OS is a trademark of Apple Computer, Inc.

220

* All product names mentioned in this document are trademarks or registered trademarks

of their respective owners.

FA-66_e.book 6 ページ２００６年１月１２日　木曜日　午前１１時３２分

Contents

Contents of the package..............................................................................8

Front and rear panel...................................................................................10

Front panel.........................................................................................................................10

Rear panel ..........................................................................................................................14

Before you begin using the FA-66 with your Macintosh

(Mac OS X users) .......................................................................................18

Audio and MIDI settings.................................................................................................19

Software settings...............................................................................................................23

Installing the driver (Windows) .................................................................24

Giving priority to background services.........................................................................29

Driver settings ...................................................................................................................30

Basic connections and settings................................................................ 35

Basic connections ..............................................................................................................35

Recording a mic or guitar ................................................................................................36

Recording a digital signal................................................................................................38

Connecting various types of equipment .......................................................................39

Software settings........................................................................................ 40

SONAR 4............................................................................................................................40

Digital Performer ..............................................................................................................43

Logic ...................................................................................................................................44

Cubase SX/SL ...................................................................................................................45

FA-66 Driver Settings dialog box (Windows)...............................................................46

Troubleshooting .........................................................................................48

Driver-related problems (Windows)..............................................................................48

No sound............................................................................................................................51

Noise or pops are heard when recording/playing on your computer.....................55

Noise or distortion occurs when the FA-66 is not connected to your computer.....59

The sound is too weak......................................................................................................59

Others .................................................................................................................................61

Main specifications ....................................................................................62

Index ............................................................................................................64

FA-66_e.book 7 ページ２００６年１月１２日　木曜日　午前１１時３２分

Contents of the package

■

FA-66

fig.FA-66

■

AC adaptor

This is the dedicated AC adaptor for the FA-66. Use only the supplied AC

adaptor.

■

FireWire (IEEE 1394) cables

(one 6-pin

↔

6-pin cable, one 6-pin

↔

4-pin cable)

Use one of these cables to connect the FA-66 to the IEEE 1394 connector

(FireWire connector, iLink connector, DV connector) of your computer.

The 6-pin

↔

4-pin cable cannot supply bus power.

* Use only the FireWire (IEEE 1394) cables. If the supplied FireWire (IEEE 1394)

cable becomes damaged or lost and you need a replacement, please contact the nearest

Roland Service Center, or an authorized Roland distributor, as listed on the

“Information” page.

■

Owner’s manual

This is the manual you are reading. Please keep it at hand for reference.

■

CD-ROM

This contains Windows drivers for the FA-66 and demo songs.

* Be careful not to touch or scratch the recorded surface (unprinted surface) of the disc.

Doing so may render the disc unreadable. If the disc gets dirty, use a commercially

available CD cleaner to clean it.

Do not play back the CD-ROM in a conventional audio

CD player. Doing so may produce high-volume sound

that can damage your hearing and/or speakers.

FA-66_e.book 8 ページ２００６年１月１２日　木曜日　午前１１時３２分

Contents of the package

You will need to provide these items yourself

An external amp, speakers, headphones, and mic are not included

The external amp, speakers, or headphones you’ll need to hear the sound

output from the FA-66 and the cables you’ll need to connect these items are not

included. Nor is a mic included, which you will need to connect to the FA-66 in

order to input audio. You will need to obtain these items yourself.

An MD or DAT recorder and digital input/output cables are not included

You can use an MD or DAT digital recorder to record, but the cables needed to

connect these devices to the FA-66 are not included. You will need to obtain

these items yourself.

FA-66_e.book 9 ページ２００６年１月１２日　木曜日　午前１１時３２分

Front and rear panel

fig.front.eps_60

fig.jack-type_70

Combo input jacks

These are analog audio input jacks with mic preamps. They

accommodate either XLR or phone plugs, allowing you to

connect a variety of equipment. Either balanced or unbalanced

signals may be connected.

Phantom power (48 V) is provided for XLR type connections,

allowing you to connect condenser mics that require phantom

power. In this case, turn on the

phantom power switch

(19)

located on the rear panel.

fig.XLR-TRS

* This instrument is equipped

with balanced (XLR/TRS) type

input jacks. Wiring diagrams for

these jacks are shown on the

right. Make connections after

first checking the wiring

diagrams of other equipment you intend to connect.

Input sensitivity knobs

These adjust the input level of the signals input to the front panel

combo input

jacks (1)

Input impedance select switch

This switch selects either high impedance (Hi-Z) or low impedance (Lo-Z) as the

type of device connected to the

INPUT 2

phone jack of the

combo input jacks

(1)

. If you have connected a guitar or bass to this jack, select the high impedance

(Hi-Z) setting; if you have connected a mic, select the low impedance (Lo-Z) setting.

Combo input jack INPUT 1

is fixed at low impedance (Lo-Z).

fig.front.eps

Front panel

27 8 11 13

1495 6 10 123

XLR plug

TRS phone

plug

(balanced)

Phone plug

(unbalanced)

1:GND

2:HOT

3:COLD

GND(SLEEVE)

HOT(TIP)

COLD(RING)

FA-66_e.book 10 ページ２００６年１月１２日　木曜日　午前１１時３２分

Andere Handbücher für FA-66

Inhaltsverzeichnis

Andere Edirol Soundkarte Handbücher

Edirol

Edirol FA-66 Bedienungsanleitung

Beliebte Soundkarte Handbücher anderer Marken

PCchips

PCchips CMI8330 Bedienungsanleitung

Creative

Creative Sound BlasterX G5 SB1700 Bedienungsanleitung

IBM

IBM Music Feature Card Bedienungsanleitung

Diamond Multimedia

Diamond Multimedia Xtreme Sound Bedienungsanleitung

Digigram

Digigram VX222v2 Bedienungsanleitung

MARIAN

MARIAN SERAPH M2 Bedienungsanleitung

Pure Speed

Pure Speed DSU6000 Bedienungsanleitung

Philips

Philips Seismic Edge PSC704 Bedienungsanleitung

ADDAC System

ADDAC System ADDAC604 Bedienungsanleitung

Asus

Asus Audio Card Xonar D2 Bedienungsanleitung

Soundwave

Soundwave 7.1 Bedienungsanleitung

Creative

Creative Sound Blaster Pro Bedienungsanleitung

Digigram

Digigram VX222-Mic Bedienungsanleitung

HRT

HRT LineStreamer+ Bedienungsanleitung

ST AEKD-STEREOAVAS Bedienungsanleitung

AuviTran

AuviTran AVY16-ES100 Bedienungsanleitung

Creative

Creative Sound BLASTER Audige Rx SB1550 Bedienungsanleitung

IQaudIO

IQaudIO PI-DAC+ Bedienungsanleitung
