Edsyn 971E LONER Bedienungsanleitung

Warning: Do not hit or tap the soldering tool. The ceramic heater element may break

Package Contents

971e Temperature Controlled Soldering

Station includes XP375 Tip

PD528 Tool Pod

SH235 Modular Sponge Tray with RS200

Round Cleaning Sponge

WP556 WIGAPRY® Mini Screwdriver

and Calibration Aid Tool

Front Right Side View

Rear Side Section View

Calibration Pots for

HI & LO Temp.

WP556 Calibration Aid Tool

SR1227 Tool Pod Label

High Performance Hollow Heater

Power Switch

PD528 Tool Pod

Temp.

Regulation

Indicator

Illuminated

Graduations

SH235 Modular Sponge Tray

Changing Tip

1. IMPORTANT: Make sure your tool is cool.

2. Do not twist or wiggle Tip

3. Loosen RCS71 Collar by turning it counter-clockwise.

3. Remove old Soldering Tip.

4. Insert new Tip.

5. Tighten RCS71 Collar. (should be “finger” tight only)

WARNING: Do not use the soldering tool if soldering tip is loose. This will cause the heater element to break.

XP375 LONER Extra Performance Spade Soldering Tip

.06” (1.5mm)

.61” (15.5mm)

XP441 LONER Extra Performance Spade Soldering Tip

.20” (5.0mm)

.59” (15.0mm)

LT371LF LONER Spade Soldering Tip (Lead Free)

.03” (0.8mm)

.55” (14.0mm)

LT375LF LONER Spade Soldering Tip (Lead Free)

.06” (1.5mm)

.48” (12.2mm)

LT375 LONER Spade Soldering Tip

.06” (1.5mm)

.48” (12.2mm)

LT376 LONER Spade Soldering Tip

.12” (3.0mm)

.48” (12.2mm)

LT394 LONER Spade Soldering Tip

.07” (1.8mm)

.93” (23.6mm)

LT374 LONER Conical Soldering Tip

.03” (0.8mm)

.48” (12.2mm)

LT382 LONER Conical Soldering Tip

.02” (0.5mm)

.62” (15.8mm)

Soldering Tips

Iron Plated for long life-Nickel and Chrome Plated for optimum heat transfer

Contact Edsyn for more tip selections Width A Length B

SET-UP REQUIRED FOR SPADE, CONICAL, AND EXTRA PERFORMANCE TIPS

OPTIONAL:

Apply AN112 Anti-Seize Compound or

AN122 High Heat Anti-Seize Syringe Dispenser

to Heater and area of Tip contact.

Extra Performance Tip

Spade or Conical Tip

RCS71 Retaining Collar

and Sleeve

SR574 High Performance

Hollow Heater

LTC71 Collar

More Tips are available at our website (www.edsyn.com) or in our General Line Catalog.

AN112 AN122

Tool Pod Maintenance

Replace SC581 Solder Collector

1. Hold Thermal Housing (1A) firm and

turn Front Housing (1C) counter-clockwise

and pull it apart.

2. Remove used Solder Debris Collector (1B)

and replace with a new one.

3. Reassemble (1A) to (1C) (for

correct fit line up tabs to slots)

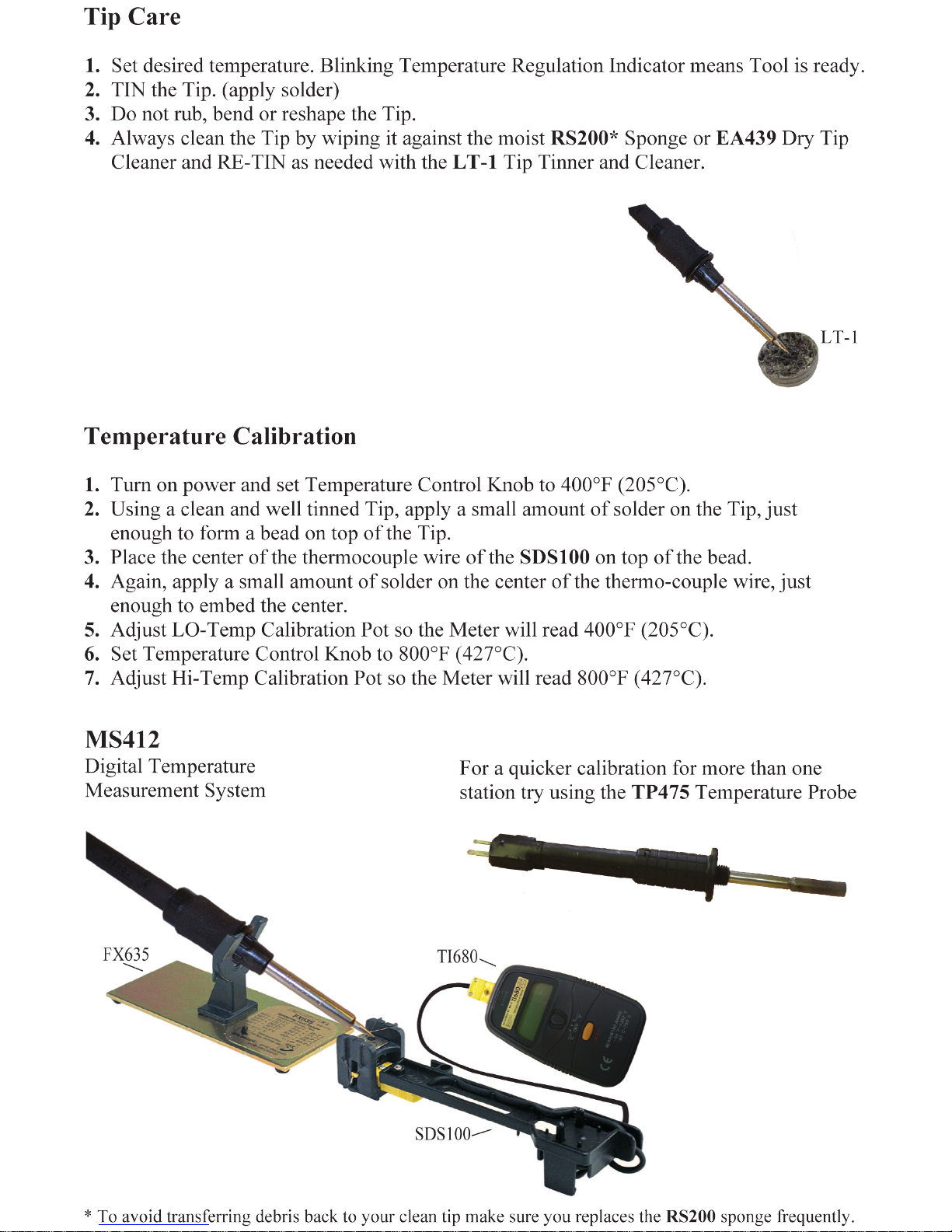

971e

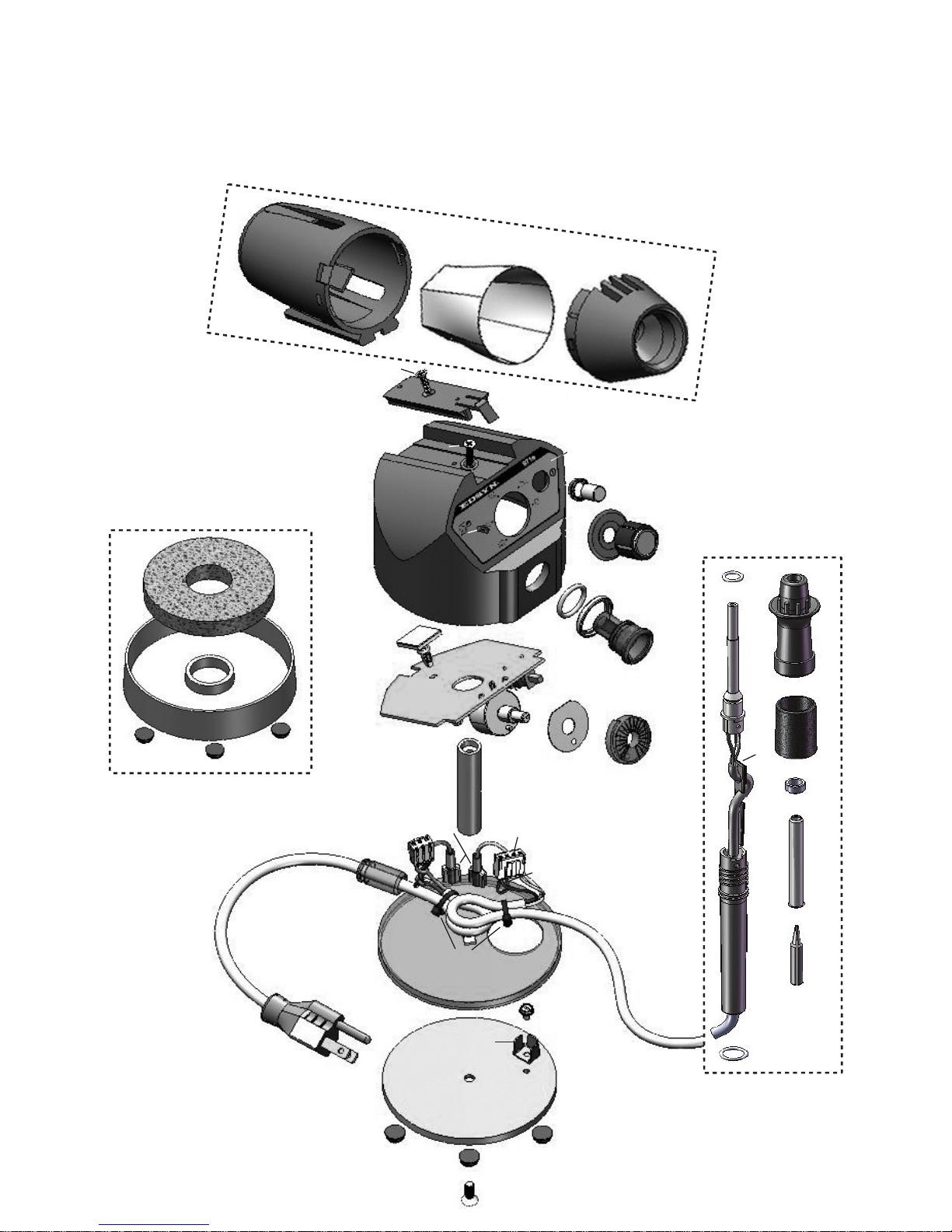

Exploded View

(3 of 5 shown)

910

11 12

14*

15*

18* 19

24 25

2C (3 of 5 shown)

*14 (Ring) and 15 (Bushing Lens) must

be installed on 30 (Tool Cord) before 29

(Cable Tie) is installed to make loop.

*18 (Panel Pot) is included when

you order 17 (Circuit Board Assembly)

31F

31E

31K

31J

31D

31I

31H

31G

31B

31A

31C

971e

Spare Parts List

ITEM

NO.

PART NO.

DESCRIPTION

QTY.

NEEDED

1PD528 Tool Pod (includes SC581) 1

1A SR042 Thermal Housing for Tool Pod 1

1B SC581 Solder Debris Collector 1

1C SR043 Front Housing for Tool Pod 1

2SH235

Modular Sponge Tray Holder (includes RS200 round cleaning sponge)

2A RS200 Round Cleaning Sponge 1

2B SR1225 Sponge Tray 1

2C SR251 Rubber Feet (Set of 4) 2.50 set

3SR367 Phillips Flat Head Screw 1

4SR784 Single Dovetail Track 1

5SR772 Phillips Flat Head Screw 1

6SR1200 Housing for Soldering Station 1

7SR1420 Front Panel Label 1

8SR1226 Front Panel Mount Light Pipe 1

9SR1202 Switch Button Lens Ring 1

10 SR1203 Round Chrome Switch Cap 1

11 SR1205 Dial Face Lens Cover 1

12 SR1204 Black Control Knob 1

13 SR1208 Silicone O-Ring 1

14 SR1207 Ring for Tool Cord Bushing Lens 1

15 SR1206 Tool Cord Bushing Lens 1

16 SR1224 Locking PCB Support 1

17 SR1223 Circuit Board Assembly 1

18* SR1211 5K Wire-Wound Panel Pot 1

19 SR1210 Background Washer for Dial Face 1

20 SR1209 Dial Face Lens 1

21 SR1212 Base Post Enclosure 1

* Included when ordering circuit board assembly

ITEM

NO.

PART NO.

DESCRIPTION

QTY

NEEDED

22 SR1221 Power Cord Assembly 1

23 SR1222 Power Cord Bushing Lens 1

24 SR432 3 Circuit Housing Connector (Set of 3) .3 set

25 SR495 Female Fully Insulated Connector (Set of 5) .4 set

26 SR415 Terminal Crimp (Set of 10) .3 set

27 SR1213 4 Circuit Housing Connector 1

28 SR445 Black Wire .16ft

29 SR1214 Cable Tie 2

30 SR059 Tool Cord 1

31* SR575 High Performance Soldering Tool, Complete Assembly 1

31A SR240 O-Ring 1

31B SR525 Static-Safe Silicone Black Hose .43ft

31C SR579 Handle 1

31D SR058 Strain Relief 1

31E SR574 High Performance Hollow Heater Assembly (includes Shrink

Sleeving) 1

31F SR001 O-Ring 1

31G XP375 LONER Extra Performance Spade Soldering Tip 1

31H HPS82 Retaining Sleeve 1

31I SR881 Teflon Washer 1

31J SR063 Vinyl Sleeve 1

31K SR1421 Threaded Collar 1

32 SR1216 Clear Lens Base Cover 1

33 SR1217 Hex Screw 1

34 SR1220 3 Terminal Ground Lug 1

35 SR1218 Metal Base 1

36 SR1219 Flat Head Screw 1

971e

Spare Parts List Cont’d.

* Also included are items 30,29,28,27,26,15,14, and 13.

Specifications

Designed Patented & Assembled in U.S.A.

Warranty

Edsyn stands behind its products. We warranty that new tools will be free from defects for

18 months from the date of purchase. During this time period Edsyn will repair or, at its

option, replace the tool at no charge. This warranty does not include tips and accessories.

Any tool that appears to have been deliberately abused, altered, or destroyed is not

covered by this warranty.

Technical Support

Contact our Customer Service for assistance related to the purchase of this product or

recommendations on a challenge that you may encounter. There are many replacement

parts that are available to keep your tool in top condition. To speak to someone in

Customer Service, call 818-989-2324.

No part of this publication, including individual icons, may be reproduced or utilized in any form

or by any means without the written permission of EDSYN®, Inc.

Power Requirements 120V, 60Hz

Power Rating 15W - 220W

Heater Rating 120V, 95W

Temperature Range 400°F-800°F/205°C-427°C

Temperature Regulations ±6°F/±3°C

Leakage/Resistance < 2mV/< 2 ohms

Tip-to-Ground Voltage

Overall Dimension 4.11”W x 6½”H x 4”D

104 mm x 166mm x 102 mm

Weight 2.12bs (.96 kg)

Design, color, weight, and material subject to change without notice. Components from other designs

may be used with information pertaining to it, but not applicable to another use.

Labels and instructions will supersede this information.

Phone: 818-989-2324

Email: [email protected]

FAX: 818-997-0895

Internet: www.edsyn.com

Form. 971e

Address: 15958 Arminta St, Van Nuys, CA 91406
