EGO LM2010E Bedienungsanleitung

REPAIR GUIDELINE

PART 1: Blade Replacement - LM2010E Lawn Mower

Table of Contents

NO. Contents Page

1 Blade Removal 3-5

2 Blade Installation 6-9

LM2010E Lawn Mower

1. Release switches and remove the battery pack from the mower.

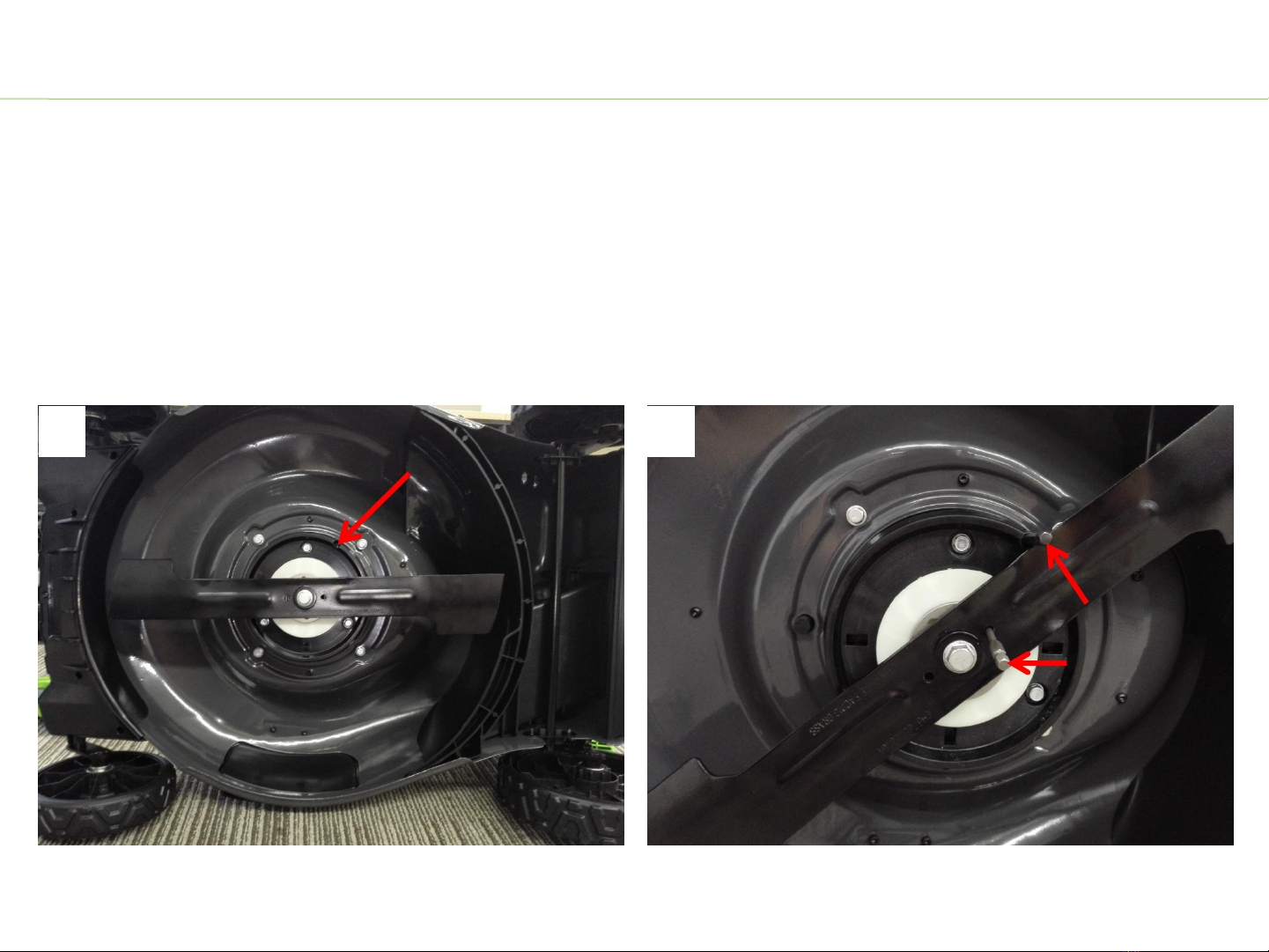

2. While wearing protective gloves, turn the mower on its side (Fig. 1).

3. Place a metal rod (e.g., a thick bit) with a diameter less than 11mm into the fixing hole to act as a

stabilizer and place another metal rod (e.g., a thin bit) with a diameter less than 6.35 mm into the

holes (the through holes in the fan with the holes in the blade) to act as another stabilizer (Fig. 2).

1. Blade Removal

Another

Stabilizer

LM2010E Lawn Mower

Fixing hole

4. Use a 14mm wrench to turn the blade bolt counterclockwise to loosen it.

1. Blade Removal

Another Stabilizer

Loosen

Stabilizer

LM2010E Lawn Mower

5. Remove the bolt, outer flange and the blade. Replace any broken or worn parts.

6. Remove the inner flange and fan from the motor shaft, then replace any broken or worn parts.

1. Blade Removal

Description

Part Number

SPEC

Flange Bolt

5640226001

M10×25

Outer Flange

5650510001

---

Blade

3706023001

---

Inner Flange

3520852002

---

Fan

3127847001

---

Motor shaft

Blade

Fan

Outer flange

Bolt

Inner flange

LM2010E Lawn Mower

Fan

Inner flange

1. Fix the inner flange into the fan.

2. Mount the fan and the inner flange onto the motor shaft with the fan blades towards the deck.

2. Blade Installation

Wrong assembly of

the fan

Fan blades towards deck

Fan

Motor shaft

LM2010E Lawn Mower

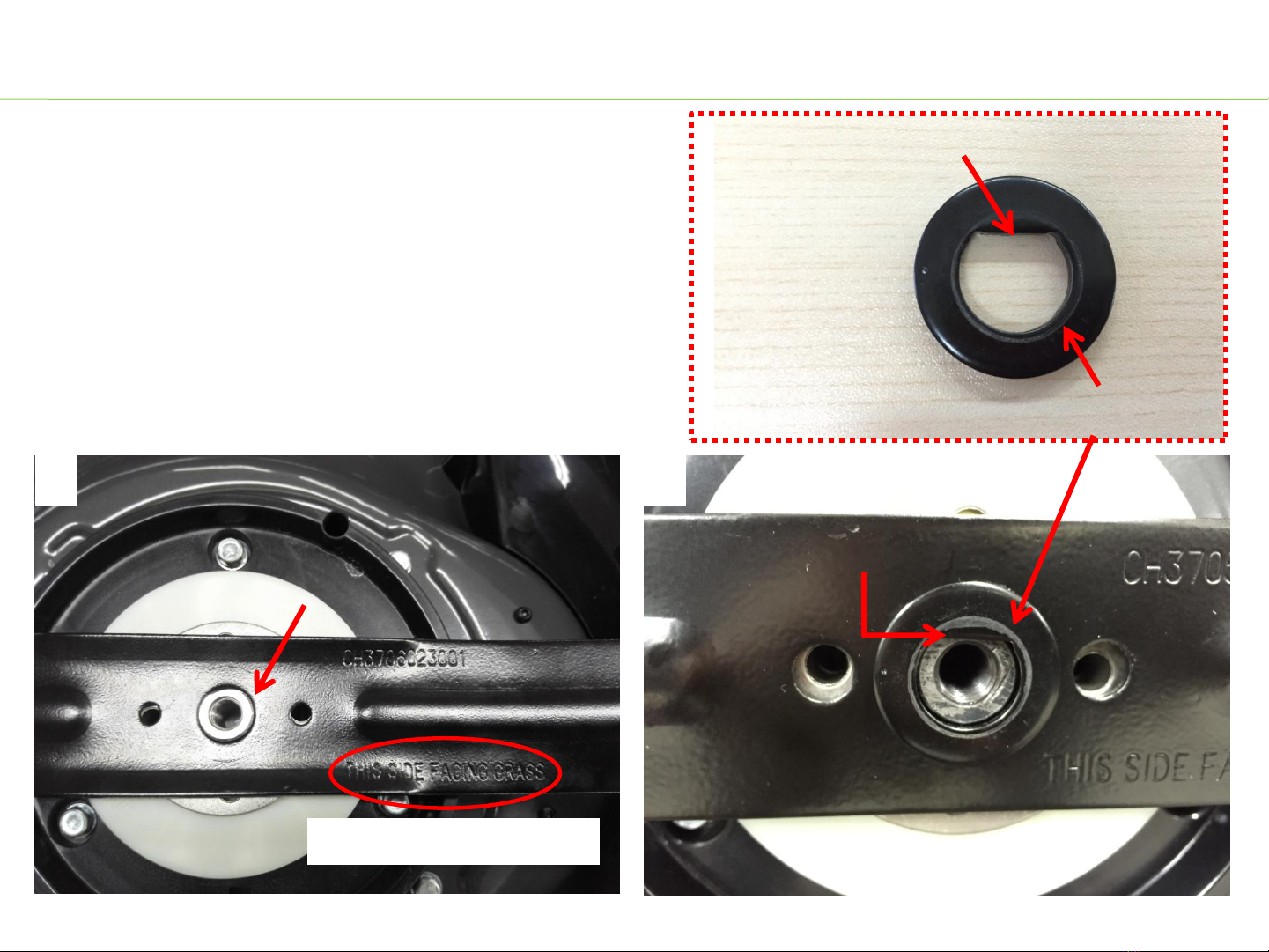

3. Mount the blade onto the inner flange with the

surface stating “THIS SIDE FACING GRASS” facing

outwards (Fig. 1) .

4. Aligning the flat position of the outer flange with

the corresponding flat position on the motor

shaft, mount the outer flange in place(Fig. 2).

2. Blade Installation

Flat position

Out flange

Flat position

This side facing outside

Flat position on the motor shaft

LM2010E Lawn Mower

5. Mount the bolt into the shaft and pre-tighten it in a clockwise direction by hand.

2. Blade Installation

Out flange

Bolt

Pre-tighten by hand

LM2010E Lawn Mower

6. Turn the blade by hand to align the holes in blade with the through holes in the inner flange(Fig. 1).

7. Place a metal rod (e.g. a thin bit) with a diameter less than 6.35mm into the aligning holes to act as

a stabilizer. Place another metal rod (e.g. a thick bit) with a diameter less than 11mm into the fixing

hole on the deck to act as another stabilizer(Fig. 2).

8. Use a torque wrench(S=14mm) to tighten the bolt clockwise. The recommended torque for the

blade bolt is 50±5N·m.

2. Blade Installation

Stabilizer 2

Stabilizer 1

Tighten

Align the hole

THE END

LM2010E Lawn Mower

REPAIR GUIDELINE

PART 2: Side Discharge Door Replacement_LM2010E Lawn Mower
