Elation FUZE SPOT Bedienungsanleitung

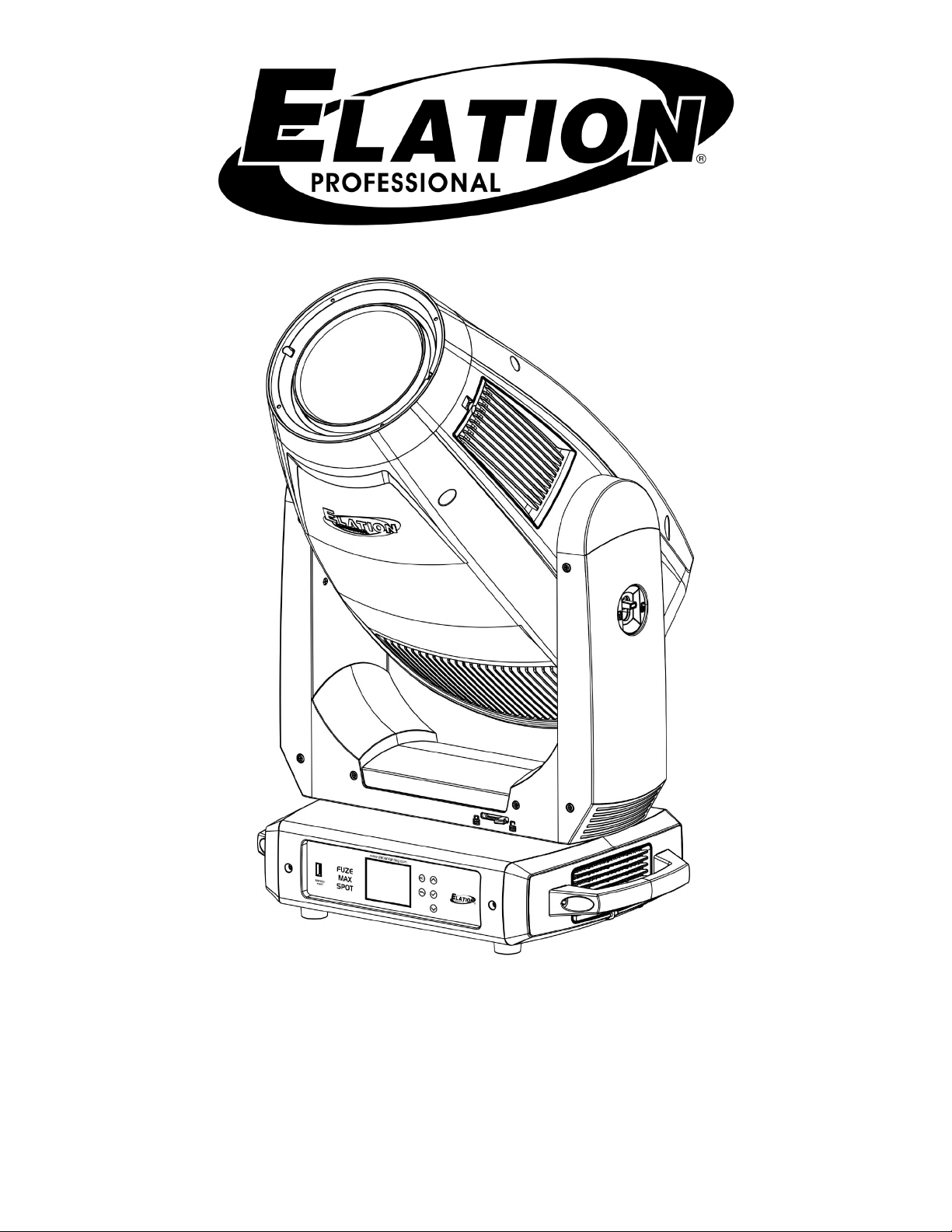

FUZE MAX SPOT

user manual

instructions herein are subject to change without notice. ELATION PROFESSIONAL logo and identifying

product names and numbers herein are trademarks of ELATION PROFESSIONAL. Copyright protection

claimed includes all forms and matters of copyrightable materials and information now allowed by

statutory or judicial law or hereinafter granted. Product names used in this document may be trademarks

or registered trademarks of their respective companies and are hereby acknowledged. All non-ELATION

brands and product names are trademarks or registered trademarks of their respective companies.

ELATION PROFESSIONAL and all a󰤳liated companies hereby disclaim any and all liabilities for property,

equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic

loss associated with the use or reliance of any information contained within this document, and/or as a

result of the improper, unsafe, insu󰤳cient and negligent assembly, installation, rigging, and operation

of this product.

Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040

323-582-3322 | 323-832-9142 fax | www.elationlighting.com | info@elationlighting.com

Elation Professional B.V. | Junostraat 2 | 6468 EW Kerkrade, The Netherlands

+31 45 546 85 66 | +31 45 546 85 96 fax | www.elationlighting.eu | info@elationlighting.eu

Elation Professional Mexico | AV Santa Ana 30 | Parque Industrial Lerma, Lerma, Mexico 52000

+52 (728) 282-7070

DOCUMENT VERSION

Due to additional product features and/or enhancements, an updated version of this

document may be available online. Please scan the QR Code with your mobile device or

visit www.elationlighting.com for the latest revision/update of this manual, before

installation and/or programming.

Date Document

Version SoftwareVersion ≥ DMX Channel Modes Notes

01/31/2022 1.0 1.0.0 34/44/32/40 Initial Release

General Information 4

Warranty Returns (USA Only) 5

Safety Guidelines 6

Maintenance Guidelines 8

Overview 9

Colors Temperature Table 10

Virtual Gel Swatch Book Table 10

Gobos & Gobo Wheels 11

Gobo Installation

Rotating Gobo Wheel 1

Fixed Gobo Wheel 12

Gobo Dimensions 14

Fan Modes and Low Noise Operation 15

Snoot Installation 16

Installation Guidelines 17

System Menu 21

Dimmer Mode 24

DMX Channel Functions and Values 25

RDM Codes 31

Error Codes 32

Speci󰤱cations 33

Optional Accessories 36

CONTENTS

GENERAL INFORMATION

INTRODUCTION

Please read and understand the instructions in this manual carefully and thoroughly before

attempting to operate this device. These instructions contain important safety and use

information. For professional use only.

IP65 RATED

An IP rated lighting 󰤱xture is one, which is commonly installed in outdoor environments and

has been designed with an enclosure that e󰤰ectively protects the ingress (entry) of external

foreign objects such as dust and water. The International Protection (IP) rating system is

commonly expressed as "IP" (Ingress Protection) followed by two numbers (i.e. IP65) where the

numbers de󰤱ne the degree of protection. The 󰤱rst digit (Foreign Bodies Protection) indicates

the extent of protection against particles entering the 󰤱xture and the second digit (Water

Protection) indicates the extent of protection against water entering the 󰤱xture. An IP65

rated lighting 󰤱xture is one, which has been designed and tested to protect against the ingress

of dust (6) and low-pressure water jets from any direction (5).

COOLING

After usage, the lamp may be switched o󰤰, but the 󰤱xture should remain connected to power

in order to allow the fan time to cool down the 󰤱xture.

UNPACKING

Every device has been thoroughly tested and has been shipped in perfect operating condition.

Carefully check the shipping carton for damage that may have occurred during shipping. If

the carton is damaged, carefully inspect the device for damage, and be sure all accessories

necessary to install and operate the device have arrived intact. In the event damage has been

found or parts are missing, please contact our customer support team for further instructions.

Please do not return this device to your dealer without 󰤱rst contacting customer support.

Please do not discard the shipping carton in the trash. Please recycle whenever possible.

BOX CONTENTS

Omega Brackets (x2)

IP65 Rated Twist-Lock Power Cable

CUSTOMER SUPPORT

Contact ELATION Service for any product related service and support needs.

Also visit forums.elationlighting.com with questions, comments or suggestions.

ELATION SERVICE USA - Monday - Friday 8:00am to 4:30pm PST

323-582-3322 | Fax 323-832-9142 | support@elationlighting.com

ELATION SERVICE EUROPE - Monday - Friday 08:30 to 17:00 CET

+31 45 546 85 63 | Fax +31 45 546 85 96 | support@elationlighting.eu

REPLACEMENT PARTS please visit parts.elationlighting.com

WARRANTY RETURNS (USA ONLY)

To obtain warranty service, a Return Materials Authorization (RMA) number must 󰤱rst

be obtained from ELATION. It is the Customer’s responsibility to provide product proof of

purchase and serial number by acceptable evidence such as an invoice copy or an approved

ELATION Extended Warranty Certi󰤱cate (“EWC”) and any relevant maintenance records at the

time warranty service is sought. Failure to provide acceptable evidence of product proof of

purchase or EWC and any relevant maintenance records may be cause for denial of warranty

service.

Products returned for warranty service must be sent without any accessories (i.e., power, data,

and safety cables, brackets, clamps, rigging hardware, frost 󰤱lters, gel frames, barn doors,

lens, hoses, nozzles, rack mounting hardware, etc.), must be boxed using the original and/or

suitable packaging materials (double-box and foam) that provides ample product protection

for ground and/or air freight transit, and must be shipped freight pre-paid and insured to

ELATION in Los Angeles, CA or an ELATION Authorized Service Center. The RMA number must

be clearly written on the outside of the return box, and a brief description of the problem and

the RMA number must be documented and included in the box.

Products returned for warranty service without an RMA number clearly marked on the outside

of the package will be refused and returned to the shipper at the Customer’s expense. Products

returned for warranty service, which are received damaged due to inadequate and/or improper

packaging and/or due to damage caused by shipping carrier, may incur additional repair charges

before warranty service begins and/or may void this warranty. If any product accessories

(included and/or optional) are shipped with the product, ELATION and/or the ELATION

Authorized Service Center shall have no liability what so ever for the loss and/or damage to

any such accessories, nor the safe return thereof. If the requested warranty repairs or service

(including parts replacement) are within the terms of this warranty, ELATION will pay return

ground transportation shipping charges to a single designated point within the United States.

SAFETY GUIDELINES

This 󰤱xture is a sophisticated piece of electronic equipment. To guarantee a smooth operation,

it is important to follow all instructions and guidelines in this manual. Elation Professional is

not responsible for injury and/or damages resulting from the misuse of this 󰤱xture due to the

disregard of the information printed in this manual. Only quali󰤱ed and/or certi󰤱ed personnel

should perform installation of this 󰤱xture and only the original rigging parts (omega brackets)

included with this 󰤱xture should be used for installation. Any modi󰤱cations to the 󰤱xture and/

or the included mounting hardware will void the original manufactures warranty and increase

the risk of damage and/or personal injury.

PROTECTION CLASS 1 - FIXTURE MUST BE PROPERLY GROUNDED.

THERE ARE NO USER SERVICEABLE PARTS INSIDE THIS UNIT.

DO NOT ATTEMPT ANY REPAIRS YOURSELF; DOING SO WILL VOID YOUR

MANUFACTURER’S WARRANTY. DAMAGES RESULTING FROM MODIFICATIONS

TO THIS FIXTURE AND/OR THE DISREGARD OF SAFETY INSTRUCTIONS AND

GUIDELINES IN THIS MANUAL VOID THE MANUFACTURE’S WARRANTY AND

ARE NOT SUBJECT TO ANY WARRANTY CLAIMS AND/OR REPAIRS.

DO NOT PLUG FIXTURE INTO A DIMMER PACK!

NEVER OPEN THIS FIXTURE WHILE IN USE!

UNPLUG POWER BEFORE SERVICING FIXTURE!

NEVER TOUCH FIXTURE DURING OPERATION, AS IT MAY BE HOT!

KEEP FLAMMABLE MATERIALS AWAY FROM FIXTURE!

NEVER LOOK DIRECTLY INTO THE LIGHT SOURCE!

RETINA INJURY RISK - MAY INDUCE BLINDNESS!

SENSITIVE PERSONS MAY SUFFER AN EPILEPTIC SHOCK!

INDOOR / DRY LOCATIONS USE ONLY!

DO NOT EXPOSE FIXTURE TO RAIN AND MOISTURE!

MINIMUM DISTANCE TO OBJECTS/SURFACES

MUST BE 65.6 FEET (20 METERS)

MAXIMUM TEMP OF EXTERNAL SURFACE 185° F (85°C)

MINIMUM DISTANCE OF INFLAMMABLE MATERIALS

FROM THE SURFACE 1.6 FEET (0.5 METER)

RISK GROUP 3 - RISK OF EXPOSURE TO ULTRAVIOLET UV

RADIATION! FIXTURE EMITS HIGH INTENSITY WAVELENGTH

OF ULTRAVIOLET UV LIGHT FROM THE UV COLOR FILTER.

WEAR PROPER EYE AND SKIN PROTECTION. AVOID

PROLONGED PERIODS OF EXPOSURE TO UV COLOR FILTER.

AVOID WEARING WHITE COLOR CLOTHING AND/OR USING UV

PAINTS ON SKIN. AVOID DIRECT EYE AND/OR SKIN EXPOSURE

AT DISTANCES LESS THAN 65.6 feet (20m). DO NOT OPERATE

FIXTURE WITH DAMAGED/MISSING EXTERNAL COVERS. DO

NOT LOOK DIRECTLY INTO THE UV LIGHT AND/OR VIEW UV

LIGHT DIRECTLY WITH OPTICAL INSTRUMENTS THAT MAY

CONCENTRATE THE LIGHT/RADIATION OUTPUT. INDIVIDUALS

SUFFERING FROM A RANGE OF EYE CONDITIONS, SUNLIGHT

EXPOSURE DISORDERS, OR INDIVIDUALS USING PHOTOSENSITIVE MEDICATION, MAY RECEIVE

DISCOMFORT IF EXPOSED TO THE ULTRAVIOLET UV LIGHT EMITTED FROM THE UV LED.

DO NOT TOUCH the 󰤱xture housing during operation. Turn OFF the power and allow approximately

15 minutes for the 󰤱xture to cool down before serving.

DO NOT shake 󰤱xture, avoid brute force when installing and/or operating 󰤱xture.

DO NOT operate 󰤱xture if the power cord is frayed, crimped, damaged and/or if any of the power

cord connectors are damaged and do not insert into the 󰤱xture securely with ease. NEVER force

a power cord connector into the 󰤱xture. If the power cord or any of its connectors are damaged,

replace it immediately with a new one of similar power rating.

DO NOT block any air ventilation slots.

All fan and air inlets must remain clean and never blocked.

Allow approx. 6” (15cm) between 󰤱xture and other devices or a wall for proper cooling.

Always disconnect 󰤱xture from main power source before performing any type of service and/or

cleaning procedure. Only handle the power cord by the plug end, never pull out the plug by tugging

the wire portion of the cord.

During the initial operation of this 󰤱xture, a light smoke or smell may emit from the interior of the

󰤱xture. This is a normal process and is caused by excess paint in the interior of the casing burning

o󰤰 from the heat associated with the lamp and will decrease gradually over time.

Consistent operational breaks will ensure 󰤱xture will function properly for many years.

ONLY use the original packaging and materials to transport the 󰤱xture in for service.

SAFETY GUIDELINES

MAINTENANCE GUIDELINES

DISCONNECT POWER BEFORE PERFORMING ANY MAINTENANCE!

CLEANING

Frequent cleaning is recommended to insure proper function, optimized light output, and an

extended life. The frequency of cleaning depends on the environment in which the 󰤱xture

operates: damp, smoky or particularly dirty environments can cause greater accumulation

of dirt on the 󰤱xture’s optics. Clean the external lens surface at least every 20 days with

a soft cloth to avoid dirt/debris accumulation.

NEVER use alcohol, solvents, or ammonia-based cleaners.

MAINTENANCE

Regular inspections are recommended to insure proper function and extended life.

There are no user serviceable parts inside this 󰤱xture, please refer all other service issues

to an authorized Elation service technician. Should you need any spare parts, please order

genuine parts from an authorized Elation dealer.

Please refer to the following points during routine inspections:

A detailed electric check by an approved electrical engineer every three months, to make

sure the circuit contacts are in good condition and prevent overheating.

Be sure all screws and fasteners are securely tightened at all times. Lose screws may fall

out during normal operation resulting in damage or injury as larger parts could fall.

Check for any deformations on the housing, color lenses, rigging hardware and rigging

points (ceiling, suspension, trussing). Deformations in the housing could allow for dust to

enter into the 󰤱xture. Damaged rigging points or unsecured rigging could cause the 󰤱xture

to fall and seriously injure a person(s).

Electric power supply cables must not show any damage, material fatigue or sediments.

NEVER remove the ground prong from the power cable.

FIXTURE DISASSEMBLY

The following points should be observed after performing any maintenance procedure that

requires disassembly of the unit:

• After the unit has been reassembled, open the valve, and allow the light to run for

approximately 2 hours in order to dry out any moisture that has been trapped inside the

󰤱xture. The process should continue until indicated humidity drops below 15% for the

head and 30% for the base.

• Once this has been achieved, the light can be switched o󰤰, but the unit should remain

connected to power so that the cooling fan can cool down the unit. Please note that

allowing cool down time should ALWAYS be done after lamp operation.

• Some units may require partial disassembly in order to gain access to the valve. Please

contact Elation service for information regarding the location and access procedure for

the valve on your speci󰤱c unit model.

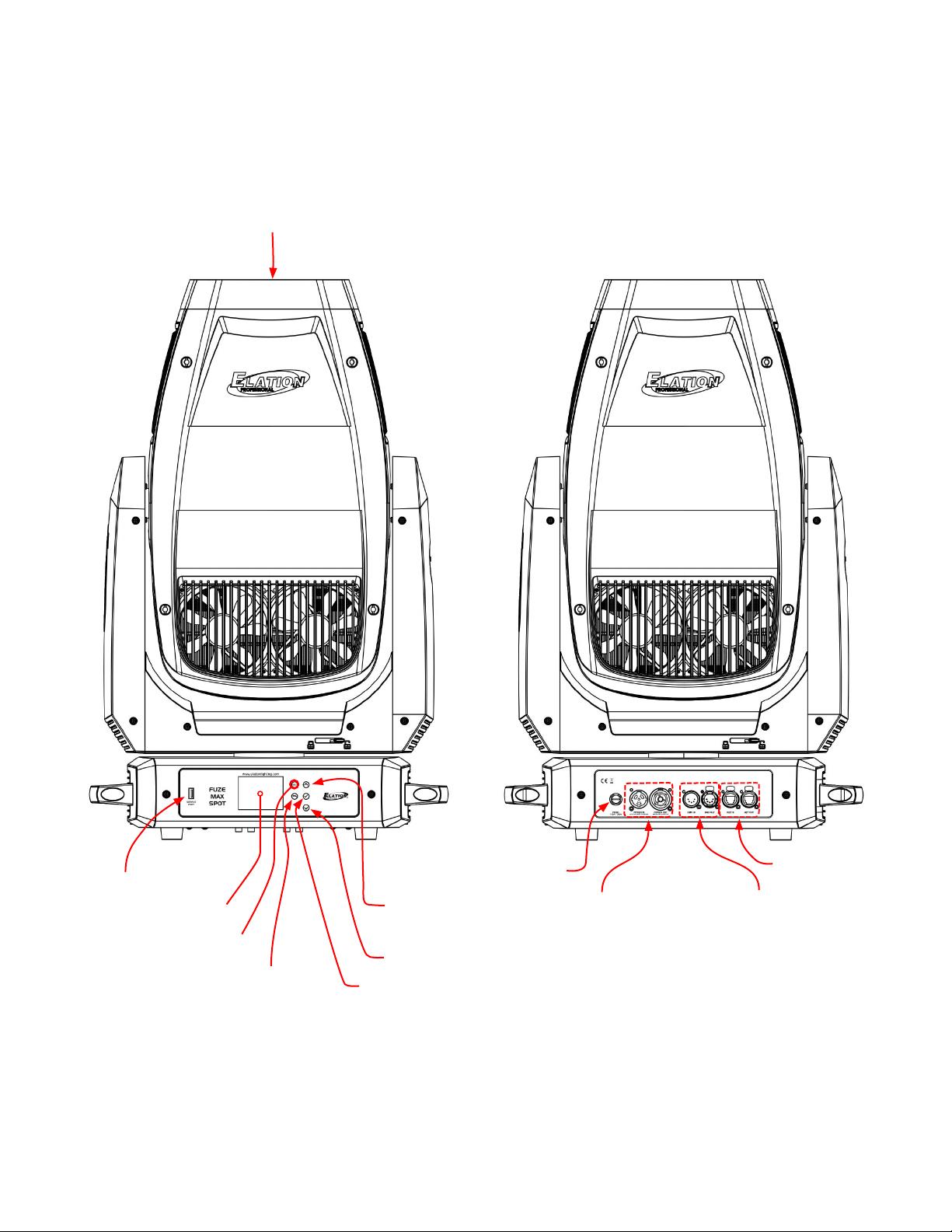

OVERVIEW

UP Button

ENTER Button

LCD Control Display Locking 5-Pin DMX

In/Out

LENS

Service Port

Power Connector

In/Out

DOWN Button

MENU Button

Fuse: T15A / 250V

Battery Level

RJ45 In/Out

COLORS

Colors Color Temperature Green Shift

Cyan

2700K – 8500K

Full Minus Green to

Neutral

Magenta

Yellow

Red Neutral White

Green

Blue

Neutral to Full Plus GreenMint

Amber

VIRTUAL GEL SWATCH BOOK COLORS

Value Filter

Number Name Value Filter

Number Name

1 7 Pale Yellow 21 157 Pink 41 68 Sky Blue

2 103 Straw 22 36 Medium Pink 42 143 Pale Navy Blue

3 151 Gold Tint 23 111 Dark Pink 43 131 Marine Blue

4 100 Spring Yellow 24 128 Bright Pink 44 115 Peacock Blue

5 10 Medium Yellow 25 148 Bright Rose 45 172 Lagoon Blue

6 101 Yellow 26 332 Special Rose Pink 46 116 Medium Blue Green

7 104 Deep Amber 27 793 Vanity Fair 47 90 Dark Yellow Green

8 15 Deep Straw 28 113 Magenta 48 139 Primary Green

9 179 Loving Amber 29 46 Dark Magenta 49 122 Fern Green

10 21 Gold Amber 30 48 Rose Purple 50 89 Moss Green

11 105 Orange 31 126 Mauve 51 124 Dark Green

12 158 Deep Orange 32 49 Medium Purple 52 88 Lime Green

13 22 Dark Amber 33 58 Lavender 53 138 Pale Green

14 778 Millennium Gold 34 199 Palace Blue 54 203 Quarter CT Blue

15 135

Deep Golden Amber

35 119 Dark Blue 55 202 Half CT Blue

16 24 Scarlet 36 132 Medium Blue 56 201 FULL CT Blue

17 106 Primary Red 37 120 Deep Blue 57 200 Double CT Blue

18 26 Bright Red 38 165 Daylight Blue 58 206 Quarter CT Orange

19 27 Medium Red 39 161 Slate Blue 59 205 Half CT Orange

20 19 Fire 40 118 Light Blue 60 204 FULL CT Orange

Andere Handbücher für FUZE SPOT

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Elation DJ-Equipment Handbücher

Elation

Elation Flex LED Tape WP Bedienungsanleitung

Elation

Elation EPV762 MH Bedienungsanleitung

Elation

Elation SNIPER PRO Bedienungsanleitung

Elation

Elation Elation Fuze Wash 500 WH Bedienungsanleitung

Elation

Elation CYBER PAK Bedienungsanleitung

Elation

Elation KL FRESNEL 8 FC Bedienungsanleitung

Elation

Elation KL FRESNEL 8 Bedienungsanleitung

Elation

Elation TVL551 Bedienungsanleitung

Elation

Elation KL PROFILE FC KLP412 Bedienungsanleitung

Elation

Elation DMX Operator 192 Bedienungsanleitung

Elation

Elation IMAGE PRO 300 Bedienungsanleitung

Elation

Elation SIXPAR 300 Bedienungsanleitung

Elation

Elation PROTEUS RAYZOR 760 WMG Bedienungsanleitung

Elation

Elation SMARTY MAX Bedienungsanleitung

Elation

Elation DESIGN SPOT 575E Bedienungsanleitung

Elation

Elation IP GOBO ROTATOR Bedienungsanleitung

Elation

Elation Proteus Lucius Bedienungsanleitung

Elation

Elation PLATINUM SEVEN Bedienungsanleitung

Elation

Elation ARISTE MONET EAM990 Bedienungsanleitung

Elation

Elation PROTEUS RAYZOR 760 Bedienungsanleitung

Elation

Elation DTW BLINDER 350 IP Bedienungsanleitung

Elation

Elation KLF846 Bedienungsanleitung

Elation

Elation Elation Professionals T20F Bedienungsanleitung

Elation

Elation DP-DMX20L Bedienungsanleitung

Beliebte DJ-Equipment Handbücher anderer Marken

ALPHA LITE

ALPHA LITE ALPHA 1500 Betriebsanleitung

Chauvet

Chauvet OVATION E-930VW Bedienungsanleitung

Zumtobel

Zumtobel APHRODITE Home Bedienungsanleitung

Snow Masters

Snow Masters Zig Oscillator Bedienungsanleitung

EuroLite

EuroLite 50530554 Bedienungsanleitung

Beamz

Beamz BUV243 Bedienungsanleitung

thomann

thomann Stairville DJ Lase 40-G MK-III Bedienungsanleitung

Eagletone

Eagletone 6 Eyes Flower Bedienungsanleitung

EuroLite

EuroLite FLD-1508 Bedienungsanleitung

Technical Pro

Technical Pro LG8xSEA Bedienungsanleitung

JB Systems

JB Systems Lounge Laser DMX Bedienungsanleitung

Lightmaxx

Lightmaxx Vega Halo 90 Bedienungsanleitung

Maverick

Maverick MK3 WASH Bedienungsanleitung

Infinity

Infinity TF-260C7 Fresnel Bedienungsanleitung

Chauvet

Chauvet EVE E-50Z Bedienungsanleitung

Eliminator Lighting

Eliminator Lighting E 138 Bedienungsanleitung

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Bedienungsanleitung

KAM

KAM DMX Laser80 FScan Bedienungsanleitung
