The Design LED 36 Brick (DLED 36 Brick) by Elation Professional is a high output, compact (ﬁts in 12” box truss),

LED color changer featuring seamless RGB color mixing using 12 x 3W LEDs by Soul Semi Conductor, 36 Watts

total - 4 Red, 4 Blue and 4 Green. This unit is convection cooled and provides up to 100,000 hours estimated

LED life. The DLED 36 Brick is rated at IP 20, designed for indoor applications only and is fully operational in 3

mounting positions. The DLED 36 Brick includes a dual yoke mounting bracket for ﬁxed installation or can be

used as a split bracket for ﬂoor standing and separated for mounting multiple units together in a line for linear

strip design. The unit can be operated from 100~240V (electronic switching power supply) and is AC linkable

with IEC in/out connectors. Control data input is via 3 pin or 5 pin DMX data ﬁrst in and out connector cables.

The DLED 36 Brick also features low power consumption, minimal heat emission and ﬂicker-free operation for

television and ﬁlm. The unit also features an on board 4 button control menu with 4 digit LED display for setting

control address, modes, manual or auto programs. The unit comes ﬁtted standard with a 25° lens kit producing

a 14° beam angle and a 26° ﬁeld angle. Optional 45° lens kit producing a 15° beam angle and a 30° ﬁeld

angle is available.

FEATURES

• LED color changer

• 12 x 3W LEDs, 36 Watts total - 4 Red, 4 Blue

and 4 Green

• Seamless RGB color changing

• Standard 25° lens kit: 14° beam angle, 26° eld angle

• Optional 45° lens kit: 15° beam angle, 30° eld angle

• 548 LUX @ 3 meters @ Full

• Rated IP 20

• Compact Design (ts in 12” box truss)

• Convection cooled

• Electronic ballast, multi-voltage

• IEC Power in/out

• Built-in Power Supply and DMX 512 Control

• Linkable power supply (in & out power connectors) up to 8 units

• LED display

• Standard and theatrical modes

• Flicker free operation

• Master/ Slave auto program and music trigger

• 8 built-in programs with Speed control

• Control each L.E.D. independently

TECHNICAL SPECIFICATIONS

• DMX Channels: 3, 4, 6, 12 or 15 channel

operation modes

• Control: USITT DMX-512, 3-pin and 5-Pin XLR serial input/output

• Dimmer: Continuous dimming 0-100%

• Strobe: Electronic strobe effect (25 fps)

• IP Rating: IP20

• Power Supply: Electronic switching power supply:

100~240V AC, 50/60Hz

• Power Consumption: 58.6W

• Fuse: GMA 220v~2A

• Lamp: 12 x 3 Watt led’s by Seoul Semi Conductor

36-Watt Total (4 x Red, 4 x Green 4 x Blue)

• Lamp life: Long Life L.E.D. (rated at 100,000 Hours)

• Dimensions: (LxWxH): 16.3” x 8.7” x 3.1” /

415 x 220.98 x 78.74mm

• Weight: 9 lbs. / 4.1 kgs.

• Rigging: Mounting bracket and safety eye-hook

installed. Safety cable & 3-pin data cable included

Design LED 36 Brick Dimensions

3.15” / 80mm

16.3” / 414.5mm

6.1” / 155.5mm

8.6” / 219.5mm

14.3” / 362.5mm

13.1” / 332.5mm

Design LED 36 Brick

©Elation Professional • Elation Professional 6122 S. Eastern Ave. Los Angeles, Ca 90040

www.ElationLighting.com • Toll Free (866) 245-6726

COLORS

• 12 x 3 Watt led’s by Seoul Semi Conductor

36-Watt Total (4 x Red, 4 x Green 4 x Blue)

• Seamless RGB color mixing

• Innite Color possibilities

PHOTOMETRICS

DLED 36 Brick

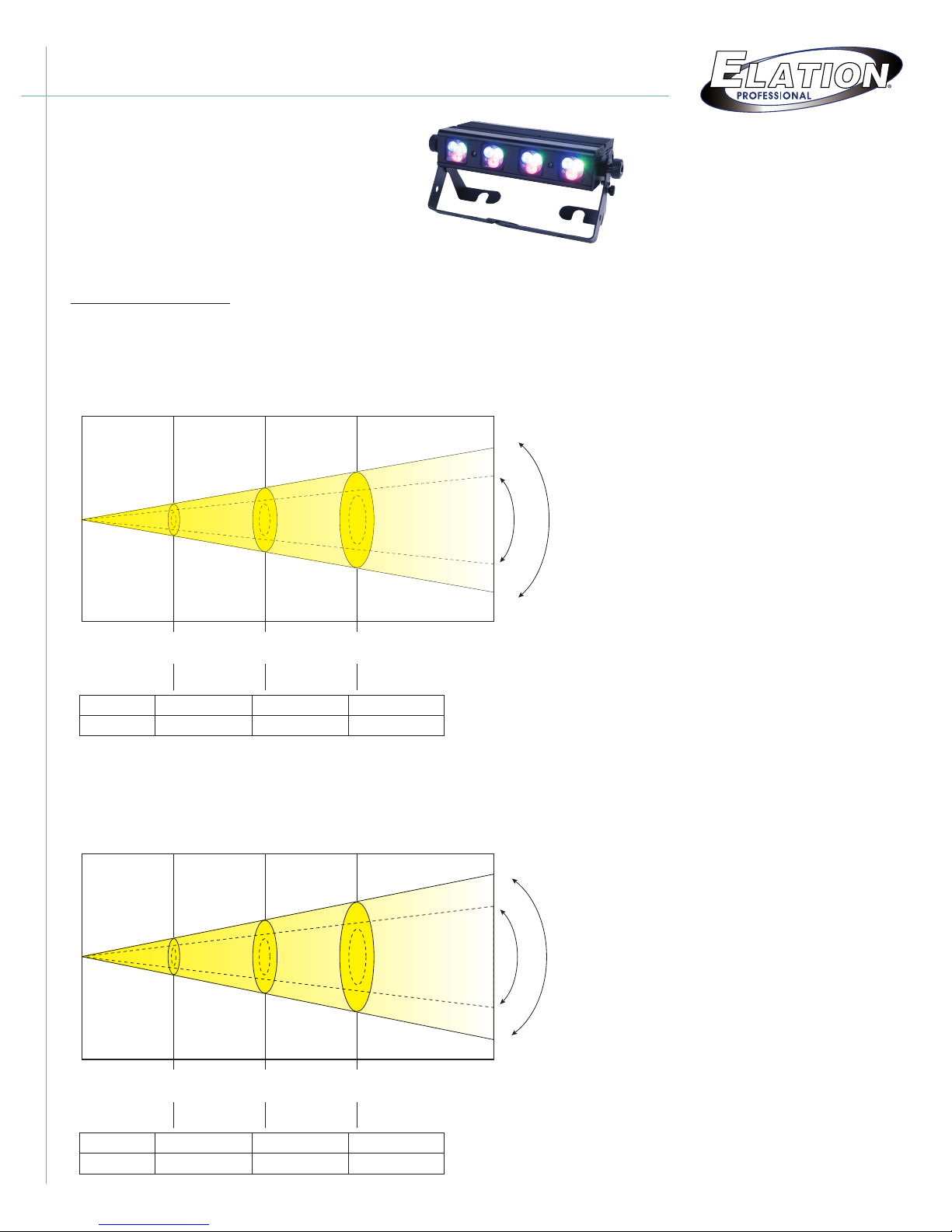

Photometric Beam Angle Data

Standard 25° Lens Kit: 14° Beam Angle / 26° Field Angle

LUX x0.0929 = FC

0 m

0 ft 1 m

3.28 ft

3 m

9.84 ft

2 m

6.56 ft

R (4)

G (4)

B (4)

Full (12)

130 FC / 1,394 LUX

245 FC / 2,635 LUX

44 FC / 470 LUX

358 FC / 3,850 LUX

40 FC / 430 LUX

77 FC / 827 LUX

14 FC / 154 LUX

110 FC / 1,182 LUX

19 FC / 202 LUX

36 FC / 387 LUX

9 FC / 95 LUX

51 FC / 548 LUX

Beam Diameter

Ø 0.25 m / Ø 0.82 ft Ø 0.50 m / Ø 1.64 ft Ø 0.75 m / Ø 2.50 ft

14° Beam Angle

Ø 0.47 m / Ø 1.54 ft Ø 0.94 m / Ø 3.08 ft Ø 1.41 m / Ø 4.63 ft

26° Field Angle

14° Beam Angle

Optional 45° Lens Kit: 15° Beam Angle / 30° Field Angle

LUX x0.0929 = FC

0 m

0 ft

R (4)

G (4)

B (4)

Full (12)

104 FC / 1,119 LUX

230 FC / 2,466 LUX

41 FC / 440 LUX

331 FC / 3,570 LUX

34 FC / 362 LUX

68 FC / 727 LUX

14 FC / 148 LUX

98 FC / 1,059 LUX

17 FC / 180 LUX

32 FC / 340 LUX

7 FC / 78 LUX

49 FC / 524 LUX

Beam Diameter

Ø 0.26 m / Ø 0.85 ft Ø 0.52 m / Ø 1.71 ft Ø 0.78 m / Ø 2.56 ft

15° Beam Angle

Ø 0.53 m / Ø 1.74 ft Ø 1.06 m / Ø 3.50 ft Ø 1.59 m / Ø 5.21 ft

30° Field Angle

15° Beam Angle

1 m

3.28 ft

3 m

9.84 ft

2 m

6.56 ft

DLED 36 Brick

Photometric Beam Angle Data

Standard 25° Lens Kit: 14° Beam Angle / 26° Field Angle

LUX x0.0929 = FC

0 m

0 ft 1 m

3.28 ft

3 m

9.84 ft

2 m

6.56 ft

R (4)

G (4)

B (4)

Full (12)

130 FC / 1,394 LUX

245 FC / 2,635 LUX

44 FC / 470 LUX

358 FC / 3,850 LUX

40 FC / 430 LUX

77 FC / 827 LUX

14 FC / 154 LUX

110 FC / 1,182 LUX

19 FC / 202 LUX

36 FC / 387 LUX

9 FC / 95 LUX

51 FC / 548 LUX

Beam Diameter

Ø 0.25 m / Ø 0.82 ft Ø 0.50 m / Ø 1.64 ft Ø 0.75 m / Ø 2.50 ft

14° Beam Angle

Ø 0.47 m / Ø 1.54 ft Ø 0.94 m / Ø 3.08 ft Ø 1.41 m / Ø 4.63 ft

26° Field Angle

14° Beam Angle

Optional 45° Lens Kit: 15° Beam Angle / 30° Field Angle

LUX x0.0929 = FC

0 m

0 ft

R (4)

G (4)

B (4)

Full (12)

104 FC / 1,119 LUX

230 FC / 2,466 LUX

41 FC / 440 LUX

331 FC / 3,570 LUX

34 FC / 362 LUX

68 FC / 727 LUX

14 FC / 148 LUX

98 FC / 1,059 LUX

17 FC / 180 LUX

32 FC / 340 LUX

7 FC / 78 LUX

49 FC / 524 LUX

Beam Diameter

Ø 0.26 m / Ø 0.85 ft Ø 0.52 m / Ø 1.71 ft Ø 0.78 m / Ø 2.56 ft

15° Beam Angle

Ø 0.53 m / Ø 1.74 ft Ø 1.06 m / Ø 3.50 ft Ø 1.59 m / Ø 5.21 ft

30° Field Angle

15° Beam Angle

1 m

3.28 ft

3 m

9.84 ft

2 m

6.56 ft

Design LED 36 Brick

©Elation Professional • Elation Professional 6122 S. Eastern Ave. Los Angeles, Ca 90040

www.ElationLighting.com • Toll Free (866) 245-6726

DMX TRAITS

3 Channel Mode (default):

Channel Value Function

1 0 - 255 Red (

0 - black, 255 - 100% red

)

2 0 - 255 Green (

0 - black, 255 - 100% green

)

3 0 - 255 Blue (0 - black, 255 - 100% blue

)

4 Channel Mode:

Channel Value Function

1 0 - 255 Red (

0 - black, 255 - 100% red

)

2 0 - 255 Green (

0 - black, 255 - 100% green

)

3 0 - 255 Blue (0 - black, 255 - 100% blue

)

4 0 - 255 Dimmer/Speed

6 Channel Mode:

Channel Value Function

1 0 - 255 Red (

0 - black, 255 - 100% red

)

2 0 - 255 Green (

0 - black, 255 - 100% green

)

3 0 - 255 Blue (0 - black, 255 - 100% blue

)

4 0 - 255 Internal programs

5 0 - 255 Strobe

6 0 - 255 Dimmer/Speed

12 Channel Mode:

Channel Value Function

1 0 - 255 Red (

0 - black, 255 - 100% red

)

2 0 - 255 Green (

0 - black, 255 - 100% green

)

3 0 - 255 Blue (0 - black, 255 - 100% blue

)

4 0 - 255 Red (

0 - black, 255 - 100% red

)

5 0 - 255 Green (

0 - black, 255 - 100% green

)

6 0 - 255 Blue (0 - black, 255 - 100% blue

)

7 0 - 255 Red (

0 - black, 255 - 100% red

)

8 0 - 255 Green (

0 - black, 255 - 100% green

)

9 0 - 255 Blue (0 - black, 255 - 100% blue

)

10 0 - 255 Red (

0 - black, 255 - 100% red

)

11 0 - 255 Green (

0 - black, 255 - 100% green

)

12 0 - 255 Blue (0 - black, 255 - 100% blue

)

15 Channel Mode:

Channel Value Function

1 0 - 255 Red (

0 - black, 255 - 100% red

)

2 0 - 255 Green (

0 - black, 255 - 100% green

)

3 0 - 255 Blue (0 - black, 255 - 100% blue

)

4 0 - 255 Red (

0 - black, 255 - 100% red

)

5 0 - 255 Green (

0 - black, 255 - 100% green

)

6 0 - 255 Blue (0 - black, 255 - 100% blue

)

7 0 - 255 Red (

0 - black, 255 - 100% red

)

8 0 - 255 Green (

0 - black, 255 - 100% green

)

9 0 - 255 Blue (0 - black, 255 - 100% blue

)

10 0 - 255 Red (

0 - black, 255 - 100% red

)

11 0 - 255 Green (

0 - black, 255 - 100% green

)

12 0 - 255 Blue (0 - black, 255 - 100% blue

)

13 0 - 255 Internal Programs

14 0 - 255 Strobe

15 0 - 255 Dimmer/Speed
