Elation DLED STRIP RGBAW Bedienungsanleitung

DLED STRIP RGBAW

Elation Professional™

6122 S. Eastern Ave.

Los Angeles, Ca 90040

www.elationlighting.com

Rev. 01/18/2011 – visage Version 1.0

DLED STRIP RGBAW ™

©Elation Professional, Los Angeles Ca. 2 www.ElationLighting.com

TABLE OF CONTENTS

1. General Information……………………………………………………………………… 3

a. Introduction………………………………………………………………………. 3

b. Unpacking………………………………………………………..…………..… 3

c. Customer Support…………………………………………….………………… 3

d. Warranty Registration……………………………………………………..…… 4

2. Safety Instructions………………………………………………………........…………. 5

3. Features……………………………………………………………………………………7

4. General Guidelines………………………………………………………………………. 8

5. Fixture Overview…………………………………………………………………………. 9

6. Mounting and Installation………………………………………………………….……. 11

7. Understanding DMX……………………………………………………………………... 14

a. DMX Cables……..………………………………………………………………. 14

b. DMX Terminator…………………………………………………………………. 16

c. 3-Pin to 5-Pin Conversion……………………………………………………….17

d. Fixture DMX Addressing.………………………..………………………………17

8. Display Indicators….……………………………………………………..……………… 19

9. Display Menu….……………………………………………………..……………………20

10. DMX Addressing…………………………………………………….…………………… 28

a. Remote DMX Addressing (RDMX)……………………………………………. 28

11. DMX Traits…………………………………………………………………………………30

12. Working with Built-In programs………………………………………………………….40

13. User manual of RF controller…………………………………………………………. 43

14. Lens Replacement………………………………………………………………….…….45

15. Cleaning and Maintenance………………………………………………………………46

16. Warranty…………………………………………………………………………………... 47

17. Photometric Data………………………………………………………………………… 49

18. Dimensional Drawings………………………………………………….……………….. 50

19. Circuit Schematic………...……………………………………………………………….51

20. Technical Specifications…………………………………………...………….………… 52

DLED STRIP RGBAW ™

©Elation Professional, Los Angeles Ca. 3 www.ElationLighting.com

1. GENERAL INFORMATION

INTRODUCTION: Congratulations, you have just purchased one of the most innovative and

reliable LED fixtures on the market today! The DLED STRIP RGBAW™ has been designed

to perform reliably for years when the guidelines in this booklet are followed. Please read

and understand the instructions in this manual carefully and thoroughly before attempting to

operate this unit. These instructions contain important information regarding safety during

use and maintenance.

UNPACKING: Thank you for purchasing the DLED STRIP RGBAW™ by Elation

Professional®. Every DLED STRIP RGBAW™ has been thoroughly tested and has been

shipped in perfect operating condition. Carefully check the shipping carton for damage that

may have occurred during shipping. If the carton appears to be damaged, carefully inspect

your fixture for damage and be sure all accessories necessary to operate the fixture have

arrived intact. In the event damage has been found or parts are missing, please contact our

customer support team for further instructions. Inside the box you should find: the fixture, a

DMX XLR cable, a safety cable, and this manual. Please do not return this unit to your

dealer without first contacting customer support at the number listed below.

RF Controller is the optional accessories, please purchase from your local dealer if

needed.

CUSTOMER SUPPORT: Elation Professional®provides a customer support line, to provide

set up help and to answer any question should you encounter problems during your set up

or initial operation. You may also visit us on the web at www.elationlighting.com for any

comments or suggestions. For service related issue please contact Elation Professional®.

Service Hours are Monday through Friday 9:00 a.m. to 5:00 p.m. Pacific Standard Time.

Voice: (323) 582-3322

Fax: (323) 832-9142

E-mail: [email protected]

Forum: www.ElationLighting.com/forum

Warning! To prevent the risk of fire and reduce the risk electrical shock, do not attempt to

DLED STRIP RGBAW ™

©Elation Professional, Los Angeles Ca. 4 www.ElationLighting.com

operate this fixture with the lens cover removed.

Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs

yourself. Doing so will void your manufactures warranty.

Please do not discard the shipping carton in the trash. Please recycle whenever possible.

WARRANTY REGISTRATION: The DLED STRIP RGBAW™ carries a two-year (730 days)

limited warranty. Please fill out the enclosed warranty card to validate your purchase. All

returned service items whether under warranty or not, must be freight pre-paid and

accompany a return authorization (R.A.) number. The R.A. number must be clearly written

on the outside of the return package. A brief description of the problem as well as the R.A.

number must also be written down on a piece of paper and included in the shipping

container. If the unit is under warranty, you must provide a copy of your proof of purchase

invoice. Items returned without a R.A. number clearly marked on the outside of the package

will be refused and returned at customer’s expense. You may obtain a R.A. number by

contacting customer support at (323) 582-3322.

DLED STRIP RGBAW ™

©Elation Professional, Los Angeles Ca. 5 www.ElationLighting.com

2. SAFETY INSTRUCTIONS

To guarantee proper and consistent operation, it is important to

follow the guidelines in this manual. Elation Professional will not

accept responsibility for damages resulting from the misuse of

this fixture due to the disregard of the information printed in this

manual.

1.Always be sure that the fan and the air inlets remain clean and are never

blocked. Allow about 6” (15cm) between this fixture and other devices or a wall

to allow for proper cooling. See page 12.

2.Never touch the fixture during normal operation.

3.Never look directly into the light source. You risk injury to your retina, which may

induce blindness.

4.For safe operation, follow the Installation guide described in chapter six of this

manual. Operating the DLED STRIP RGBAW™ without suited safety aids such

as safety cables or clamps can increase the risk of damage and/or personal

injury.

5.Qualified and certified personnel should only perform installation.

6.When mounting this fixture, use only the original rigging points included with this

fixture. Any structural modification will void the original manufactures warranty

and may increase the risk of damage and/or personal injury.

7.Do not attempt to operate this fixture if the power cord has become damaged or

frayed.

8.Never open this fixture while in use.

9.This device falls under protection-class I. Therefore it is essential that the device

be grounded properly.

10.Qualified personnel should perform all electrical connections.

11.Be sure the available voltage matches the voltage requirements of the unit. Be

sure the power cord is never crimped or damaged. If the power cord is

DLED STRIP RGBAW ™

©Elation Professional, Los Angeles Ca. 6 www.ElationLighting.com

damaged, replace it immediately with a new one of similar power rating.

12.Always disconnect from main power before performing any type of service or

any cleaning procedure.

13.Only handle the power cord by the plug. Never pull out the plug by tugging the

wire portion of the cord.

14.Please be aware that damages caused by modifications to the device are

not subject to warranty.

Important Notice: Damages resulting from the disregard of safety and general user

instructions found in this user manual are not subject to any warranty claims.

DLED STRIP RGBAW ™

©Elation Professional, Los Angeles Ca. 7 www.ElationLighting.com

3. FEATURES

• Low power consumption

• Minimal heat emission

• Maintenance free operation

• Equipped with 75 1-Watt (15 x red, 15 x green, 15 x blue, 15 x white, 15 x amber)

• Silent Operation, convection cooled

• 100,000 hours rated LED life

• Linear RGBWA Color Mixing, infinite color possibilities

• 35˚ Beam Angle/62˚ Field Angle (25˚ Lens)

• USITT DMX-512 Complaint

• Preprogrammed colored macros

• Strobe-effect with a maximum flash rate of 18fps

• DMX-controlled operation or stand-alone operation with Master/Slave-function

• 8 built-in programs can be called up via DMX-controller

~ 48 preprogrammed scenes per program

• Sound-controlled via built-in microphone

• Five DMX Modes:

28 DMX channels

25 DMX channels

9 DMX channels

6 DMX channels

5 DMX channels (default)

• DMX-control via standard DMX-controller

• Upgradable firmware via Elation “E-Loader” Data Pack

• Electronic Switching Power Supply 100V~240V

• Flicker-free operation for television and film

• Compact design: fits in 12” box truss

• 0%~100% Dimming (two dimming options; linear & standard)

DLED STRIP RGBAW ™

©Elation Professional, Los Angeles Ca. 8 www.ElationLighting.com

4. GENERAL GUIDELINES

This fixture is a professional lighting effect designed for use on stage, in nightclubs, in

theatres, and other types of architectural installations. Do not attempt operation or

installation without a proper knowledge on how to do so.

Consistent operational breaks will ensure that the fixture will function properly for many

years to come.

Do not shake the fixture around. Avoid brute force when installing or operating the fixture.

While choosing an installation location, please be sure that the fixture will not be exposed to

extreme heat, moisture, or dust. The minimum distance between the fixture and a wall or

flat surface should be at least 0.1 meter (about 4ft). See page 12.

Always install the fixture with an appropriately rated safety cable. When installing the fixture

in a suspended environment always be sure to use mounting hardware no less than M10 x

25 mm, also be sure the hardware is only inserted in the yoke’s mounting holes.

Do not attempt to operate this fixture until you have familiarized yourself with all of its

functions.

Do not permit operation by persons not qualified for operating this type of architectural

fixture. Most damages are the result of improper operation.

Please use the original packaging to transport the fixture in for service.

For your own safety, please read this user manual carefully before installing the device.

DLED STRIP RGBAW ™

©Elation Professional, Los Angeles Ca. 9 www.ElationLighting.com

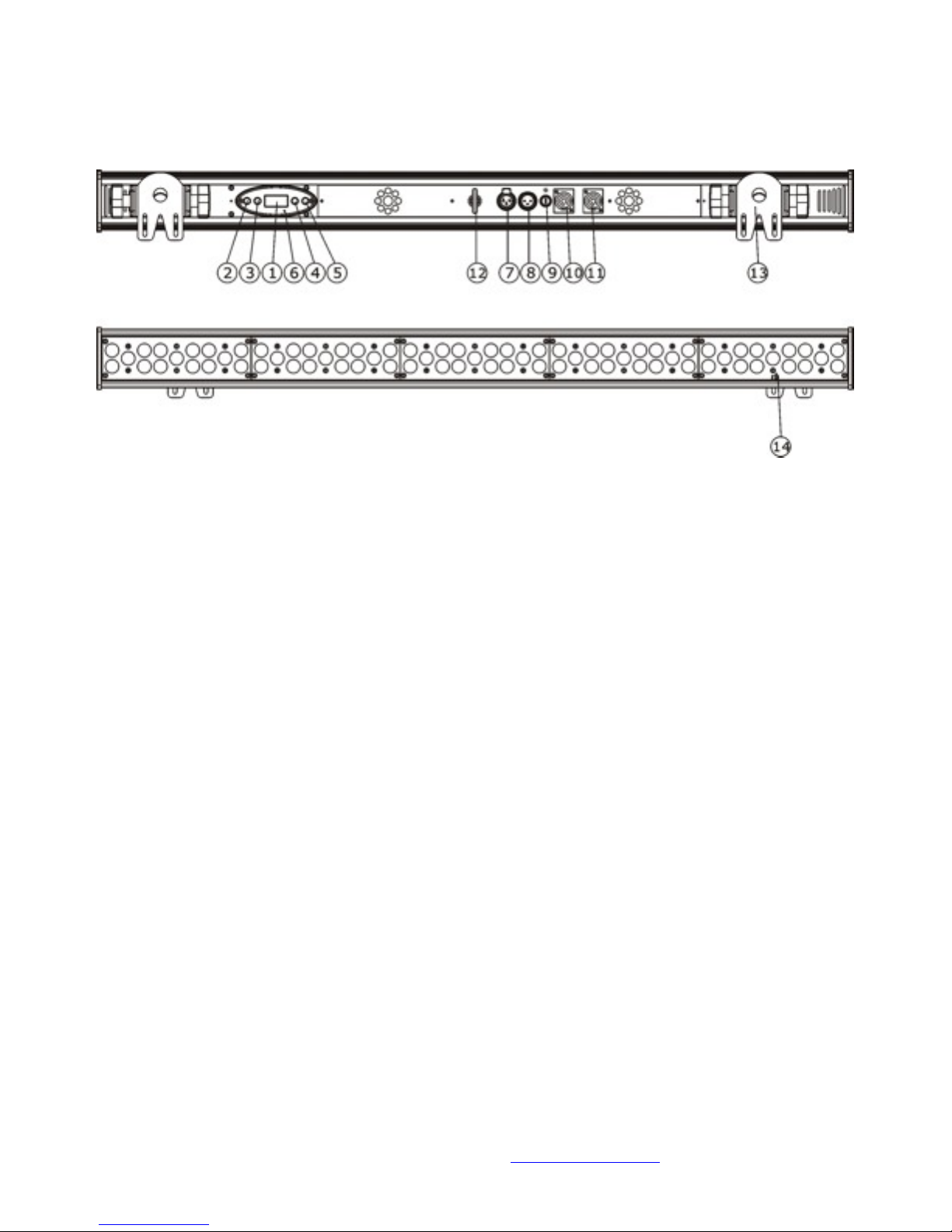

5. FIXTURE OVERVIEW

1. LED Display – 4-segment menu display. Used to display the DMX address as well

as all other menu functions.

2. Mode/Esc Button – This button is used to access the fixtures menu functions.

3. Up Button – The up button is used to toggle forward through the menu functions

and settings.

4. Down Button – The down button is used to toggle backwards through the menu

functions and settings.

5. Enter Button – The enter button is used to enter in to a certain menu function or to

lock a menu setting in to memory.

6. Microphone – This microphone receives external low frequencies to trigger the unit

in Sound-Active mode. This microphone is designed to receive low frequency

sounds only, tapping on the microphone and high pitch sounds may not trigger the

unit.

DLED STRIP RGBAW ™

©Elation Professional, Los Angeles Ca. 10 www.ElationLighting.com

Inhaltsverzeichnis

Andere Elation Beleuchtungsausrüstung Handbücher

Elation

Elation EVENT PANEL SYSTEM Bedienungsanleitung

Elation

Elation Power Spot 700 CMY II Bedienungsanleitung

Elation

Elation Waterfall 250 Bedienungsanleitung

Elation

Elation ELAR EXFLOOD Bedienungsanleitung

Elation

Elation Event MH Bedienungsanleitung

Elation

Elation CMY Zoom 575E Bedienungsanleitung

Elation

Elation KL PAR FC Bedienungsanleitung

Elation

Elation KL PANEL PO Bedienungsanleitung

Elation

Elation Design LED 60 TriStrip Bedienungsanleitung

Elation

Elation Color Spot 575 Bedienungsanleitung

Elation

Elation Design 60 Tri Bedienungsanleitung

Elation

Elation Platinum Spot LED Bedienungsanleitung

Elation

Elation Professional SIXPAR 200IP Bedienungsanleitung

Elation

Elation ZW37 Bedienungsanleitung

Elation

Elation Design LED 36 Brick Bedienungsanleitung

Elation

Elation Opti Tri 30 Bedienungsanleitung

Elation

Elation Patend Light 1200 HMI Bedienungsanleitung

Elation

Elation SIXPAR 100IP Bedienungsanleitung

Elation

Elation Level Q7 IP Bedienungsanleitung

Elation

Elation COLOR SPOT 150 Bedienungsanleitung

Elation

Elation COLOUR 5 PROFILE Bedienungsanleitung

Elation

Elation SATURA SPOT LED PRO Bedienungsanleitung

Elation

Elation WW TONE Bedienungsanleitung

Elation

Elation Fuze SFX Bedienungsanleitung

Beliebte Beleuchtungsausrüstung Handbücher anderer Marken

Brizo

Brizo 8SP-MU-4 Bedienungsanleitung

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Bedienungsanleitung

IKEA

IKEA BJÖRKSPIREA Bedienungsanleitung

Laserworld

Laserworld Evolution Series ES-400RGB Bedienungsanleitung

Alien

Alien RG STAR Bedienungsanleitung

EuroLite

EuroLite LED B-40 Bedienungsanleitung

Qazqa

Qazqa Suplux SL 3 Black 103062 Bedienungsanleitung

Commercial Electric

Commercial Electric 54568141 Bedienungsanleitung

CREE LIGHTING

CREE LIGHTING 304 Series Bedienungsanleitung

Goobay

Goobay 49867 Bedienungsanleitung

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Bedienungsanleitung

Alkalite

Alkalite Krypton KT-81 Bedienungsanleitung

Clas Ohlson

Clas Ohlson GU10 Bedienungsanleitung

DTS

DTS DELTA 10 F Bedienungsanleitung

ring

ring Solar Steplight Bedienungsanleitung

One Stop Gardens

One Stop Gardens 57696 Montageanleitung

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Bedienungsanleitung

SIREM

SIREM Swimeo A2 Bedienungsanleitung
