Elation Design 60 Tri Bedienungsanleitung

Rev. 3/04/2009 - visage

Design LED 60 TriStrip

Elation Professional™

6122 S. Eastern Ave.

Los Angeles, CA. 90040

www.elationlighting.com

Design LED 60 TriStrip™

©Elation Professional, Los Angeles Ca. 1 www.ElationLighting.com

Design LED 60 TriStrip™

©Elation Professional, Los Angeles Ca. 2 www.ElationLighting.com

TABLE OF CONTENS

1. General Information……………………………………………………………………… 3

a. Introduction………………………………………………………………………. 3

b. Unpacking………………………………………………………..…………..… 3

c. Customer Support…………………………………………….………………… 3

d. Warranty Registration……………………………………………………..…… 3

2. Safety Instructions………………………………………………………........…………. 5

3. Features……………………………………………………………………………………7

4. General Guidelines………………………………………………………………………. 8

5. Fixture Overview…………………………………………………………………………. 9

6. Mounting and Installation………………………………………………………….……. 11

7. Understanding DMX……………………………………………………………………... 14

a. DMX Linking……..………………………………………………………………. 14

b. DMX Cables…..…………………………………………………………………. 14

c. DMX Termination…………………………………………………………………16

d. 3-Pin to 5-Pin Conversion……………………………………………………….16

e. Understanding DMX Addressing.……………………………………………… 16

8. Display Menu….……………………………………………………..……………………18

9. DMX Operation……………………………………………………..………………….… 20

a. DMX Mode Selection…………………………………………………………….20

10. DMX Channel Traits………………………………………………………………………22

11. Cleaning and Maintenance………………………………………………………………33

12. Warranty…………………………………………………………………………………... 34

13. Photometric Data………………………………………………………………………… 36

14. Dimensional Drawings………………………………………………….……………….. 37

15. Lens Change………………………………..……………………………………………. 38

16. Circuit Schematic………...……………………………………………………………….39

17. Technical Specifications…………………………………………...………….………… 40

Design LED 60 TriStrip™

©Elation Professional, Los Angeles Ca. 3 www.ElationLighting.com

1. GENERAL INFORMATION

INTRODUCTION: Congratulations, you have just purchased one of the most innovative and

reliable LED fixtures on the market today! The Design LED 60 TriStrip™ has been designed

to perform reliably for years when the guidelines in this booklet are followed. Please read

and understand the instructions in this manual carefully and thoroughly before attempting to

operate this unit. These instructions contain important information regarding safety during

use and maintenance.

UNPACKING: Thank you for purchasing the Design LED 60 TriStrip™ by Elation

Professional®. Every Design LED 60 TriStrip™ has been thoroughly tested and has been

shipped in perfect operating condition. Carefully check the shipping carton for damage that

may have occurred during shipping. If the carton appears to be damaged, carefully inspect

your fixture for damage and be sure all accessories necessary to operate the fixture have

arrived intact. In the event damage has been found or parts are missing, please contact our

customer support team for further instructions. Please do not return this unit to your dealer

without first contacting customer support at the number listed below.

Inside the box you should find: the fixture, a DMX XLR cable, an IEC power cable, an IEC

“jumper” power cable, a safety cable, and this manual. Please contact customer support at

the number listed below if any of the above items are missing.

CUSTOMER SUPPORT: Elation Professional®provides a customer support line, to provide

set up help and to answer any question should you encounter problems during your set up

or initial operation. You may also visit us on the web at www.elationlighting.com for any

comments or suggestions. For service related issue please contact Elation Professional®.

Service Hours are Monday through Friday 9:00 a.m. to 5:00 p.m. Pacific Standard Time.

Voice: (323) 582-3322

Fax: (323) 832-9142

E-mail: [email protected]

Forum: www.ElationLighting.com/forum

Warning! To prevent or reduce the risk of electrical shock or fire, do not expose this unit to

Design LED 60 TriStrip™

©Elation Professional, Los Angeles Ca. 4 www.ElationLighting.com

rain or moisture.

Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs

yourself. Doing so will void your manufactures warranty.

Please do not discard the shipping carton in the trash. Please recycle whenever possible.

WARRANTY REGISTRATION: The Design LED 60 TriStrip™ comes with a two year (730

days) limited warranty. Please fill out the enclosed warranty card to validate your purchase.

All returned service items whether under warranty or not, must be freight pre-paid and

accompany a return authorization (R.A.) number. The R.A. number must be clearly written

on the outside of the return package. A brief description of the problem as well as the R.A.

number must also be written down on a piece of paper and included in the shipping

container. If the unit is under warranty, you must provide a copy of your proof of purchase

invoice. Items returned without a R.A. number clearly marked on the outside of the package

will be refused and returned at customer’s expense. You may obtain a R.A. number by

contacting customer support at (323) 582-3322.

Design LED 60 TriStrip™

©Elation Professional, Los Angeles Ca. 5 www.ElationLighting.com

2. SAFETY INSTRUCTIONS

To guarantee proper and consistent operation, it is important to

follow the guidelines in this manual. Elation Professional will not

accept responsibility for damages resulting from the misuse of

this fixture due to the disregard of the information printed in this

manual.

1. Always be sure that the fan and the air inlets remain clean and are never

blocked. Allow about 6” (15cm) between this fixture and other devices or a wall

to allow for proper cooling.

2. Never touch the fixture during normal operation.

3. Never look directly into the lamp beam. You risk injury to your retina, which may

induce blindness.

4. For safe operation, follow the Installation guide described in chapter two of this

manual. Operating the Design LED 60 TriStrip™ without suited safety aids such

as safety cables or clamps can increase the risk of damage and/or personal

injury.

5. Installation should only be performed by qualified and certified personal.

6. When mounting this fixture, use only the original rigging points included with this

fixture. Any structural modification will void the original manufactures warranty

and may increase the risk of damage and/or personal injury.

7. To reduce the risk of fire or shock, do not expose this fixture to rain or moisture.

8. Do not attempt to operate this fixture if the power cord has become damaged or

frayed.

9. Never open this fixture while in use.

10.This device falls under protection-class I. Therefore it is essential that the device

be grounded properly.

11.Qualified personnel must perform all electrical connections.

12.Be sure the available voltage matches the voltage requirements of the unit. Be

Design LED 60 TriStrip™

©Elation Professional, Los Angeles Ca. 6 www.ElationLighting.com

sure the power cord is never crimped or damaged. If the power cord is damaged,

replace it immediately with a new one of similar power rating.

13.Always disconnect from main power before performing any type of service or

any cleaning procedure.

14.Only handle the power cord by the plug. Never pull out the plug by tugging the

wire portion of the cord.

15.Please be aware that damages caused by modifications to the device are

not subject to warranty.

Important Notice: Damages resulting from the disregard of safety and general user

instructions found in this user manual are not subject to any warranty claims.

Design LED 60 TriStrip™

©Elation Professional, Los Angeles Ca. 7 www.ElationLighting.com

3. FEATURES

• Tri-Color LED Technology

• 62˚ Standard Beam Angle (48˚ Optional with 30˚ Lens Kit)

• Removable front cover to allow interchangeable Lenses

• Low power consumption

• Electronic menu display

• Minimal heat emission

• Maintenance free operation

• Equipped with 60 Three-Watt Tri-Color LEDs

• 100,000 hours rated LED life

• Linear RGB Color Mixing, 65 million color possibilities

• USITT DMX-512 complaint

• 5-pin and 3-pin Male and Female XLR Data Connectors

• Preprogrammed colored macros

• Strobe-effect with a maximum flash rate of 25fps

• DMX-controlled operation or stand-alone operation with Master/Slave-function

• 8 built-in programs accessed via DMX-controller or manually

• Sound-controlled via built-in microphone

• Individual control over each LED

• 0%~100% Dimming (two dimming options; linear & standard)

• Electronic power supply (100v~240V 50/60Hz)

• Six DMX Modes:

63 DMX-channels

60 DMX-channels

15 DMX-channels

6 DMX-channels

4 DMX-channels

3 DMX-channels

• Flicker-free operation for television and film

• Compact design: fits in 12” box truss

• Brilliant light output

• Linkable power supply (in and out power connectors) - Up to 8 units

Design LED 60 TriStrip™

©Elation Professional, Los Angeles Ca. 8 www.ElationLighting.com

4. GENERAL GUIDELINES

This fixture is a professional lighting effect designed for use on stage, in nightclubs, in

theatres, and other types of architectural installations. Do not attempt operation or

installation without a proper knowledge on how to do so.

This fixture was designed for indoor use only; use of this fixture outside will void the

manufacture’s warranty.

Consistent operational breaks will ensure that the fixture will function properly for many

years to come.

Do not shake the fixture around. Avoid brute force when installing or operating the fixture.

While choosing an installation location, please be sure that the fixture will not be exposed to

extreme heat, moisture, or dust. The minimum distance between the fixture and a wall or flat

surface should be at least .5 meter (about 1.5ft).

Always install the fixture with an appropriately rated safety cable. When installing the fixture

in a suspended environment always be sure to use mounting hardware no less than M10 x

25 mm, also be sure the hardware is only inserted in the yoke’s mounting holes.

Do not attempt to operate this fixture until you have familiarized yourself with all of its

functions.

Do not permit operation by persons not qualified for operating this type of theatrical fixture.

Most damages are the result of improper operation.

Please use the original packaging to transport the fixture in for service.

For your own safety, please read this user manual carefully before installing the device.

Design LED 60 TriStrip™

©Elation Professional, Los Angeles Ca. 9 www.ElationLighting.com

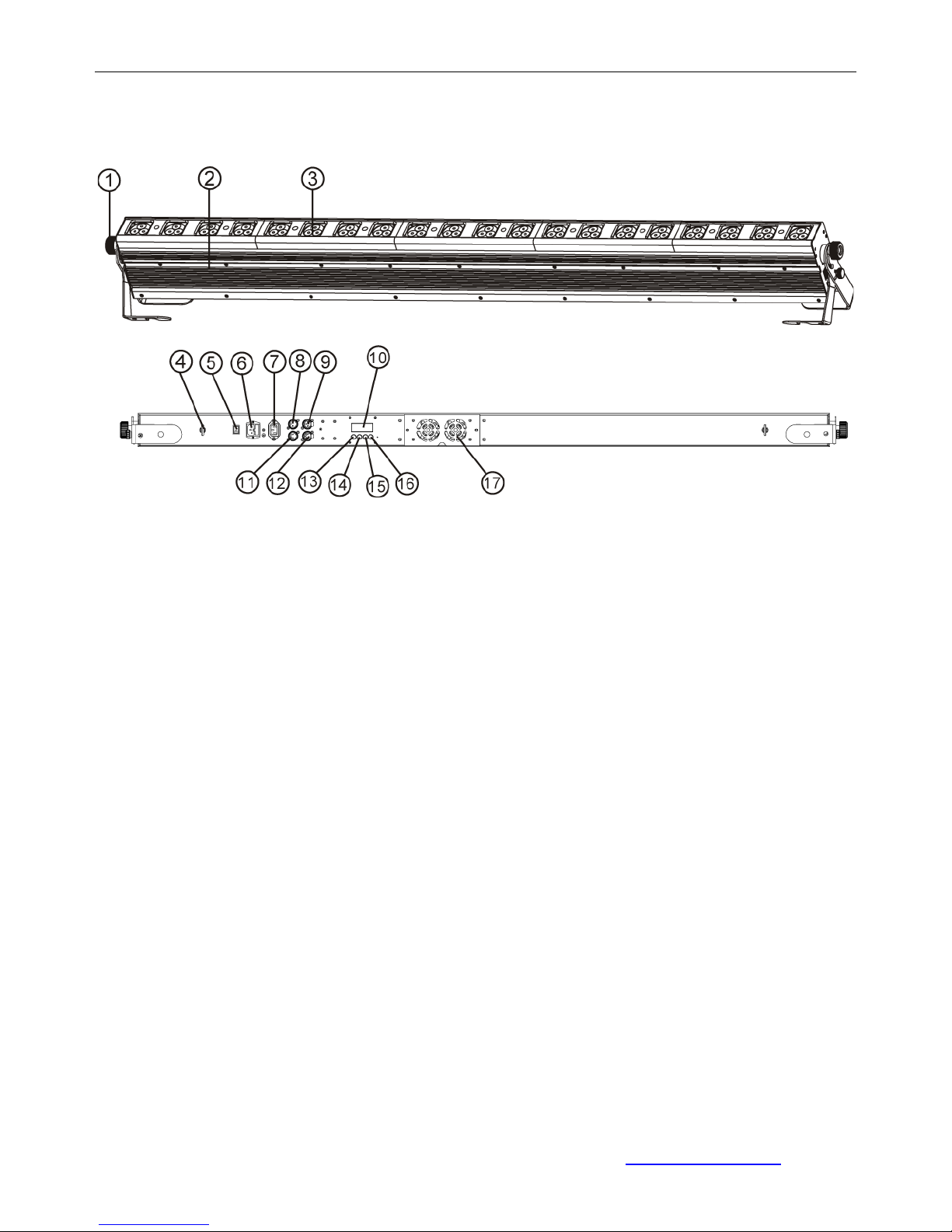

5. FIXTURE OVERVIEW

1. Bracket Locking Knob – This knob is used to secure the bracket in place after angle

adjustments have been made.

2. Fixture Chassis – Extruded aluminum slotted chassis, allows similar units to be

mounted together. See assembly instructions on page

3. Diffusing Lens/LED Assembly – This lens is used to both protect the LEDs as well as

diffuse the light output. Tri-Color LED assembly

4. Eye Bolt – This bolt is used a securing point for a safety cable.

5. On/Off Power Switch – Controls main power to the unit.

6. Power Input/Fuse Holder Assembly – This assembly holds the safety fuse as well as

provides a female IEC connector for a power cord. Always replace the fuse with an exact

match unless otherwise specified by an authorized Elation Service Technician. Using a

fuse other than that specified could seriously damage the unit and will void your

manufactures warranty.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Elation Beleuchtungsausrüstung Handbücher

Elation

Elation EZ KLING Bedienungsanleitung

Elation

Elation ELED PAR RGB ZOOM Bedienungsanleitung

Elation

Elation Opti Tri White Par Bedienungsanleitung

Elation

Elation ELED Fresnel 150 Bedienungsanleitung

Elation

Elation Flower 5/90 Bedienungsanleitung

Elation

Elation E Spot Led Bedienungsanleitung

Elation

Elation EVENT PANEL SYSTEM Bedienungsanleitung

Elation

Elation Design LED Par Zoom MH Bedienungsanleitung

Elation

Elation E Spot Led II Bedienungsanleitung

Elation

Elation EVENT PANEL SYSTEM Bedienungsanleitung

Elation

Elation ELAR 162 TRI PAR Bedienungsanleitung

Elation

Elation COLOR SPOT 150 Bedienungsanleitung

Elation

Elation DM-2512R Bedienungsanleitung

Elation

Elation PROTEUS EXCALIBUR Bedienungsanleitung

Elation

Elation Pro FS 575 Bedienungsanleitung

Elation

Elation KL FRESNEL 8 CW Bedienungsanleitung

Elation

Elation EVENT BAR Bedienungsanleitung

Elation

Elation KL SPOT IP Bedienungsanleitung

Elation

Elation KL FRENSEL 8 Bedienungsanleitung

Elation

Elation KL FRESNEL 6 Bedienungsanleitung

Elation

Elation Trio-1248 Bedienungsanleitung

Elation

Elation Design Spot 250 Pro Bedienungsanleitung

Elation

Elation DLED STRIP RGBAW Bedienungsanleitung

Elation

Elation Color Spot 575 Bedienungsanleitung

Beliebte Beleuchtungsausrüstung Handbücher anderer Marken

Brizo

Brizo 8SP-MU-4 Bedienungsanleitung

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Bedienungsanleitung

IKEA

IKEA BJÖRKSPIREA Bedienungsanleitung

Laserworld

Laserworld Evolution Series ES-400RGB Bedienungsanleitung

Alien

Alien RG STAR Bedienungsanleitung

EuroLite

EuroLite LED B-40 Bedienungsanleitung

Qazqa

Qazqa Suplux SL 3 Black 103062 Bedienungsanleitung

Commercial Electric

Commercial Electric 54568141 Bedienungsanleitung

CREE LIGHTING

CREE LIGHTING 304 Series Bedienungsanleitung

Goobay

Goobay 49867 Bedienungsanleitung

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Bedienungsanleitung

Alkalite

Alkalite Krypton KT-81 Bedienungsanleitung

Clas Ohlson

Clas Ohlson GU10 Bedienungsanleitung

DTS

DTS DELTA 10 F Bedienungsanleitung

ring

ring Solar Steplight Bedienungsanleitung

One Stop Gardens

One Stop Gardens 57696 Montageanleitung

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Bedienungsanleitung

SIREM

SIREM Swimeo A2 Bedienungsanleitung
