Elation Opti Tri 30 Bedienungsanleitung

Opti Tri 30

©Elation Professional • Elation Professional 6122 S. Eastern Ave. Los Angeles, Ca 90040

www.ElationLighting.com • Toll Free (866) 245-6726

TECHNICAL SPECIFICATIONS

• DMX Channels: 6 DMX modes: 1, 2, 3, 4, 6, & 7

• Control: USITT DMX-512, 5 pin XLR data input & output

• Dimmer: Dimming 0-100% in 2, 4, 6 & 7 channel mode

• Strobe: Strobe effect (1-18 ashes per second)

• IP Rating: IP 20

• Power Supply: 100 ~ 240v, 50/60Hz

• Power Consumption: 30W

• Power Supply: Electronic, multi-voltage internal PSU

• Cable / Plug Type: PPG 120v US

• Approvals: ETL Approved

• Lamp: SSC-Tri RGB, 7 x Tri RGB, 7 x 3W LEDs

• Lamp Life: 50,000 hrs. life

• Lux: 10° Beam Angle: 1456 Lux @ 3M

• Lux: 25° Beam Angle: 320 Lux @ 3M

• Dimensions: (

L x W x H) 10” x 7.5” x 5.5” /

254 x 190.5 x 139.7mm

• Weight: 5.3 lbs / 2.4 kg

• Rigging: Split Yoke Bracket / safety and

data cable optional

FEATURES

• Compact TriColor LED high power par can

• 7 x 3Watt Tri Color LEDs

• Tri-color LED technology for better colors and

no multicolor shadows

• 10º standard beam angle (25° optional beam angle)

• Rated IP 20

• Sturdy, high-impact aluminum construction

• Case Color: Black

• Cooling: Convection Cooled

• Multi-voltage internal PSU

• DMX controllable via 6 DMX modes: 1, 2, 3, 4, 6, & 7

• Digital DMX display

• Macros: Yes

• Master/Slave

• On Board Control

• Stand Alone

• Flicker Free

• 4 operational modes: Sound Active, Macro,

Auto, & DMX

• Double hanging brackets – may be set on the oor

The Opti Tri 30 by Elation Professional is a compact TriColor LED high power par can featuring 7 Tri RGB LEDs

running at 3W power each. The Opti Tri Par 30 features Tri-Color LED technology for better colors and no

multi-color shadows. The design of the ﬁxture is optimized providing up to 50,000 hours estimated LED life,

30W power consumption, convection cooled and ﬂicker free operation. The Opti Tri 30 is operable via 6

DMX channel modes: 1, 2, 3, 4, 6, and 7. This unit produces a standard beam angle of 10° with an available

optional beam angle of 25° and is rated IP 20, ideal for indoor applications. Control data input is via 5 pin

DMX data ﬁrst in and out connections. This unit is fully operational in any mounting position. Other features

include electronic power supply, 4 operational modes and user may daisy chain units together in DMX mode.

Rigging for this unit includes split yoke bracket, safety and data cable are optional.

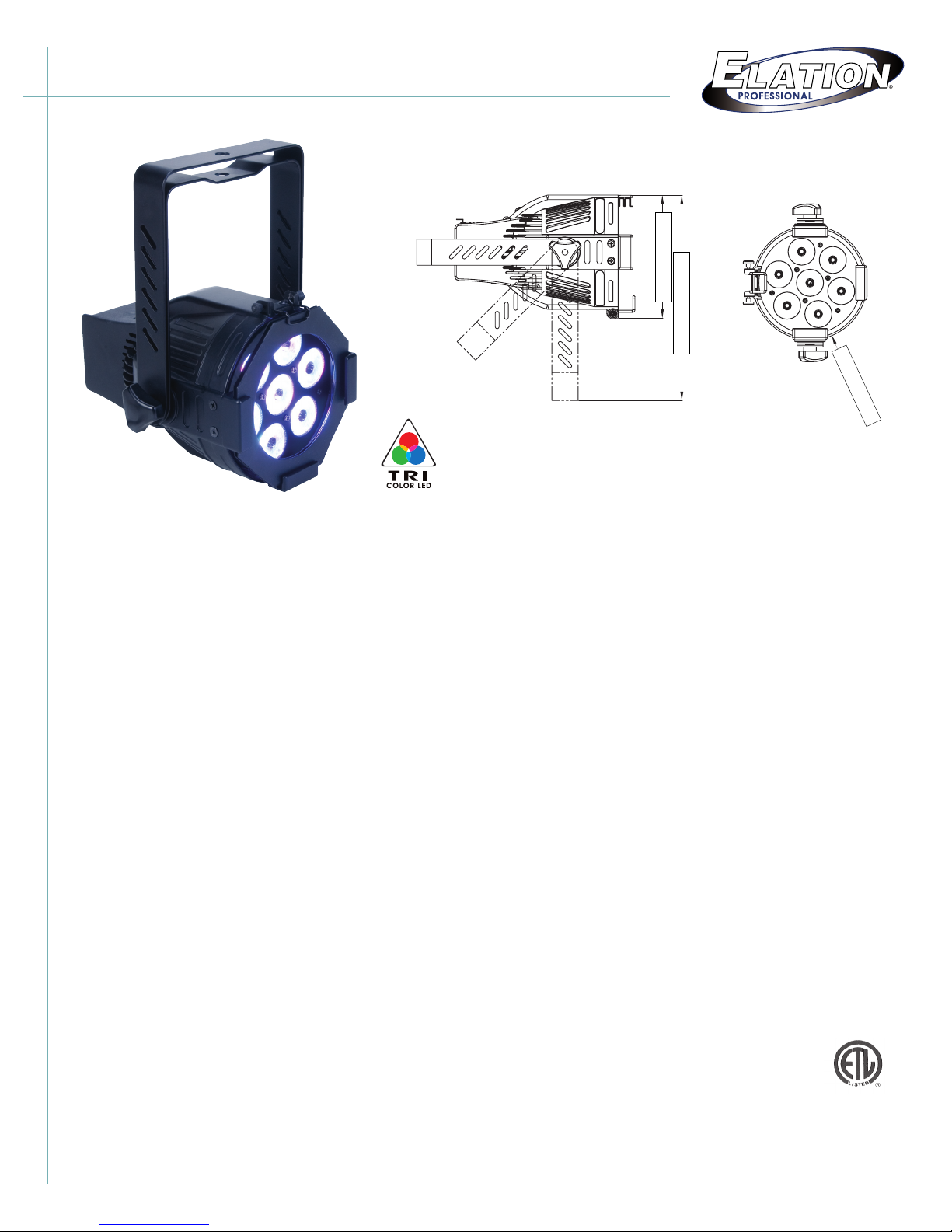

Opti Tri 30 Dimensions

9.25” / 235.20mm

5.5” / 140.7mm

5.2” / 131mm

Opti Tri 30

©Elation Professional • Elation Professional 6122 S. Eastern Ave. Los Angeles, Ca 90040

www.ElationLighting.com • Toll Free (866) 245-6726

COLORS

• 7 x 3Watt Tri Color LEDs

• Tri-color LED technology for better colors and

no multicolor shadows

PHOTOMETRICS

Optional 25° Beam Angle

LUX x0.0929 = FC

105 FC / 1127 LUX

266 FC / 2860 LUX

7 FC / 74.6 LUX

375 FC / 4040 LUX

18 FC / 191 LUX

39 FC / 416 LUX

1.4 FC / 15.3 LUX

56 FC / 599 LUX

5 FC / 49.7 LUX

10 FC / 108.6 LUX

0.33 FC / 3.6 LUX

14 FC / 150.5 LUX

2 FC / 19.4 LUX

4 FC / 42.9 LUX

0.18 FC / 1.9 LUX

6 FC / 59.4 LUX

25°

Beam Angle

0 m

0 ft

0.5 m

1.6 ft

1.5 m

4.9 ft

3 m

9.8 ft

5 m

16.4 ft

Beam Diameter

Ø 0.22 m / Ø 0.72 ft Ø 0.66 m / Ø 2.2 ft Ø 1.33 m / Ø 4.4 ft Ø 2.21 m / Ø 7.3 ft25° Beam Angle

Opti Tri 30

Photometric Beam Angle Data

Standard 10° Beam Angle

LUX x0.0929 = FC

239 FC / 2570 LUX

343 FC / 4020 LUX

26 FC / 280 LUX

603 FC / 6490 LUX

27 FC / 289 LUX

51 FC / 545 LUX

4 FC / 46 LUX

75 FC / 806 LUX

6 FC / 68 LUX

13 FC / 142 LUX

1 FC / 13 LUX

19 FC / 207 LUX

2 FC / 26 LUX

5 FC / 53 LUX

0.5 FC / 5 LUX

7 FC / 76 LUX

10°

Beam Angle

0 m

0 ft

0.5 m

1.6 ft

1.5 m

4.9 ft

3 m

9.8 ft

5 m

16.4 ft

Beam Diameter

Ø 0.99 m / Ø 3.23 ft Ø 0.64 m / Ø 2.08 ft Ø 0.37 m / Ø 1.22 ft Ø 0.19 m / Ø 0.65 ft25° Beam Angle

Opti Tri 30

©Elation Professional • Elation Professional 6122 S. Eastern Ave. Los Angeles, Ca 90040

www.ElationLighting.com • Toll Free (866) 245-6726

DMX TRAITS

1 Channel Mode:

Channel Value Function

1 0 - 255 Macros

2 Channel Mode:

Channel Value Function

1 0 - 255 Macros

2 0 - 255 Dimming (0-100%)

3 Channel Mode:

Channel Value Function

1 1 - 255 Red (0-100%)

2 1 - 255 Green (0-100%)

3 1 - 255 Blue (0-100%)

4 Channel Mode:

Channel Value Function

1 1 - 255 Red (0-100%)

2 1 - 255 Green (0-100%)

3 1 - 255 Blue (0-100%)

4 1 - 255 Master dimmer (0-100%)

6 Channel Mode:

Channel Value Function

1 1 - 255 Red (0-100%)

2 1 - 255 Green (0-100%)

3 1 - 255 Blue (0-100%)

4 1 - 255 Color macro

5 0 - 15 Nothing

16 - 255 Stobing/macro speed

6 1 - 255 Master dimmer (0-100%)

7 Channel Mode:

Channel Value Function

1 1 - 255 Red (0-100%)

2 1 - 255 Green (0-100%)

3 1 - 255 Blue (0-100%)

4 16 - 255 Color macro

5 0 - 15 Nothing

16 - 255 Stobing/speed control

6 Mode

0 - 31 RGB using channels 1,2, & 3

32 - 63 Dim - bright

64 - 95 Bright - dim

96 - 127 Dim - bright - dim

128 - 159 Color mixing

160 - 191 3 color change

192 - 223 7 color change

224 - 155 Sound active

7 1 - 255 Master dimmer (0-100%)
