Elation Design LED 12 Brick II Bedienungsanleitung

Design LED 12 Brick

©Elation Professional • Elation Professional 6122 S. Eastern Ave. Los Angeles, Ca 90040

www.ElationLighting.com • Toll Free (866) 245-6726

The Design LED 12 Brick (DLED 12 Brick) by Elation Professional is a high output LED color changer panel

equipped with 12 x 1 watt Luxeon LEDs (4 red, 4 green and 4 blue) featuring seamless RGB color mixing and

inﬁnite color possibilities. Effects for this unit include macros, 0-100% dimming, strobe effect of 1-18ﬂashes

per second and a standard beam angle of 44° with 76 LUX, 7 FC at 3 meters. The design of the DLED 12 Brick

is optimized featuring silent operation with convection cooling (no fans), a compact case design and long life

LED technology providing up to 100,000 hours estimated L.E.D. life. The DLED 12 Brick is rated IP 20 and ideal

for all indoor applications. This unit is also equipped with a built-in power supply and DMX-512 control and

operates at 90-250V AC, 50/60hz. The DLED 12 Brick is power data linkable and display is via 12 position binary

dip switches. Control data input is via 3-pin or 5-pin XLR connections and DMX control is via 6, 12 or 15 DMX

channel operation modes. The DLED 12 Brick offers 8 built-in programs with speed control, master/slave auto

programs and music trigger, ﬂicker free operation and each LED may be controlled independently. Rigging for

this unit includes installed mounting bracket and safety eye hook (DLEDKIT: optional bracket kit available for

multiple units, not included). Safety cable and 3-pin data cable included.

FEATURES

• High output LED color changer

• LED panel with 12 LEDs

• 12 x 1W Luxeon LED’s - (4 Ea. R, G, B)

• Seamless RGB color mixing

• Innite Color possibilities

• 44º beam angle, 25° beam angle without frost lter

• 480 lumens @ 1m per unit

• 1340 lumens @ 1m per kit of 4 units

• Rated IP 20

• Compact case design, available in black

• Convection cooled

• IEC Power in/out

• On/Off Power switch

• Built-in Power Supply and DMX 512 Control

• 12 position binary dip switches

• Power data linkable

• Master/ Slave auto program and music trigger

• 8 built-in programs with Speed control

• Control each L.E.D. independently

• Flicker free operation

TECHNICAL SPECIFICATIONS

• DMX Channels: 6, 12 OR 15 channel operation modes

• Control: USITT DMX-512, 3-pin and 5-Pin XLR serial

input/output,

12 Position Binary dip switches, IEC Power in/out

• Dimmer: 0-100% Dimming

• Strobe: Strobe effect (1-18 ashed per second)

• IP Rating: IP20

• Power Supply: 90-250V AC, 50/60Hz,

On/Off Power switch

• Power Consumption: 30W

• Cable/plug type: PPG 120v US

• Approvals: CE/ETL pending

• Lamp: 12 x 1W Luxeon LED’s - (4 Ea. R, G, B)

• Lux at 3m: 76 Lux / 7 FC

• Lamp life: Long Life L.E.D. (rated at 50,000 Hours)

• Dimensions: (LxWxH): 13” x 3” x 4.5” /

330 x 76 x 114 mm

• Weight: 4.5 lbs. / 2 kgs.

• Rigging: Mounting bracket and safety eye-hook

installed. (DLEDKIT: optional bracket kit available for

multiple units, not included)

Design LED 12 Brick Dimensions

Design LED 12 Brick

©Elation Professional • Elation Professional 6122 S. Eastern Ave. Los Angeles, Ca 90040

www.ElationLighting.com • Toll Free (866) 245-6726

COLORS

• LED panel with 12 LEDs

• 12 x 1W Luxeon LED’s - (4 Ea. R, G, B)

• Seamless RGB color mixing

• Innite Color possibilities

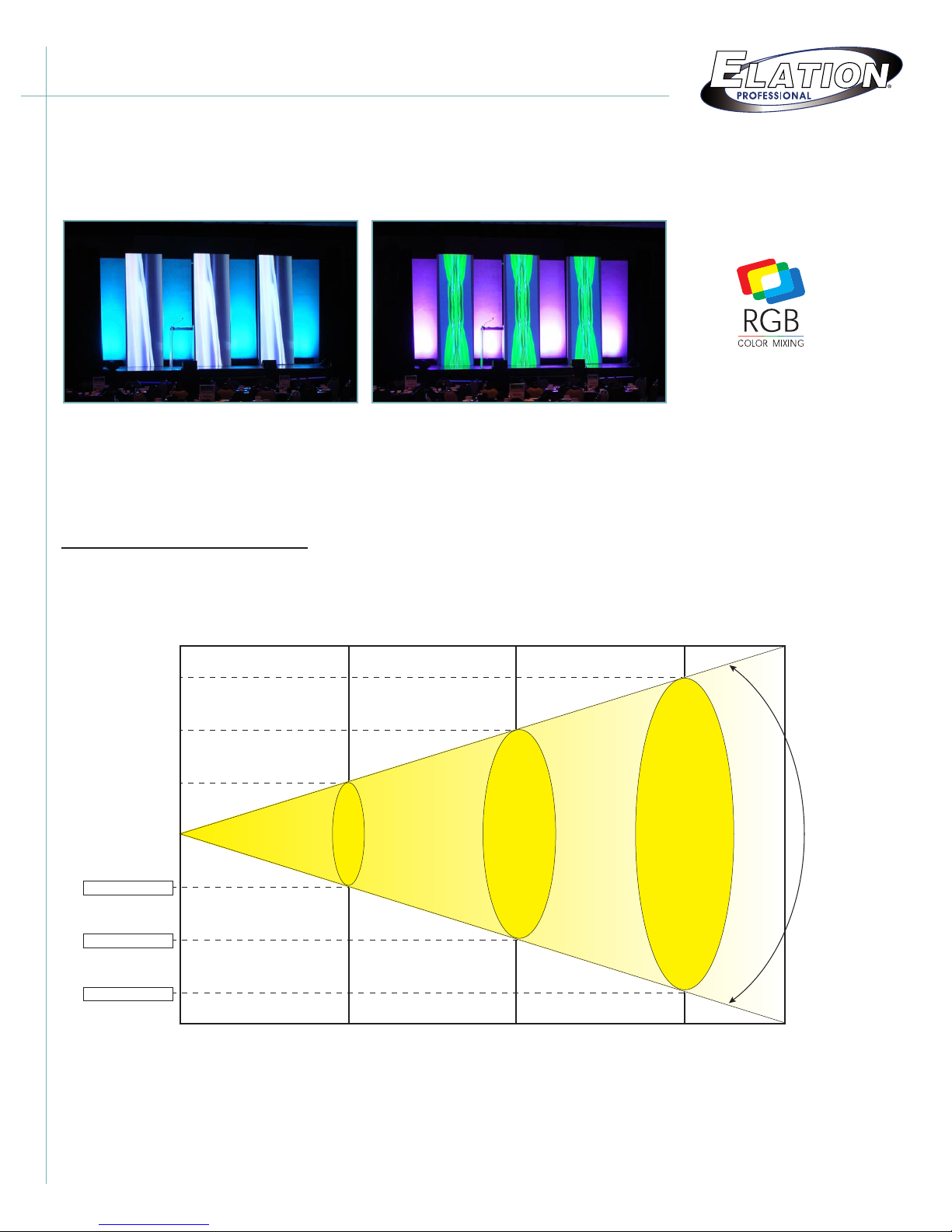

PHOTOMETRICS

Design LED 12 Brick

Photometric Beam Angle Data

Beam Angle 44°

LUX x0.0929 = FC

44°

Beam Angle

45 FC

480 LUX

13 FC

144 LUX

7 FC

76 LUX

0 m

0 ft

1 m

3.28 ft

3 m

9.8 ft

2 m

6.6 ft

Ø 0.8 m

Ø 2.6 ft

Ø 1.6 m

Ø 5.2 ft

Ø 2.4 m

Ø 7.9 ft

Beam Diameter

Ø 0.8m / Ø 2.6ft

Ø 1.6m / Ø 5.2ft

Ø 2.4m / Ø 7.9ft

Design LED 12 Brick

©Elation Professional • Elation Professional 6122 S. Eastern Ave. Los Angeles, Ca 90040

www.ElationLighting.com • Toll Free (866) 245-6726

DMX TRAITS

6 Channel Mode:

Channel Value Function

1 0 - 255 Red (

0 - black, 255 - 100% red

)

2 0 - 255 Green (

0 - black, 255 - 100% green

)

3 221 - 255 Blue (0 - black, 255 - 100% blue

)

4 0 - 255 Internal programs

5 0 - 255 Strobe

6 0 - 255 General dimming, program speed control

12 Channel Mode:

Channel Value Function

1 0 - 255 Red (

0 - black, 255 - 100% red

)

2 0 - 255 Green (

0 - black, 255 - 100% green

)

3 221 - 255 Blue (0 - black, 255 - 100% blue

)

4 0 - 255 Red (

0 - black, 255 - 100% red

)

5 0 - 255 Green (

0 - black, 255 - 100% green

)

6 221 - 255 Blue (0 - black, 255 - 100% blue

)

7 0 - 255 Red (

0 - black, 255 - 100% red

)

8 0 - 255 Green (

0 - black, 255 - 100% green

)

9 221 - 255 Blue (0 - black, 255 - 100% blue

)

10 0 - 255 Red (

0 - black, 255 - 100% red

)

11 0 - 255 Green (

0 - black, 255 - 100% green

)

12 221 - 255 Blue (0 - black, 255 - 100% blue

)

15 Channel Mode:

Channel Value Function

1 0 - 255 Red (

0 - black, 255 - 100% red

)

2 0 - 255 Green (

0 - black, 255 - 100% green

)

3 221 - 255 Blue (0 - black, 255 - 100% blue

)

4 0 - 255 Red (

0 - black, 255 - 100% red

)

5 0 - 255 Green (

0 - black, 255 - 100% green

)

6 221 - 255 Blue (0 - black, 255 - 100% blue

)

7 0 - 255 Red (

0 - black, 255 - 100% red

)

8 0 - 255 Green (

0 - black, 255 - 100% green

)

9 221 - 255 Blue (0 - black, 255 - 100% blue

)

10 0 - 255 Red (

0 - black, 255 - 100% red

)

11 0 - 255 Green (

0 - black, 255 - 100% green

)

12 221 - 255 Blue (0 - black, 255 - 100% blue

)

13 0 - 255 Internal programs

14 0 - 255 Strobe

15 0 - 255 General dimming, program speed control
