Elba EDCH-K3012ST Bedienungsanleitung

Owner’s Manual

Please read this manual carefully before

operating your set.

Retain it for future reference.

Record model number and serial number

of the set.

See the label attached on the set and

quote this information to your dealer

when you require service.

For The Warranty Terms & Conditions, Please Refer To Warranty Certificate

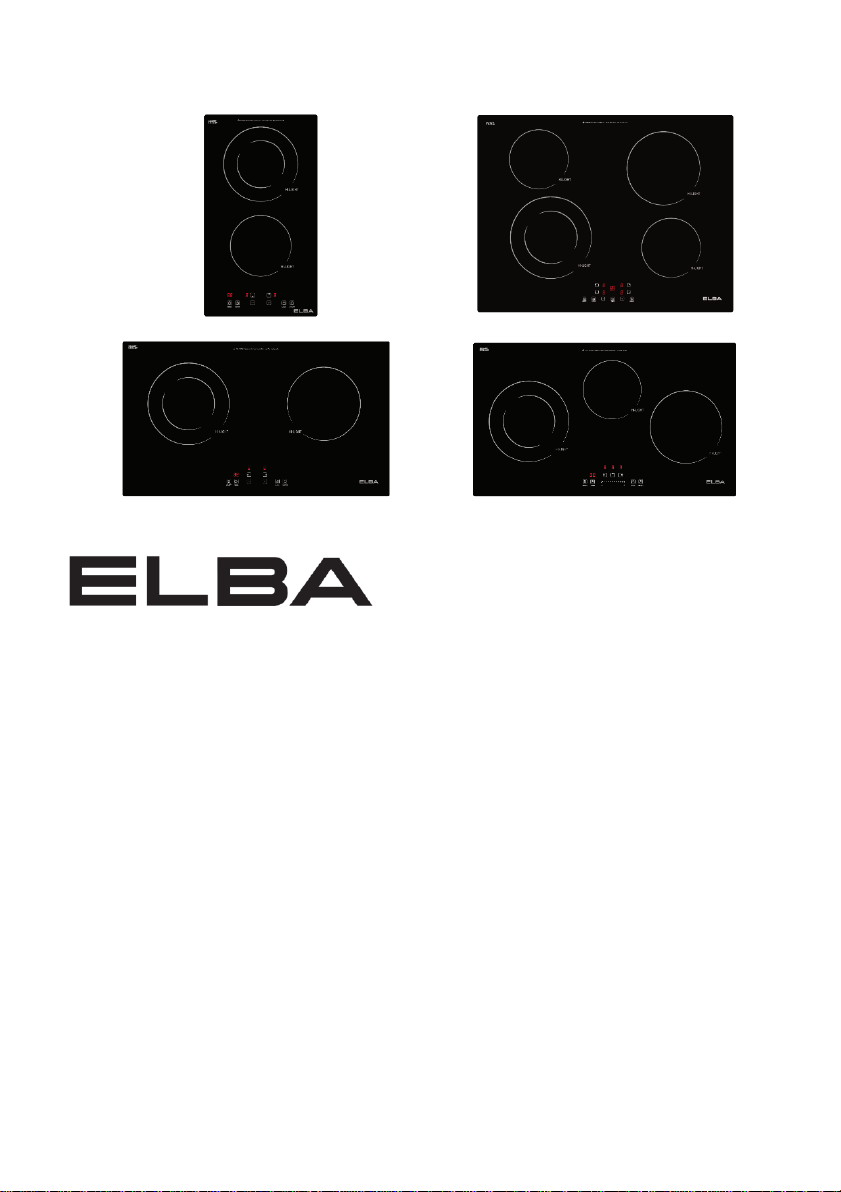

BUILT IN CERAMIC HOB

MODEL: EDCH-K3012ST(BK)

ECH-K6014ST(BK)

ECH-K7012ST(BK)

ECH-

K7013ST(BK)

We recommend that you read the instructions in this owner’s manual carefully

before using it for the best performance and to extend the lifespan of your appliance, as

it will provide you with all the instructions you require to ensure its safe installation, use

and maintenance.

Safety Precautions

Edges of the appliance may be sharp, extra cautions must be paid to avoid injury

cause by the sharp edges.

To ensure your safety, all electric appliances should only be installed or serviced

by qualiﬁed technician. If the supply cord is damaged, it must be replaced by the

authorized service center or similarly qualified technician in order to avoid hazard.

Do not place supply cord on the edge of table and counter, or near any heating

appliance.

In order to avoid electric shock, do not immerse supply cord, plug or other parts

into water.

Do not place the appliance near electric stove, heated oven, microwave or other

heat source.

In order to avoid burning or explosion, combustibles or flammable material

(curtains, cloth, wallpaper and others) should be kept away from the appliance.

Do not place plastic or other similar items on the cooktop.

This appliance does not come with a plug preassembled and it has to be properly

installed and earthed with a connecting fuse with the load of 15A (Model EDCH-

014ST(BK)).

The glass surface may become hot during use. Please keep away from children

and never touch the glass with bare hands.

Disconnect the appliance from the power supply and wait until it is cool before carry

out cleaning or maintenance.

In order to avoid electric shock, never use metal wire brush to clean the appliance

as pieces of metal are easy to touch live part.

K3012ST(BK), 20A for ECH-K7013ST(BK) and 30A or a circuit breaker (ECH-K6

Never use metal scouring pads or sharp scrapers which will damage the glass

surface leading to broken or scratches.

In order to avoid burn or electric shock, never put too much food or metal utensils

on the cooktop.

Please make sure the hob has been switched off when it is not in used and

unplugged from the socket when you are planning not to use the appliance for a

longtime.

Other purpose except cooking is not allowed.

Do not rest heavy object on the glass surface. This may damage the glass.

Do not cook on a broken or cracked cooktop. If the cooktop surface has been

broken, switch off the appliance immediately at the electrical mains and contact the

service center.

Never leave the appliance unattended when in use.

This appliance is not intended for use by persons (including children) with reduced

physical sensory or mental capabilities, or lack of experience and knowledge,

unless they have been given supervision or instruction concerning use of the

appliance by a person responsible for their safety.

Do not use a steam cleaner to clean your cooktop.

Do not cook the food directly on the glass surface without any cookingutensils.

Installation

Selection of installation equipment

1. Cut out the work surface according to the sizes shown in the drawing. For the

purpose of installation and use, a minimum of 50mm space shall be preserved

around the hole. Be sure that the thickness of the work surface is at least 30mm.

Please select heat-resistant work surface material to avoid larger deformation

caused by the heat radiation from the appliance. Installation as shown below:

A(mm)

B(mm)

C(mm)

760

50 mini

20 mini

Air intake

Air exit 10 mm

Under any circumstances, make sure the hob is well ventilated and the air inlet and outlet

are not blocked. Ensure the hob is in good working condition as shown above.

Note: The safety distance between the hotplate and the cupboard above the

hotplate should be at least 760mm.

Model L(mm) W(mm) H(mm) D(mm) A(mm) B(mm) X(mm)

EDCH-K3012ST(BK) 290 520 50 46 270 470 Min 50

ECH-K6014ST(BK) 680 520 50 46 560 470 Min 50

ECH-K7012ST(BK) 710 410 50 46 680 380 Min 50

ECH-K7013ST(BK) 710 410 50 46 680 380 Min 50

Before locating the fixing brackets

The unit should be placed on a stable, smooth surface (use the packaging). Do not

apply force onto the controls protruding from the hob. Fix the hob on the work surface

by screw four brackets on the bottom of hob (see picture) after installation. Adjust the

bracket position to suit for different work surface’s thickness.

EDCH-K3012ST(BK) ECH-K6014ST(BK)

ECH-K7012ST(BK) / ECH-K7013ST(BK)

Connecting the hob to the mains power supply

The power supply should be connected in compliance with the relevant standard, or a

single-pole circuit breaker. The method of connection is shown below.

ECH-K6014ST(BK)

If the cable is damaged or needs replacing, this should be done by an authorized

technician using the proper tools, so as to avoid anyaccidents.

If the appliance is being connected directly to the mains supply, an omnipolar circuit

breaker must be installed with a minimum gap of 3mm between thecontacts.

The installer must ensure that the correct electrical connection has been made and it

complies with the safety regulations.

The cable must not be bent or compressed and shall be checkedregularly.

Product Overview

Top View

EDCH-K3012ST(BK)

ECH-K6014ST(BK)

1. Min/Max. 1000/2000W zone

2. Max. 1200W zone

3. Control panel

1. Max. 1200W zone

2. Max. 1800W zone

3. Min/Max. 1000/2200W zone

4. Max. 1200W zone

5. Control panel

ECH-K7012ST(BK)

ECH-K7013ST(BK)

1. Min/Max. 1000/2200W zone

2. Max. 1800W zone

3. Control panel

1. Min/Max. 1100/2200W zone

2. Max 1200W zone

3. Max. 1800W zone

4. Control panel

Control Panel

EDCH-K3012ST(BK)

ECH-K7012ST(BK)

ECH-K7013ST(BK)

ECH-K6014ST(BK)

1. ON/OFF

2. Power Control

3. Boost Control

4. Child Lock

5. Heating Zone

6. Timer Control

Using the Touch Controls

•

The controls respond to sensor touch, so you don’t need to apply any pressure.

•

Use the ball of your finger, not its tip.

•

You will hear a beep corresponding to the sensor touch function.

•

Make sure the controls are always clean, dry, and that there is no object (e.g. a

utensil or a cloth) covering them. Even a thin film of water may make the controls

difficult to operate.

Choosing the right Cookware

Do not use cookware with jagged edges or a curved base.

Make sure that the base of your pan is smooth, sits flat against the glass, and is the

same size as the cooking zone. Always centre your pan on the cooking zone.

Always lift pans off the hob –do not slide / touch, or they may scratch the glass.
