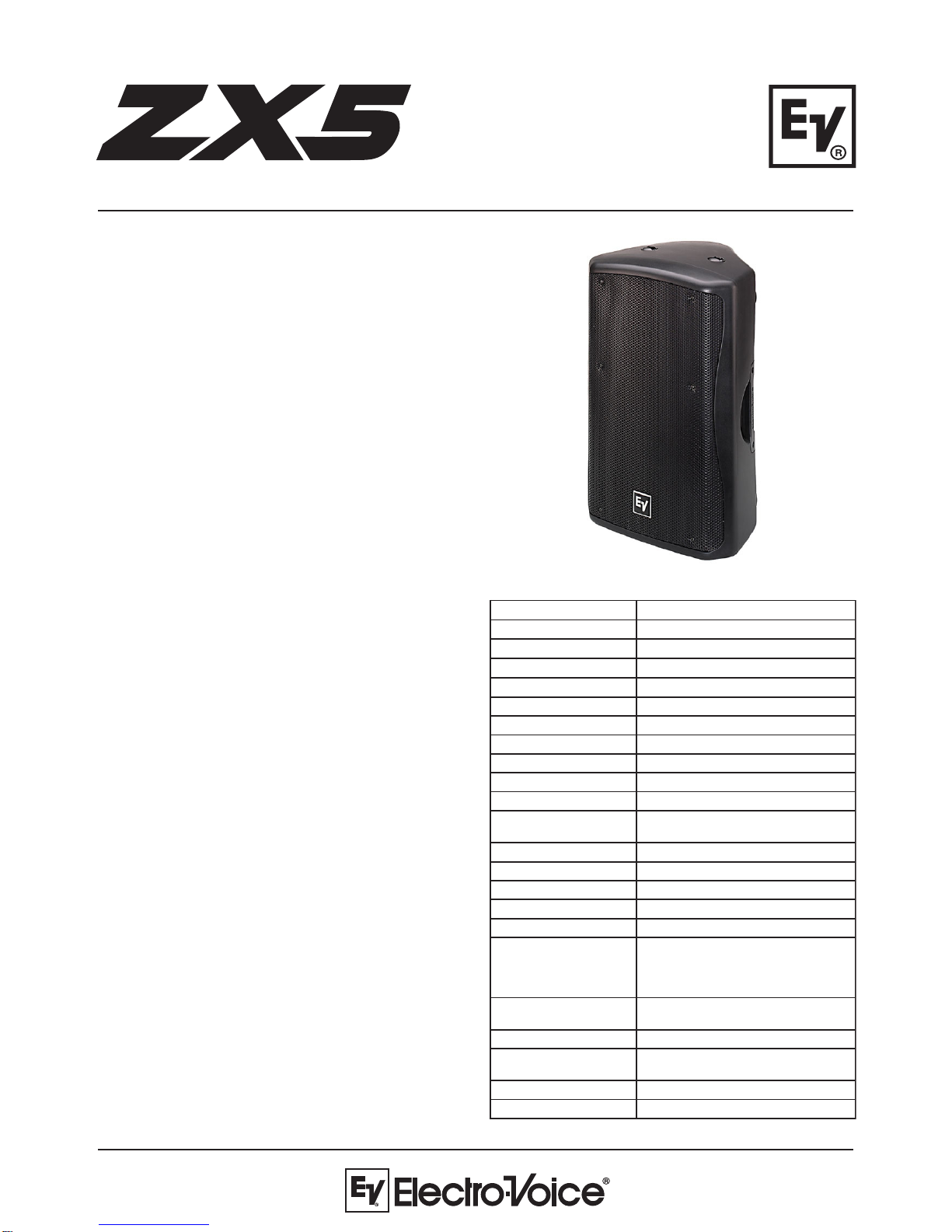

Technical Specifications:

The Electro-Voice®Zx5 is the new standard of no compromise audio

performance and versatility in a simple to use, compact package.

At its heart are the transducers. First is the DVX3150 high

performance low frequency transducer. EV used advanced

computer aided design techniques to create forced air, directional

voice coil cooling for high power and efficiency. Finite element

analysiswasusedtooptimizethesuspensionandmagneticstructure

for long, linear travel to provide low distortion and greater LF

extension. These features and details, such as forged magnetic

components and special materials, provide reliability with a 500W

power rating in a lightweight transducer. Next is the ND2, a 2-inch

voice coil compression driver based on neodymium motor structure

to allow for maximum output while reducing size and weight to a

minimum. Its precision phasing plug and titanium diaphragm provide

better HF performance, while the integral heatsink provides cooling

for high power output.

The high tech enclosure uses injection-molded high-impact

polypropylene structural foam to make the Zx5 incredibly durable.

The enclosure geometry elements have been carefully designed to

provide maximum rigidity and bass response. By design the Zx5 is

also a perfect solution for stage monitors by allowing two angles

(45° or 55°) without any additional accessories.

Two coverage patterns are available; 60° x 60° coverage for long-

throw and cluster applications, 90° x 50° coverage for wider coverage

or shorter distances.

The Zx5 is equipped with three anchor plates for rigging with single

stud-fittings, along with two more possible anchor plate attachment

points on the bottom. For permanent suspension or attaching

brackets, the Zx5 also has two M8 inserts on the top and bottom,

two under the handle, and four on the back of the enclosure, for a

total of 10. All versions are available in black or white.

General Description:

Zx5-90

15-InchTwo-Way Passive

90°x50°,600W

Loudspeaker System

Key Features:

• DVX3150 15”LFTransducer with Forced Air

Cooling

• ND2 2”Voice Coil,1”Exit Neodymium

Compression Driver

• 90° x 50° Coverage Pattern

• 600W Continuous (2400W) PowerHandling

• High Sensitivity,132 dB Maximum SPL

• Adjustable Monitor Angle (45° or 55°)

• 3 Anchor Plates for Single Stud Fittings and

10 Integral Suspension Points

• Available in Black orWhite

• Full Line of Accessories

esnopseR.qerF

:)Bd3-(zHk81-zH85

egnaR.qerF

:)Bd01-(zHk02-zH93

:ycneuqerFssapiH.ceRzH63

:ytivitisneSlaixA)m1/W1(Bd89

:LPSdetaluclaCxaMBd231

:egarevoClatnoziroH°09

:egarevoClacitreV°05

:rewoPmetsySdetaRkaePW0042,suounitnoCW006

:gnildnaHrewoPFLkaePW0002,suounitnoCW005

:gnildnaHrewoPFHkaePW061,suounitnoCW04

:recudsnarTFLrevirD)mm003(ni51,0513XVD

:recudsnarTFHmuimydoeNtixe)mm8.05(.ni1,2DN revirDnoisserpmoC

:ycneuqerFrevossorCzHk5.1

:ecnadepmIlanimoNsmhO8

:ecnadepmImuminiMsmhO5.6

:srotcennoC4LNnokaepSkirtueN

:lairetaMerusolcnEmaoFlarutcurtSenelyporpyloP

:noisnepsuS-elgniS5rofsnoitacolsaherusolcnE degroF01dnasetalPtnemhctattAdutS ,mottoBno2,poTno2-stlobeyEleetS erusolcnEforaeRno4dna,ediSno2

:ellirGAG61,detaoCredwoPretseyloP leetSdezinavlaG

:cepSlatnemnorivnE)noisreVIP(44PI/42PI925CEI

:)DxWxH(miD"61.61x"75.71x"62.72 )mm114xmm644xmm296(

:thgieWteN)gk2.22(sbl94

:thgieWgnippihS)gk0.62(sbl4.75

1 Half Space measurement.

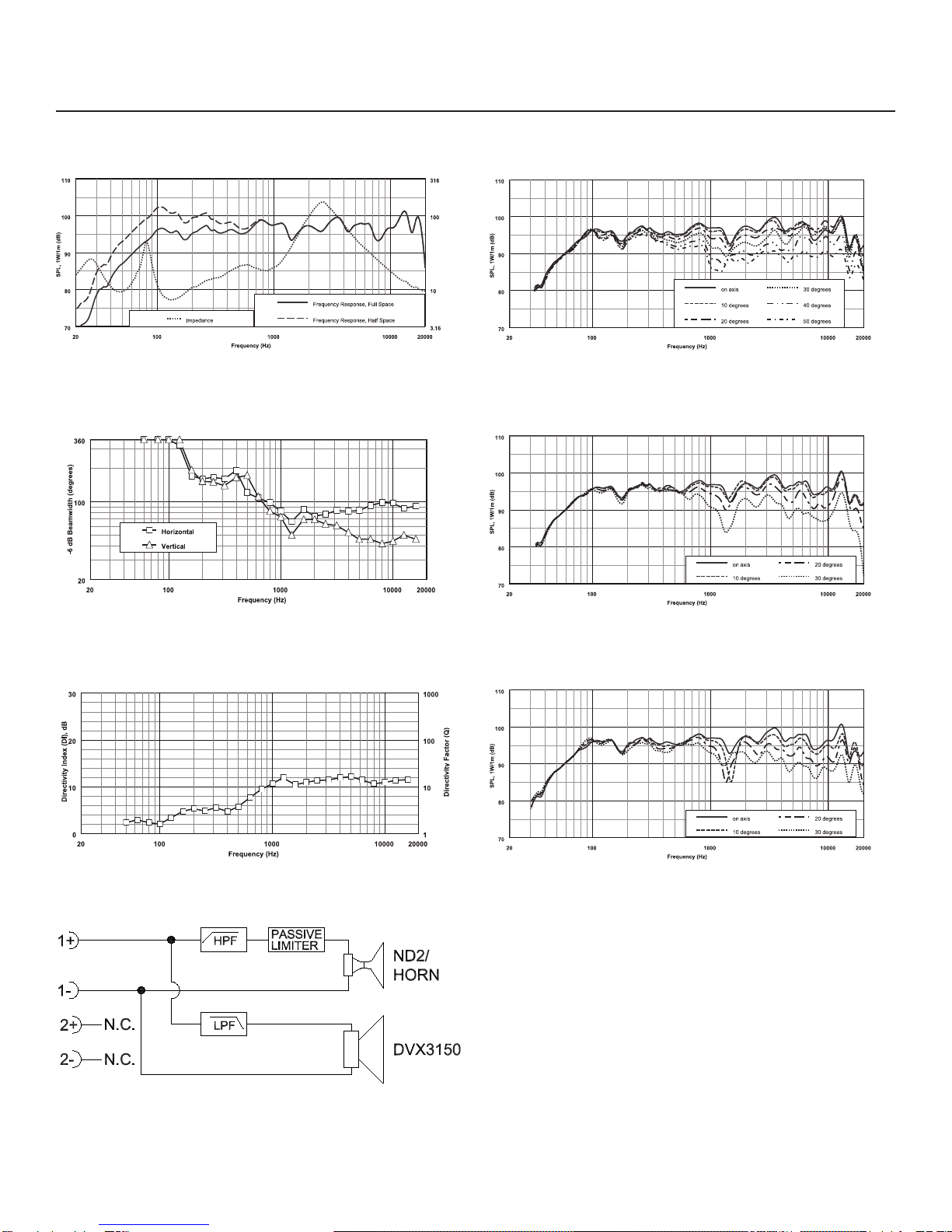

Frequency Response & Impedance:

Beamwidth:

Directivity:

Block Diagram:

Zx5-90 Full Range Loudspeaker

Horizontal Off Axis Frequency Response:

Vertical Off Axis Frequency Response

(Up):

Vertical Off Axis Frequency Response

(Down):

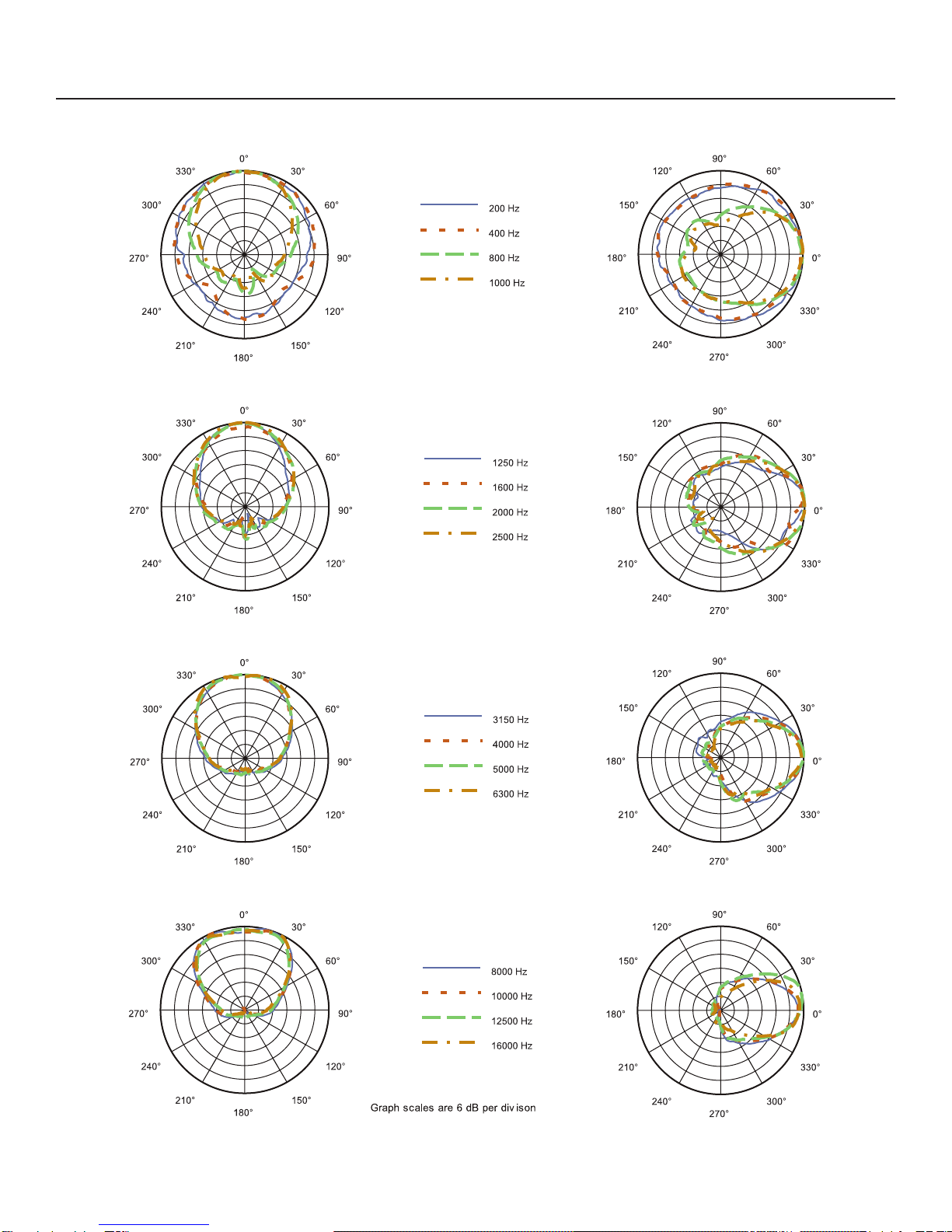

Horizontal 1/3 Octave Polars:

Engineering Data Sheet

Vertical 1/3 Octave Polars:

U.S.A. and Canada only. For customer orders, contact Customer Service at:

800/392-3497 Fax: 800/955-6831

Europe, Africa, and Middle East only. For customer orders, contact Customer Service at:

+ 49 9421-706 0 Fax: + 49 9421-706 265

Other International locations. For customer orders, contact Customer Service at:

+ 1 952 884-4051 Fax: + 1 952 736-4212

For warranty repair or service information, contact the Service Repair department at:

800/685-2606

For technical assistance, contact Technical Support at: 866/78AUDIO

Specifications subject to change without notice.

12000 Portland Avenue South, Burnsville, MN 55337

Phone:952/884-4051,Fax: 952/884-0043

www.electrovoice.com

Part Number 38110-354 Rev. A

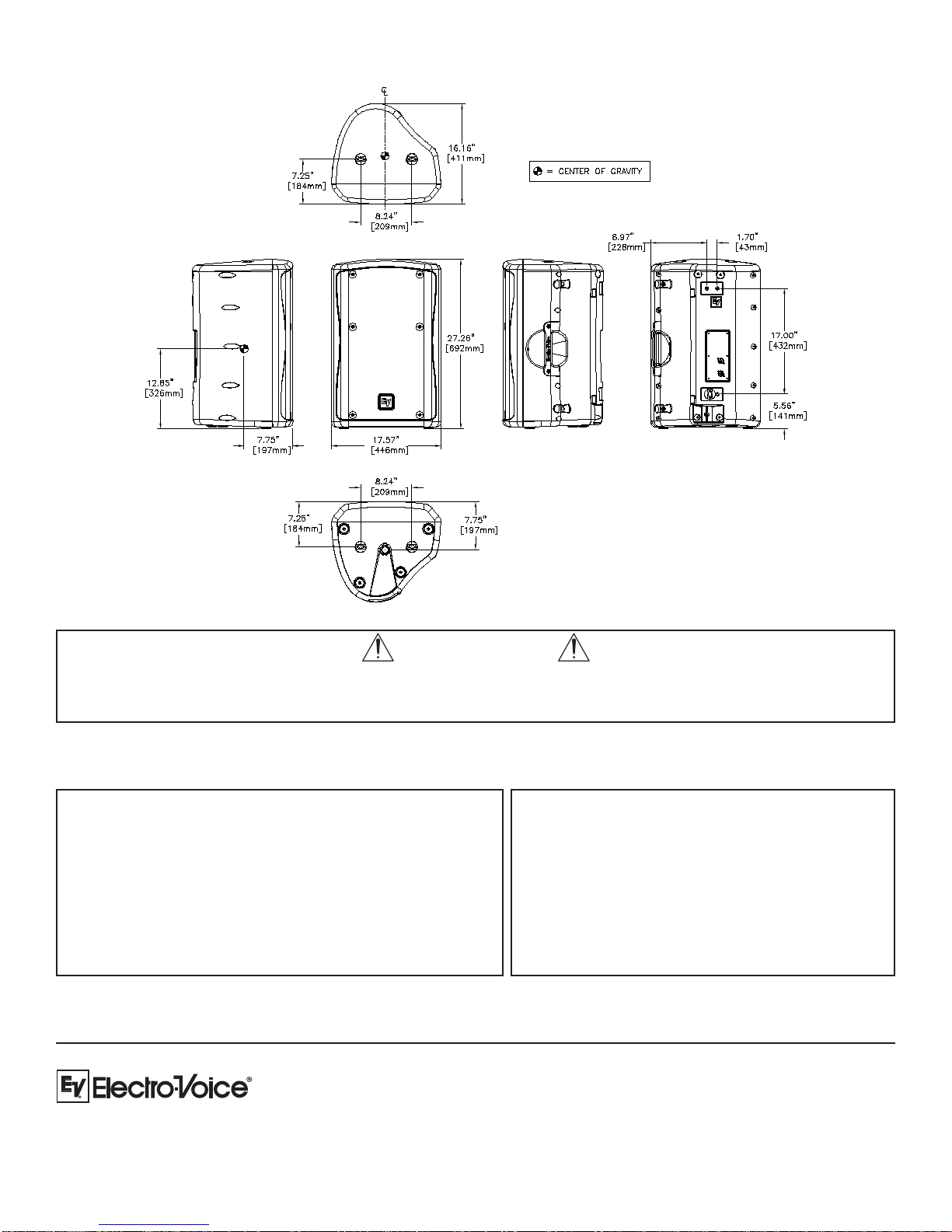

Dimension Drawings:

Zx5PartNumbers

• 301523-001 - Zx5-90B, 90° x 50° Horn, Black Finish

• 301523-002 - Zx5-90W, 90° x 50° Horn, White Finish

• 301523-003 - Zx5-60B, 60° x 60° Horn, Black Finish

• 301523-004 - Zx5-60W, 60° x 60° Horn, White Finish

• 301523-005 - Zx5-90PI, 90° x 50° Horn, Black Finish, Weather Resistant

• 301523-006 - Zx5-60PI, 60° x 60° Horn, Black Finish, Weather Resistant

PerformanceMatch

• 301576-001 SbA760, 120V 15” Powered Subwoofer,760W

• D170258 CP2200, 120V Power Amplifier, 2 x 800W

• D170312 CP3000S, 120V Power Amplifier, 2 x 1100W

Accessories

• 301626-001 MB5-B, Wall/Ceiling Mounting Bracket (Black)

• 301626-002 MB5-W,Wall/Ceiling Mounting Bracket (White)

• 301625-001 CB5-B, Array Bracket Kit (Black)

• 301625-002 CB5-W, Array Bracket Kit (White)

• 301634-000 EBK-3, Forged M8 Eyebolt Kit (Set of Three)

• 301633-000 SSK-1, Single-Stud Rigging Kit (Set of Three)

Front View

Top View

Right View Rear ViewLeft View

Bottom View

This Zx5 Loudspeaker should be suspended overhead only in accordance with the procedures and limitations specified in the

Zx5 Users Manual

and possible manual update notices. This system should be suspended with certified rigging hardware by an

authorized rigging professional and in compliance with local, state, and federal overhead suspension ordinances.

CAUTION
