Electro-Voice EVH-1152S/96 Bedienungsanleitung
Freq. Response1 (-3 dB): 60 Hz - 15 kHz
Freq. Range1 (-10 dB): 50 Hz - 16 kHz
Rec. Hipass Frequency: 60 Hz
Axial Sensitivity: 105 dB (1W/1m)
Max. Calculated SPL: 138 dB
Horizontal Coverage: 90° (or 60°)
Vertical Coverage: 60° (or 90°)
Power Handling: 500W Continuous, 2000W Peak
LF Transducer: SMX2151, 15 in (381mm) Driver
HF Transducer: ND2B, 2 in (51mm) Diaphragm
Compression Driver
Crossover Frequency: 1300 Hz
Nominal Impedance: 8 Ohms
Minimum Impedance: 6.0 Ohms
Connectors: (2) 4 Contact 10
AWG (2.6mm) Phoe-
nix/EuroBlock Style
Screw Terminals
PI Version -
Gland Nut with
Included Input
Panel Cover
Enclosure Material: 13 Ply Weather Resistant Birch
Grille: 16 GA Galvanneal,
Powdercoat, with
Rotatable Logo
PI Version -
Stainless Steel
with Hydropho-
bic Cloth
Suspension: (28) M10 Threaded Points
Dimensions (H x W x D): 30.26” x 30.26” x 26.77”
(768.6mm x 768.6mm x 680.1mm)
Net Weight: 143 lbs (64.9 kg)
Shipping Weight: 158 lbs (71.8 kg)
EVH-1152S/96
Single 15” Two-Way Coaxial
90° x 60° Full-Range
High Efficiency
Loudspeaker System
General Description: Technical Specifications:
Key Features:
ND2B 2” (51mm) Diaphragm, 1.4” (36mm) Exit •
Pure Titanium Compression Driver
SMX2151 15” (381mm) LF Transducer with Fully •
Symmetric Drive
Advanced 4• th Order Crossover Network with HF
Protection
Coverage Pattern: 90° x 60° Constant •
DirectivityTM Rotatable Waveguides
105 dB Sensitivity, 138 dB Maximum SPL •
System Rating: 500W Continuous, (2000W Peak)•
Active Rating: LF400W/HF40W Continuous •
(1600W/160W Peak)
(28) M10 Threaded Suspension Points•
PI Version Available with Gland Nut and Stain-•
less Steel Grille
The Electro-Voice® EVH-1152S/96 is a high power, 2-way Horn loaded
coaxial loudspeaker system that can be used in a variety of applications
where excellent quality sound reinforcement , wide bandwidth directivity
control , and high efficiency are required in a compact package.
The EVH-1152S/96 utilizes an ND2B and an SMX2151. The ND2B is a
high output 2” titanium compression driver, coupled to a rotatable 12” x
12” Constant Directivity™ 90° x 60° waveguide. The new SMX2151 is a high
output, low distortion 15” woofer. Developed by EV engineering the mo-
tor, suspension, and electrical characteristics of the woofer are optimized
to maximize efficiency and minimize distortion. The passive crossover
network employs 24 dB/octave slopes for a smooth response in the vocal
range, linear off-axis response, and features a comprehensive protection
circuit for long term reliability. This combination of technologies results
in a smooth response to 16 kHz and excellent pattern control down to
500Hz.
The EVH-1152S/96 features make it ideal for any fixed install applica-
tion. The trapezoidal enclosure is constructed out of 13 ply, 18mm birch,
and coated with EVCoatTM for maximum protection from the elements. PI
weather resistant models uses a stainless steel grill grille backed with
multiple material layers to prevent weather or humidity ingress. The EVH
family of models employ an intelligent combination of superior acoustic
design and rigging which allow for vertical and horizontal clusters to be
built using any combination of loudspeakers from the entire EVF & EVH
Series. 28 suspension points for use with rated eyebolts or EV –I cluster
hardware provide low cost, simple rigging solutions. With 5 horn pat-
terns to choose from and an assortment of low frequency and subwoofer
loudspeakers, EVH provides you the tools to easily design a custom
tailored solution, no matter what the application or budget. The innova-
tive input panel can be customized to one of three input choices, including
a phoenix style connector (included in all standard models), dual NL4
type connectors, or a gland nut cover plate (for weatherizing applications).
An externally accessible jumper selects passive or active operation. An
available 70.7/100 Volt transformer kit can be easily installed for use in
distributed systems.
1 Half Space Measurement.
20
100
1000
10000
20000
360
100
20
3.6
Horizontal
Vertical
Frequency (Hz)
-6dB Beamwidth (degrees)
50
20000
10000
1000
100
50
20
316
100
10
3.16
70
80
90
100
110
Frequency (Hz)
Sensitivity (dB)
Impedance (Ohms)
Passive Mode, Half Space
Impedance
20
50
100
1000
10000
20000
70
80
90
100
110
Frequency (Hz)
Sensitivity (dB)
On Axis 10° Vertical
20° Vertical 30° Vertical
20
50
100
1000
10000
20000
70
80
90
100
110
Frequency (Hz)
Sensitivity (dB)
On Axis 10° Horizontal
20° Horizontal 30° Horizontal
40° Horizontal
20000
10000
1000
100
20
0
10
20
30
1
10
100
1000
Frequency (Hz)
Directivity Index (DI), dB
Directivity
Factor (Q)
Frequency Response &
Impedance:
Beamwidth: Directivity:
Block Diagram (Biamp):
EVH-1152S/96 Loudspeaker System
Horizontal Off Axis Frequency
Response:
Vertical Off Axis Frequency
Response:
Block Diagram (Passive):

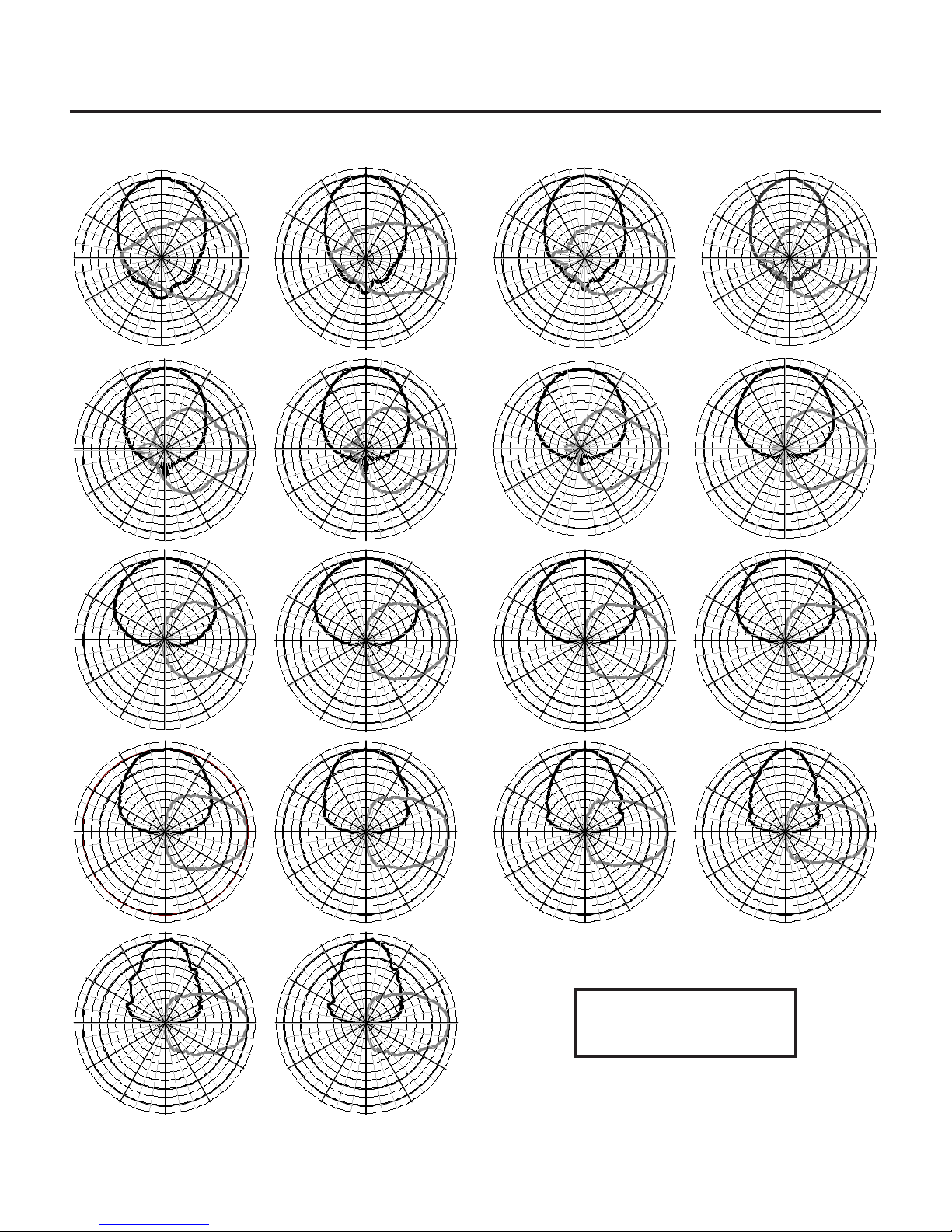

Polar Plots (1/3 Octave):
Engineering Data Sheet
Horizontal = Black
Vertical = Grey
400 Hz
500 Hz
630 Hz
800 Hz
1 KHz
1.25 KHz
1.6 KHz
2 KHz
2.5 KHz
3.15 KHz
4 KHz
5 KHz
6.3 KHz
8 KHz
10 KHz
12.5 KHz
16 KHz
20 KHz
12000 Portland Avenue South, Burnsville, MN 55337
Phone: 952/884-4051, Fax: 952/884-0043
www.electrovoice.com
© Bosch Communications Systems 05/2009
Part Number LIT000281003 Rev A
U.S.A. and Canada only. For customer orders, contact Customer Service at:
800/392-3497 Fax: 800/955-6831
Europe, Africa, and Middle East only. For customer orders, contact Customer Service at:
+ 49 9421-706 0 Fax: + 49 9421-706 265
Other Internatonal locations. For customer orders, Contact Customer Service at:
+ 1 952 884-4051 Fax: + 1 952 887-9212
For warranty repair or service information, contact the Service Repair department at:
800/685-2606
For technical assistance, contact Technical Support at: 866/78AUDIO
Specifications subject to change without notice.
Electro-Voice®

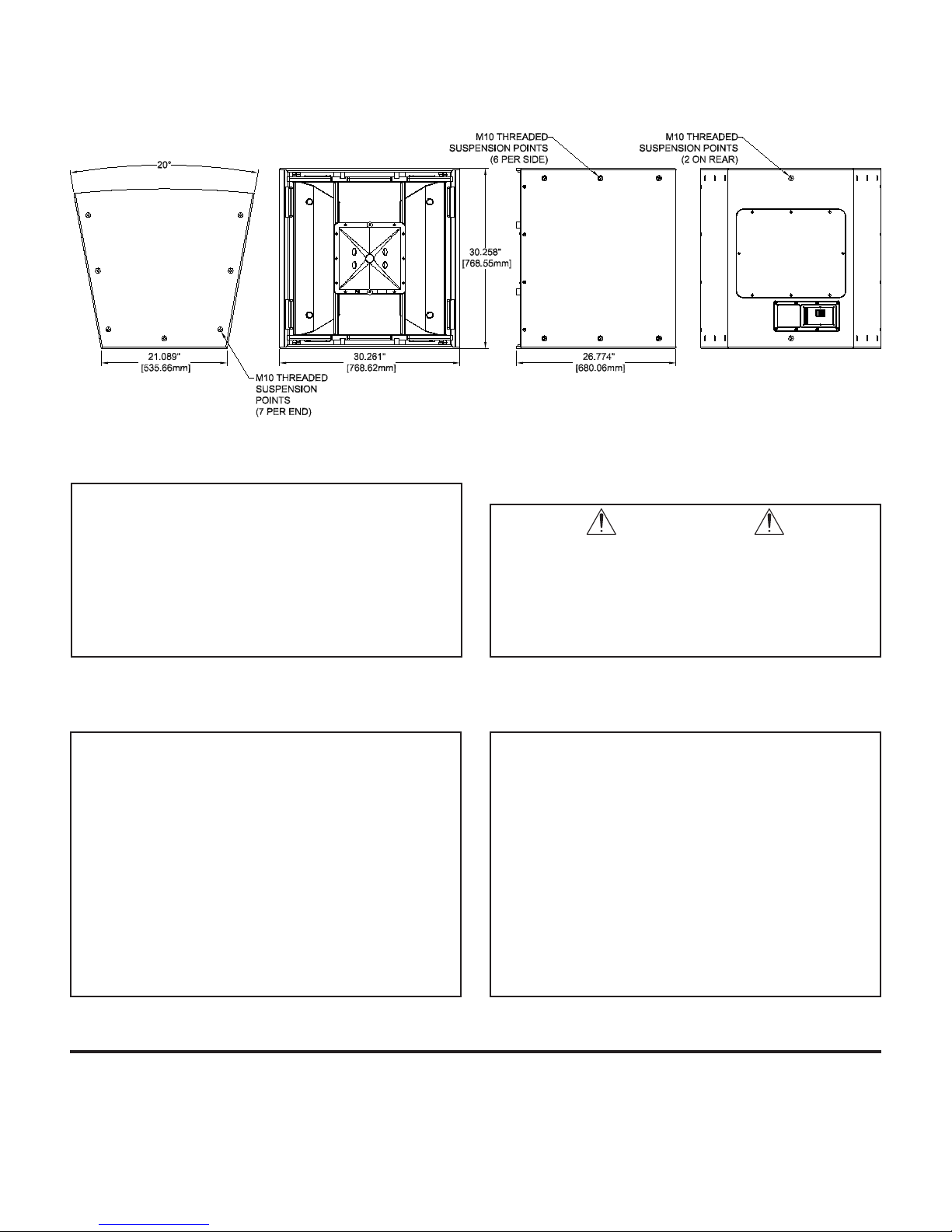

Dimension Drawings:
Front ViewEnd View
CAUTION
This EVH Loudspeaker should be suspended overhead
only in accordance with the procedures and limitations
specified in the EVF/EVH Users Manual and possible
manual update notices. This system should be suspended
with certified rigging hardware by an authorized rigging
professional and in compliance with local, state, and fed-
eral overhead suspension ordinances.
Accessories
ACC000084-000 CDNL4, Cover Plate, Dual NL4•
ACC000085-000 CSG, Cover Plate, Single Gland Nut•
ACC000086-000 CDG, Cover Plate, Dual Gland Nut•
ACC000087-000 TK-150, 70V Transformer, 150W•
ACC000089-001 HRK-1B, Horiz. Rigging Kit, EVF, Black•
ACC000089-002 HRK-1W, Horiz. Rigging Kit, EVF, White•
ACC000090-001 HRK-2B, Horiz. Rigging Kit, EVF-SUB, Black•
ACC000090-002 HRK-2W, Horiz. Rigging Kit, EVF-SUB, White•
ACC000091-001 HRK-3B, Horiz. Rigging Kit, EVH, Black•
ACC000091-002 HRK-3W, Horiz. Rigging Kit, EVH, White•
ACC000092-001 VRK-1B, Vert. Rigging Kit, EVF, Black•
ACC000092-002 VRK-1W, Vert. Rigging Kit, EVF, White•
ACC000093-001 VRK-2B, Vert. Rigging Kit, EVF-SUB, Black•
ACC000093-002 VRK-2W, Vert. Rigging Kit, EVF-SUB, White•
ACC000094-001 VRK-3B, Vert. Rigging Kit, EVH, Black•
ACC000094-002 VRK-3W, Vert. Rigging Kit, EVH, White•
EVH-1152S/96 Part Numbers
PRD000217-001 EVH-1152S/96-BLK, 90° x 60°, Black Finish•
PRD000217-002 EVH-1152S/96-WHT, 90° x 60°, White Finish•
PRD000217-003 EVH-1152S/96-PIB, 90° x 60°, Black Finish, •
Weather Resistant
PRD000217-004 EVH-1152S/96-PIW, 90° x 60°, White Finish, •
Weather Resistant
PRD000217-005 EVH-1152S/96-FGB, 90° x 60°, Black Finish, •
Weather Resistant Fiberglass
PRD000217-006 EVH-1152S/96-FGW, 90° x 60°, White Finish, •
Weather Resistant Fiberglass
Rear ViewSide View
Performance Match
PRD000211 EVF-1121S, 12” Bass Element•
PRD000212 EVF-1151S, 15” Bass Element•
PRD000213 EVF-1181S, 18” Bass Element•
PRD000214 EVH-1152S/64, Coaxial 60° x 40° Coverage•
PRD000215 EVH-1152S/66, Coaxial 60° x 60° Coverage•
PRD000216 EVH-1152S/94, Coaxial 90° x 40° Coverage•
PRD000218 EVH-1152S/99, Coaxial 90° x 90° Coverage•
F.01U.076.843 CPS2.9, 120V Power Amplifier, 2 x 900W•
F.01U.076.844 CPS2.12, 120V Power Amplifier, 2 x 1200W•
D170469 CPS4.5, 120V Power Amplifier, 4 x 500W •
D170466 CPS4.10, 120V Power Amplifier, 4 x 1000W•
