Electro-Voice EVA-2082S/920 Bedienungsanleitung
Freq. Response1 (-3 dB): 60 Hz - 19 kHz
Freq. Range1 (-10 dB): 45 Hz - 20 kHz
Rec. Hipass Frequency: 50 Hz
Axial Sensitivity2: 104 dB (1W/1m)
Max. Calculated SPL2: 129 dB Continuous, 135 dB Peak
Horizontal Coverage: 90°
Vertical Coverage: 20°
Power Handling: 350W Continuous, 1400W Peak
LF Transducer: (2) EVS2008, 8 in (203mm) Driver
HF Transducer: (4) DH2005, 1.25 in (32mm)
Diaphragm Compression Driver
Crossover Frequency: 1740 Hz
Nominal Impedance: 16 Ohms
Minimum Impedance: 12 Ohms
Connectors: (2) 4 Contact 10
AWG Phoenix/
EuroBlock Style
Screw Terminals
PI Version -
Gland Nut with
Included Input
Panel Cover
Enclosure Material: Plywood with EVCoatTM
Grille: 16 GA Galva-
nneal, Powder-
coated
PI Version -
Stainless Steel
with Hydrophobic
Cloth
Suspension: EVA Grid (Sold Separately)
Dimensions (H x W x D): 20.17” x 23.50” x 14.53”
(512.2mm x 596.9mm x 369.1mm)
Net Weight: 76.2 lbs (34.6 kg)
Shipping Weight: 85.5 lbs (38.8 kg)
EVA-2082S/920
Dual 8” Two-Way
90° x 20° Full-Range
Dual Element
Line Array Module
General Description: Technical Specifications:
Key Features:
True Line Array Performance•
90° Horizontal Coverage Pattern•
20° Vertical Coverage Pattern•
104 dB Sensitivity•
Hidden Suspension Hardware (Included) is •
Architecturally Pleasing
3 Finishes Available - Indoor, PI, and •
Fiberglass
EVADA (EVA Design Assistant) Software Tool•
Single Amplifier Channel Drive Configuration •
for Entire Array
Advanced 6• th Order Crossover Network with
HF Protection
The Electro-Voice® EVA Series (Expandable Vertical Array) is designed
to provide full bandwidth, well defined coverage from easily created line
arrays using four different preconfigured 2-way modules. Two verti-
cal coverage angles, 6° and 20°, can be combined to create line arrays
optimized for spaces ranging from 12m (40ft) to greater than 60m (200ft)
deep. Two horizontal coverage angles, 90° and 120°, provide the perfect
match for any width. Each module consists of two elements, each 2-way
element containing an 8” woofer and two compression drivers mounted
on a hydra/waveguide combination. High order passive networks couple
the element’s transducers, and the array element to additional elements
to provide plane wave radiation and response equal to DSP-driven high
end systems. Impedance management allows full array drive (up to 4
modules) from a single amplifier channel at 4 ohms. Matching sub-
woofer module is available when response below 50 Hz is required. EVA
systems can be used in a variety of fixed installation applications where
high quality sound reinforcement and even coverage are required from a
compact , lightweight, unobtrusive array.
EVA-2082 modules utilize four DH2005 high output 1.25” titanium com-
pression drivers, mounted on two Hydra® plane wave generators and
two waveguides. The result is smooth response to 20 kHz and excellent
pattern control in both planes.
The EVS2008 8” woofer is designed for line array use to provide very low
distortion and maximum intelligibility at high SPL levels. The crossover
features steep 36 dB/octave slopes with equalization for very smooth re-
sponse in the vocal range, extended HF, and a protection circuit for long
term reliability. It includes a user definable shading capability to finely
adjust the line array to the audience area.
(General Description continued on next page.)
1 Full Space Measurement.
2 Full Space Measurement of 3 Elements. SPL Adjusted for 1m Distance.

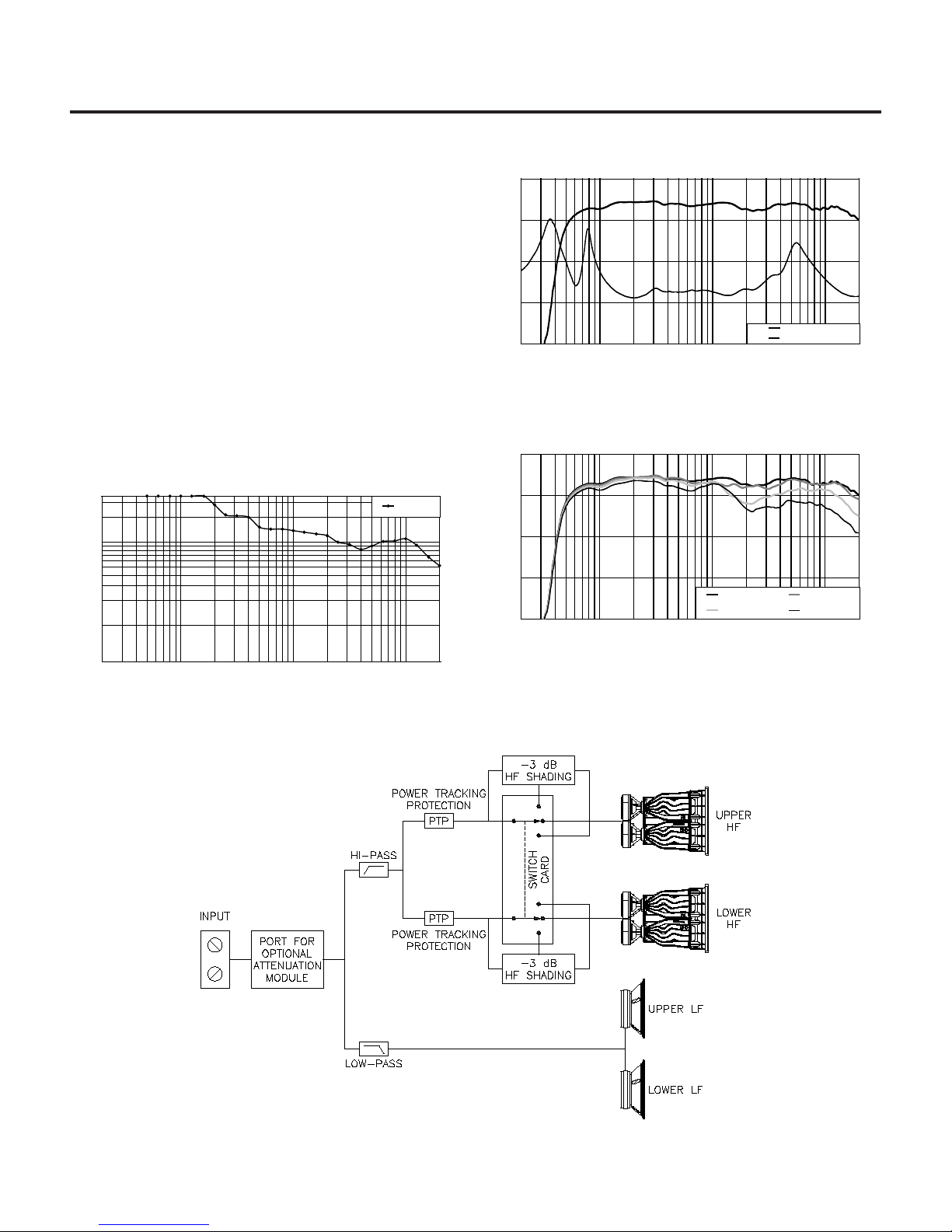

Frequency Response &
Impedance:
Beamwidth:
Block Diagram:
EVA-2082S/920 Line Array Module
Horizontal Off Axis Frequency
Response:
General Description (cont’):
The enclosure is constructed of wood, reinforced with internal steel
rigging straps, and coated with EVCoatTM for durability and professional
appearance, or fiberglass for severe exposure. PI and FG versions
include gland nut input panel and stainless steel 3-layer grille. Enclosure
side panel covers conceal all suspension hardware. The unique acoustic
and integrated rigging design allows for an 8 module vertical array to be
built using a combination of modules from the entire EVA Series. With
multiple vertical and horizontal coverage angles to choose from, you
have the tools to maximize flexibility of system design, no matter what
the application or budget. The innovative input panel provides a choice
of phoenix-style connectors (included in all standard models), optional
cover plate with dual NL4 type connectors or a gland nut plate for use
with cable. The input panel also includes a provision for adding up to 9
dB of attenuation (in -3 dB steps) to an individual module as a user-
installed option.
The innovative EVA Series has been designed to be used with a single
amplifier channel per array (up to 8 elements/4 modules per array at 4
ohm load impedance), giving you the ability to have a powerful, compact
and extremely efficient vertical array system.
20
100
1000
10000
20000
360
100
20
3.6
Horizontal
Frequency (Hz)
-6dB Beamwidth (degrees)
50
20000
10000
1000
100
50
20
316
100
10
3.16
70
80
90
100
110
Frequency (Hz)
Sensitivity (dB)
Impedance (Ohms)
Freq (3 Box Avg)
Impedance
20
50
100
1000
10000
20000
70
80
90
100
110
Frequency (Hz)
Sensitivity (dB)
On Axis 15° Horizontal
30° Horizontal 45° Horizontal
Polar Plots (1/3 Octave):
Engineering Data Sheet
Horizontal = Black
400 Hz
500 Hz
630 Hz
800 Hz
1 KHz
1.25 KHz
1.6 KHz
2 KHz
2.5 KHz
3.15 KHz
4 KHz
5 KHz
6.3 KHz
8 KHz
10 KHz
12.5 KHz
16 KHz
20 KHz
12000 Portland Avenue South, Burnsville, MN 55337
Phone: 952/884-4051, Fax: 952/884-0043
www.electrovoice.com
© Bosch Communications Systems 05/2009
Part Number LIT000348000 Rev B
U.S.A. and Canada only. For customer orders, contact Customer Service at:
800/392-3497 Fax: 800/955-6831
Europe, Africa, and Middle East only. For customer orders, contact Customer Service at:
+ 49 9421-706 0 Fax: + 49 9421-706 265
Other Internatonal locations. For customer orders, Contact Customer Service at:
+ 1 952 884-4051 Fax: + 1 952 887-9212
For warranty repair or service information, contact the Service Repair department at:
800/685-2606
For technical assistance, contact Technical Support at: 866/78AUDIO
Specifications subject to change without notice.
Electro-Voice®

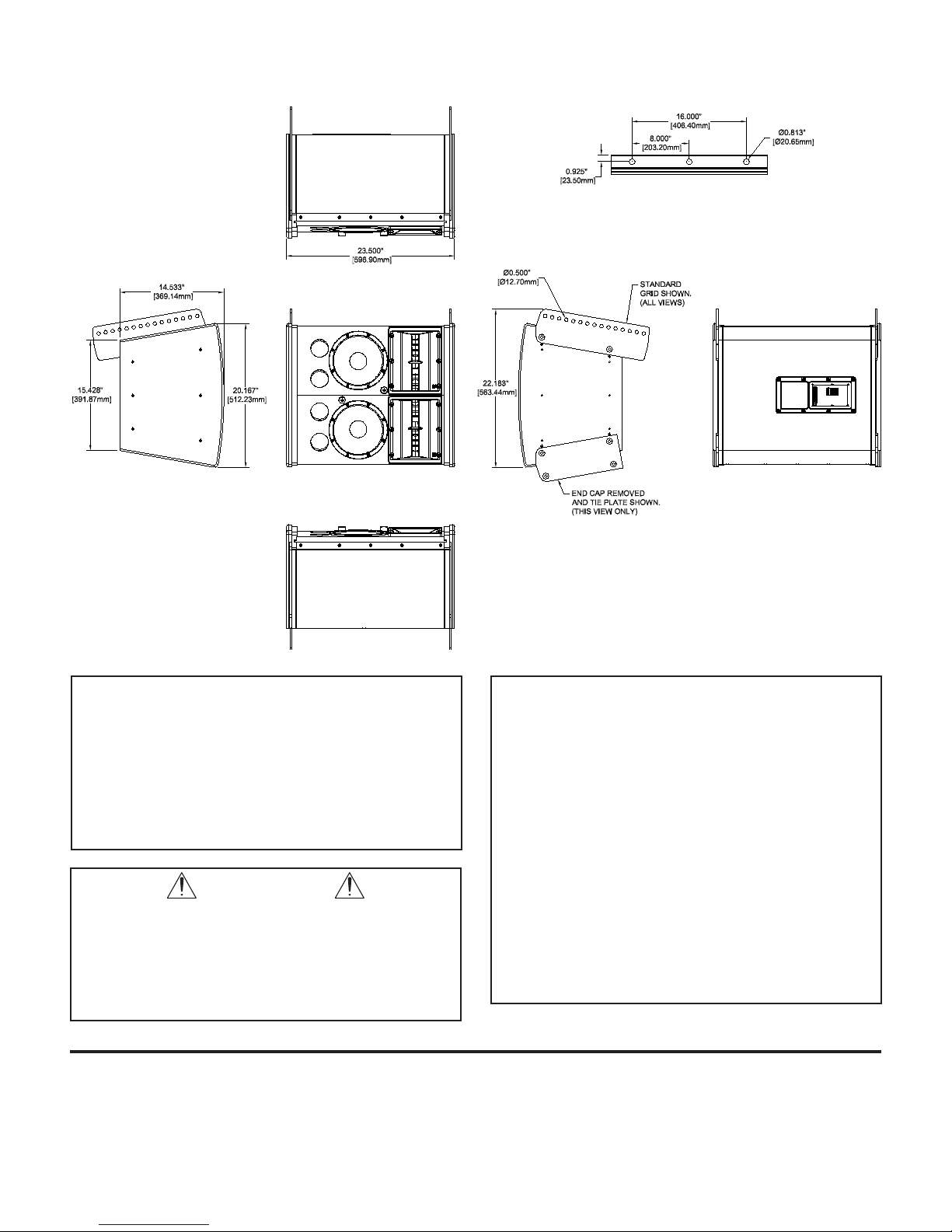

Dimension Drawings:
Top View
Front View
Bottom View
Right View
CAUTION
This EVA Loudspeaker should be suspended overhead
only in accordance with the procedures and limitations
specified in the EVA User Manual and possible manual
update notices. This system should be suspended with
certified rigging hardware by an authorized rigging profes-
sional and in compliance with local, state, and federal
overhead suspension ordinances.
Performance Match
PRD000194 EVA-2082S/906, 90° x 6° Coverage•
PRD000196 EVA-2082S/126, 120° x 6° Coverage•
PRD000197 EVA-2082S/1220, 120° x 20° Coverage•
F.01U.076.843 CPS2.9, 120V Power Amplifier, 2 x 900W•
F.01U.076.844 CPS2.12, 120V Power Amplifier, 2 x 1200W•
D170466 CPS4.10, 120V Power Amplifier, 4 x 1000W•
Accessories
ACC000082-001 EVA-SG-BLK, EVA Standard Grid (Black)•
ACC000082-002 EVA-SG-WHT, EVA Standard Grid (White)•
ACC000083-001 EVA-EG-BLK, EVA Extended Grid (Black)•
ACC000083-002 EVA-EG-WHT, EVA Extended Grid (White)•
ACC000079-001 EVA-GXB-BLK, Grid Extra Spreader Bar (Black)•
ACC000080-002 EVA-GXB-WHT, Grid Extra Spreader Bar (White)•
ACC000081-000 EVA-AM, EVA Attenuation Module•
ACC000084-000 CDNL4, Cover Plate, Dual NL4•
ACC000085-000 CSG, Cover Plate, Single Gland Nut•
ACC000086-000 CDG, Cover Plate, Dual Gland Nut•
EVA-2082S/920 Part Numbers
PRD000195-001 EVA-2082S/920-BLK, 90° x 20°, Black Finish•
PRD000195-002 EVA-2082S/920-WHT, 90° x 20°, White Finish•
PRD000195-003 EVA-2082S/920-PIB, 90° x 20°, Black Finish, •
Weather Resistant
PRD000195-004 EVA-2082S/920-PIW, 90° x 20°, White Finish, •
Weather Resistant
PRD000195-005 EVA-2082S/920-FGB, 90° x 20°, Black Finish, •
Weather Resistant Fiberglass
PRD000195-006 EVA-2082S/920-FGW, 90° x 20°, White Finish, •
Weather Resistant Fiberglass
Rear View
Left View
Spreader Bar
Attach Holes
