Electro-Voice EVH-1152S/43 Bedienungsanleitung

Freq. Response1(-3 dB): 60 Hz - 15 kHz

Freq. Range1(-10 dB): 50 Hz - 16 kHz

Rec. Hipass Frequency: 60 Hz

Axial Sensitivity: 106 dB (1W/1m)

Max. Calculated SPL: 139 dB

Horizontal Coverage: 40° (or 30°)

Vertical Coverage: 30° (or 40°)

Power Handling: 500W Continuous, 2000W Peak

LF Transducer: SMX2151, 15 in (381mm) Driver

HF Transducer: ND2B, 2 in (51mm) Diaphragm

Compression Driver

Crossover Frequency: 1300 Hz

Nominal Impedance: 8 Ohms

Minimum Impedance: 6.0 Ohms

Connectors: (2) 4 Contact 10

AWG (2.6mm) Phoe-

nix/EuroBlock Style

Screw Terminals

PI Version -

Gland Nut with

Included Input

Panel Cover

Enclosure Material: 13 Ply Weather Resistant Birch

Grille: 16 GA Galvanneal,

Powdercoat, with

Rotatable Logo

PI Version -

Stainless Steel

with Hydropho-

bic Cloth

Environmental Specs: Std. Version - IP33 PI/FG - IP55

Suspension: (28) M10 Threaded Points

Dimensions (H x W x D): 30.26” x 30.26” x 26.77”

(768.6mm x 768.6mm x 680.1mm)

Net Weight: 143 lbs (64.9 kg)

Shipping Weight: 158 lbs (71.8 kg)

General Description: Technical Speciﬁcations:

Key Features:

ND2B 2” (51mm) Diaphragm, 1.4” (36mm) Exit•

Pure Titanium Compression Driver

SMX2151 15” (381mm) LF Transducer with Fully•

Symmetric Drive

Advanced 4• th Order Crossover Network with HF

Protection

Coverage Pattern: 40° x 30° Constant•

DirectivityTM Rotatable Waveguides

106 dB Sensitivity, 139 dB Maximum SPL•

System Rating: 500W Continuous, (2000W Peak)•

Active Rating: LF400W/HF40W Continuous•

(1600W/160W Peak)

(28) M10 Threaded Suspension Points•

PI Version Available with Gland Nut and Stain-•

less Steel Grille

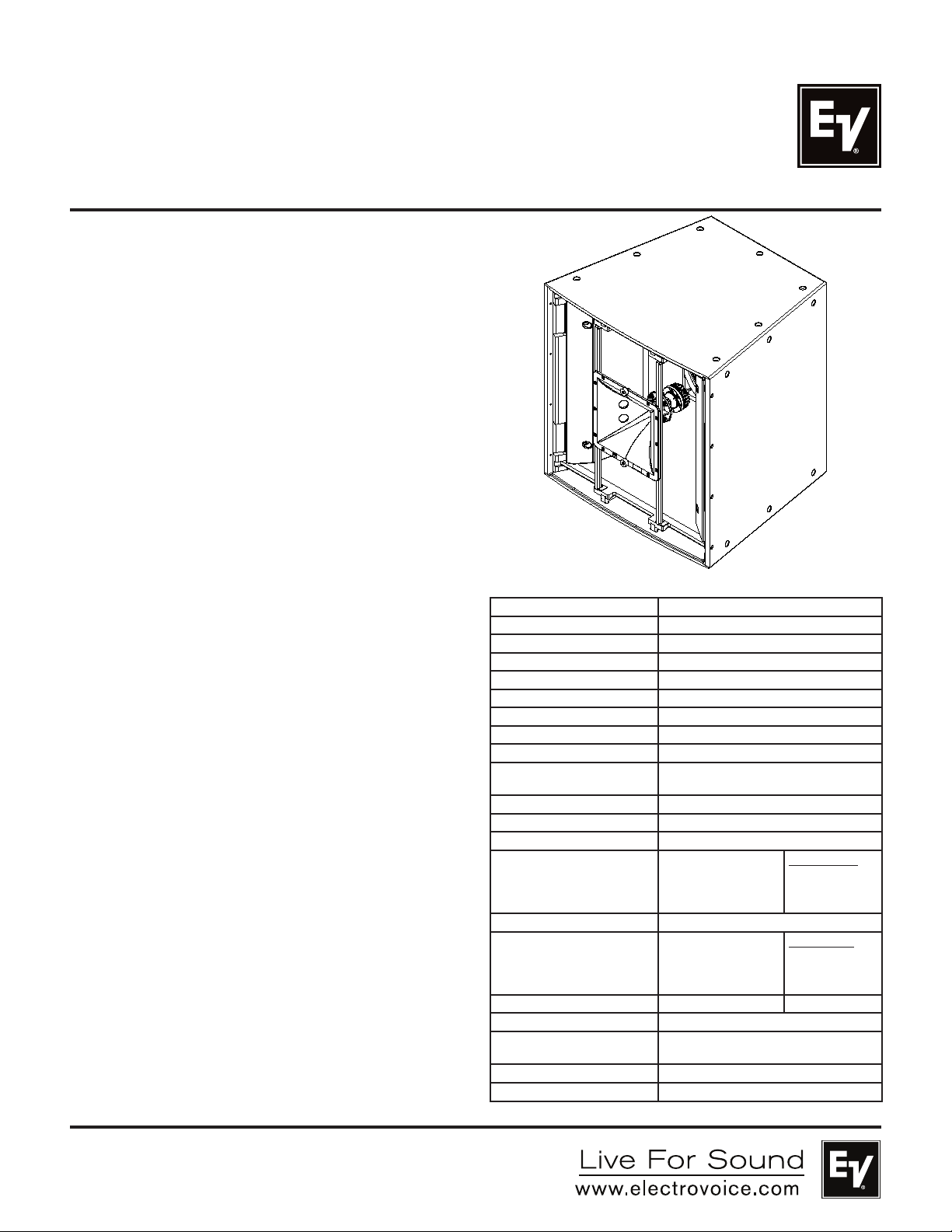

The Electro-Voice® EVH-1152S/43 is a high power, 2-way Horn loaded

coaxial loudspeaker system that can be used in a variety of applications

where excellent quality sound reinforcement , wide bandwidth directivity

control , and high efﬁciency are required in a compact package.

The EVH-1152S/43 utilizes an ND2B and an SMX2151. The ND2B is a high

output 2” titanium compression driver, coupled to a rotatable 12” x 12”

Constant Directivity™ 40° x 30° waveguide. The new SMX2151 is a high

output, low distortion 15” woofer. Developed by EV engineering the mo-

tor, suspension, and electrical characteristics of the woofer are optimized

to maximize efﬁciency and minimize distortion. The passive crossover

network employs 24 dB/octave slopes for a smooth response in the vocal

range, linear off-axis response, and features a comprehensive protection

circuit for long term reliability. This combination of technologies results in

a smooth response to 16 kHz and excellent pattern control down to 500Hz.

The EVH-1152S/43 features make it ideal for any ﬁxed install applica-

tion. The trapezoidal enclosure is constructed out of 13 ply, 18mm birch,

and coated with EVCoatTM for maximum protection from the elements. PI

weather resistant models uses a stainless steel grill grille backed with

multiple material layers to prevent weather or humidity ingress. The EVH

family of models employ an intelligent combination of superior acoustic

design and rigging which allow for vertical and horizontal clusters to be

built using any combination of loudspeakers from the entire EVF & EVH

Series. 28 suspension points for use with rated eyebolts or EV –I cluster

hardware provide low cost, simple rigging solutions. With 6 horn pat-

terns to choose from and an assortment of low frequency and subwoofer

loudspeakers, EVH provides you the tools to easily design a custom

tailored solution, no matter what the application or budget. The innova-

tive input panel can be customized to one of three input choices, including

a phoenix style connector (included in all standard models), dual NL4

type connectors (sold separately), or a gland nut cover plate (for weather-

izing applications). An externally accessible jumper selects passive or

active operation. An available 70.7/100 Volt transformer kit can be easily

installed for use in distributed systems.

1Half Space Measurement.

EVH-1152S/43

Single 15” Two-Way Coaxial

40° x 30° Full-Range

High Efﬁciency

Loudspeaker System

Frequency Response &

Impedance:

Beamwidth: Directivity:

Block Diagram (Biamp):

EVH-1152S/43 Loudspeaker System

Horizontal Off Axis Frequency

Response:

Vertical Off Axis Frequency

Response:

Block Diagram (Passive):

20000

10000

1000

100

316

100

3.16

100

110

Frequency (Hz)

Sensitivity (dB)

Impedance (Ohms)

Passive Mode, Half Space

Impedance

100

1000

10000

20000

100

110

Frequency (Hz)

Sensitivity (dB)

On Axis 10° Vertical 20° Vertical

100

1000

10000

20000

100

110

Frequency (Hz)

Sensitivity (dB)

On Axis 10° Horizontal

20° Horizontal 30° Horizontal

20000

10000

1000

100

1000

Frequency (Hz)

Directivity Index (DI), dB

Directivity Factor (Q)

100

1000

10000

20000

360

200

100

3.6

360

200

100

3.6

Horizontal

Vertical

rhvalues

Be am w idt h (Firs t Cr os sin g)

Frequency (Hz)

-6dB Beamwidth (degrees)

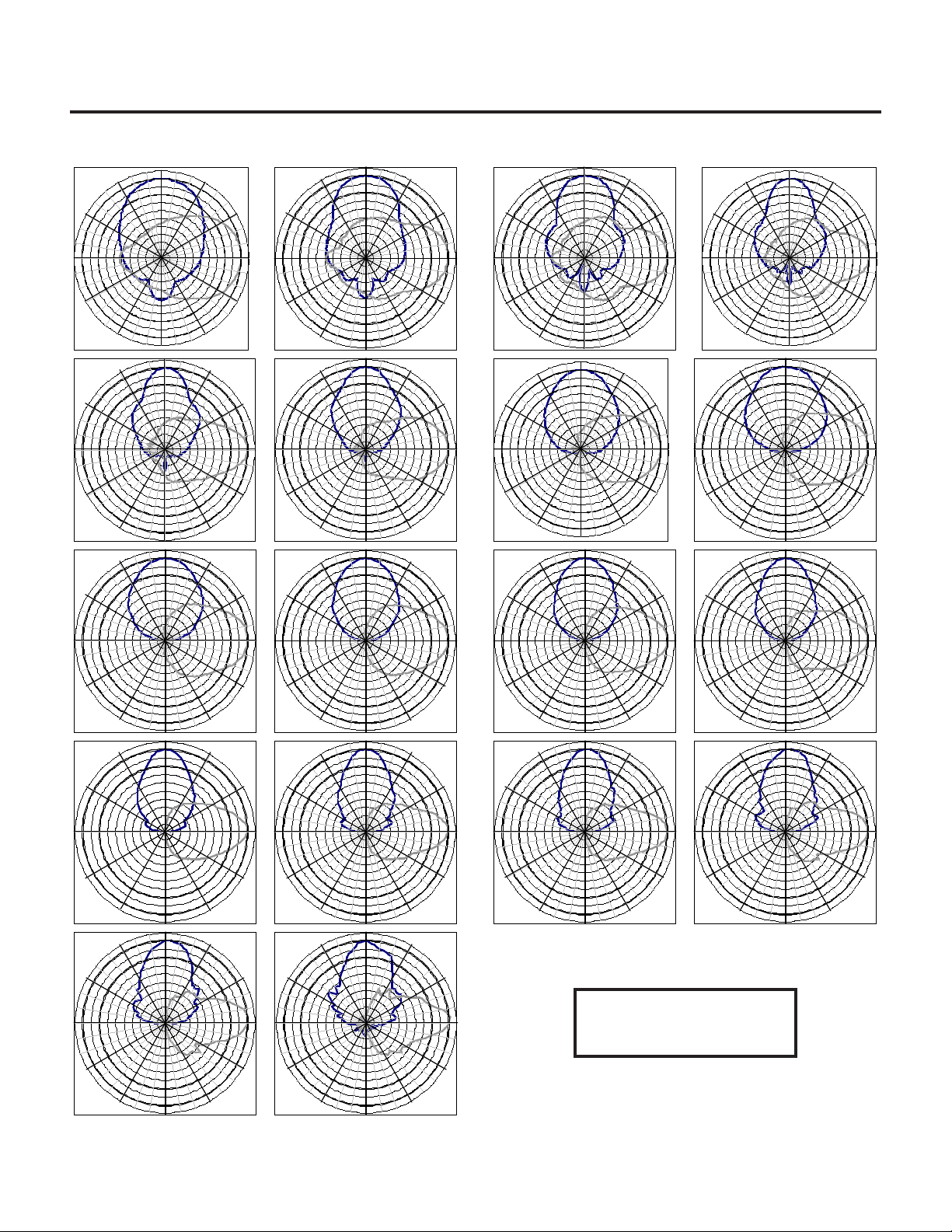

Polar Plots (1/3 Octave):

Engineering Data Sheet

Horizontal = Black

Vertical = Grey

400 Hz

500 Hz

630 Hz

800 Hz

1 KHz

1.25 KHz

1.6 KHz

2 KHz

2.5 KHz

3.15 KHz

4 KHz

5 KHz

6.3 KHz

8 KHz

10 KHz

12.5 KHz

16 KHz

20 KHz

12000 Portland Avenue South, Burnsville, MN 55337

Phone: 952/884-4051, Fax: 952/884-0043

www.electrovoice.com

Part Number LIT000281005 Rev A

U.S.A. and Canada only. For customer orders, contact Customer Service at:

800/392-3497 Fax: 800/955-6831

Europe, Africa, and Middle East only. For customer orders, contact Customer Service at:

+ 49 9421-706 0 Fax: + 49 9421-706 265

Other Internatonal locations. For customer orders, Contact Customer Service at:

+ 1 952 884-4051 Fax: + 1 952 887-9212

For warranty repair or service information, contact the Service Repair department at:

800/685-2606

For technical assistance, contact Technical Support at: 866/78AUDIO

Speciﬁcations subject to change without notice.

Electro-Voice®

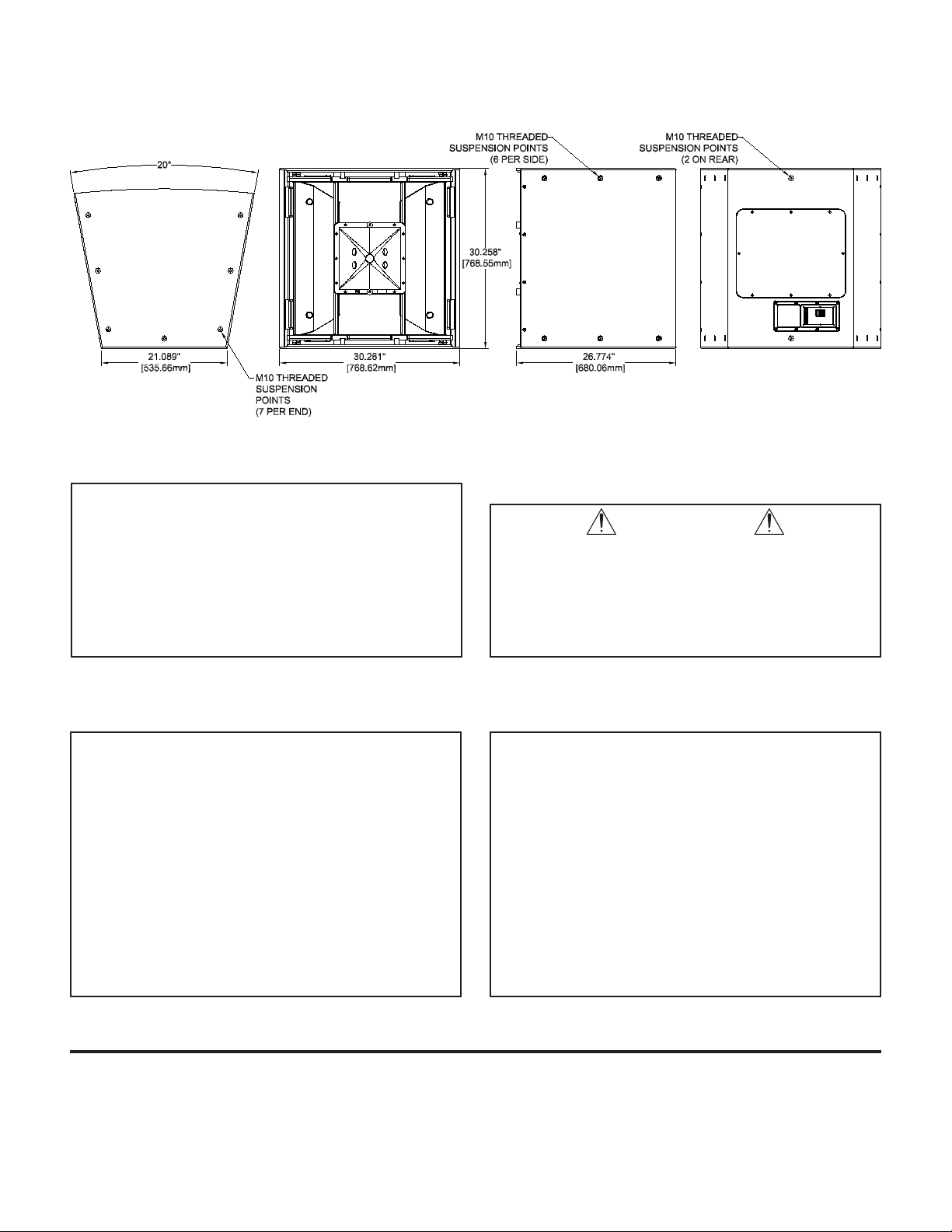

Dimension Drawings:

Front ViewEnd View

CAUTION

This EVH Loudspeaker should be suspended overhead

only in accordance with the procedures and limitations

speciﬁed in the EVF/EVH Users Manual and possible

manual update notices. This system should be suspended

with certiﬁed rigging hardware by an authorized rigging

professional and in compliance with local, state, and fed-

eral overhead suspension ordinances.

Accessories

ACC000084-000 CDNL4, Cover Plate, Dual NL4•

ACC000085-000 CSG, Cover Plate, Single Gland Nut•

ACC000086-000 CDG, Cover Plate, Dual Gland Nut•

ACC000087-000 TK-150, 70V Transformer, 150W•

ACC000089-001 HRK-1B, Horiz. Rigging Kit, EVF, Black•

ACC000089-002 HRK-1W, Horiz. Rigging Kit, EVF, White•

ACC000090-001 HRK-2B, Horiz. Rigging Kit, EVF-SUB, Black•

ACC000090-002 HRK-2W, Horiz. Rigging Kit, EVF-SUB, White•

ACC000091-001 HRK-3B, Horiz. Rigging Kit, EVH, Black•

ACC000091-002 HRK-3W, Horiz. Rigging Kit, EVH, White•

ACC000092-001 VRK-1B, Vert. Rigging Kit, EVF, Black•

ACC000092-002 VRK-1W, Vert. Rigging Kit, EVF, White•

ACC000093-001 VRK-2B, Vert. Rigging Kit, EVF-SUB, Black•

ACC000093-002 VRK-2W, Vert. Rigging Kit, EVF-SUB, White•

ACC000094-001 VRK-3B, Vert. Rigging Kit, EVH, Black•

ACC000094-002 VRK-3W, Vert. Rigging Kit, EVH, White•

EVH-1152S/43 Part Numbers

PRD000265-001 EVH-1152S/43-BLK, 40° x 30°, Black Finish•

PRD000265-002 EVH-1152S/43-WHT, 40° x 30°, White Finish•

PRD000265-003 EVH-1152S/43-PIB, 40° x 30°, Black Finish,•

Weather Resistant

PRD000265-004 EVH-1152S/43-PIW, 40° x 30°, White Finish,•

Weather Resistant

PRD000265-005 EVH-1152S/43-FGB, 40° x 30°, Black Finish,•

Weather Resistant Fiberglass

PRD000265-006 EVH-1152S/43-FGW, 40° x 30°, White Finish,•

Weather Resistant Fiberglass

Rear ViewSide View

Performance Match

PRD000211 EVF-1121S, 12” Bass Element•

PRD000212 EVF-1151S, 15” Bass Element•

PRD000213 EVF-1181S, 18” Bass Element•

PRD000214 EVH-1152S/64, Coaxial 60° x 40° Coverage•

PRD000215 EVH-1152S/66, Coaxial 60° x 60° Coverage•

PRD000216 EVH-1152S/94, Coaxial 90° x 40° Coverage•

PRD000217 EVH-1152S/96, Coaxial 90° x 60° Coverage•

PRD000218 EVH-1152S/99, Coaxial 90° x 90° Coverage•

F.01U.076.843 CPS2.9, 120V Power Ampliﬁer, 2 x 900W•

F.01U.076.844 CPS2.12, 120V Power Ampliﬁer, 2 x 1200W•

D170469 CPS4.5, 120V Power Ampliﬁer, 4 x 500W•

D170466 CPS4.10, 120V Power Ampliﬁer, 4 x 1000W•
