EVH-1152D/99

▪Rotatable Mid-bass and High Frequency Waveguides

for consistent pattern control down to 500 Hz

▪Integrated Passive Network with PTP High

Frequency Protection

▪PI and FG versions available with gland nut and

stainless-steel grille rated IEC 60529 IP55

▪Integrates easily with EVF Low Frequency and

Subwoofer Systems

▪EN54-24 type B certification 1438/CPR/0299 with

CDG cover installed (Only available in select regions)

The Electro-Voice EVH-1152D/99 is a high-power,

two-way horn-loaded coaxial loudspeaker system that

can be used in a wide variety of applications where

excellent intelligibility, wide bandwidth directivity

control, and high efficiency are required in a compact,

cost-effective package.

For high frequencies, the EVH-1152D/99 utilizes the

DH7N, a high-output 3-inch titanium compression

driver, coupled to a rotatable Constant Directivity

90° x 90° waveguide. Both the mid-bass and high

frequency waveguides may be rotated to maintain

uniform pattern control over the entire critical vocal

range regardless of enclosure orientation. For low

frequencies, the SMX2151 15-inch woofer was

developed using FEA optimization for motor,

suspension, and electrical design to ensure very low

distortion, high efficiency, and maximum intelligibility

at high SPL. The crossover uses steep,

24-dB per-octave slopes with equalization for very

smooth response in the vocal range, linear off-axis

response, and an HF protection circuit for long-term

reliability. This combination of technologies results in

extended frequency response and excellent pattern

control down to 500 Hz.

The EVH-1152D/99 features make it ideal for many

fixed-install applications. The trapezoidal enclosure is

constructed out of weather-resistant birch and coated

with EVCoat for enhanced durability. For protection

against outdoor elements, weatherized versions are

available (PI and FG). The enclosure is built with 28

M10 suspension points for single hang (four (4)

shoulder eyebolts included) or cluster arrays (optional

HRK or VRK kits).

The innovative input panel provides Phoenix-style

connectors (included in all models) and a dual gland

nut cover plate (CDG included in PI and FG models).

For convenience in temporary installation you may add

a dual NL4 type connector cover plate (CDNL4). An

external easy to access jumper card is provided with

each loudspeaker to assist you in the selection of

passive (standard shipping configuration) or biamp

operation. An available 70.7/100 Volt internal

transformer kit (TK-150) may be easily mounted to the

input panel for use in distributed systems.

No matter what the application and budget, all these

features provide you with the tools to increase

flexibility during system design to meet and support

your customer’s requirements with fewer items in

inventory.

EVF and EVH loudspeakers feature precise acoustics

and rigging design for easy to configure vertical and

horizontal clusters as part of the solutions provided in

the EV innovation family.

Technical specifications

Frequency Response (-3 dB): 60 Hz–17 kHz1

Frequency Range (-10 dB): 50 Hz–20 kHz1

Rotatable Coverage: 90° x 90°

Rec. High-Pass Frequency: 60 Hz

Passive Crossover

Frequency:

1300 Hz

Axial Sensitivity: 104 dB (1 W/1 m)1

Max. Calculated SPL: 137 dB1

Passive Power Handling: 500 W Continuous, 2000 W Peak2

Impedance: 8 Ω (nominal), 6.0 Ω (min.)

Transformer:

Standard 50 Hz BW24 High

Pass

70 V 100 V Z nom

37.5 W 75 W 130 Ω

75 W 150 W 65 Ω

150 W Do Not

Use

33 Ω

Transformer:

89 Hz High Pass per EN54-24

Spectrum

70 V 100 V Z nom

50 W 100 W 100 Ω

100 W 200 W 50 Ω

200 W 400 W 25 Ω

LF Transducer - SMX2151, 15 in (381 mm) driver

LF Axial Sensitivity: 106 dB (1 W/1 m)4

LF Max. Calculated SPL: 138 dB

LF Power Handling: 400 W Continuous, 1600 W Peak3

LF Impedance: 8 Ω (nominal), 6.1 Ω (min.)

HF Transducer - DH7N, 3 in (76 mm) diaphragm compression driver

HF Axial Sensitivity: 110 dB (1 W/1 m)4

HF Max. Calculated SPL: 135 dB

HF Power Handling: 75 W Continuous, 300 W Peak3

HF Impedance: 8 Ω (nominal), 6.0 Ω (min.)

Connectors: Dual four-pin 10

AWG Phoenix/

Euro Block

screw-terminals

PI/FG Versions:

CDG dual-gland-

nut input panel

cover included

Enclosure: 13-ply weather-

resistant birch

with EVCoat

FG Version: 13-

ply weather-

resistant birch

with fiberglass

finish

Grille: 16 GA powder-

coated

galvanneal with

rotatable logo

PI/FG Versions:

Stainless steel

with

hydrophobic

cloth

Environmental: IEC 60529 IP55 for PI and FG

versions

Suspension: (28) M10 threaded suspension points

Dimensions (H x W x D): 30.26 in x 30.26 in x 26.77 in

(768.6 mm x 768.6 mm x 680.1 mm)

Net Weight: 145.5 lb (66.1 kg)

Shipping Weight: 160.5 lb (72.9 kg)

1. Half-space measurement.

2. EIA RS-426A, tested for eight hours.

3. AES 2-1984, tested for eight hours.

4. Arithmetic averages, 300–1,300 Hz (LF) and 1,300–

5,000 Hz (HF).

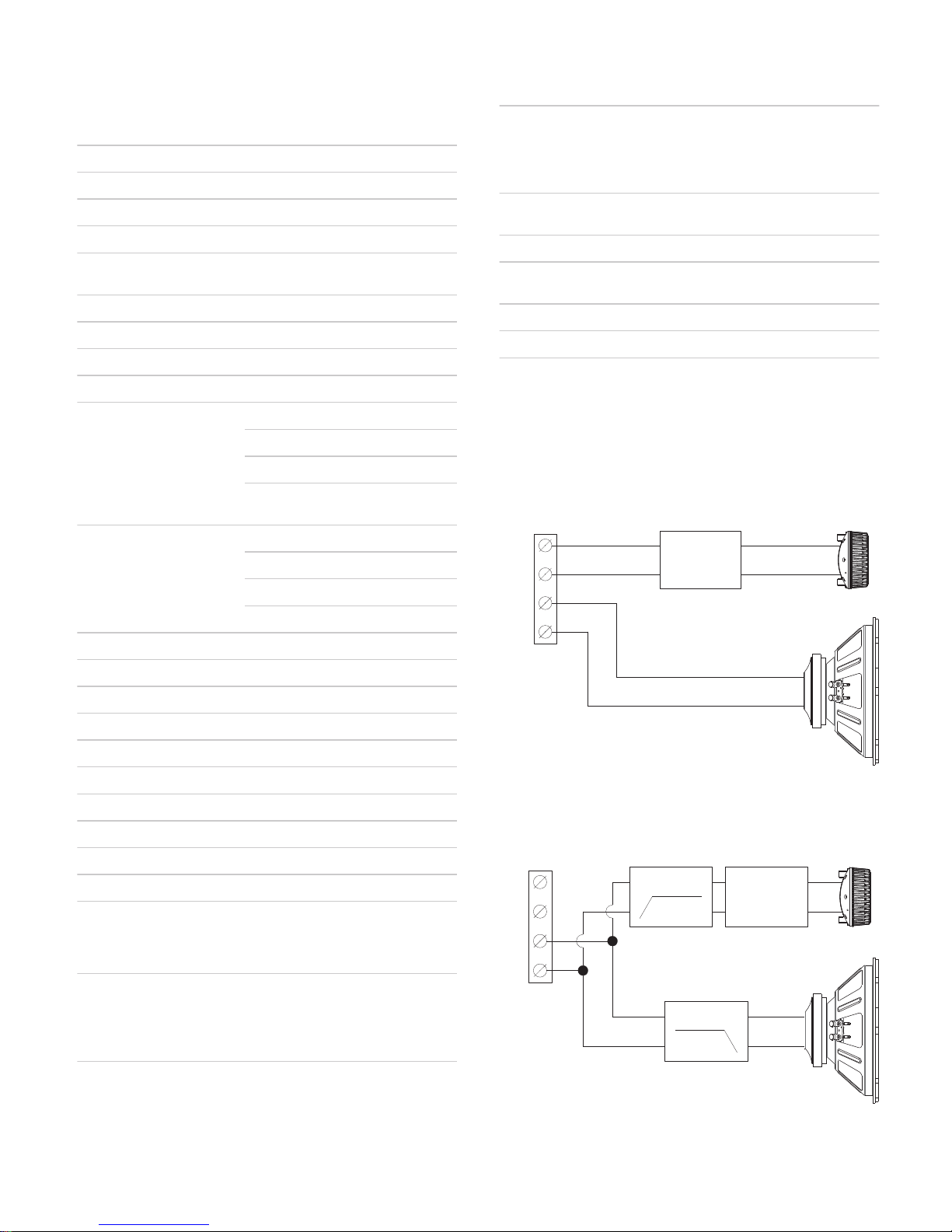

System overview

Block Diagram (Biamp):

Passive

Limiter

SMX2151

DH7N

Block Diagram (Passive):

Standard shipping configuration

Passive

Limiter

HPF

LPF

THRU

SMX2151

DH7N

2 | EVH-1152D/99

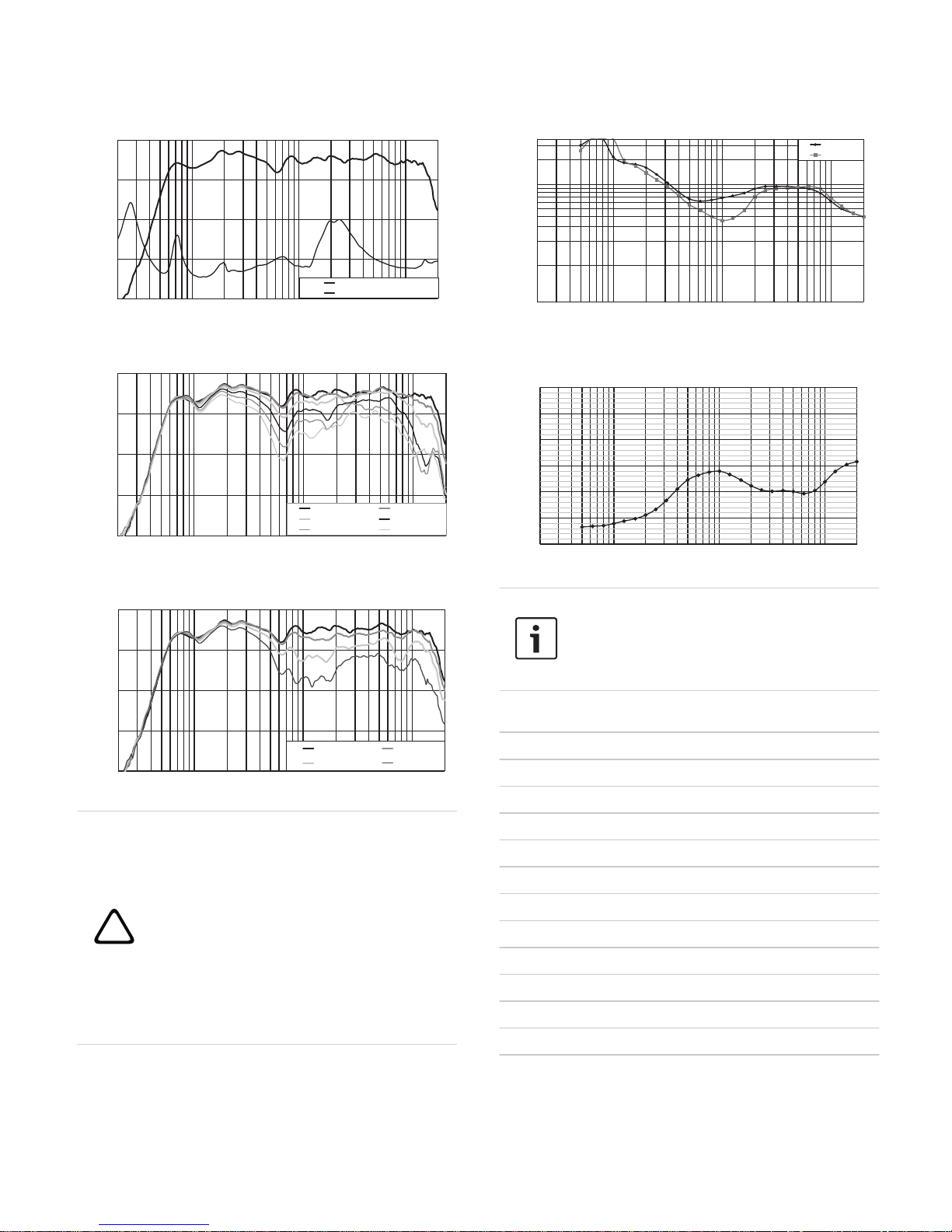

Frequency Response and Impedance:

100

1000

10000

20000

3.16

100

110

Impedance (Ohms)

SPL (dB) 1W/1m

Frequency (Hz)

Passive Mode, Half Space

Impedance, Passive Mode

Horizontal Off-Axis Frequency Response:

100

1000

10000

20000

100

110

SPL (dB) 1W/1m

Frequency (Hz)

On Axis

10° Horizontal

20° Horizontal

30° Horizontal

40° Horizontal

50° Horizontal

Vertical Off-Axis Frequency Response:

100

1000

10000

20000

100

110

SPL (dB) 1W/1m

Frequency (Hz)

On Axis

10° Vertical

20° Vertical

30° Vertical

Caution!

This Electro-Voice loudspeaker should be sus-

pended overhead only in accordance with the

procedures and limitations specified in the

User’s Manual and possible manual update

notices. This system should be suspended

with certified rigging hardware by an author-

ized rigging professional and in compliance

with local, state, and federal overhead sus-

pension ordinances.

Beamwidth (Active):

100

1000

10000 20000

Horizontal

Vertical

Frequency (Hz)

-6dB Beamwidth (degrees)

100

360

3.6

Directivity (Active):

100 1000 10000 20000

100

1000

Frequency (Hz)

Directivity Index (DI), dBDirectivity Index (DI), dBDirectivity Index (DI), dBDirectivity Index (DI), dB

Directivity

Factor (Q)

Notice!

Using EVH-1152D v.1.1 DSP standard IIR set-

tings for the Beamwidth, Directivity and Polar

Response.

Compatible System Solutions:

EVH-1152D/43 40° x 30° Coverage

EVH-1152D/64 60° x 40° Coverage

EVH-1152D/66 60° x 60° Coverage

EVH-1152D/94 90° x 40° Coverage

EVH-1152D/96 90° x 60° Coverage

EVF-2151D Dual 15 inch Bass Element

EVF-1181S Single 18 inch Bass Element

DX46 Dx46 Loudspeaker Controller5

N8000 N8000 Digital Matrix Controller5

CPS2.9 CPS 2.9 Power Amplifier5

CPS2.12 CPS 2.12 Power Amplifier5

CPS4.10 CPS 4.10 Power Amplifier5

5. Contact your sales representative for voltage

information.

3 | EVH-1152D/99

Horizontal and Vertical Polar Response (Active):

Polar plots (1/3 octave)

4 | EVH-1152D/99

Dimension Drawing:

Notice!

Acoustic measurement reference axis is the

center of the grille.

Certifications and approvals

EN54-24 type B certification 1438/CPR/0299 with CDG

cover installed (Only available in select regions).

Ordering information

EVH-1152D/99-BLK
