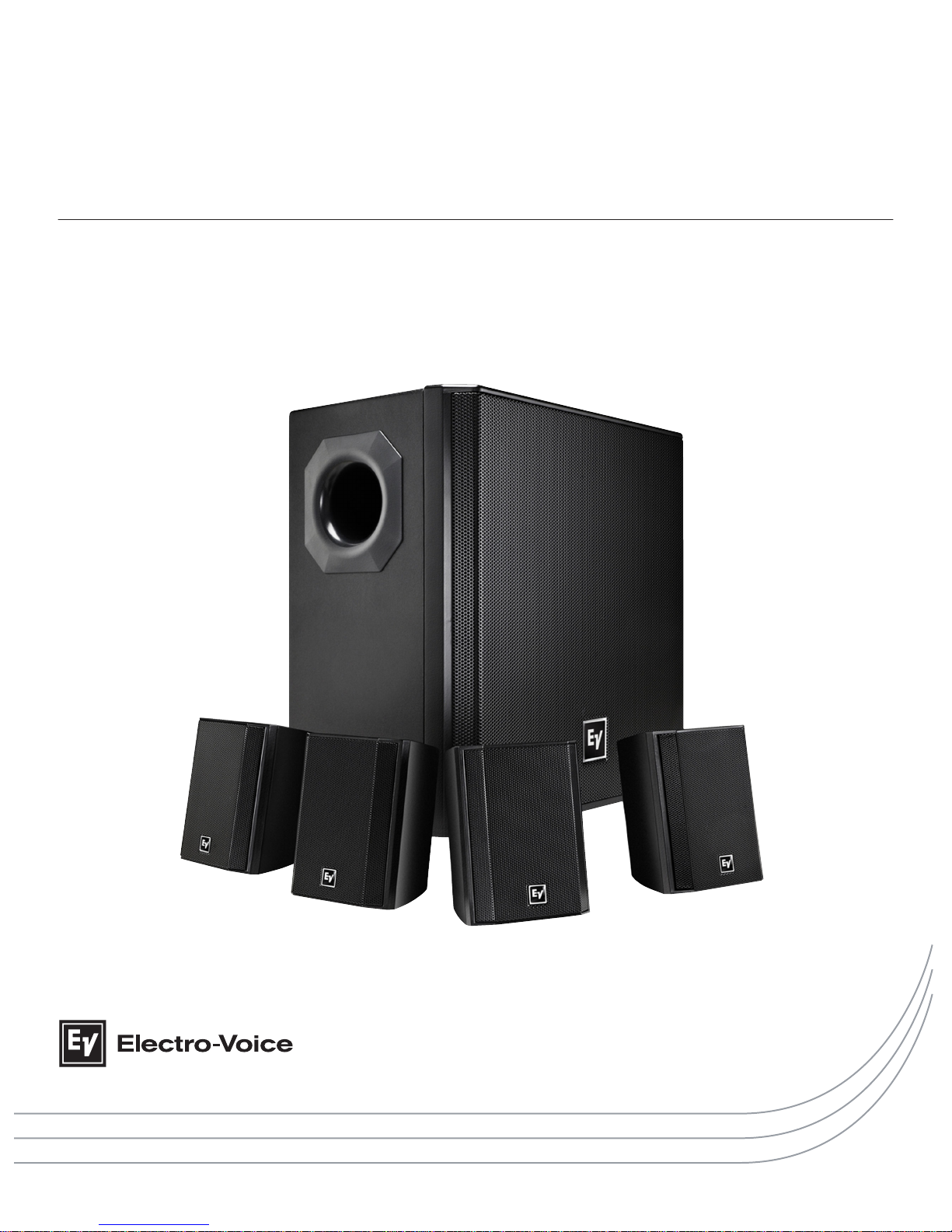

Electro-Voice EVID-S44 Bedienungsanleitung
EVID Compact Sound Speaker System
EVID-S44, EVID-S44W, EVID-2.1, EVID-2.1W, EVID-40S, and EVID-40SW
en | Installation Manual
Table of contents
1Safety 4
2Welcome 5
2.1 System features 5
3System overview 6
3.1 Packing lists 6
3.2 Product information 8
3.3 Dimensions 9
4Installation 10
4.1 Surface mount satellite speaker installation 10
4.2 Wall bracket range of motion 11
4.3 Surface mount subwoofer installation 11
4.4 Removing subwoofer from the wall 13
5Wiring 14
5.1 Wattage tap 14
5.2 70v/100v/4 ohm Mono 15
5.3 8 ohm Stereo 16
6Troubleshooting 17
7Technical data 18
7.1 Frequency response 18
en 3
Electro-Voice Installation Manual 2015.02 | 03 | F.01U.310.295
Safety
!
Warning!
Suspending any object is potentially dangerous and should only be attempted by individuals
who have a thorough knowledge of the techniques and regulations of suspending objects
overhead. Electro-Voice strongly recommends all loudspeakers be suspended taking into
account all current national, federal, state, and local laws and regulations. It is the
responsibility of the installer to ensure all loudspeakers are safely installed in accordance
with all such requirements. When loudspeakers are suspended, Electro-Voice strongly
recommends the system be inspected at least once per year or as laws and regulations
require. If any sign of weakness or damage is detected, remedial action should be taken
immediately. The user is responsible for making sure the wall, ceiling, or structure is capable
of supporting all objects suspended overhead. Any hardware used to suspend a loudspeaker
not associated with Electro-Voice is the responsibility of others.
Safety Agency Compliance
The EVID 2.1 and EVID 40S bracket systems have successfully passed EIA-636 at a safety
factor of 8:1. The bracket systems are intended to support only the EVID 2.1 and EVID 40S
respectively. Do not use either bracket system for any other purpose. Never set anything on or
hang anything from the EVID 2.1 or EVID 40S enclosures when using the brackets.
As an added safety measure, it is suggested the user install an extra suspension point back to
the building structural supports. This redundant safety point should have as little slack as
possible (less than one (1) inch is preferable).
Figure 1.1: Surface mount satellite speaker (left) and surface mount subwoofer (right) with safety cable
1
EVID Compact Sound Speaker System
2015.02 | 03 | F.01U.310.295 Installation Manual Electro-Voice
Welcome
Thank you for purchasing the EVID Compact Sound Speaker System. Read through this manual
to familiarize yourself with the features, applications, and precautions before you use these
products.
The EVID Compact Sound Speaker System is a very compact full-range loudspeaker ideal for
applications requiring high-quality sound. Its shape flexibility and size make it nearly invisible
for use in background/foreground music systems for restaurants, bars, patios, retail, and other
applications. The system consists of a high performance surface mount 8-inch subwoofer
module with a crossover network to support the included four (4) surface mount 2-inch
satellite speakers. The system provides for easy signal connections at the subwoofer and can
support either 4/8 ohm or 70/100v signal connections. Its high power handling allows the
system to be used in a wide variety of environments and spaces to provide high quality
background or foreground music.
System features
▪A complete matched background/foreground music speaker solution.
▪High power handling – system supports up to 200 watts with 8 ohm and 100 watts with
70v/100v input connections.
▪Large 8-inch woofer for increased low frequency output.
▪Direct connection of satellites to subwoofer — simplifies installation wiring.
▪Convenient detachable phoenix style signal connections speed up installation time.
▪Large high quality rigid wood subwoofer cabinet supports extended bass response.
▪Mounting system for surface mount satellites provides secure mounting but allows for
wide-range of motion to adapt to any placement.
▪Easily detachable wall bracket for wall mounting of subwoofer is included.
▪Attractive subwoofer design with full face grille.
2
2.1
en 5
Electro-Voice Installation Manual 2015.02 | 03 | F.01U.310.295
System overview
Packing lists
The EVID Compact Sound Speaker System contains four (4) satellite speakers and one (1)
subwoofer. When you open the box for the full system you will find three (3) main boxes
inside; two (2) boxes for the satellite speakers and one (1) box for the subwoofer.
The major components included in one (1) box for the EVID 2.1 surface mount satellite
speaker.
Item Qty Description
A 2 EVID 2.1 surface mount satellite speakers
B 2 Wall brackets
C 2 Speaker brackets
D 1 EVID S44 Engineering Data Sheet
E 2 M6 hex drive pan-head screws
F 4 M5 pan-head screws
G 2 Screw sockets
H 1 Hex wrench
Table 3.1: Surface Mount Satellite Speaker (1 box)
3
3.1
EVID Compact Sound Speaker System
2015.02 | 03 | F.01U.310.295 Installation Manual Electro-Voice
The major components included in the box for the EVID 40S surface mount subwoofer:
Item Qty Description
A 1 Surface Mount Subwoofer
B 1 Wall bracket, assembled in box
C 1 EVID Compact Sound Speaker System manual
D 4 M6 hex drive pan-head screw
E 4 Rubber feet
F 1 Hex wrench
Table 3.2: Surface Mount Subwoofer
en 7
Electro-Voice Installation Manual 2015.02 | 03 | F.01U.310.295
Product information
Figure 3.1: EVID 2.1 Product Information
Figure 3.2: EVID 40C Product Information
3.2
EVID Compact Sound Speaker System
2015.02 | 03 | F.01U.310.295 Installation Manual Electro-Voice
Dimensions
Figure 3.3: Dimensions EVID 2.1 and mounting bracket
Figure 3.4: Dimensions EVID 40S and mounting bracket
Notice!
The mounting bracket dimension drawings are not to scale. Drawing sizes increased for
readability.
3.3
en 9
Electro-Voice Installation Manual 2015.02 | 03 | F.01U.310.295
Installation
Surface mount satellite speaker installation
For safety, ensure the mounting surface supports more than the weight of the speaker. Use
only industry-accepted fasteners and mounting methods when mounting the wall bracket.
Consult an expert if you are unsure.
To install the surface mount satellite speaker, do the following:
1. Using a Phillips head screwdriver (not supplied), tighten two (2) M5 pan-head screws
(not supplied) to attach the wall bracket to a secure mounting surface.
2. Using a Philips screwdriver, tighten two (2) M5 pan-head screws (supplied) to attach the
speaker bracket to the rear of the cabinet.
3. Place the speaker bracket onto the wall bracket.
4. Using the hex wrench (supplied), tighten the M6 hex drive pan-head screw to secure the
speaker bracket to the wall bracket.
For more information, see Safety, page 4.
4
4.1
EVID Compact Sound Speaker System
2015.02 | 03 | F.01U.310.295 Installation Manual Electro-Voice
