ETX Powered Loudspeakers

ETX-10P, ETX-12P, ETX-15P, ETX-35P, ETX-15SP, and ETX-18SP

en | User Manual

Table of contents

1Safety 4

1.1 Important Safety Instructions 4

1.2 Suspension 5

1.3 Notices 5

1.4 FCC Information 6

1.5 Precautions 6

2Description 7

2.1 Quick setup 7

2.2 System features 8

3System overview 10

3.1 Technical specifications 10

3.2 Dimension drawings 12

3.3 Frequency response graphs 14

4Operation 16

4.1 Tripod and floor monitor operation 16

4.2 Suspension 20

4.3 Amplifier DSP controls 24

4.4 System status 26

4.5 DSP controls 27

4.5.1 Full-Range loudspeaker DSP control menu 28

4.5.2 Subwoofer DSP control menu 31

4.6 Recommended configurations 35

4.6.1 Daisy-chaining full-range systems 35

4.6.2 Using full-range systems as monitors 36

4.6.3 Stacking full-range systems with subwoofers 37

4.6.4 Subwoofer cardioid array 38

4.7 Removing the subwoofer caster wheels 40

5Troubleshooting 41

en 3

Electro-Voice User Manual 2016.04 | 05 | F.01U.276.083

Safety

Important Safety Instructions

WARNING: TO REDUCE THE RISK OF

FIRE OR ELECTRIC SHOCK, DO NOT

OVEREXPOSE THIS APPLIANCE TO RAIN

OR MOISTURE

AVIS: RISQUE DE CHOC ELECTRIQUE,

NE PAS OUVRIR.

WARNING: THE MAINS PLUG OR AC

INLET IS USED AS A DISCONNECT

DEVICE. THE DISCONNECT DEVICE

SHALL REMAIN READILY OPERABLE.

WARNING: CONNECT ONLY TO MAINS

SOCKET WITH PROTECTIVE EARTHING

CONNECTION.

WARNING: TO REDUCE THE RISK OF

ELECTRIC SHOCK, DO NOT REMOVE

COVER (OR BACK) AS THERE ARE NO

USER-SERVICABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED

PERSONNEL.

The lightening flash with arrowhead

symbol, within an equilateral triangle is

intended to alert the user to the

presence of uninsulated “dangerous

voltage” within the product’s enclosure

that may be sufficient magnitude to

constitute a risk of electric shock to

persons.

The exclamation point within an

equilateral triangle is intended to alert

the user to the presence of important

operating and maintenance (servicing)

instructions in the literature

accompanying the appliance.

The asterisk within an equilateral

triangle is intended to inform the user to

necessary installation or removal

instructions regarding equipment or

hardware use relating to the system.

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not install near any heat sources such as radiators, heat registers, stoves, or other

apparatus (including amplifiers) that produce heat.

8. Only use attachments/accessories specified by the manufacturer.

9. Do not expose this apparatus to dripping or splashing and ensure that no objects filled

with liquids, such as vases, are placed on this apparatus.

10. Do not block any ventilation openings. Install in accordance with the manufacturers

instructions.

11. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug

has two blades with one wider than the other. A grounding type plug has two blades and

a third grounding prong. The wide blade or the third prong is provided for your safety. If

the provided plug does not fit into your outlet, consult an electrician for replacement of

the obsolete outlet.

12. Protect the power cord from being walked on or pinched particularly at plugs,

convenience receptacles, and the point where they exit from the apparatus.

13. Unplug the apparatus during lightning storms or when unused for long periods of time.

1.1

ETX Powered Loudspeakers

2016.04 | 05 | F.01U.276.083 User Manual Electro-Voice

14. Refer all servicing to qualified service personnel. Servicing is required when the

apparatus has been damaged in any way, such as power-supply cord or plug is damaged,

liquid has been spilled or objects have fallen into the apparatus, the apparatus has been

exposed to rain or moisture, does not operate normally, or has been dropped.

15. To completely disconnect AC power from this apparatus, the power supply cord must be

unplugged.

Suspension

Warning!

Suspending any object is potentially dangerous and should only be attempted by individuals

who have a thorough knowledge of the techniques and regulations of suspending objects

overhead. Electro-Voice strongly recommends all loudspeakers be suspended taking into

account all current national, federal, state, and local laws and regulations. It is the

responsibility of the installer to ensure all loudspeakers are safely installed in accordance

with all such requirements. When loudspeakers are suspended, Electro-Voice strongly

recommends the system be inspected at least once per year or as laws and regulations

require. If any sign of weakness or damage is detected, remedial action should be taken

immediately. The user is responsible for making sure the wall, ceiling, or structure is capable

of supporting all objects suspended overhead. Any hardware used to suspend a loudspeaker

not associated with Electro-Voice is the responsibility of others.

Warning!

Do not suspend this product in any other manner than explicitly described in this manual, or

Electro-Voice installation guides. Suspending any object (loudspeaker) is potentially

dangerous and should only be done by individuals with thorough knowledge of techniques,

materials, and regulations for suspending objects overhead. Electro-Voice loudspeakers can

only be suspended using accessories and hardware described in Electro-Voice manuals and

installation guides. Do NOT use handles to suspend the loudspeaker. Handles on Electro-

Voice loudspeakers are intended to only be used for temporary transport by people. Items,

such as fiber rope, wire rope, cables, or other types of materials cannot be used to

suspend loudspeaker from the handles. Any hardware used to suspend a loudspeaker not

associated with Electro-Voice is the responsibility of others.

Notices

Old electrical and electronic appliances

Electrical or electronic devices that are no longer serviceable must be collected separately and

sent for environmentally compatible recycling (in accordance with the European Waste

Electrical and Electronic Equipment Directive).

To dispose of old electrical or electronic devices, you should use the return and collection

systems put in place in the country concerned.

1.2

1.3

en 5

Electro-Voice User Manual 2016.04 | 05 | F.01U.276.083

FCC Information

IMPORTANT: Do not modify this unit! Changes or modifications not expressly approved by the

manufacturer could void the user’s authority, granted by the FCC, to operate the equipment.

Notice!

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there is

no guarantee interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

▪Reorient or relocate the receiving antenna.

▪Increase the separation between the equipment and receiver.

▪Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

▪Consult the dealer or an experienced radio/TV technician.

Precautions

If an Electro-Voice loudspeaker is used outdoors on a sunny day, place the

loudspeaker in a shaded or covered area. The loudspeaker amplifiers have

protection circuits that temporarily shut the loudspeaker off when extremely

high temperatures are reached. This can happen on hot days when the

loudspeaker is in direct sunlight.

Do not use Electro-Voice loudspeakers in an environment where temperatures

are below 0°C (32°F) or exceed +40°C (104°F).

Never expose an Electro-Voice loudspeaker to rain, water, or high moisture.

Electro-Voice loudspeakers are easily capable of generating sound pressure

levels sufficient to cause permanent hearing damage to anyone within normal

coverage distance. Caution should be taken to avoid prolonged exposure to

sound pressure levels exceeding 90 dB.

1.4

1.5

ETX Powered Loudspeakers

2016.04 | 05 | F.01U.276.083 User Manual Electro-Voice

Description

Thank you for choosing an Electro-Voice powered loudspeaker system. Please take time to

consult the manual to understand all the features built into your EV system and fully utilize its

performance capabilities.

The ETX Powered Loudspeakers are a high-end wood loudspeaker family; consisting of the

ETX-10P, ETX-12P, ETX-15P, ETX-35P, ETX-15SP, and ETX-18SP. Features professional fit and

finish, durable, high power systems offers easy portability. The integrated LCD screen allows

access to multiple DSP (Digital Signal Processing) settings and system status. ETX Powered

Loudspeakers offer the best-in class sound through design, innovation, amplification, and DSP

inspired by EV's legendary engineering team.

Quick setup

The ETX Powered Loudspeakers from Electro-Voice are fully integrated audio systems with

carefully matched electronics and transducers. These products make it easy to set up a high

quality system quickly with a minimum amount of cables and external electronics.

Full-Range loudspeaker

Models: ETX-10P, ETX-12P, ETX-15P, and ETX-35P

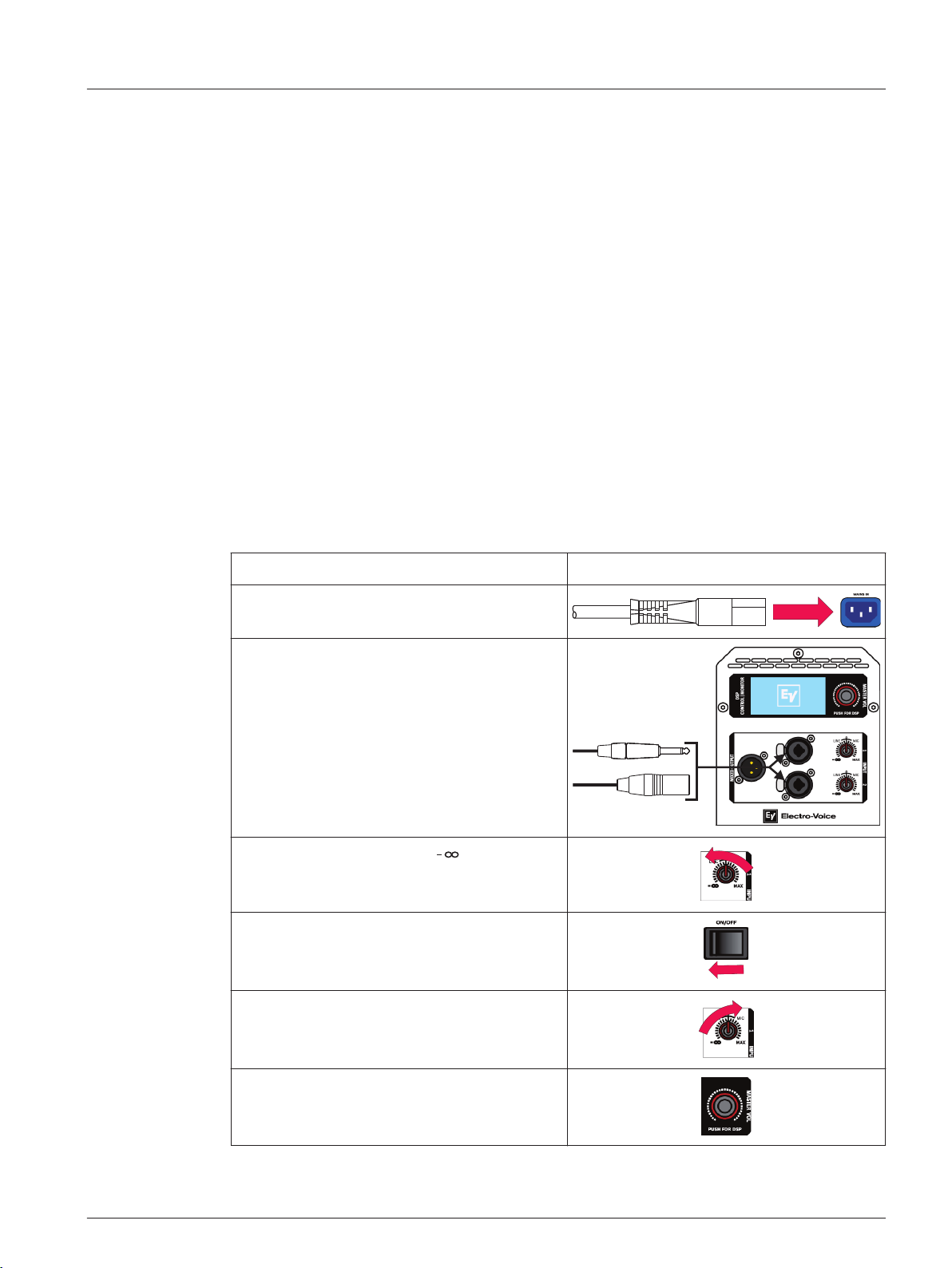

To set up a full-range loudspeaker, do the following:

Step Illustration

1. Connect the AC power cord from a

grounded line receptacle to the MAINS IN.

2. Connect the XLR or TRS cable from an

audio source to INPUT 1 or INPUT 2.

3. Adjust the input gain to (infinity).

4. Switch POWER to ON.

5. From the DSP home screen, increase the

input gain to the desired signal level.

6. Adjust the MASTER VOL knob to the

desired volume.

2.1

en 7

Electro-Voice User Manual 2016.04 | 05 | F.01U.276.083

Subwoofer

Models: ETX-15SP and ETX-18SP

To set up a subwoofer, do the following:

Step Illustration

1. Connect the AC power cord from a

grounded line receptacle to the MAINS IN.

2. Connect the XLR or TRS cable from an

audio source to INPUT 1 or INPUT 2.

3. Switch POWER to ON.

4. Adjust the MASTER VOL knob to the

desired volume.

System features

ETX Powered Loudspeakers from Electro-Voice build upon the legacy and heritage of EV , to

deliver the most advanced powered loudspeaker products for portable and permanent

applications. The output, response and coverage pattern of EV transducers are all optimized

via the breakthrough design approach known as SST (Signal Synchronized Transducers),

combined with state-of-the-art on-board DSP which is accessed via an easy-to-use single-knob

interface. EV designed and manufactured transducers include SMX woofer technology using

composite cone materials, flux stabilizing rings, and thermal management. This transducer

yields lower distortion, smooth response and high SPL. The high-efficiency DH3-B

compression driver has a convex diaphragm driving a coherent phase device extending

frequency response to 20 kHz. The ETX Powered Loudspeaker family features three (3) two-

way loudspeakers (10-inch, 12-inch and 15-inch with a 1.5-inch titanium compression driver),

a single three-way loudspeaker, and subwoofers with 15-inch and 18-inch drivers. ETX

Powered Loudspeakers combine EV-engineered intelligent DSP, high-powered amplifiers and

high-efficiency transducers to deliver that legendary EV sound and performance.

ETX-10P—10-inch two-way powered loudspeaker system

▪2000 W amplifier and 134 dB peak SPL

▪Single-knob DSP includes presets for multiple configurations and top+sub combinations

(performance style, locations, and space)

▪Loudspeaker system performance monitoring via integrated LCD and front panel LED

▪SST design assures precise and consistent coverage

▪Designed for floor, stacked, or tilt pole mount (0 or 7.5 degrees) for portable or

permanent installation (Eight (8) M10 threaded suspension points)

2.2

ETX Powered Loudspeakers

2016.04 | 05 | F.01U.276.083 User Manual Electro-Voice

ETX-12P—12-inch two-way powered loudspeaker system

▪2000 W amplifier and 135 dB peak SPL

▪Single-knob DSP includes presets for multiple configurations and top+sub combinations

(performance style, locations, and space)

▪Loudspeaker system performance monitoring via integrated LCD and front panel LED

▪SST design assures precise and consistent coverage

▪Designed for floor, stacked, or tilt pole mount (0 or 7.5 degrees) for portable or

permanent installation (Eight (8) M10 threaded suspension points)

ETX-15P—15-inch two-way powered loudspeaker system

▪2000 W amplifier and 135 dB peak SPL

▪Single-knob DSP includes presets for multiple configurations and top+sub combinations

(performance style, locations, and space)

▪Loudspeaker system performance monitoring via integrated LCD and front panel LED

▪SST design assures precise and consistent coverage

▪Designed for floor, stacked, or tilt pole mount (0 or 7.5 degrees) for portable or

permanent installation (Eight (8) M10 threaded suspension points)

ETX-35P—15-inch three-way powered loudspeaker system

▪2000 W amplifier and 136 dB SPL

▪Single-knob DSP includes presets for multiple configurations and top+sub combinations

(performance style, locations, and space)

▪Loudspeaker system performance monitoring via integrated LCD and front panel LED

▪Features three high-sensitivity transducers, for high output sound which is optimized for

precise coverage and low distortion

▪Designed for floor, stacked, or a combo pole cup (insert and threaded) for portable or

permanent installation (Eight (8) M10 threaded suspension points)

ETX-15SP—15-inch powered subwoofer loudspeaker system

▪1800 W amplifier and 134 dB peak SPL

▪Single-knob DSP includes presets for multiple configurations and top+sub combinations

(performance style, locations, and space)

▪Loudspeaker system performance monitoring via integrated LCD and front panel LED

▪Includes DSP preset for true cardioid performance

▪Enclosure includes removable casters and a combo pole cup (insert and threaded) for

use with the two-way models

ETX-18SP—18-inch powered subwoofer loudspeaker system

▪1800 W amplifier and 135 dB peak

▪Single-knob DSP includes presets for multiple configurations and top+sub combinations

(performance style, locations, and space)

▪Loudspeaker system performance monitoring via integrated LCD and front panel LED

▪Includes DSP preset for true cardioid performance

▪Enclosure includes removable casters and a combo pole cup (insert and threaded) for

use with the two-way models

en 9

Electro-Voice User Manual 2016.04 | 05 | F.01U.276.083

System overview

Technical specifications

ETX-10P, ETX-12P, and ETX-15P

ETX-10P ETX-12P ETX-15P

Frequency Response (-3 dB): 85 Hz – 20 kHz155 Hz – 20 kHz148 Hz – 20 kHz1

Frequency Range (-10 dB): 65 Hz – 20 kHz143 Hz – 20 kHz140 Hz – 20 kHz1

Maximum SPL: 134 dB peak2135 dB peak2135 dB peak2

Coverage (H x V): 90° x 60°

Power Rating: 2000 W

LF Transducer: SMX2100 254 mm

(10 in)

SMX2120 300

mm (12 in)

SMX2150 380 mm

(15 in)

HF Transducer: DH3-B 1.25-in titanium compression driver

Crossover Frequency: 1700 Hz 1600 Hz 1500 Hz

Connectors: (2) XLR/TRS combo jack and (1) XLR link output

Enclosure: 18 mm, 13-ply birch plywood with EVCoat

Grille: 16AWG steel with powdercoat

Suspension: (8) M10 suspension points

Dimensions (H x W x D): 526 mm x 330 mm

x 365 mm (21 in x

13 in x 14 in)

613 mm x 381

mm x 400 mm

(24 in x 15 in x

16 in)

691 mm x 431 mm

x 447 mm (27 in x

17 in x 18 in)

Net Weight: 20.3 kg (44.8 lb) 23.6 kg (52.0 lb) 27.7 kg (61.1 lb)

Shipping Weight: 22.9 kg (50.5 lb) 26.8 kg (59.1 lb) 31.5 kg (69.5 lb)

Power Consumption: 100 – 240 V~, 50 – 60 Hz, 1.6 – 0.8 A3

1Full space measurement using the music DSP preset.

2Maximum SPL is measured at 1 m using broadband pink noise at maximum output.

3Current rating is 1/8 power.

3.1

ETX Powered Loudspeakers

2016.04 | 05 | F.01U.276.083 User Manual Electro-Voice

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Electro-Voice Sprecher Handbücher

Electro-Voice

Electro-Voice MM2 Bedienungsanleitung

Electro-Voice

Electro-Voice EVID12.1 Bedienungsanleitung

Electro-Voice

Electro-Voice Michigan MC12A Bedienungsanleitung

Electro-Voice

Electro-Voice Plasma Plasma P1 Bedienungsanleitung

Electro-Voice

Electro-Voice S-181 Montageanleitung

Electro-Voice

Electro-Voice BK-315 Bedienungsanleitung

Electro-Voice

Electro-Voice EVI-15 Bedienungsanleitung

Electro-Voice

Electro-Voice Xi Series Xi-2153A/64F Bedienungsanleitung

Electro-Voice

Electro-Voice EVX-180B Bedienungsanleitung

Electro-Voice

Electro-Voice X-LINE ADVANCE X1i Bedienungsanleitung

Electro-Voice

Electro-Voice EVX-180A Bedienungsanleitung

Electro-Voice

Electro-Voice EV ZX5-90 Bedienungsanleitung

Electro-Voice

Electro-Voice SxA Series Bedienungsanleitung

Electro-Voice

Electro-Voice Musicaster II Dimensionsleitfaden

Electro-Voice

Electro-Voice Premium Surface Mount Speakers Installations- und Betriebsanleitung

Electro-Voice

Electro-Voice EVM-12L Bedienungsanleitung

Electro-Voice

Electro-Voice Xw12A Bedienungsanleitung

Electro-Voice

Electro-Voice Xw15A Bedienungsanleitung

Electro-Voice

Electro-Voice SRO/12 Dimensionsleitfaden

Electro-Voice

Electro-Voice FS-212A Bedienungsanleitung

Electro-Voice

Electro-Voice 209 Series Bedienungsanleitung

Electro-Voice

Electro-Voice Xi Series Xi-1153A/64F Bedienungsanleitung

Electro-Voice

Electro-Voice Xi Series Xi-1153A/64F Handbuch

Electro-Voice

Electro-Voice X1-212/90 Bedienungsanleitung

Beliebte Sprecher Handbücher anderer Marken

argon audio

argon audio IE20 Bedienungsanleitung

Denon

Denon SC-N7 Bedienungsanleitung

Gemline

Gemline Ace 3952 Bedienungsanleitung

Focal

Focal ON WALL 300 Bedienungsanleitung

HEADRUSH

HEADRUSH Maximus HRSP 5024 Bedienungsanleitung

SoundLogic

SoundLogic BCCS-6/6395 Bedienungsanleitung

Peavey

Peavey DTH 218 Bedienungsanleitung

Avantree

Avantree Pluto Air Bedienungsanleitung

Morel

Morel Integra Series INTEGRA OVATION 4 Bedienungsanleitung

Oppo

Oppo SONICA Bedienungsanleitung

Bose

Bose SoundLink Wireless Music System Bedienungsanleitung

Rocksteady

Rocksteady Stadium Bedienungsanleitung

Bowers & Wilkins

Bowers & Wilkins 4 Bedienungsanleitung

Sonance

Sonance SONOS OUTDOOR Series Bedienungsanleitung

Pioneer

Pioneer XW-HTD630 Bedienungsanleitung

Onn

Onn BWA16AA002 Bedienungsanleitung

HP GL313AA - USB Speakers PC Multimedia Bedienungsanleitung

Tannoy

Tannoy SYSTEM 600a Bedienungsanleitung
