DYNACORD® PROANNOUNCE™ AND EV® EVID LOUDSPEAKERS

ADD TO CONTINUED SUCCESS OF GRANITE CITY BREWPUBS

Maple Grove, MN (July 2004): Just one week after opening the doors of

their eighth restaurant & microbrewery in Maple Grove, Minnesota, Granite

City Food and Brewery (www.gcfb.com) announced record-breaking first-

week sales figures. The company has experienced remarkable growth since

opening its first location in 1999, thanks to a winning formula of great beer,

food, service… and sound. Integral to Granite City’s success are the

intercom, paging, and distributed sound systems installed in their

restaurants, designed and installed by Aufderworld (www.aufderworld.com)

of Bloomington, MN, using equipment from Telex Communications. Brian

Chelminiak, Chief Operations Officer at Aufderworld commented:

“This location has a Dynacord ProAnnounce system running four zones of

audio for playback and paging – dining, kitchen, bar, and patio, with a direct

intercom from the bar to the kitchen. The EVID 4.2 and 6.2 loudspeakers are

perfect, blending in almost invisibly into the architectural style – exposed

ducts and A/C conduits, etc., yet the sound is clear everywhere. The

coverage is phenomenal, and the low-end response is equally impressive

from the EVID 6.2s (full-range) alone. The two EVID 12.1 subs ceiling-

mounted in the bar area provide ample additional low end for when they turn

things up in the evenings. The 12.1s carry the lows all through the dining

area too. This system seamlessly accommodates paging, satellite TV sports

and music – all the different daily needs of a busy bar/restaurant. They have

the headroom and flexibility to do it all.” Chelminiak added, “The owners and

management are also really happy with the system from an aesthetic

viewpoint: it does so much, yet you can hardly see any hardware anywhere.

Even the source-media racks are concealed in cases behind the bar.”

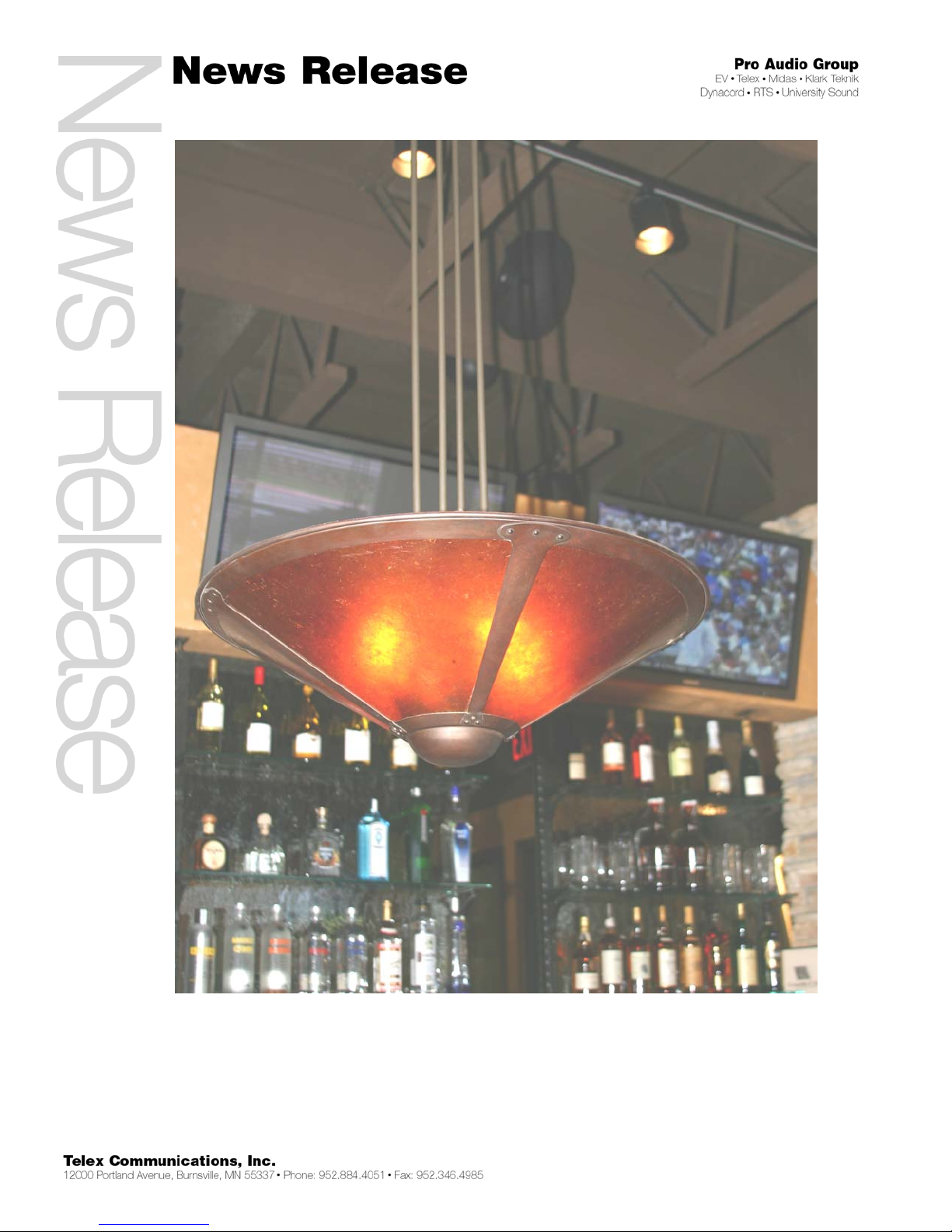

Heard, but hardly seen: EVID 6.2s in the rafters at the Granite City bar

Chelminiak continued: “With each installation for Granite City we continue to

refine the system design for their needs. We’re right there with the tools to fit

their requirements for each new store, regardless of shape or size. We’re

responsible for installing the satellite TV, DVD and CD equipment into the

Granite City locations, along with the ProAnnounce systems and distributed

EVIDs. This whole system is comprised of clean racks, clean sightlines,

clean sound and clean coverage. The entertainment, paging and routing

capabilities are maximized, and the visible hardware is minimized. The

ProAnnounce system is especially user-friendly, from its low profile in the

rack to low end-user complication in the media rack or at the paging station.”

Aufderworld Operations Manager Jesse Stunes added: “Speaking of low

profile, the EVIDs are unbeatable when it comes to surface ‘mountability.’ In

the dining room we mounted them on a series of painted two-by-fours

incorporated into the roofspace hardware (see photos below), hid the cords,

and you can’t see they’re there. They’re hardly visible, yet your ears certainly

know they’re up there.”

Brian Chelminiak, Jesse Stunes and Tim Cary

Dynacord ProAnnounce matrix management systems form the

heart of countless modern business, corporate and industrial

paging and background music systems around the world, ranging

from small restaurants to large department stores. No other matrix

system offers so much power, flexibility and value, with such a

wide range of products designed to precisely meet the demands

of so many applications. Telex Communications offers a complete

range of products for integration with ProAnnounce systems in

business environments:

Microphones: Telex and EV paging mics - over 50 years of proven

performance.

System integration: Dynacord ProAnnounce designer software -

the most flexible and sophisticated solution available.

Loudspeakers: EVID premium surface-mountable and ceiling

speakers – a wide range of solutions with leading-edge designs.

Amplification: MA series mixer/amplifiers, ProAnnounce and EV

power amplifiers – comprehensive and reliable products at a wide

range of price points.

Granite City EV/Dynacord Equipment List:

EVID C4.2 Ceiling Speakers

EV CPS2 Amplifier

EV CPS2T Amplifier

DPC 4510 Station Control Console

DPC 4520 Station Control Console

DPM 4000PA Central Unit Matrix System Processor

DPP 4004PA Power supply

DRM 4000 Mixer

MA-1206 Mixer/Amplifier

NRS-90215 2-Input Paging Station Module

NRS-90217 Input Module: Mic/Line

NRS-90218 2-Channel Output Line Module

NRS-90258 Remote Interface

RE2 N2 Wireless Receiver & Handheld Transmitter

EVID 12.1 Subwoofer

EVID 4.2T Loudspeakers

EVID 6.2T Loudspeakers

EVID 6.2 Loudspeakers

(more photos)

EVID 12.1 sub

EVID 6.2s in the bar

Mounted 4.2

L: Routing rack (in bar area); R: Drive rack (lower half)

DPC 4520 Station Control Console at reception
