ELECTRO-VOICE®Zx5 Owner’s Manual

Zx5 Series

Loudspeaker

Owner’s Manual

Zx5-60

Zx5-90

ELECTRO-VOICE®Zx5 Owner’s Manual1

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

Important Safety Instructions

Zx5 Series Owner’s Manual

Thank you for choosing the Electro-Voice®Zx5 series loudspeaker system. This system is the

culmination of EV’s 75 years of experience in transducer design. Please take time to consult this

manual so that you can understand all the features built into your EV system and fully utilize all its

performance capabilities.

Thelightningflashwitharrowheadsymbol,withinanequilateraltriangle

is intended to alert the user to the presence of uninsulated “dangerous

voltage” within the product’s enclosure that may be of sufficient

magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert

the user to the presence of important operating and maintenance

(servicing) instructions in the literature accompanying the appliance.

Theasterisk within an equilateraltriangle is intended toinformtheuser

to necessary installation or removal instructions regarding equipment

or hardware use relating to the system.

ELECTRO-VOICE®Zx5 Owner’s Manual 2

Table of Contents

Important Safety Instructions ....................................................................................................... 1

Zx5 Series Owner’s Manual ......................................................................................................... 1

Safety First ................................................................................................................................... 3

Description ................................................................................................................................... 4

System Features - Zx5 ................................................................................................................. 4

System Coverage - Zx5 ................................................................................................................ 4

Suspending Zx5 Speaker Systems .............................................................................................. 5

Zx5 Stage Monitor Positions........................................................................................................ 11

Specifications ............................................................................................................................. 12

Dimensions ................................................................................................................................ 13

Block Diagram ............................................................................................................................ 13

Frequency Response, Beamwidth, and Directivity ..................................................................... 14

Zx5 Rigging Accessory Reference Table .................................................................................... 15

Painting Zx5 Speaker Systems .................................................................................................. 16

Notes .......................................................................................................................................... 17

ELECTRO-VOICE®Zx5 Owner’s Manual3

Safety First

When setting up, installing and using the Electro-Voice®Zx5 speaker system, there are a number

of precautions that you should follow:

·When Electro-Voice®Zx5 speakers are used for portable applications in which they will be

positioned directly on the floor, make sure that the floor or stage is solid and secure.

·Electro-Voice®Zx5 speakers include 1-3/8 inch stand mounts to allow mounting on tripod stands.

Make sure to:

·Check the specifications of the speaker stand to be certain it is capable of supporting the weight

of the speaker.

·Check that the speaker stand is placed on a flat, stable surface and be sure to fully extend the

legs of the stand. Do not try to make the stand “taller” and compromise its structural integrity.

·Route cables and position the stand so that performers, production crew and audience members

will not trip over the stand or cables and pull the speaker system over. Secure cables with wire

ties or tape whenever possible.

·Do not attempt to suspend more than one speaker on a stand designed for a single speaker

·Unless you are confident that you can safely handle lifting the weight of the speaker onto the

stand, ask another person to help you place it.

·If you intend to hang or fly the Zx5 system, only do so safely with the correct hardware and

accessories.

·Electro-Voice®does not recommend use of Zx5 speakers outdoors without protection

from rain or in high moisture environments.

WARNING:

Suspending any object is potentially dangerous and should only be

attempted by individuals who have a thorough knowledge of the techniques and

regulations of rigging objects overhead. Electro-Voice®strongly recommends that Zx5

speakers be suspended taking into account all current national, federal, state and

local regulations. It is the responsibility of the installer to ensure that Zx5 speakers are

safely installed in accordance with all such regulations. If Zx5 speakers are

suspended, Electro-Voice®strongly recommends that the system be inspected at least

once a year. If any sign of weakness or damage is detected, remedial action should

be taken immediately.

There are data sheets for each EV Suspension and Array Kit

that should also be consulted prior to suspending speakers.

·Electro-Voice®Zx5 loudspeakers are easily capable of generating sound pressure

levels sufficient to cause permanent hearing damage to anyone within normal

coverage distance. Caution should be taken to avoid prolonged exposure to sound

pressure levels exceeding 90 dB.

ELECTRO-VOICE®Zx5 Owner’s Manual 4

Description

The Electro-Voice®Zx5 is a unique, lightweight package of pro audio performance, versatility and

aesthetics. You won’t find a speaker system available on the market that offers the unbelievable

sound, incredible flexibility and tremendous output capability of the Zx5 anywhere near it’s size

and weight.

System Features - Zx5

·Full-face grille for a clean, professional look.

·DVX3150 15” woofer with 500 watts continuous power handling.

·ND2 2” voice coil, 1” exit neodymium compression driver.

·Two models: 60° x 60° or 90° x 50° coverage patterns.

·Adjustable monitor angle built into enclosure.

·Integral rigging points and inserts for multiple flying options.

·Full line of accessories for any installation.

·Passive and biamp selectable.

System Coverage - Zx5

Coverage Patterns and Applications

Zx5-60 60° x 60° coverage for long-throw and cluster applications

Zx5-90 90° x 50° for wider coverage or shorter distances

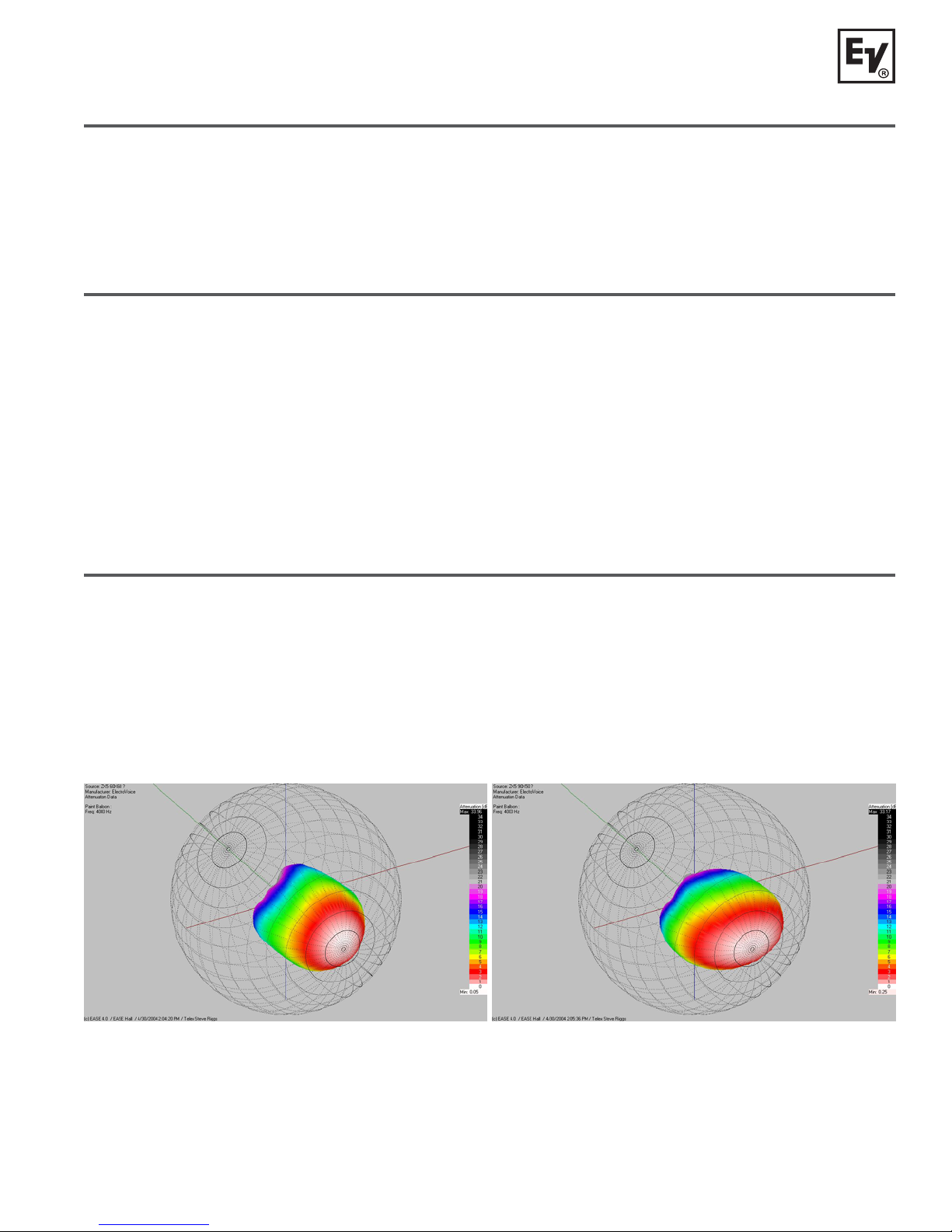

Figure 1a:

3D EASE Directivity Balloon,

Zx5-60, 60° x 60° Coverage

Figure 1b:

3D EASE Directivity Balloon,

Zx5-90, 90° x 50° Coverage

ELECTRO-VOICE®Zx5 Owner’s Manual5

Suspending Zx5 Speaker Systems

Zx5 enclosures have 5 steel anchor points internally mounted on the top, bottom, and rear. Single

stud fittings can be attached to these anchor plates and used as suspension points. Each of

these anchor plates also has a M8 thread to accept rated forged M8 shoulder eyebolts. In

addition to these points there are five additional M8 threaded points; two on the handle side, and

three on the rear. These points can be used for suspending Zx5s vertically, horizontally,

individually, in clusters, or to attach to EV mounting brackets. Working load limits for the Zx5 and

fittings are shown in Figure 2.

Prior to each use, inspect the grid assembly or suspension point(s) and associated hardware for

any cracks, deformations, broken welds, corrosion, missing or damaged components which could

reduce the grid assembly or suspension point(s) strength. Replace any damaged hardware. Never

exceed the limitations or maximum recommended load intended for grid assembly design or

suspension point(s). As an added safety measure, it is suggested that the user install a second

suspension point back to the grid (or building structural supports). This redundant safety point

should have as little slack as possible (less than one inch is preferable).

Prior to each use, inspect the loudspeaker enclosures for any cracks, deformations, missing or

damaged components, which could reduce enclosure strength. Inspect the bracket assembly on

the enclosures for any cracks, deformations, missing or loose screws which could reduce the

flying hardware strength. Replace any loudspeaker systems that are damaged or missing

hardware. Never exceed the limitations or maximum recommended load for the Zx5 systems.

Figure 2:

Working Load-Limit Rating of Zx5 Speaker System

ELECTRO-VOICE®Zx5 Owner’s Manual 6

Suspending Zx5 Speaker Systems (cont’)

Zx5 M8 Suspension Points

Metric (M8) inserts are equipped on the top and bottom of the enclosure, around the handle, and

on the back of the enclosure for a total of 10 points. The inserts can be used to attach forged

eyebolts or rigging brackets.

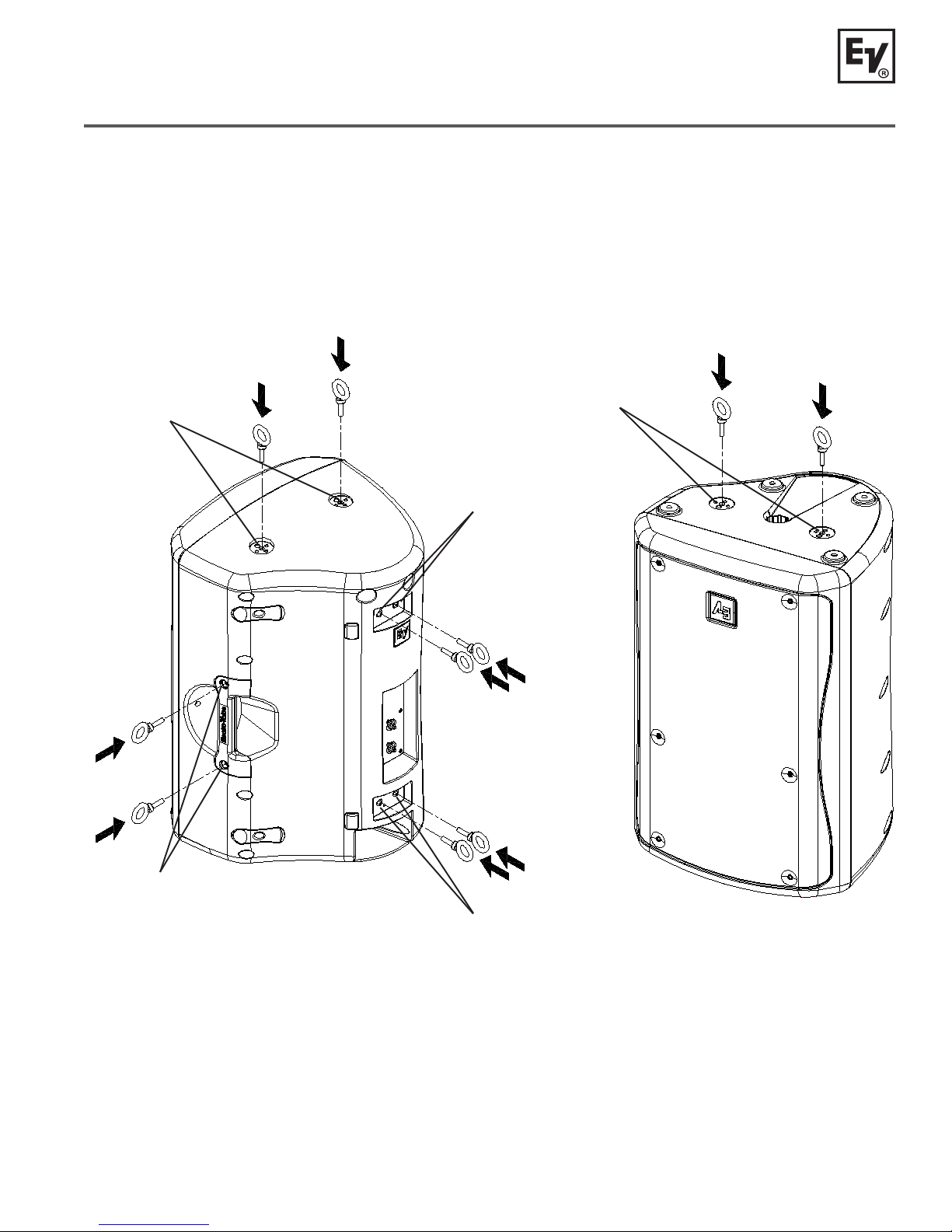

Figure 3a:

Zx5 M8 Suspension Points (Top, Handle, Rear)

(2) M8 Suspension Points

(Decal Removal Required)

Figure 3b:

Zx5 M8 Suspension Points (Bottom)

(2) M8 Suspension Points

(Single-Stud Anchor Plate

Removal Required)

(2) M8 Suspension Points

(Decal Removal Required)

(2) M8 Suspension Points

(Removal of Handle Bolts

Required) (2) M8 Suspension Points

(Single-Stud Anchor Plate/

Decal Removal Required)

ELECTRO-VOICE®Zx5 Owner’s Manual

Suspending Zx5 Speaker Systems (cont’)

Suspending the Zx5 using optional Electro-Voice Single-Stud Rigging Kits

The Zx5 is shipped with three single-stud anchor plates for rigging with single-stud rigging. There

are two more locations on the bottom to mount single-stud anchor plates for flying the Zx5 upside-

down or horizontally. All of these locations can

facilitate M8 Eyebolts if desired as well.

Figure 4:

Suspending the Zx5 Using Included Single-Stud

Anchor Plates

Kit Used (Left View) -

SSK-1 Single-Stud Rigging Kit (x1)

Kits Used (Right View) -

SSK-1 Single-Stud Rigging Kit (x2)

EBK-3 Forged M8 Eyebolt Kit (x1)*

Figure 5:

Suspending the Zx5 Upside-Down Using

Included Single-Stud Anchor Plates and Single-

Stud Rigging Kit

Kits Used -

RK-Z Single-Stud Anchor Plate Kit (x1)

SSK-1 Single-Stud Rigging Kit (x1)

Step 1: Remove Decals Step 2: Attach Single-Stud Anchor Plates

Removed from theTop of the Enclosure or

optional RK-Z Kit (shown) or Eyebolts (not

shown)

*EBK-3 on Bottom of Top

Enclosure

(not shown, see Figure 3b)

ELECTRO-VOICE®Zx5 Owner’s Manual

Suspending Zx5 Speaker Systems (cont’)

Figure 6:

Suspending the Zx5 Downward from Rear Using

Optional Forged Eyebolt Kit*

Kit Used - EBK-3 Forged M8 Eyebolt Kit (x1)

Figure 7:

Assembling Eyebolts to Handle

for Horizontal Suspension

Figure 8:

Suspending the Zx5 Horizontally from Handle Using

Optional Forged Eyebolt Kit

Kit Used - EBK-3 Forged M8 Eyebolt Kit (x1)

Step 1: Remove Handle Bolts Step 2: Attach Eyebolts

*Note - When suspending from the rear M8 suspension

points, it is recommended that the (2) left M8 suspension

points are used on the rear of the enclosure for best weight

distribution in relation to enclosure’s center of gravity.

Horizontal Suspension of the Zx5

The Zx5 is capable of being suspended horizontally from the side (handle) or downward from the

rear with the use of M8 Eyebolts.

ELECTRO-VOICE®Zx5 Owner’s Manual

Suspending Zx5 Speaker Systems (cont’)

Arraying and Suspending the Zx5 using optional Electro-Voice Mounting or Array Brackets

Figures 10 and 11 show several applications using EV mounting and array brackets. Carefully

follow the instructions in this manual & the user manual packaged with EV brackets, and always

use safe rigging practices when suspending Zx5.

Figure 9:

Assembling HA-5 Adapter for use with VSA-1 Strong-Arm Mount

Kits Used -

HA-5 Handle Adapter Kit (x1)

VSA-1 Strong-Arm Mount (x1)

Figure 10:

Suspending the Zx5 Vertically from Handle Using Optional

Handle Adapter and Strong-Arm Mount

Kits Used -

HA-5 Handle Adapter Kit (x1)

VSA-1 Strong-Arm Mount (x1)

Step 2: Attach HA-5 and Handle Bolts Step 3: Attach VSA-1 Strong-Arm Mount

Spigot to Attach to Beam or

Truss Clamp

*Note - Please consultVSA-1 User Manual for additional

information.

HA-5 Handle Mount VSA-1 Strong-Arm

Step 1: Remove Handle Bolts

and Handle

Andere Handbücher für ZX5

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Electro-Voice Sprecher Handbücher

Electro-Voice

Electro-Voice SRO/18 Dimensionsleitfaden

Electro-Voice

Electro-Voice Xi Series Xi-1123A/106F Bedienungsanleitung

Electro-Voice

Electro-Voice Xlc Series Xlc-127DVX Bedienungsanleitung

Electro-Voice

Electro-Voice ZLX Series Bedienungsanleitung

Electro-Voice

Electro-Voice Xi Series Xi-1153A/64F Bedienungsanleitung

Electro-Voice

Electro-Voice Tour X series Bedienungsanleitung

Electro-Voice

Electro-Voice Xi Series Xi-1153A/64F Handbuch

Electro-Voice

Electro-Voice ZX1i Series Bedienungsanleitung

Electro-Voice

Electro-Voice 409 Series Bedienungsanleitung

Electro-Voice

Electro-Voice XLC215 Bedienungsanleitung

Electro-Voice

Electro-Voice EVERSE Series Bedienungsanleitung

Electro-Voice

Electro-Voice EVID S Series Bedienungsanleitung

Electro-Voice

Electro-Voice Xi Series Xi-1191A Handbuch

Electro-Voice

Electro-Voice ZX Series ZX3 Bedienungsanleitung

Electro-Voice

Electro-Voice EVOLVE50M-SB-US Bedienungsanleitung

Electro-Voice

Electro-Voice QRx 212/75 Bedienungsanleitung

Electro-Voice

Electro-Voice 18W Bedienungsanleitung

Electro-Voice

Electro-Voice ETX-10P Bedienungsanleitung

Electro-Voice

Electro-Voice SB121 Bedienungsanleitung

Electro-Voice

Electro-Voice EVID-S5.2XB Bedienungsanleitung

Electro-Voice

Electro-Voice SL6.2M Bedienungsanleitung

Electro-Voice

Electro-Voice EVM-12L Bedienungsanleitung

Electro-Voice

Electro-Voice Sb120a Montageanleitung

Electro-Voice

Electro-Voice PI9415 Bedienungsanleitung

Beliebte Sprecher Handbücher anderer Marken

argon audio

argon audio IE20 Bedienungsanleitung

Denon

Denon SC-N7 Bedienungsanleitung

Gemline

Gemline Ace 3952 Bedienungsanleitung

Focal

Focal ON WALL 300 Bedienungsanleitung

HEADRUSH

HEADRUSH Maximus HRSP 5024 Bedienungsanleitung

SoundLogic

SoundLogic BCCS-6/6395 Bedienungsanleitung

Peavey

Peavey DTH 218 Bedienungsanleitung

Avantree

Avantree Pluto Air Bedienungsanleitung

Morel

Morel Integra Series INTEGRA OVATION 4 Bedienungsanleitung

Oppo

Oppo SONICA Bedienungsanleitung

Bose

Bose SoundLink Wireless Music System Bedienungsanleitung

Rocksteady

Rocksteady Stadium Bedienungsanleitung

Bowers & Wilkins

Bowers & Wilkins 4 Bedienungsanleitung

Sonance

Sonance SONOS OUTDOOR Series Bedienungsanleitung

Pioneer

Pioneer XW-HTD630 Bedienungsanleitung

Onn

Onn BWA16AA002 Bedienungsanleitung

HP GL313AA - USB Speakers PC Multimedia Bedienungsanleitung

Tannoy

Tannoy SYSTEM 600a Bedienungsanleitung
