ETX-18SP

▪1800 W amplifier and 135 dB peak

▪Single-knob DSP includes presets for multiple

configurations and top+sub combinations

(performance style, locations, and space)

▪Loudspeaker system performance monitoring via

integrated LCD and front panel LED

▪Includes DSP preset for true cardioid performance

▪Enclosure includes removable casters and a combo

pole cup (insert and threaded) for use with the two-

way models

ETX-18SP from Electro-Voice is a powered subwoofer;

it can be used in a variety of portable and permanent

applications. The DSP (Digital Signal Processing)

menus offer extensive configurations, crossovers, true

cardioid presets, protection limiters, EQ mode, and a

lock out mode that prevents casual changes to the

system. Loudspeaker system performance is optimized

via an LCD screen. The front LED indicates power or

can be configured to indicate limit.

EV’s FIR-Drive technology utilized the latest FIR (Finite

Impulse Response) filter technology to optimize

transducer linearity and advanced limiter algorithms

for independent peak and thermal transducer

protection. True cardioid DSP preset delivers true

cardioid response across all frequencies.

The enclosure is constructed out of 18-mm, 13-ply

birch plywood finished with EVCoat. Subwoofers

include professional-grade castors, and combination

pole mount receptacle for threaded and unthreaded

loudspeaker poles.

ETX Powered Loudspeakers combine EV-engineered

intelligent DSP, high-powered amplifiers and

high-efficiency transducers to deliver that legendary

EV sound and performance.

Technical specifications

Frequency Response (-3 dB): 33 Hz – 150 Hz1

Frequency Range (-10 dB): 28 Hz – 180 Hz1

Maximum SPL: 135 dB peak2

Power Rating: 1800 W

LF Transducer: DVX3180A 457 mm (18 in)

Low Pass Frequency: Adjustable: 80 Hz, 100 Hz, 120 Hz,

150 Hz

Connectors: (2) XLR/TRS Combo Jack and (2)

XLR link Output

Enclosure: 18 mm, 13-ply birch plywood with

EVCoat

Grille: 16AWG steel with powdercoat

Dimensions (H x W x D): 550 mm x 675 mm x 910 mm

(22 in x 27 in x 36 in)

Dimensions (H x W x D):

without casters

550 mm x 675 mm x 777 mm

(22 in x 27 in x 31 in)

Net Weight: 51.8 kg (114.2 lb)

Shipping Weight: 58.9 kg (129.9 lb)

Power Consumption: 100 – 240 V~, 50 – 60 Hz, 1.6 –

0.8 A3

1. Half space measurement using the music DSP preset

and 150 Hz low pass.

2. Maximum SPL is measured at 1 m using broadband

pink noise at maximum amplifier output.

3. Current rating is 1/8 power.

System overview

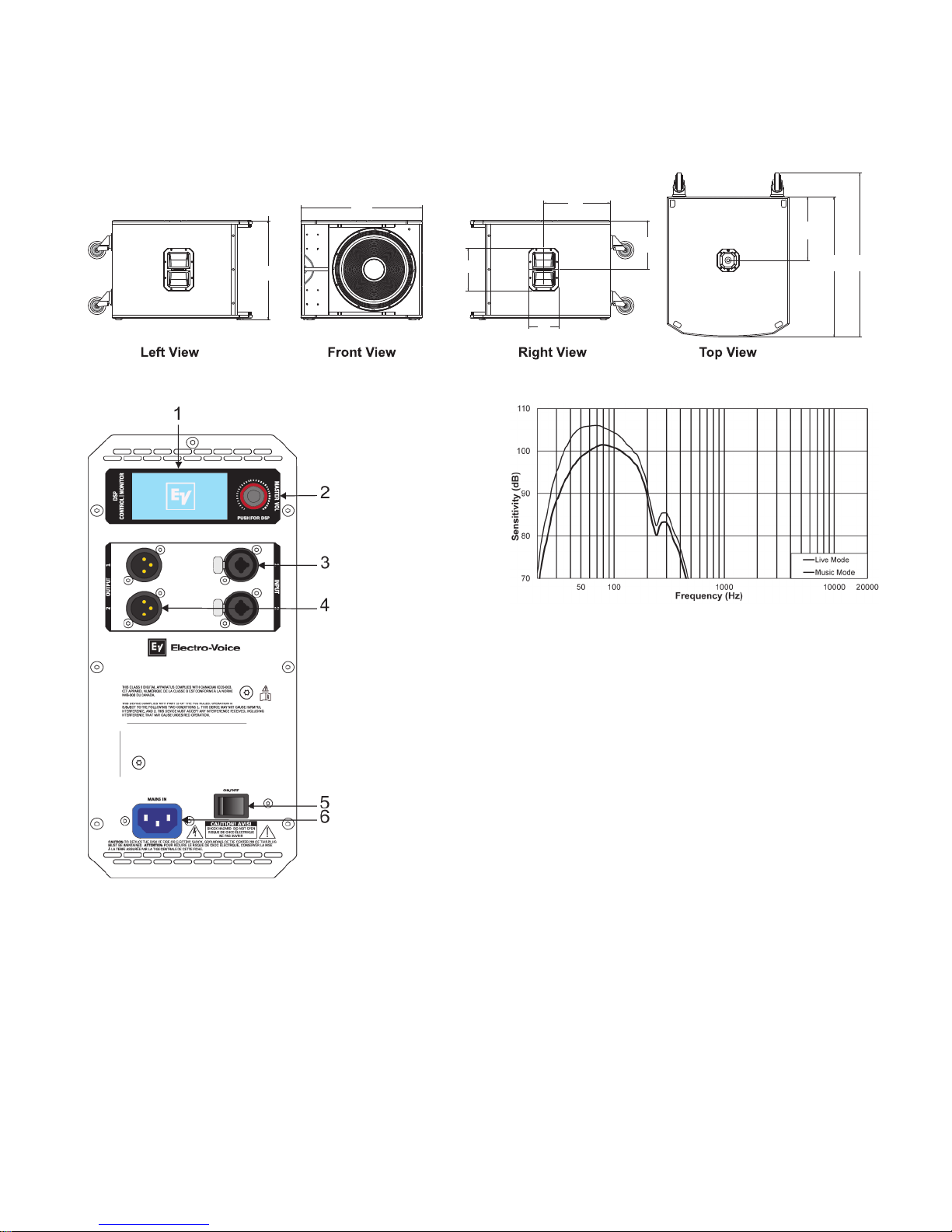

Dimension drawing:

550 mm

[22 in]

675 mm

[27 in]

236 mm

[9 in]

166 mm

[7 in]

368 mm

[14 in]

271mm

[11 in]

351 mm

[14 in]

777 mm

[31 in]

910 mm

[36 in]

Subwoofer amplifier panel:

1. LCD

2. MASTER VOL/DSP

3. INPUT

4. OUTPUT

5. POWER

6. MAINS IN

For more information, see the user manual.

Frequency response:

2 | ETX-18SP

Ordering information

ETX-18SP US

18-inch powered subwoofer, black, US 120V

Order number ETX-18SP-US

ETX-18SP EU

18-inch powered subwoofer, black, EU 240V

Order number ETX-18SP-EU

Accessories

ETX-18SP Cover

Padded cover for ETX-18SP, EV logo

Order number ETX-18SP-CVR

3 | ETX-18SP
