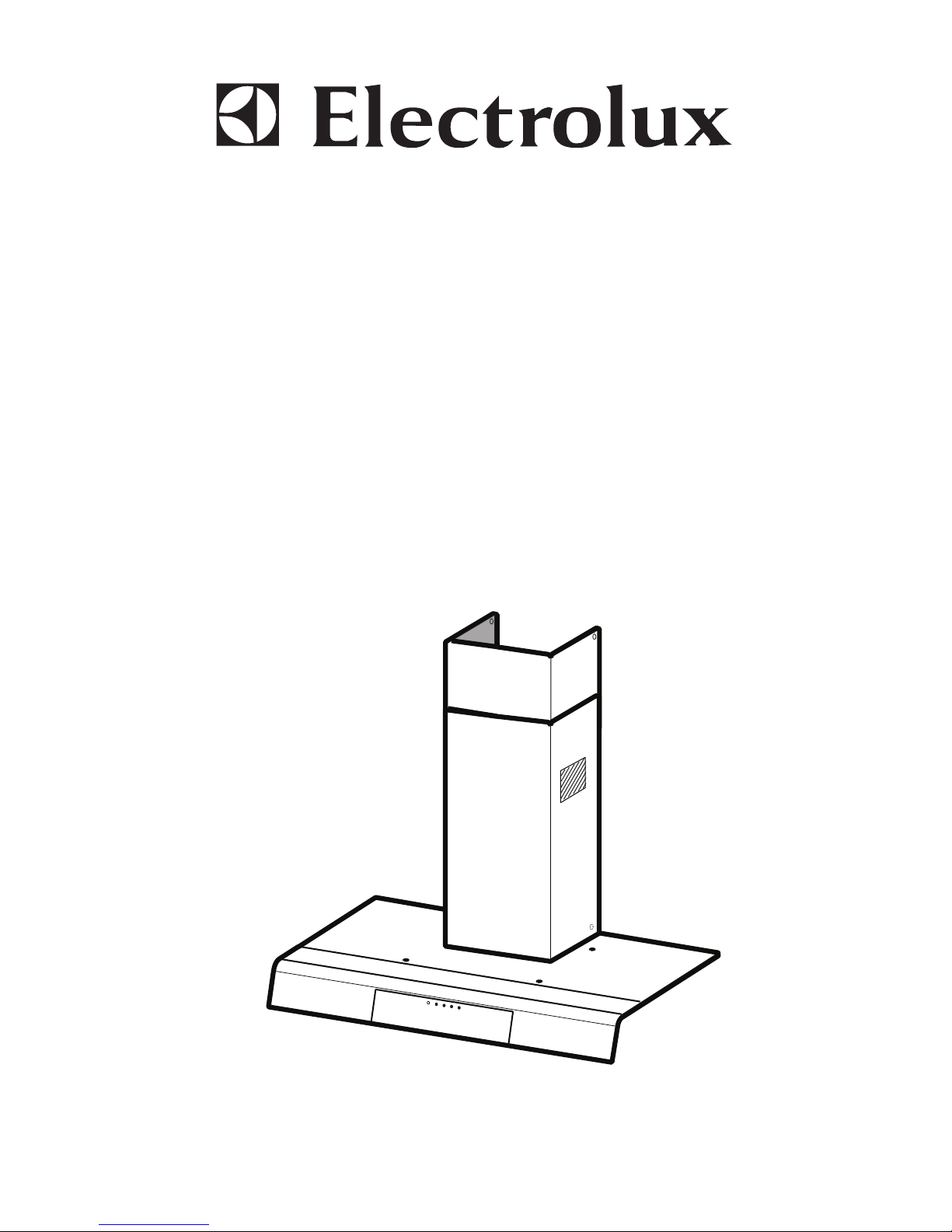

User Manual

EFC 9550

2GB

CONTENTS

Dear Customer,

If you follow the recommendations

contained in this Instruction Manual,

your appliance will give you constant

high performance and will remain

efficient for many years to come.

RECOMMENDATIONS AND SUGGESTIONS 3

CHARACTERISTICS 4

INSTALLATION 6

USE 9

MAINTENANCE 10

3GB

650 mm min.

RECOMMENDATIONS AND SUGGESTIONS

INSTALLATION

• The manufacturer will not be held liable for any damages resulting

from incorrect or improper installation.

• The minimum safety distance between the cooker top and the

extractor hood is 650 mm.

• Check that the mains voltage corresponds to that indicated on the

rating plate fixed to the inside of the hood.

• For Class 1aappliances, check that the domestic power supply

guarantees adequate earthing.

• Connect the extractor to the exhaust flue through a pipe of

minimum diameter 120 mm. The route of the flue must be as short

as possible.

• Do not connect the extractor hood to exhaust ducts carrying

combustion fumes (boilers, fireplaces, etc.).

• Iftheextractorisusedinconjunctionwithnon-electricalappliances

(e.g. gas burning appliances), a sufficient degree of aeration must

be guaranteed in the room in order to prevent the backflow of

exhaust gas. The kitchen must have an opening communicating

directly with the open air in order to guarantee the entry of clean

air.

USE

• The extractor hood has been designed exclusively for domestic

use to eliminate kitchen smells.

• Never use the hood for purposes other than for which it has ben

designed.

• Never leave high naked flames under the hood when it is in

operation.

• Adjust the flame intensity to direct it onto the bottom of the pan

only, making sure that it does not engulf the sides.

• Deep fat fryers must be continuously monitored during use:

overheated oil can burst into flames.

• The hood should not be used by children or persons not instructed

in its correct use.

• The appliance is not intended for use by young children or infirm

persons without supervision.

• Young children should be supervised to ensure that they do not

play with the appliance.

MAINTENANCE

• Switch off or unplug the appliance from the mains supply before

carrying out any maintenance work.

• Clean and/or replace the Filters after the specified time period.

• Clean the hood using a damp cloth and a neutral liquid detergent.

4GB

CHARACTERISTICS

Dimensions

650 min.

507

360

898

100

360

108 244

150

min. 850

max. 1145

740

260

300

63 90

132

433

5GB

Com onents

Ref. Q.ty Product Com onents

11 Hood Body, compl t with: Controls, Light,

Blow r, Filt rs

21 T l scopic Chimn y comprising:

2.1 1 Upp r S ction

2.2 1 Low r S ction

8a 1 Right Air Outl t Grill

8b 1 L ft Air Outl t Grill

91 R duc r Flang ø 150-120 mm

14 1 Hood Body Air Outl t Ext nsion Pi c consisting

of two Half Sh lls

14.1 2 Air Outl t Conn ction Ext nsion

15 1 Air Outl t Conn ction

Ref. Q.ty Installation Com onents

7.2.1 2 Upp r Chimn y S ction Fixing Brack ts

11 6 Wall Plugs

12a 6 Scr ws 4,2 x 44,4

12c 4 Scr ws 2,9 x 9,5

Q.ty Documentation

1 Instruction Manual

2.1

2.2

12c

12a 7.2.1 11

12a

14.1

6GB

INSTALLATION

Wall drilling and bracket fixing

Wall marking:

• Draw a vertical line on the supporting wall up to the ceiling, or as high as practical, at the centre

of the area in which the hood will be installed.

• Draw a horizontal line at 650 mm above the hob.

• Place bracket 7.2.1 on the wall as shown about 1-2 mm from the ceiling or upper limit aligning

the centre (notch) with the vertical reference line.

• Mark the wall at the centres of the holes in the bracket.

• Place bracket 7.2.1 on the wall as shown at X mm below the first bracket (X = height of the upper

chimney section supplied), aligning the centre (notch) with the vertical line.

• Mark the wall at the centres of the holes in the bracket.

• Mark a reference point as indicated at 116 mm from the vertical reference line and 323 mm above

the horizontal reference line.

• Repeat this operation on the other side.

• Drill ø 8 mm holes at all the centre points marked.

• Insert the wall plugs 11 in the holes.

• Fix the brackets using the 12a (4,2 x 44,4) screws supplied.

• Insert the two screws 12a (4,2 x 44,4) supplied in the hood body fixing holes, leaving a gap of 5-

6 mm between the wall and the head of the screw.

12a

323 X

116

1÷2

116

650 min.

7.2.1

7GB

12a

ø 120ø 150

Mounting the hood body

• Before attaching the hood body, tighten the two

screws Vr located on the hood body mounting

points.

• Hook the hood body onto the screws 12a

• Fully tighten support screws 12a

• Adjust screws Vr to level the hood body

Connections

DUCTED VERSION AIR EXHAUST SYSTEM

When installing the ducted version, connect the hood to the chimney using either a flexible or rigid

pipe ø 150 or 120 mm, the choice of which is left to the installer.

• To install a ø 120 mm air exhaust connection,

insert the reducer flange 9on the hood body

outlet.

• Fix the pipe in position using sufficient pipe

clamps (not supplied).

• Remove any activated charcoal filters.

8GB

14.115

RECIRCULATION VERSION AIR OUTLET

• Assemble the two halves of the hood body

extension piece 14.

• Push fit the assembled hood body extension

piece 14 onto the air outlet.

• Push fit connection 15 onto the hood body

extension piece 14.

• Insert the connection extension pieces laterally

14.1 in connection 15.

• Make sure that the outlet of the extension pieces

14.1 is horizontally and vertically aligned with

thechimney outlets. If this isnot the case, adjust

the position by either reversing the connection

extension pieces 14.1 or by cutting the hood

body extension 14 along one of the thinner

section channels denoting the pre-fixed lengths,

then reassemble as described previously.

• The air outlet directional grills 8a - 8b must be

fitted after the lower outlet duct has been

installed.

• Ensure that the activated charcoal filters have

been inserted.

ELECTRICAL CONNECTION

• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3 mm.

Flue assembly

Upper exhaust flue

• Slightly widen the two sides of the upper flue

and hook them behind the brackets 7.2.1,

making sure that they are well seated.

• Secure the sides to the brackets using the 4

screws 12c (2,9 x 9,5) supplied.

Lower exhaust flue

• Slightlywidenthetwosides of the flue and hook

them between the upper flue and the wall,

making sure that they are well seated.

• Fix the lower part laterally to the hood body

using the 2 screws 12c (2,9 x 9,5) supplied.

• On the recirculation version, fit the directional

grids 8a– 8bin their housings making sure that

the directional symbols are towards the top and

front of the hood. Also make sure that they are

correctly inserted in the connection extension

pieces 14.1.

12c

2.1

2.2

7.2.1

12c

9GB

USE

Control anel

LLight Switches the lighting system on and off.

SLed Motor running led.

V1 Motor Switches the extractor motor on and off at low speed. Used to provide a contin-

uos and silent air change in the presence of light cooking vapours.

V2 Speed Medium speed, suitable for most operating conditions given the optimum treated

airflox/noise level ratio.

V3 Intensive Maximum speed, used for eliminating the highest cooking vapour emission,

includinglong periods.

V1 V2 V3

10GB

MAINTENANCE

Grease filters

CLEANING METAL SELF- SUPPORTING GREASE FILTERS

• The filters must be cleaned every 2 months of

operation, or more frequently for particularly

heavyusage,andcanbewashedinadishwasher.

• Remove the filters one at a time by pushing

them towards the back of the group and pulling

down at the same time.

• Wash the filters, taking care not to bend them.

Allow them to dry before refitting.

• When refitting the filters, make sure that the

handle is visible on the outside.

Activated charcoal filter (Recirculation version)

REPLACING THE ACTIVATED CHARCOAL FILTER

• The filter is not washable and cannot be

regenerated,andmustbereplacedapproximately

every 4 months of operation, or more frequently

for particularly heavy usage.

• Remove the metal grease filters

• Remove the saturated activated carbon filter by

releasingthe fixing hooks

• Fit the new filter by hooking it into its seating

• Replace the metal grease filters.

Lighting

LIGHT REPLACEMENT

20 W halogen light.

• Remove the 2 Screws fixing the Lighting

support, and pull it out of from the Hood.

• Extract the Lamp from the Support.

• Replace with another of the same type, making

sure that the two pins are properly inserted in

the lamp holder socket holes.

• Replace the Support, fixing it in place with the

two Screws removed as above.
