RECOMMENDATIONS AND SUGGESTIONS

INSTALLATION

• The manufacturer will not be held liable for any damages resulting

from incorrect or improper installation.

• The minimum safety distance between the cooker top and the extrac-

tor hood is 650 mm.

• Check that the mains voltage corresponds to that indicated on the

rating plate fixed to the inside of the hood.

• For Class I appliances, check that the domestic power supply guaran-

tees adequate earthing.

Connect the extractor to the exhaust flue through a pipe of minimum

diameter 120 mm. The route of the flue must be as short as possible.

• Do not connect the extractor hood to exhaust ducts carrying combus-

tion fumes (boilers, fireplaces, etc.).

• If the extractor is used in conjunction with non-electrical appliances

(e.g. gas burning appliances), a sufficient degree of aeration must be

guaranteed in the room in order to prevent the backflow of exhaust

gas. The kitchen must have an opening communicating directly with

the open air in order to guarantee the entry of clean air.

USE

• The extractor hood has been designed exclusively for domestic use to

eliminate kitchen smells.

• Never use the hood for purposes other than for which it has ben de-

signed.

• Never leave high naked flames under the hood when it is in operation.

• Adjust the flame intensity to direct it onto the bottom of the pan only,

making sure that it does not engulf the sides.

• Deep fat fryers must be continuously monitored during use: over-

heated oil can burst into flames.

• The hood should not be used by children or persons not instructed in

its correct use.

MAINTENANCE

• Switch off or unplug the appliance from the mains supply before carry-

ing out any maintenance work.

• Clean and/or replace the Filters after the specified time period.

• Clean the hood using a damp cloth and a neutral liquid detergent.

650 mm min.

CHARACTERISTICS

Dimensions

650 min.

Components

Ref. Q.ty Product Components

11 Hood Body, complete with: Controls, Light, Blower,

Filters

21 Telescopic Chimney comprising:

2.1 1 Upper Section

2.2 1 Lower Section

91 Reducer Flange ø150-120 mm

14.1 2 Air Outlet Connection Extension

15 1 Air Outlet Connection

Ref. Q.ty Installation Components

7.2.1 2 Upper Chimney Section Fixing Brackets

7.3 1 Air Outlet Connection Support

11 6 Wall Plugs

12a 6 Screws 4,2 x 44,4

12c 6 Screws 2,9 x 9,5

Q.ty Documentation

1 Instruction Manual

2.1

2.2

12c

12a 7.2.1 11

12a

7.3

14.1

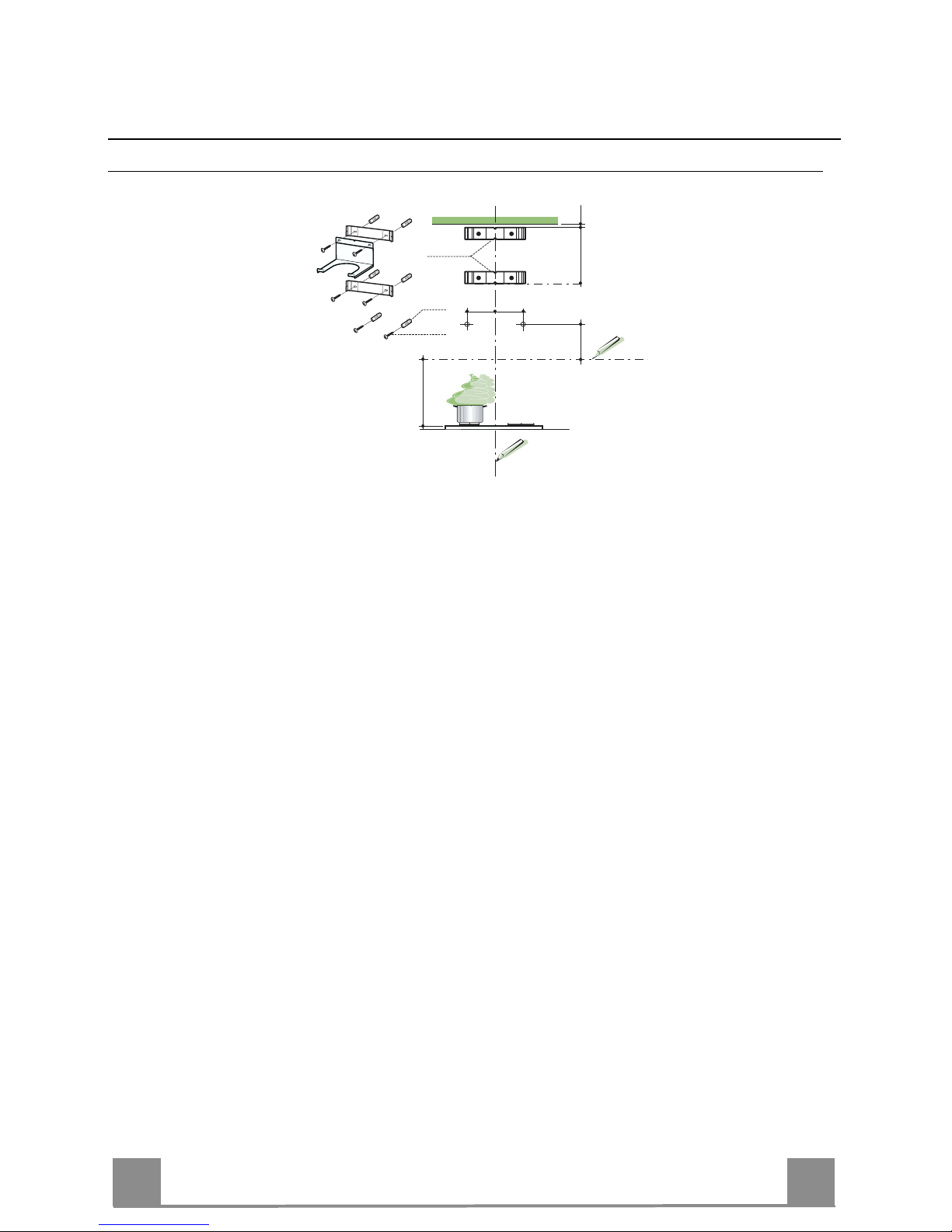

INSTALLATION Wall drilling and bracket fixing

Wall marking:

• Draw a vertical line on the supporting wall up to the ceiling, or as high as practical, at the

centre of the area in which the hood will be installed.

• Draw a horizontal line at 650 mm above the hob.

• Place bracket 7.2.1 on the wall as shown about 1-2 mm from the ceiling or upper limit align-

ing the centre (notch) with the vertical reference line.

• Mark the wall at the centres of the holes in the bracket.

• Place bracket 7.2.1 on the wall as shown at X mm below the first bracket (X = height of the

upper chimney section supplied), aligning the centre (notch) with the vertical line.

• Mark the wall at the centres of the holes in the bracket.

• Mark a reference point as indicated at 116 mm from the vertical reference line and 330 mm

above the horizontal reference line.

• Repeat this operation on the other side.

• Drill ø 8 mm holes at all the centre points marked.

• Insert the wall plugs 11 in the holes.

• Fix the lower bracket 7.2.1 using the 12a screws (4,2 x 44,4) supplied.

• Fix the upper bracket 7.2.1 and the air outlet connection support 7.3 together using the 2

screws 12a (4,2 x 44,4) supplied.

• Insert the two screws 12a (4,2 x 44,4) supplied in the hood body fixing holes, leaving a gap

of 5-6 mm between the wall and the head of the screw.

12a

330 X

116

1÷2

116

650 min.

7.2.1

Mounting the hood body

• Before attaching the hood body, tighten the two screws Vr lo-

cated on the hood body mounting points.

• Hook the hood body onto the screws 12a.

• Fully tighten support screws 12a.

• Adjust screws Vr to level the hood body.

12a

Connections

DUCTED VERSION AIR EXHAUST SYSTEM

When installing the ducted version, connect the hood to the

chimney using either a flexible or rigid pipe ø 150 or 120 mm,

the choice of which is left to the installer.

• To install a ø 120 mm air exhaust connection, insert the re-

ducer flange 9on the hood body outlet.

• Fix the pipe in position using sufficient pipe clamps (not sup-

plied).

• Remove any activated charcoal filters.

ø 120ø 150

RECIRCULATION VERSION AIR OUTLET

• Put connection 15 into the connection support 7.3.

• Insert the connection extension pieces laterally 14.1 in connec-

tion 15.

• Make sure that the outlet of the extension pieces 14.1 is hori-

zontally and vertically aligned with the chimney outlets.

• Connect the air outlet connection 15 to the hood body outlet

using either a flexible or rigid pipe ø 150 mm, the choice of

which is left to the installer.

• Ensure that the activated charcoal filters have been inserted.

ø 150

14.1

ELECTRICAL CONNECTION

• Connect the hood to the mains through a two-pole

switch having a contact gap of at least 3 mm.

• Remove the grease filters (see paragraph Mainte-

nance) being sure that the connector of the feeding

cable is correctly inserted in the socket placed on the

side of the fan.

Flue assembly

Upper exhaust flue

• Slightly widen the two sides of the upper flue and

hook them behind the brackets 7.2.1, making sure

that they are well seated.

• Secure the sides to the brackets using the 4 screws

12c (2,9 x 9,5) supplied.

• Make sure that the outlet of the extensions pieces is

aligned with the chimney outlets.

Lower exhaust flue

• Slightly widen the two sides of the flue and hook

them between the upper flue and the wall,

making sure that they are well seated.

• Fix the lower part laterally to the hood body using

the 2 screws 12c (2,9 x 9,5) supplied.

12c

2.1

2.2

7.2.1

USE

L T1 T2 T3 T4 T5 F

The hood can be switched on pushing directly onto the requested speed without firstly hav-

ing to select 0/1 button .

Basic functions

Touch

control

Dual Function

Indicator lights

When briefly pressed it switches the lighting system

on and off. Touch control unlit Lights off

Touch controllit Lightson

When pressed for 2 seconds it starts the lighting

system in “courtesy light” mode. The lamps are

fed at a reduced power of approximately 5W.

Such function can be stopped by pressing the

touch control for 2 seconds or just by pressing it

shortly in order to return to the normal lighting

mode. In courtesy light mode the touch control is

not lit.

Touch control unlit

Courtesy light on

Touch controllit Motoron

T1 When pressed the motor is stopped, regardless of the

speed it is set to. Touch control unlit Motor off

T2 When pressed the motor is set to the first speed Touch control lit

By a brief pressing the motor is set to the second

speed. Touch controllit Second speedon

By pressing the touch control for approximately 2

seconds the Delay function is enabled, i.e dela-

yed shutdown of the appliance ensuring a com-

plete elimination of the residual odours. This fun-

ction can be activated at OFF-position and at 1°,

2° and 3°speeds. It can be stopped in advance

by pressing any of the touch controls (T) with the

exception of T3. The Delay function works accor-

ding to the following scheme:

1°speed / OFF = 20 minuets

2°speed = 15 minutes

3°speed = 5 minutes

Flashing touch

control Delay function on

T4 When pressed the motor is set to the third speed Touch control lit
