EN User Manual | Cooker Hood

WE’RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings

with it decades of professional experience and innovation. Ingenious and stylish, it has

been designed with you in mind. So whenever you use it, you can be safe in the

knowledge that you’ll get great results every time.

Welcome to Electrolux.

Visit our website to:

Get usage advice, brochures, trouble shooter, service and repair information:

www.electrolux.com/support

www.registerelectrolux.com

Buy Accessories, Consumables and Original spare parts for your appliance:

www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data

available: Model, PNC, Serial Number.

The information can be found on the rating plate.

Warning / Caution-Safety information

General information and tips

Environmental information

Subject to change without notice.

CONTENTS

1. SAFETY INFORMATION................................................................................ 2

2. SAFETY INSTRUCTIONS.............................................................................. 5

3. INSTALLATION...............................................................................................6

4. PRODUCT DESCRIPTION............................................................................. 6

5. DAILY USE......................................................................................................7

6. CARE AND CLEANING.................................................................................. 7

7. TROUBLESHOOTING.................................................................................... 9

8. ENVIRONMENTAL CONCERNS....................................................................9

1. SAFETY INFORMATION

Before the installation and use of the appliance, carefully read

the supplied instructions. The manufacturer is not responsible

for any injuries or damage that are the result of incorrect

installation or usage. Always keep the instructions in a safe

and accessible location for future reference.

2 ENGLISH

1.1 Children and vulnerable people safety

• This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or

mental capabilities or lack of experience and knowledge if

they have been given supervision or instruction concerning

the use of the appliance in a safe way and understand the

hazards involved. Children of less than 8 years of age and

persons with very extensive and complex disabilities shall

be kept away from the appliance unless continuously

supervised.

• Children should be supervised to ensure that they do not

play with the appliance.

• Keep all packaging away from children and dispose of it

appropriately.

• Keep children and pets away from the appliance when it

operates.

• Children shall not carry out cleaning and user maintenance

of the appliance without supervision.

1.2 General Safety

• This appliance is intended for domestic use above hobs,

cookers and similar cooking devices.

• This appliance is designed for single household domestic

use in an indoor environment.

• This appliance may be used in, offices, hotel guest rooms,

bed & breakfast guest rooms, farm guest houses and other

similar accommodation where such use does not exceed

(average) domestic usage levels.

• Before carrying out any maintenance, disconnect the

appliance from the power supply.

• CAUTION: Accessible parts may become hot during use

with cooking appliances.

• Use only the fixing screws supplied with the appliance if not

supplied, use the screws recommended in the installation

instructions. Install the appliance in a safe and suitable

place that meets installation requirements.

ENGLISH 3

• WARNING: Failure to install the screws or fixing device in

accordance with these instructions may result in electrical

hazards.

• Do not use adhesives to fix the appliance.

• The minimum distance between the hob surface on which

the pans stand and the lower part of the appliance shall be

at least 65 cm, unless otherwise specified in the installation

instructions for the appliance or hob.

• The discharge of air must comply with local authorities

regulations.

• Ensure good air ventilation in the room where the appliance

is installed to avoid the backflow of gases into the room

from appliances burning gas or other fuels, including open

fires.

• Make sure that the ventilation openings are not blocked and

the air collected by the appliance is not conveyed into a

duct used to exhaust smoke and steam from other

appliances (central heating systems, thermosiphons, water-

heaters, etc.).

• When the appliance operates with other appliances the

maximum vacuum generated in the room should not exceed

0.04 mbar.

• If the supply cord is damaged, it must be replaced by the

manufacturer, its Authorised Service Centre or similarly

qualified persons to avoid an electrical hazard.

• If the cord set is damaged, it must be replaced by a special

cord set available from the manufacturer or its Authorised

Service Centre.

• If the appliance is connected directly to the power supply,

the electrical installation must be equipped with an isolating

device that allows to disconnect the appliance from the

mains at all poles. Complete disconnection must comply

with conditions specified in the overvoltage category III. The

means for disconnection must be incorporated in the fixed

wiring in accordance with the wiring rules.

• Do not flambé under the appliance.

4 ENGLISH

• Do not use to exhaust hazardous or explosive materials and

vapours.

• Clean the appliance regularly with a soft cloth to prevent the

deterioration of the surface material.

• Do not use a steam cleaner, water spray, harsh abrasive

cleaners or sharp metal scrapers to clean the surface of the

appliance. Use only neutral detergents.

• Clean grease filters regularly (at least every 2 months) and

remove grease deposits from the appliance to prevent the

risk of fire.

• Use a cloth to clean the interior of the appliance.

2. SAFETY INSTRUCTIONS

2.1 Installation

WARNING!

Risk of injury, electric shock, fire, burns

or damage to the appliance.

• Only a qualified person must install this

appliance.

• Do not install or use a damaged

appliance.

• Follow the installation instructions supplied

with the appliance.

• Always take care when moving the

appliance as it is heavy. Always use safety

gloves and enclosed footwear.

• Before installing the appliance remove all

the packaging, the labelling and the

protective film.

• Do not install the exhaust air into a wall

cavity, unless the cavity is designed for

that purpose.

2.2 Electrical connection

WARNING!

Risk of fire and electric shock.

• All electrical connections should be made

by a qualified electrician.

• Make sure that the parameters on the

rating plate are compatible with the

electrical ratings of the mains power

supply.

• If the symbol ( ) is not printed on the

rating plate, the appliance must be

earthed.

• Always use a correctly installed

shockproof socket.

• Do not let the electricity mains cable

tangle.

• Do not use multi-plug adapters and

extension cables.

• If the mains socket is loose, do not

connect the mains plug.

• Do not pull the mains cable to disconnect

the appliance. Always pull the mains plug.

• The shock protection of live and insulated

parts must be fastened in such a way that

it cannot be removed without tools.

• Make sure the appliance is installed

correctly. Loose and incorrect electricity

mains cable can make the terminal

become too hot.

• Connect the appliance at the end of the

installation. Make sure that there is access

to the mains after the installation.

2.3 Use

WARNING!

Risk of injury, burns and electric shock.

• This appliance is for cooking purpose only.

Do not use the appliance for other

purpose.

ENGLISH 5

• Do not change the specification of this

appliance.

• Do not operate the appliance with wet

hands or when it has contact with water.

• Use only the accessories supplied with the

appliance.

• Keep flames or heated objects away from

fats and oils during cooking and frying.

• Do not use uncovered electric grills.

• Do not use the appliance as a storage

surface.

• Do not use magnifying glasses, binoculars

or similar optical devices to look directly at

the lighting of the appliance.

• If the appliance works with other devices,

the maximum developed pressure must

not exceed 4 Pa (4x10-5 bar).

2.4 Service

• To repair the appliance contact the

Authorised Service Centre. Use original

spare parts only.

• Concerning the lamp(s) inside this product

and spare part lamps sold separately:

These lamps are intended to withstand

extreme physical conditions in household

appliances, such as temperature,

vibration, humidity, or are intended to

signal information about the operational

status of the appliance. They are not

intended to be used in other applications

and are not suitable for household room

illumination.

2.5 Disposal

WARNING!

Risk of injury or suffocation.

• Contact your municipal authority for

information on how to dispose of the

appliance.

• Disconnect the appliance from the mains

supply.

• Cut off the mains electrical cable close to

the appliance and dispose of it.

3. INSTALLATION

WARNING!

Refer to Safety chapters.

3.1 Installation instructions

For complete information about the

installation of the appliance refer to a

separate installation booklet.

4. PRODUCT DESCRIPTION

4.1 Control panel overview

4 4321

6 ENGLISH

Function Description

1Off position Turns off the appliance.

2Lamp Turns on the light.

3First speed The fan operates on first speed level.

4Second speed The fan operates on second speed level.

5Third speed The fan operates on third speed level.

5. DAILY USE

5.1 Using the hood

Check the recommended speed according to

the table below.

While heating up food, cooking with covered pots.

While cooking with covered pots on multiple cooking zones or burners, gentle frying.

While boiling and frying big quantities of food without a lid, cooking on multiple cooking zones or

burners.

It is recommended to leave the hood

operating for approximately 15 minutes

after cooking.

The control knob is retractable.

To operate the hood:

1. To use the appliance press the knob.

The knob comes out.

2. Change position of the knob to desired

function.

To only illuminate the cooking surface

change the knob position to . The

hoods light works with all fan speed

functions.

6. CARE AND CLEANING

6.1 Notes on cleaning

Cleaning Agents

Do not use abrasive detergents and brushes.

Clean the surface of the appliance with a soft cloth with warm water and a mild detergent.

After cooking some parts of appliance can get hot. To avoid stains appliance must be

cooled down and dried with clean cloth or paper towels.

Clean stains with a mild detergent.

ENGLISH 7

Keep the hood

clean

Clean the appliance and grease filters each month. Clean the interior and grease filters

carefully from fat. Fat accumulation or other residue may cause fire.

Grease filters can be washed in a dishwasher.

The dishwasher must be set to a low temperature and a short cycle. The grease filter may

discolour, it has no influence on the performance of the appliance.

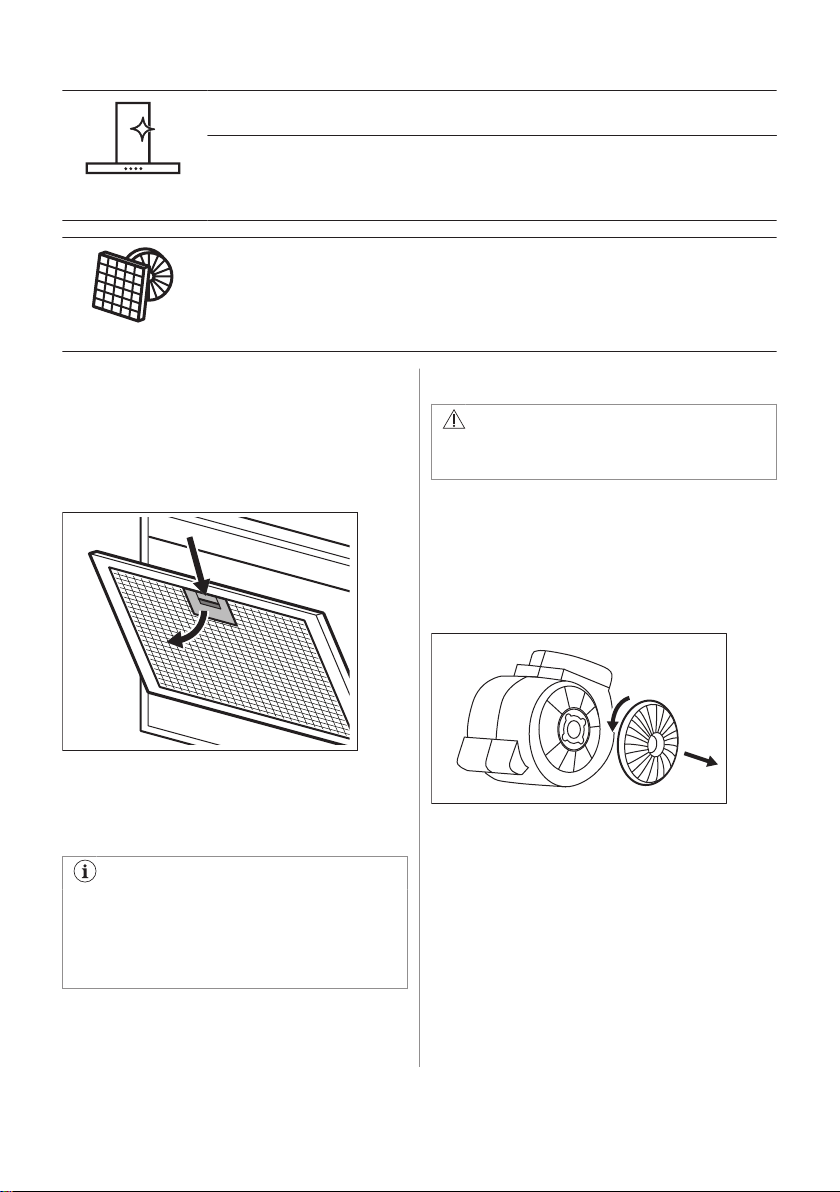

Charcoal filter

The time of saturation of the charcoal filter varies depending on the type of cooking and

the regularity of cleaning the grease filter. The activated charcoal filter is not washable,

cannot be regenerated and must be replaced approximately every 4/6 months of opera‐

tion, or more frequently for particularly heavy usage.

6.2 Cleaning the grease filter

Filters are mounted with the use of clips and

pins on the opposite side.

To clean the filter:

1. Press the handle of the mounting clip on

the filter panel underneath the hood (1).

2. Slightly tilt the front of the filter

downwards (2), then pull.

Repeat the first two steps for all filters.

3. Clean the filters using a sponge with non

abrasive detergents or in a dishwasher.

The dishwasher must be set to a low

temperature and a short cycle. The

grease filter may discolour, it has no

influence on the performance of the

appliance.

4. To mount the filters back follow the first

two steps in reverse order.

Repeat the steps for all filters if applicable.

6.3 Replacing the charcoal filter

WARNING!

The charcoal filter is NON-washable! The

filter cannot be regenerated!

To replace the charcoal filter:

1. Remove the grease filters from the

appliance.

Refer to "Cleaning the grease filter" in this

chapter.

2. Turn the filter counterclockwise (1) and

then pull (2).

To mount the filters back follow the steps in

reverse order.

In any case, it is necessary to replace the

filters at least every four months.

6.4 Replacing the lamp

This appliance is supplied with a LED lamp

and separate control gear (LED driver).

These parts can be replaced by a technician

only. In case of any malfunction refer to

"Service" in the "Safety Instructions" chapter.

8 ENGLISH

7. TROUBLESHOOTING

WARNING!

Refer to Safety chapters.

7.1 What to do if...

Problem Possible cause Remedy

You cannot activate the appliance. The appliance is not connected to a

power supply or it is connected in‐

correctly.

Check if the appliance is correctly

connected to the electrical supply.

You cannot activate the appliance. The fuse is blown. Make sure that the fuse is the cause

of the malfunction. If the fuse is

blown again and again, contact a

qualified electrician.

The lamp does not operate. The lamp is defective. Replace the lamp. Refer to the

"Care and Cleaning" chapter.

The appliance does not absorb

enough vapours.

The motor speed is not adequate to

the appearing vapours.

Change the speed of the motor.

8. ENVIRONMENTAL CONCERNS

Recycle materials with the symbol . Put the

packaging in relevant containers to recycle it.

Help protect the environment and human

health by recycling waste of electrical and

electronic appliances. Do not dispose of

appliances marked with the symbol with

the household waste. Return the product to

your local recycling facility or contact your

municipal office.

ENGLISH 9

Andere Handbücher für EFP129X

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Electrolux Dunstabzugshaube Handbücher

Electrolux

Electrolux EFF90670OY Bedienungsanleitung

Electrolux

Electrolux ICON RH30WC60GS Bedienungsanleitung

Electrolux

Electrolux AEG DH1690-M Bedienungsanleitung

Electrolux

Electrolux PLHV36W6CC Bedienungsanleitung

Electrolux

Electrolux ICON RH30WC60GS Bedienungsanleitung

Electrolux

Electrolux EFC 60131 Bedienungsanleitung

Electrolux

Electrolux EFC 6400 Technisches Datenblatt

Electrolux

Electrolux EFC6422 Bedienungsanleitung

Electrolux

Electrolux EFC9140 Bedienungsanleitung

Electrolux

Electrolux EFC 929 Bedienungsanleitung

Electrolux

Electrolux EFT60238OW Bedienungsanleitung

Electrolux

Electrolux EFT 600-2 Bedienungsanleitung

Electrolux

Electrolux EFC60001K Bedienungsanleitung

Electrolux

Electrolux EFT 615 Bedienungsanleitung

Electrolux

Electrolux EFT 60233 Bedienungsanleitung

Electrolux

Electrolux DD 8890 Bedienungsanleitung

Electrolux

Electrolux EFC 6426 Bedienungsanleitung

Electrolux

Electrolux AEG DD9693-M Bedienungsanleitung

Electrolux

Electrolux DVK7990HB Bedienungsanleitung

Electrolux

Electrolux Icon E368WV60ES Bedienungsanleitung

Electrolux

Electrolux EFB90445OX Bedienungsanleitung

Electrolux

Electrolux LFV619K Bedienungsanleitung

Electrolux

Electrolux WOGL9060CN Bedienungsanleitung

Electrolux

Electrolux Icon E36WC45FSS Bedienungsanleitung

Beliebte Dunstabzugshaube Handbücher anderer Marken

emmeti

emmeti RECUPA MED A-140 Leitfaden

Nibe

Nibe F135 Bedienungsanleitung

Kuppersberg

Kuppersberg INTRO 60 Montage- und Wartungsanleitung

Zephyr

Zephyr Spruce AK9834BS Installationsanleitung

Hisense

Hisense MH6INBG Bedienungsanleitung

Miele

Miele DA 1255 Bedienungsanleitung

Broan

Broan 46000 Bedienungsanleitung

GE Profile PV977 Originalbetriebsanleitung

FALMEC

FALMEC FFRIA24W5FS Bedienungsanleitung

Whirlpool

Whirlpool RH2600XL-1 SERIES Bedienungsanleitung

Küppersbusch

Küppersbusch DX ISLA Bedienungsanleitung

ETNA

ETNA AV360RVS Bedienungsanleitung

JUNO

JUNO JDF603E6 Bedienungsanleitung

Miele

Miele DA 6708 D Bedienungsanleitung

Tricity Bendix

Tricity Bendix LE 150 Handbuch

AEG

AEG X68163BV1 Bedienungsanleitung

AEG

AEG 125 D Bedienungsanleitung

Smeg

Smeg KSEV97X Bedienungsanleitung
