36" GLASS CANOPY WALL-MOUNT HOOD

FEATURES

Nominal Width

Installation Type

Style

Intelligent Heat Sensor

Air Discharge

Air Delivery (CFM)

Blower Type

Wave-Touch™ Electronic Controls

Fan Speeds

Sound Level (dBA)

Dual Halogen Lights

Washable Stainless Steel Filters

Exhaust Duct

Duct Required

ACCESSORIES

Charcoal Filter – PN# CF40EC

Duct-Free Kit – PN# DFKTWC75GS

Flue Extension – 35-7/16" PN# EXWC75GS

SPECIFICATIONS

Overall Exterior Dimensions –

Width

Height (With One Cover)

(With Flue Extension)

Depth

Voltage Rating

Connected Load (kW Rating) @120 Volts‡

Shipping Weight (Approx.)

Sones Rating

* Ventilation is convertible to be either ducted outside, or recirculated inside

requiring no ducting. (Recirculated option requires use of optional Duct-Free Kit.)

‡For use on adequately wired 120V, dedicated circuit having 2-wire service with a separate

ground wire. Appliance must be grounded for safe operation.

NOTE: Always consult local and national electric codes. Check local building codes

for installation requirements, as they may vary per locale. Refer to Product Installation Guide

for detailed installation instructions |on the web at electroluxicon.com.

Specifications subject to change.

36"

Wall Mount

Stainless Steel/

Glass Canopy

Yes

Vertical

600

Dual Centrifugal

Yes

73.8

Yes

Convertible*

6" Round

Optional

35-7/16"

16-1/2" min.

27-3/16" min.

36" max.

19-11/16

120V/60Hz/15A

0.46

61 Lbs.

9.5

electroluxicon.com

Wave-Touch™

Control Panel Technology

A simple touch, anywhere on the panel, lights

controls and provides access to all functions.

This allows easy programming while keeping

activated functions lighted for easy monitoring.

600 CFMs / 4-Speed Fan

Features a powerful 4-speed dual centrifugal fan

supplying 600 CFM of air movement. Effectively

and quietly removes smoke, vapors and smells

from the kitchen.

Dual Halogen Lights

Dual halogen lights provide ample illumination

of the cooking surface below with lights located

at two different levels.

Washable Stainless Steel Filters

Saturated filters can be rinsed and cycled

through the dishwasher. The stainless steel filter

provides strength and durability not found in

foam filters.

Glass Canopy Wall-Mount Hood

RH36WCT6GS

Glass Canopy Wall-Mount Hood

RH36WCT6GS

High standards of quality at Electrolux Home Products, Inc. mean we are

constantly working to improve our products. We reserve the right to change

specifications or discontinue models without notice.

Electrolux Major Appliances, N.A.

USA

•250 Bobby Jones Expressway •Augusta, GA 30907 •1-877-4electrolux (1-877-435-3287) •

electroluxicon.com

CANADA

•5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352 •

electroluxicon.ca

36" Glass Canopy Wall-Mount Hood Specifications

•

Product Weight – 49 Lbs.

•

Wall-Mount Installation

•

Ventilation system is preset to exhaust air outside. If outside ducting is

not possible, optional Duct-Free Kit (PN # DFKTWC75GS) is available

to convert ventilation to allow air to recirculate inside. (Refer to Ducted

Option Specifications for outside ventilation.)

•

Sones Rating – 9.5

•

Voltage Rating –120V/60 Hz/15 Amps

•

Connected Load (kW Rating) @120 Volts = 0.46kW

(For use on adequately wired 120V, dedicated circuit having 2-wire

service with a separate ground wire. Appliance must be grounded

for safe operation.)

•

Amps @120 Volts = 3.93 Amps

•

Always consult local and national electric codes. Check local building

codes for installation requirements, as they may vary per locale.

•

For most efficient operation, position hood low to cooktop.

Recommended installation is 30"-36" above countertop.

Ducted Option Specifications

•

For outside ventilation.

•

Exhaust Duct Required – 6" round

•

For most efficient airflow exhaust, use a straight run or as few elbows

as possible.

•

Use metallic flex ducting only to connect rigid duct directly to transitions

(if allowed by code).

•

Thermal breaks such as short section of nonmetallic duct, should be

used in areas of extreme cold.

•

Cold weather installations should have additional backdraft damper

installed.

•

Refer to installation instructions on web for detailed exhaust duct

preparation and converting vent blower system for recirculating inside.

Note: For planning purposes only. Refer to Product Installation Guide

on the web at electroluxicon.com for detailed instructions.

Optional Accessories

•

Charcoal Filter – (PN# CF40EC).

•

Duct-Free Kit – (PN# DFKTWC75GS).

•

35-7/16" Flue Extension – (PN# EXWC75GS).

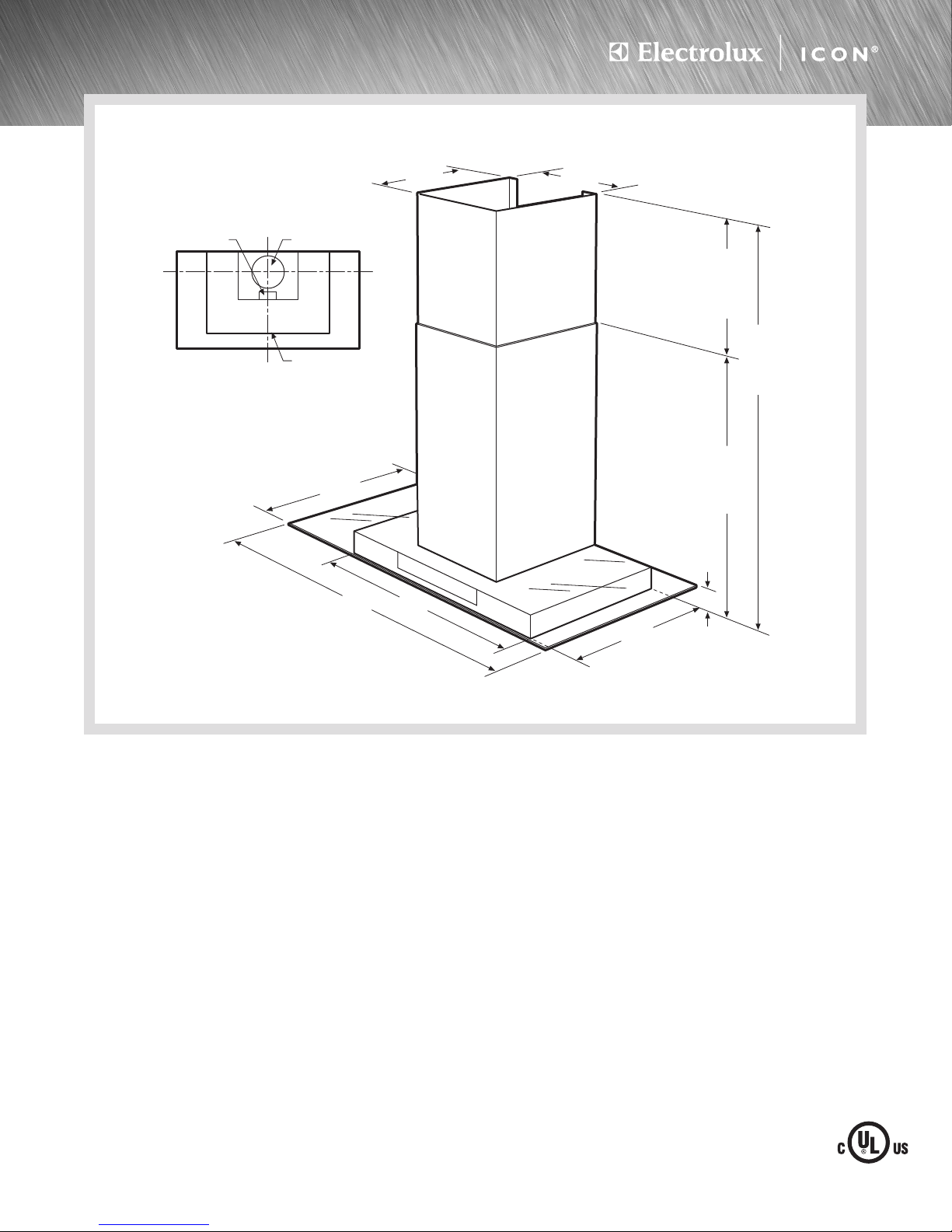

Dimensions

from base of

hood to ceiling,

and include

clearance

required for

installation. 161/2"

(min.

height

with one

cover)

1015/16"

25/8"

1911/16"

1013/16"

357/16"243/8"

1415/16"

273/16"

min.**

36"

max.

(Ducted

dimensions

shown)

Ductless

dimensions:

*77/8"min.

**2615/16"min.

81/16"

min.*

16 15/16"

max.

Top

Wiring box Air outlet - 57/8" diam.

Controls
