INSTRUCTIONS MANUAL

EW 924 T

146 1217 00 GB

- 3 -

CONTENTS

For the user

Safety instructions 4/5

Description of the appliance 6

Use of your appliance 7

Operating instructions 8/9

Programme chart 10/11

Hints & Tips 12-14

Cleaning and maintenance 15

If something doesn't work 16/17

Service 18

For the installer

Technical information 19

Installation

Unpacking 19

Installation 20

Levelling 20

Moving of the appliance 20

Water connection 21

Electrical connection 21

Guide to use the instruction

The following symbols will be found in the text to guid you

throughout the instructions :

Safety instructions

Hints and tips

Environmentalinformation

- 4 -

Youmustreadthewholeofthisinstructionbookbefore

you use the appliance. Follow the advice carefully.

Keep the book for future reference. If you sell or give

awaythe appliance, make sure that the book is passed

to the new owner.

The following warnings are provided in the interest of

overallsafety.Youmustread thembeforethe appliance

is installed or used.

Use

This appliance is designed to be used by

adults. Children should not be allowed to touch

the controls or play with the product.

It is dangerous to modify the specifications of

this appliance in any way.

Always unplug the appliance and turn off the

water after use.

Only wash fabrics with are designed to be

machine washed. If in doubt, follow the instruc-

tions you find on the label of the item itself.

Place small metal rings or edged plastic rings

in a net or bag.

Make sure that all pockets are empty. Hard,

sharp objects such as coins, safety pins, nails,

screws or stones can cause extensive damage.

Do not machine wash fabrics which are

saturated with petroleum products. If volatile

cleaning fluids have been used, make sure

that they are thoroughly removed from the

fabrics before they are placed in the appliance.

Small and delicate objects (e.g. baby socks,

stockings) can be easily washed inside a small

pillowcase with a zip fastener or in larger

socks.

Use only the recommended quantities of fabric

conditioner.

Before cleaning, care and maintenance, ensure

that the machine is unplugged.

Installation

Any electrical work required to install this

appliance should be carried out by a qualified

electrician or competent person.

Any plumbing work required to install this

appliance should be carried out by a qualified

plumber or competent person.

Make sure that the appliance does not stand

on its electrical supply cable.

This appliance is heavy. Care should be taken

when moving it.

All packaging and transit bolts must be removed

before the appliance is used. Serious damage

may occur if this is not done.

If your washing machine is in a room subject to

temperatures below freezing, the water must

be removed from the machine. So, the

danger of freezing should be expected.

SAFETY INSTRUCTIONS

Read all instructions before using

the appliance and save them for

future reference.

- 5 -

Safeties

Lid : your washing machine is equipped with

a safety avoiding the switching of the appliance

when the flapdoors of the drum are opened ;

the closure of the lid is so impossible. An

electromechanic safety prohibits the opening

of the lid when the washing machine works and

2 minutes after the end of the programme.

Washing motor : in case of mechanic

overloading, overvoltage, a thermic safety

protects automatically the motor.

Heating : the heating can only begin when

the water quantity necessary for the washing

is in the tub. This safety is useful when there is

a water break-up or if you forget to open the

water inlet hose.

The anti-foam system: water consumption is very

low, due to the electronic spin cycle with an inter-

mediate spin after the main wash and three rinse

cycles for white and color programs. The spin cycle

remains under the control of the foam detection

system after the wash cycle has finished. If

necessary, the spin cycle will stop until all foam is

removed.

Anti-balanced system : This safety allows to the

appliance to keep a perfect stability during the

intermediaryspinnings and duringthefinal spinning.

Ifyou notice thatyourlaundry isnotspinned enough,

the anti-balanced system has then detected a bad

distribution of the laundry during the final spinning ;

so it is adviced to realize a new spinning taking care

to unpack handly the laundry before.

Environmental information

All materials marked by the symbol are

biodegradable. They can be disposed of without dan-

ger or burnt in rubbish incinerators.

In order to realize water and energy savings and to act

in an environmentally conscious manner, we advice to

follow the below instructions :

- use if possible the appliance with full loads

instead of partial loads. Take care to do not

overload the drum.

- Use only the programmes with prewash for very

soiled laundry.

- Savings on detergent and for the environment

may also be achieved if with medium to hard

water you add sufficient detergent for soft water

and then add separately a softener. This relieves

our waters of a certain amount of chemicals.

When disposing of the machine in a proper

manner, destroy the door lock and cut off the

power supply cord.

- 6 -

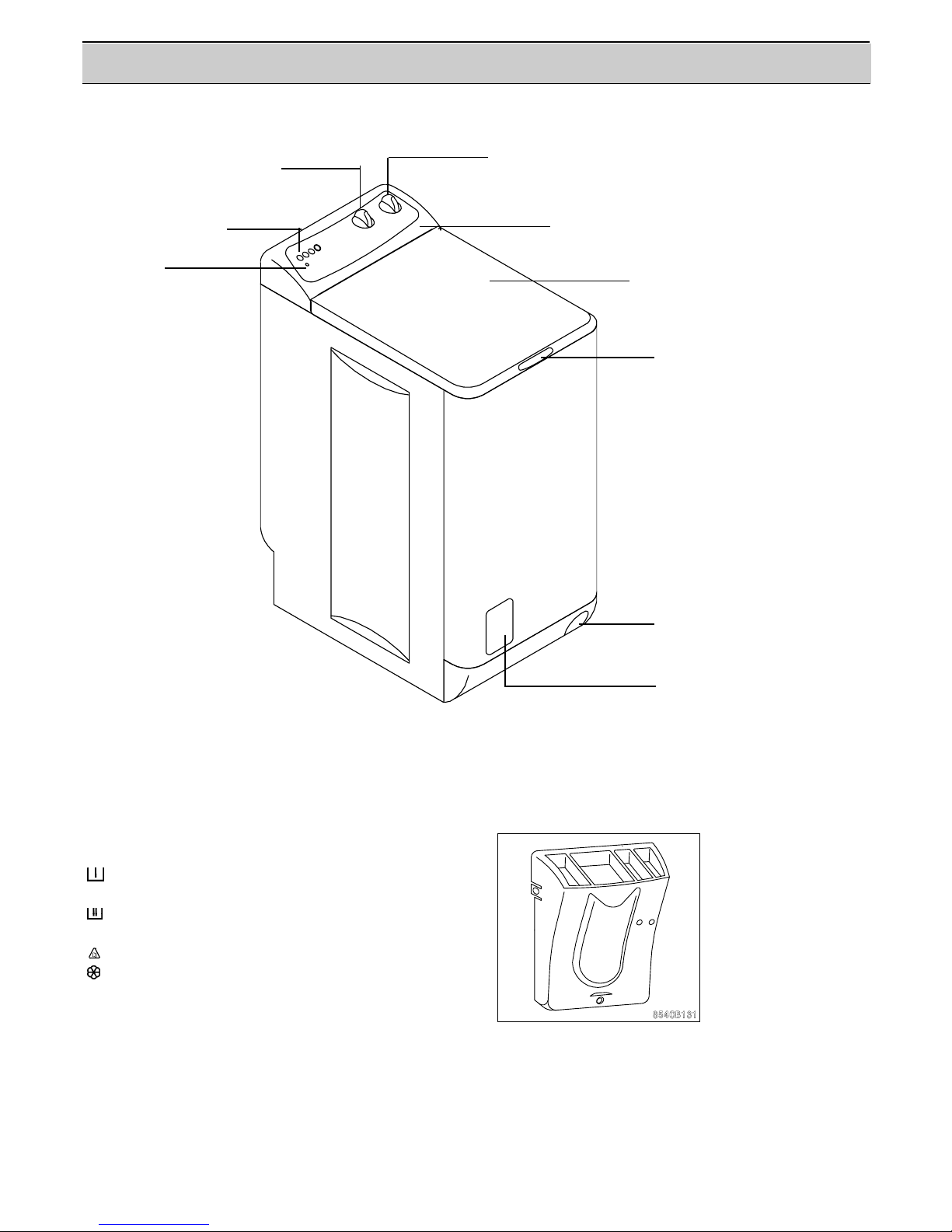

DESCRIPTION OF THE APPLIANCE

Detergent dispenser

Symbols

()Washing powder for programmes with

prewash (1).

()Washing powder or liquid detergent for

the main wash (2).

()Bleach compartment (3).

()Liquid additives (fabric softener and

conditioner...) (4).

(5) Overflow orifice

Control panel

Lid

Handle for opening lid

Trap door for lint filter

Lever for castors

Pushbuttons

Programme selector Temperature selector

Light

1234

- 7 -

USE OF YOUR APPLIANCE

The control panel

1ON/OFF pushbutton " "

Press the ON/OFF pushbutton, the programme

starts : the control lamp lights on.

2Control lamp

The control lamp lights on when the appliance is

working (on/off pushbutton " " pressed). It lights off

when the on/off pushbutton " " is pressed out.

3Spinning speed reduction push-

button "900/650"

This pushbutton allows to reduce the spinning speed

from 900 to 650 rpm on all the washing programmes.

Thus, you can choose the spinning speed suiting best

to the nature of your laundry and to the degree of

humidity wished at the end of the wash.

4Rinse hold pushbutton " "

Pressthisbuttontoleavethewaterinthedrumafterthe

wash cycle is completed. This works on all program-

mes. The clothes are left suspended in water after the

final rinse to prevent the formation of creases.

You can end these programmes by a spinning (by

depressingthispushbutton)orbyadraining(by setting

thetimerontheprogramme P). Please depress the on/

off pushbutton " " before doing your choice.

Never turn the programme selector when the appliance is working.

5Programme selector

Itenablestoselect the most adapted programme tothe

nature and degreees of soil of your laundry.

Turn the programme selector clockwise to select the

chosen programme.

The programme selector indicates each programme

phase as it takes place.

At the end of the programme, the appliance stops

automatically on a position off "I" (the rinse hold

pushbutton " " is not selected).

Neverturnthe programme selectoranticlockwise.

6Temperature selector

It enables to choose the mosta adapted temperature

between cold ( ) and 90°C.

Choose the temperature which corresponds to the

chosen programme, with the help of the indications or

the programme table, according to the fibers and the

fastness of the colours.

1 3 5

264

- 8 -

OPERATING INSTRUCTIONS

1. Place the laundry in the drum

lift up the lid of the machine.

open the drum with your two hands by pressing the

button Aand the two flapdoors till they disengage.

introduce the laundry into the drum ; close the drum

and the lid of the machine.

Be careful : before closing the lid of your machine,

make sure that the drum flapdoors are correctly

closed :

the two flapdoors fastened,

the button Apressed out.

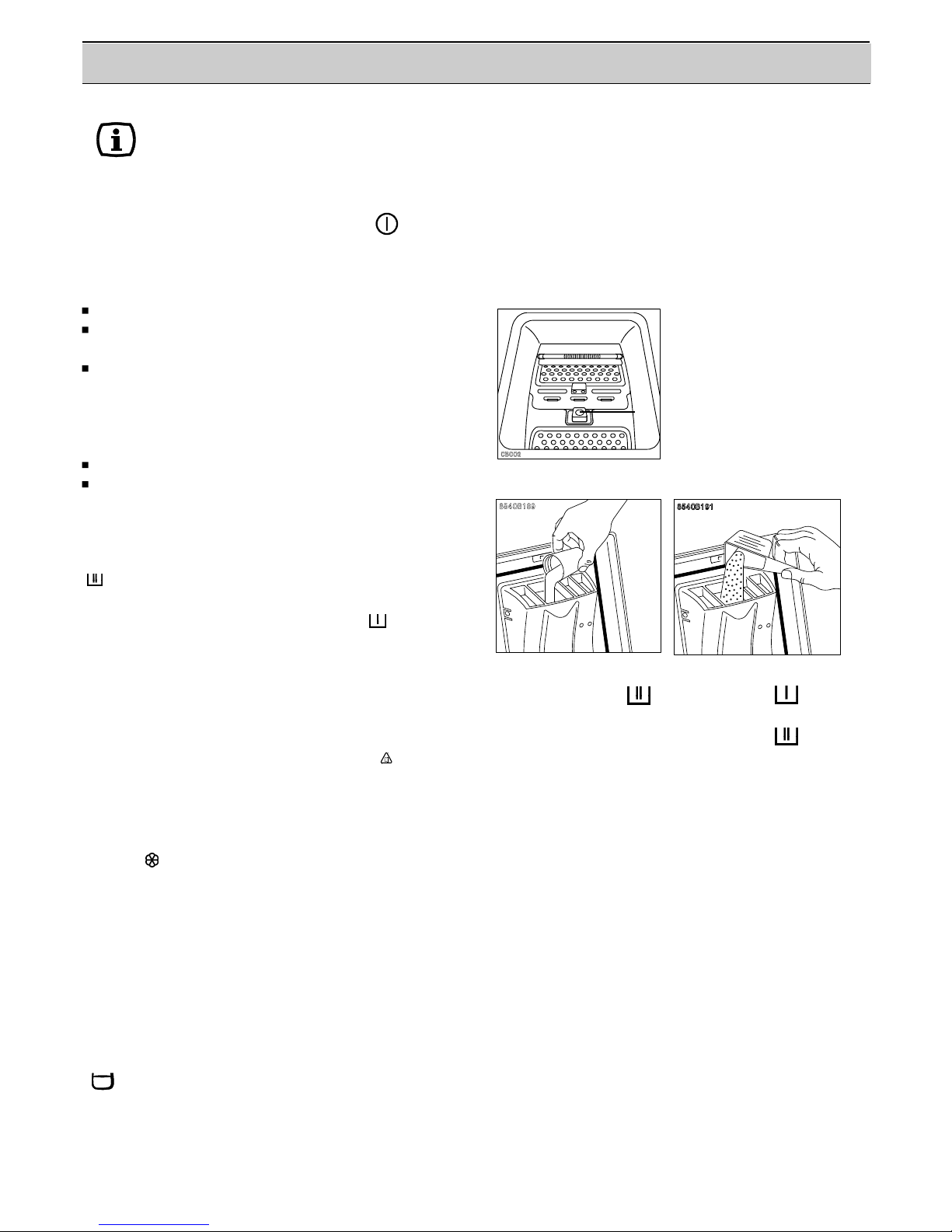

2. Measure out the detergent

Measure out the amount of detergent recommended

by the manufacturer in the main wash compartment

().

If you wish to carry out a prewash, pour the amount

required into the prewash compartment ( ).

3. Add the bleach agent, if required

You may use a bleach agent in all the washing pro-

grammes. However, make sure that the fabric

withstands the treatment. Bleach is automatically

washed down into the drum. Pour 1/4 to 1 glass of 12°

chl bleach into compartment marked ( ) before

switching the machine on.

4. Add the fabric softener

Pour the softener, if required, into the compartment

marked ( ). Do not exceed the MAX level.

Your washing machine has been conceived in

orderto savewateranddetergent products.Please

take care the filling level of the detergent products

do not exceed the MAX marks located near the

display window of your detergent dispenser.

5. Press the spinning speed reduction

"900/650" or the rinse hold pushbutton

"" if required.

Liquiddetergent

only compartment

Powder detergent

Compartment

(prewash)

Compartment

(wash)

Before using your appliance for the first time, we recommend that you do a preliminary wash

with the machine empty, as a precaution to clean the drum, the tub and the detergent

dispenser.

1. Pour a dose of detergent in the “washing” compartment.

2. Select the "whites 90°C" program without prewash.

3. Press the on/off button " ". The cycle starts.

- 9 -

6. Select the temperature

Choose the temperature which corresponds to the

chosen programme.

7. Select the programme

Choose the programme according to the nature and

the degree of soil of the laundry.

Turn the programme selector clockwise to select the

chosen programme.

8. Starting of the programme

The ON/OFF pushbutton " " enables to switch on

your machine. The control lamp lights on and the

programme begins.

9. At the end of the programme

When the selected programme is over, the machine

stops automatically. The timer knob stops on the

position "I" for all the programmes.

If the rinse hold pushbutton " " is selected, the

chosen programme end by a rinse hold. You can finish

this programme by a spinning by depressing the rinse

hold pushbutton " " or by a draining (programme P).

Depress the on/off pushbutton " " before doing your

choice.

After each wash, depress the on/off pushbutton.

Press off the pushbuttons if necessary ; unplug the

machine from the wall socket ; turn off the water tap.

900

650

6070

- 10 -

PROGRAMMES CHART

Programmes

description

Temperatures

(°C)

Water

consumption

in liters

Time

in minutes

(2)

White with prewash

White ( )

Coloured

Short programme

Rinsings

Spinning

60-90

40-60

30-40

Detergent

dispensers

to use

Programmes for cotton/linen

Maximum load : 5 kg (cotton)

() recommended program for comparisons based on standard IEC 456. Thermostat at 60°.

(1) if the laundry can withstand the bleaching treatment.

(2) Program times given in the above table are provided as a guide and may vary depending on the water supply

temperature and pressure, and your electricity power supply mains voltage.

The temperatures given in the programs table are provided as a guide. You can vary them using the thermostat

knob on your washing machine. Always scrupulously respect the temperature shown on the label on each item

of washing.

BE CAREFUL :

THE LID CAN ONLY BE OPENED 2 MINUTES AFTER THE MACHINE HAS STOPPED.

150

130

100

(1)

- 11 -

Programmes

description

Temperatures

(°C)

Water

consumption

in liters

Time

in minutes

(1)

Synthetics with prewash

Synthetics

Wool

Delicate

Rinsings

Short spinning

Drain

40-60

-40

Detergent

dispensers

to use

Programmes for synthetics/delicates/wool

Maximum loads : 2,5 kg (synthetics), 1 kg (wool).

(1) Program times given in the above table are provided as a guide and may vary depending on the water

supply temperature and pressure, and your electricity power supply mains voltage.

The temperatures given in the programs table are provided as a guide. You can vary them using the thermostat

knob on your washing machine. Always scrupulously respect the temperature shown on the label on each item

of washing.

BE CAREFUL :

THE LID CAN ONLY BE OPENED 2 MINUTES AFTER THE MACHINE HAS STOPPED.

105

Andere Handbücher für EW 924 T

Inhaltsverzeichnis

Andere Electrolux Waschmaschine Handbücher

Electrolux

Electrolux EWP 0862 TDW Bedienungsanleitung

Electrolux

Electrolux EWT 106511 W Bedienungsanleitung

Electrolux

Electrolux EW6F348SA Bedienungsanleitung

Electrolux

Electrolux EWF9024BDWA Bedienungsanleitung

Electrolux

Electrolux WAL6E200 Bedienungsanleitung

Electrolux

Electrolux EWT 136580 W Bedienungsanleitung

Electrolux

Electrolux Front load washer Bedienungsanleitung

Electrolux

Electrolux EWT 12420 W Bedienungsanleitung

Electrolux

Electrolux EWT 610 Bedienungsanleitung

Electrolux

Electrolux EW6F3844BB Bedienungsanleitung

Electrolux

Electrolux WA GL2 T 201 Bedienungsanleitung

Electrolux

Electrolux EWS11056EDU Bedienungsanleitung

Electrolux

Electrolux EW6F4143FB Bedienungsanleitung

Electrolux

Electrolux ZANUSSI ZWF 1434W Bedienungsanleitung

Electrolux

Electrolux EW7F3846HB Bedienungsanleitung

Electrolux

Electrolux EWF 12780 W Bedienungsanleitung

Electrolux

Electrolux EWT1276EOW Bedienungsanleitung

Electrolux

Electrolux IQ-TOUCH EIFLS55I IW Bedienungsanleitung

Electrolux

Electrolux EWF8024Q5WB Bedienungsanleitung

Electrolux

Electrolux WH1048 Bedienungsanleitung

Electrolux

Electrolux EWF 1240 Bedienungsanleitung

Electrolux

Electrolux EW 1418 1 Bedienungsanleitung

Electrolux

Electrolux EWF 1294BW Bedienungsanleitung

Electrolux

Electrolux EWF 1282 Bedienungsanleitung

Beliebte Waschmaschine Handbücher anderer Marken

Tricity Bendix

Tricity Bendix AW 1000 W Produkthandbuch

Panasonic

Panasonic NA-F60L5WRB Bedienungsanleitung

GE WSLP1500 Handbuch

Bosch

Bosch WAN2829BSN Bedienungsanleitung

LG TV2516DV3B Bedienungsanleitung

LG TH2517DSAV Bedienungsanleitung

VESTEL

VESTEL CMH-XL 7510 TE Bedienungsanleitung

AEG

AEG 74335 Bedienungsanleitung

Johnson

Johnson JWF721A Bedienungsanleitung

Beko

Beko WTE7604XLW0 Bedienungsanleitung

Danby

Danby DTT100A1WDB Montageanleitung

Amica

Amica WA 14 Ex Bedienungsanleitung

Daewoo

Daewoo DWD-F1222 Bedienungsanleitung

Bosch

Bosch WAS28461AU Bedienungsanleitung

Miele

Miele PW 6080 Vario Bedienungsanleitung

Finlux

Finlux FLX108CF220 Bedienungsanleitung

Whirlpool

Whirlpool 3LBR5132AN0 Bedienungsanleitung

Beko

Beko WKB 51231 PTMA Bedienungsanleitung
