1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible if an incorrect installation and use causes
injuries and damages. Always keep the instructions with
the appliance for future reference.
1.1 Children and vulnerable people safety
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
•Do not let children play with the appliance.
•Children aged 3 years and under must be kept away
from this appliance when it is in operation at all times.
•Keep all packaging away from children and dispose of
it appropriately.
•Keep detergents away from children.
•Keep children and pets away from the appliance when
the door is open.
•If the appliance has a child safety device, this should
be activated.
•Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
1.2 General Safety
•Do not change the specification of this appliance.
•Do not exceed the maximum load of 7 kg (refer to the
"Programme chart" chapter).
•The operating water pressure at the water entry point
from the outlet connection must be between 0.5 bar
(0.05 MPa) and 8 bar (0.8 MPa).
•The ventilation opening in the base must not be
covered by a carpet, mat, or any floor covering.
ENGLISH 3
•The appliance must be connected to the water mains
using the new supplied hose sets, or other new hose
sets supplied by the Authorised Service Centre.
•Old hose sets must not be reused.
•If the mains power supply cable is damaged, it must
be replaced by the manufacturer, its Authorised
Service Centre or similarly qualified persons to avoid
an electrical hazard.
•Before any maintenance operation, deactivate the
appliance and disconnect the mains plug from the
socket.
•Do not use high pressure water sprays and/or steam
to clean the appliance.
•Clean the appliance with a moist cloth. Use only
neutral detergents. Do not use abrasive products,
abrasive cleaning pads, solvents or metal objects.
2. SAFETY INSTRUCTIONS
2.1 Installation
• Remove all the packaging and the
transit bolts.
• Keep the transit bolts in a safe place.
If the appliance is to be moved in
future they must be reattached to lock
the drum to prevent internal damage.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Do not install or use a damaged
appliance.
• Follow the installation instruction
supplied with the appliance.
• Do not install or use the appliance
where the temperature can be less
than 0°C or where it is exposed to the
weather.
• The floor area where the appliance is
to be installed must be flat, stable,
heat resistant and clean.
• Make sure that there is air circulation
between the appliance and the floor.
• Do not install the appliance directly
over the floor drain.
• Adjust the feet to have the necessary
space between the appliance and the
flooring.
• Do not install the appliance where the
appliance door cannot be fully
opened.
• Do not put a container to collect
possible water leakage under the
appliance. Contact the Authorised
Service Centre to ensure which
accessories can be used.
2.2 Electrical connection
• The appliance must be earthed.
• Always use a correctly installed
shockproof socket.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to
the mains plug and to the mains
cable. Should the mains cable need to
be replaced, this must be carried out
by our Authorised Service Centre.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
www.electrolux.com4
access to the mains plug after the
installation.
• Do not touch the mains cable or the
mains plug with wet hands.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• This appliance complies with the
E.E.C. Directives.
2.3 Water connection
• Do not cause damage to the water
hoses.
• Before connection to new pipes, pipes
not used for a long time, where repair
work has been carried out or new
devices fitted (water meters, etc.), let
the water flow until it is clean and
clear.
• Ensure that there are no visible water
leaks during and after the first use of
the appliance.
• Do not use an extension hose if the
inlet hose is too short. Contact the
service centre for the replacement of
the inlet hose.
• You can extend the drain hose to
maximum 400 cm. Contact the
service centre for the other drain hose
and the extension.
2.4 Use
WARNING!
Risk of injury, electrical
shock, fire, burns or damage
to the appliance.
• This appliance is for household use
only.
• Follow the safety instructions on the
detergent packaging.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
• Make sure that all metal objects are
removed from the laundry.
• Do not wash fabrics which are heavily
soiled with oil, grease or other greasy
substances. It can damage rubber
parts of the washing machine.
Prewash such fabrics by hand before
loading them into the washing
machine.
• Do not touch the glass door while a
programme is in operation. The glass
can get hot.
2.5 Service
• To repair the appliance contact an
Authorised Service Centre.
• Use original spare parts only.
2.6 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains electrical and water supplies.
• Cut off the mains electrical cable
close to the appliance and dispose of
it.
• Remove the door catch to prevent
children or pets from becoming
trapped in the drum.
• Dispose of the appliance in
accordance with local requirements
for the disposal of Waste Electrical
and Electronic Equipment (WEEE).
ENGLISH 5
3. PRODUCT DESCRIPTION

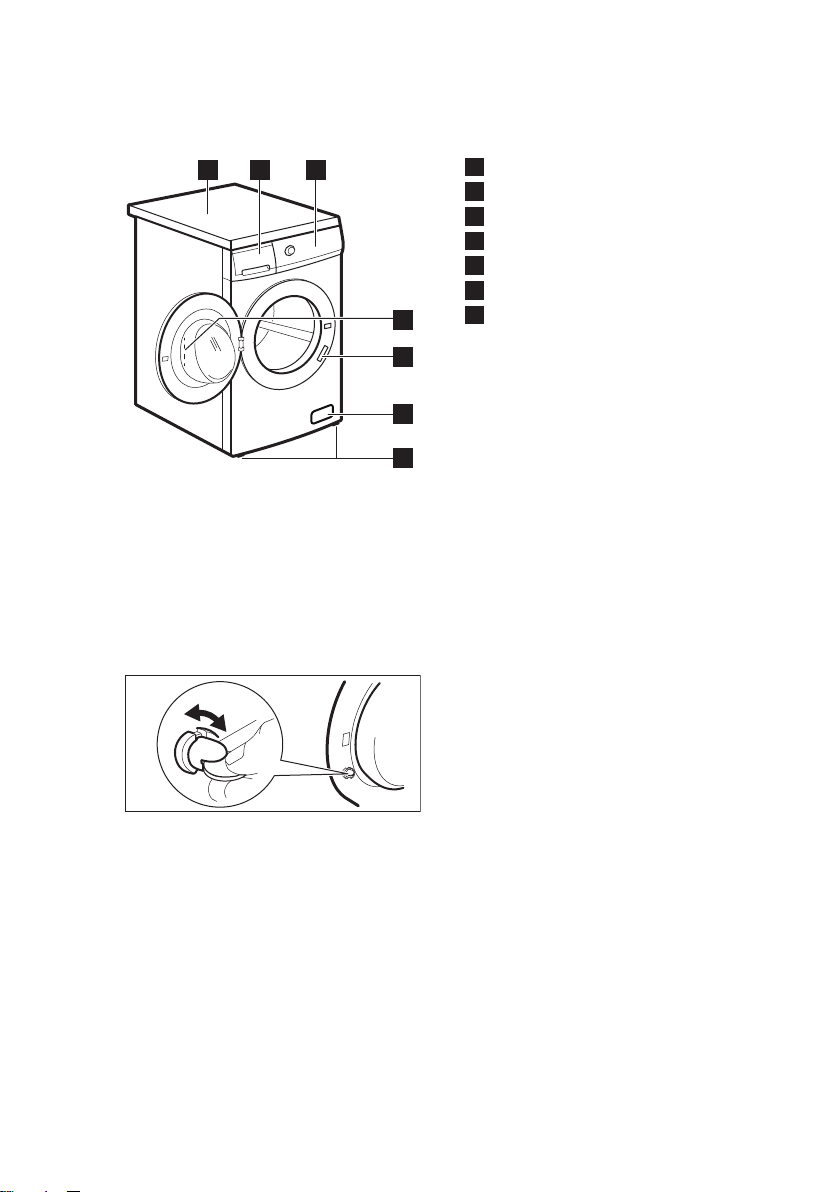

3.1 Appliance overview
1 2 3
5
6
7
4
1Worktop
2Detergent dispenser
3Control panel
4Door handle
5Rating plate
6Drain pump filter
7Feet for levelling the appliance
3.2 How to activate the child
safety device
This device prevents children or pets
from being closed in the drum.
Turn the device clockwise, until the
groove is horizontal.
You cannot close the door.
To close the door, turn the device
anticlockwise until the groove is vertical.
3.3 Fixing plate kit
(4055171146)
Available from your authorised dealer.
If you install the appliance on a plinth,
secure the appliance in the fixing plates.
Read carefully the instructions supplied
with the accessory.
www.electrolux.com6
4. CONTROL PANEL

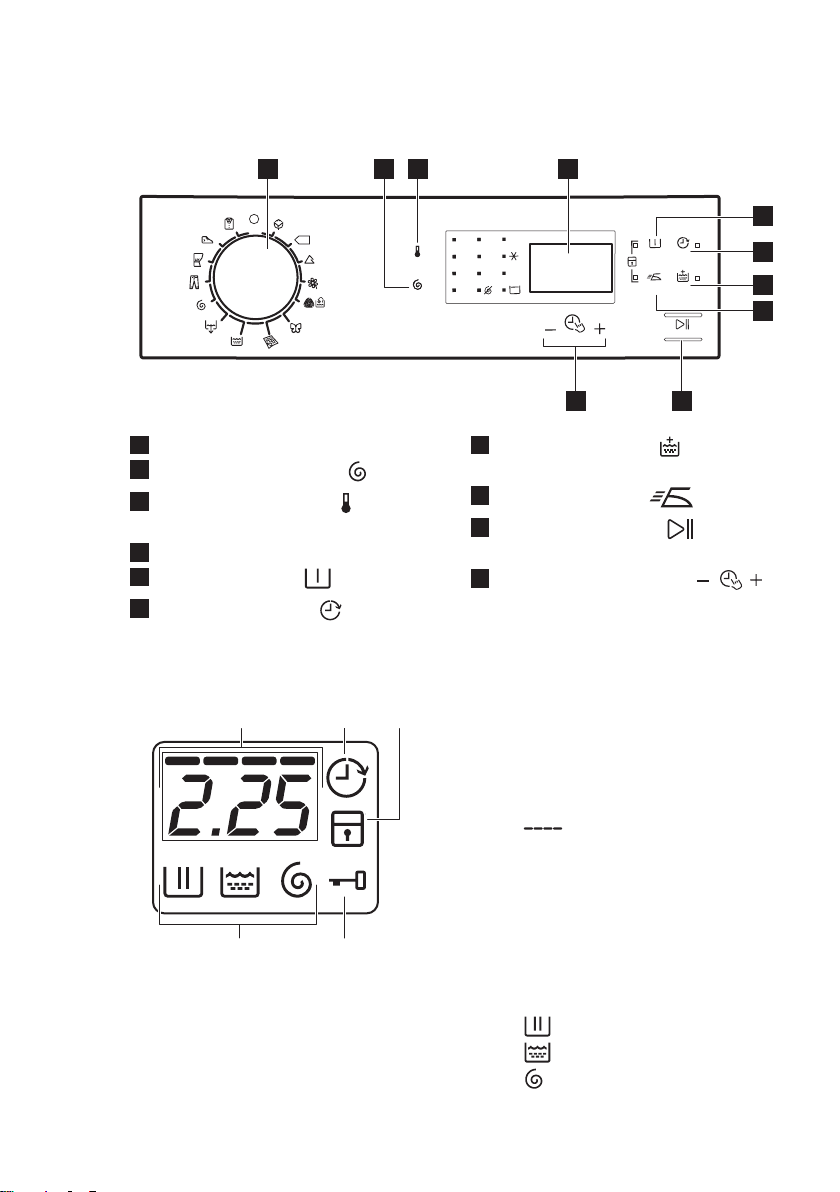

4.1 Control panel description
20°
°0
9°
0
4
°03
008
°06
1000
1200
0
04
TimeManager
esuaP/t
ratS
Silk
Cotton
Cotton Eco
Curtains
Rinse
Spin
Drain
Duvets
Jeans
Synthetics
Delicates
Wool/Handwash
Sports
5 Shirts
Delay Start
Easy Iron Extra Rinse
Prewash
Temp.
Spin
1 2 3 4
910
7
6
8
5
1Programme knob
2Spin reduction touchpad (Spin)
3Temperature touchpad
(Temperature)
4Display
5Prewash touchpad (Prewash)
6Delay start touchpad (Delay Start)
7Extra rinse touchpad (Extra
Rinse)
8Easy iron touchpad (Easy Iron)
9Start/Pause touchpad (Start/
Pause)
10 Time Manager touchpads
4.2 Display
A B
E D
C
A. The time area:
• Programme time.
• The alarm codes. Refer to the
chapter “Troubleshooting” for their
description.
• The level of the Time Manager
.
B. The Delay Start indicator.
C. The Child Lock indicator.
D. The Door Lock indicator:
• It is on, you cannot open the door.
• It is off, you can open the door.
• It flashes, you cannot open the
door. Wait for some minutes until
the indicator is off.
E. Washing phase indicators.
• : the washing phase
• : the rinses phase
•: the spin phase
ENGLISH 7
5. PROGRAMME CHART
Programme
Temperature
range
Maximum
load
Maximum
spin speed
Programme description
(Type of load and soil level)
Cotton
90°C - Cold
7 kg
1200 rpm
White cotton and coloured cotton. Normal soil
and light soil.
Cotton
Eco1)
60°C - 40°C
7 kg
1200 rpm
White cotton and fast-coloured cotton. Normal
soil. The energy consumption decreases and the
time of the washing programme is extended.
Synthetics
60°C - Cold
3 kg
1200 rpm
Synthetic items or mixed fabric items. Normal
soil.
Delicates
40°C - Cold
3 kg
1200 rpm
Delicate fabrics such as acrylics, viscose and
mixed fabrics requiring gentler washing. Nor‐
mal soil.
Wool/
Handwash
40°C - Cold
1,5 kg
1200 rpm
Machine washable wool, hand washable wool
and other fabrics with «hand washing» care
symbol2).
Silk
30°C
1 kg
800 rpm
Special programme for silk and mixed synthet‐
ic items.
Duvets
60°C- 30°C
3 kg
800 rpm
Special programme for one synthetic blanket,
duvet, bedspread and so on.
Rinse
Cold
7 kg
1200 rpm
To rinse and spin the laundry. All fabrics, except
woollens and very delicate fabrics. Reduce the
spin speed accordingly to the type of laundry.
Drain 7 kg To drain the water in the drum. All fabrics.
Spin 7 kg
1200 rpm
To spin the laundry and to drain the water in the
drum. All fabrics, except woollens and deli‐
cate fabrics.
Jeans
60°C- Cold
7 kg
1200 rpm
Items in denim and jersey. Also for dark col‐
oured items.
Curtains
40°C - Cold
2 kg
800 rpm
Special programme for curtains. The prewash
phase is activated automatically.3)
Sports
30°C
3 kg
800 rpm
Synthetic and delicate items. Light soil items or
items to refresh.
www.electrolux.com8
Programme
Temperature
range
Maximum
load
Maximum
spin speed
Programme description
(Type of load and soil level)
5 Shirts
30°C
1,5 kg
800 rpm
Synthetic and mixed fabric items. Light soil
items and items to freshen up. For 5 - 6 shirts.
1) Cottons energy saving programme. This programme at a 60ºC with a load of 7 kg is the
reference programme for data entered in the energy label, in compliance with EEC 92/75
standards. Set this programme to have a good washing results and decrease the energy
consumption. The time of the washing programme is extended.
2) During this cycle the drum rotates slowly to ensure a gentle wash. It can seem that the
drum doesn't rotate or doesn't rotate properly, but this is normal for this programme.
3) Do not use any detergent for prewash phase to rinse only with water.
Programme options compatibility
Programme
■ ■ ■ ■ ■ ■ ■
■ ■ ■ ■ ■ ■
■ ■ ■ ■ ■ ■ ■
■ ■ ■ ■ ■ ■
■ ■ ■ ■
■ ■ ■
■ ■
■ ■ ■ ■ ■
■
■ ■
■ ■ ■ ■ ■ ■
■ ■ ■ ■ ■
■ ■ ■
■ ■ ■
ENGLISH 9
6. CONSUMPTION VALUES
Stated values are obtained in laboratory conditions with relevant stand‐
ards. Different causes can change the data: the quantity and type of
laundry and ambient temperature. Water pressure, the supply voltage
and the temperature of inlet water may also affect the washing pro‐
gramme duration.
Technical specifications may be changed without prior notice to improve
the quality of product.
At the start of the programme, the display shows the programme dura‐
tion for the maximum load capacity.
During the washing phase the programme duration is automatically cal‐
culated and can be greatly reduced if the laundry load is lower than the
maximum load capacity (e.g. Cotton 60°C, maximum load capacity 7 kg,
the programme duration exceeds 2 hours; actual load 1 kg, the pro‐
gramme duration will be less than 1 hour).
When the appliance is calculating the real programme duration a dot
flashes in the display.
Programmes Load
(kg)
Energy
con‐
sumption
(kWh)
Water con‐
sumption
(litre)
Approximate pro‐
gramme duration
(minutes)
Cottons 60°C 7 1,34 68 157
Cotton Energy Saving Pro‐
gramme 60°C1) 7 0,92 45 250
Cottons 40°C 7 0,78 61 157
Synthetics 40°C 3 0,60 56 103
Delicates 40°C 3 0,55 59 81
Wool/Handwash 30°C 1,5 0,30 53 57
1) «Cotton Energy Saving programme » at 60°C with a load of 7 kg is the reference pro‐
gramme for the data entered in the energy label, in compliance with EU Commission Direc‐
tive 95/12/EC and measured according to EN 60456/2005.
Off Mode (W) Left On Mode (W)
0,48 0,48
The information given in the chart above is compliant with the EU Commission regu‐
lation 1015/2010 implementing directive 2009/125/EC
www.electrolux.com10
Inhaltsverzeichnis
Sprachen:
Andere Electrolux Waschmaschine Handbücher
Electrolux
Electrolux EWF 1698 HEW Bedienungsanleitung
Electrolux
Electrolux EWFLS65I Bedienungsanleitung
Electrolux
Electrolux EWC 1350 Bedienungsanleitung
Electrolux
Electrolux EWF 1297 HDW Bedienungsanleitung
Electrolux
Electrolux W4240H Bedienungsanleitung
Electrolux
Electrolux WAGL6E202 Bedienungsanleitung
Electrolux
Electrolux EWF 1074BW Bedienungsanleitung
Electrolux
Electrolux WA SL2 E100 Bedienungsanleitung
Electrolux
Electrolux EWF 14597 W Bedienungsanleitung
Electrolux
Electrolux EWF 1697 HDW Bedienungsanleitung
Electrolux
Electrolux EWN 12791 W Bedienungsanleitung
Electrolux
Electrolux EWF 168540 W Bedienungsanleitung
Electrolux
Electrolux EW 924 T Bedienungsanleitung
Electrolux
Electrolux EWF 12480 W Bedienungsanleitung
Electrolux
Electrolux EN6T4722AF Bedienungsanleitung
Electrolux
Electrolux EW6F4805AR Bedienungsanleitung
Electrolux
Electrolux Swissline L EWF 1090 Bedienungsanleitung
Electrolux
Electrolux 134700400 Bedienungsanleitung
Electrolux
Electrolux Washing machines with EWM 1000 PLUS Bedienungsanleitung
Electrolux
Electrolux EWW1274 Bedienungsanleitung
