WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that
brings with it decades of professional experience and innovation. Ingenious and
stylish, it has been designed with you in mind. So whenever you use it, you can
be safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com/webselfservice
Register your product for better service:
www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
www.electrolux.com2
1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible for any injuries or damages that are the
result of incorrect installation or usage. Always keep the
instructions in a safe and accessible location for future
reference.
1.1 Children and vulnerable people safety
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
•Do not let children play with the appliance.
•Children aged 3 years and under must be kept away
from this appliance when it is in operation at all times.
•Keep all packaging away from children and dispose of
it appropriately.
•Keep detergents away from children.
•Keep children and pets away from the appliance when
the door is open.
•Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
1.2 General Safety
•Do not change the specification of this appliance.
•Do not exceed the maximum load of 9 kg (refer to the
"Programme chart" chapter).
•The operating water pressure at the water entry point
from the outlet connection must be between 0.5 bar
(0.05 MPa) and 8 bar (0.8 MPa).
•The ventilation opening in the base must not be
covered by a carpet, mat, or any floor covering.
ENGLISH 3
•The appliance must be connected to the water mains
using the new supplied hose sets, or other new hose
sets supplied by the Authorised Service Centre.
•Old hose sets must not be reused.
•If the mains power supply cable is damaged, it must
be replaced by the manufacturer, its Authorised
Service Centre or similarly qualified persons to avoid
an electrical hazard.
•Before any maintenance operation, deactivate the
appliance and disconnect the mains plug from the
socket.
•Do not use high pressure water sprays and/or steam
to clean the appliance.
•Clean the appliance with a moist cloth. Use only
neutral detergents. Do not use abrasive products,
abrasive cleaning pads, solvents or metal objects.
2. SAFETY INSTRUCTIONS
2.1 Installation
• Remove all the packaging and the
transit bolts.
• Keep the transit bolts in a safe place.
If the appliance is to be moved in
future they must be reattached to lock
the drum to prevent internal damage.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Do not install or use a damaged
appliance.
• Follow the installation instruction
supplied with the appliance.
• Do not install or use the appliance
where the temperature can be less
than 0°C or where it is exposed to the
weather.
• The floor area where the appliance is
to be installed must be flat, stable,
heat resistant and clean.
• Make sure that there is air circulation
between the appliance and the floor.
• Do not install the appliance directly
over the floor drain.
• Adjust the feet to have the necessary
space between the appliance and the
flooring.
• Do not install the appliance where the
appliance door cannot be fully
opened.
• Do not put a container to collect
possible water leakage under the
appliance. Contact the Authorised
Service Centre to ensure which
accessories can be used.
2.2 Electrical connection
• The appliance must be earthed.
• Always use a correctly installed
shockproof socket.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to
the mains plug and to the mains
cable. Should the mains cable need to
be replaced, this must be carried out
by our Authorised Service Centre.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
www.electrolux.com4
access to the mains plug after the
installation.
• Do not touch the mains cable or the
mains plug with wet hands.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• This appliance complies with the
E.E.C. Directives.
2.3 Water connection
• Do not cause damage to the water
hoses.
• Before connection to new pipes, pipes
not used for a long time, where repair
work has been carried out or new
devices fitted (water meters, etc.), let
the water flow until it is clean and
clear.
• Ensure that there are no visible water
leaks during and after the first use of
the appliance.
2.4 Use
WARNING!
Risk of injury, electrical
shock, fire, burns or damage
to the appliance.
• This appliance is for household use
only.
• Follow the safety instructions on the
detergent packaging.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
• Make sure that all metal objects are
removed from the laundry.
• Do not wash fabrics which are heavily
soiled with oil, grease or other greasy
substances. It can damage rubber
parts of the washing machine.
Prewash such fabrics by hand before
loading them into the washing
machine.
• Do not touch the glass door while a
programme is in operation. The glass
can get hot.
2.5 Service
• To repair the appliance contact an
Authorised Service Centre.
• Use original spare parts only.
2.6 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains electrical and water supplies.
• Cut off the mains electrical cable
close to the appliance and dispose of
it.
• Remove the door catch to prevent
children or pets from becoming
trapped in the drum.
• Dispose of the appliance in
accordance with local requirements
for the disposal of Waste Electrical
and Electronic Equipment (WEEE).
ENGLISH 5
3. PRODUCT DESCRIPTION
3.1 Appliance overview
1 2 3
5
6
7
4
1Worktop
2Detergent dispenser
3Control panel
4Door handle
5Rating plate
6Drain pump filter
7Feet for levelling the appliance
3.2 Fixing plate kit
(4055171146)
Available from your authorised dealer.
If you install the appliance on a plinth,
secure the appliance in the fixing plates.
Read carefully the instructions supplied
with the accessory.
4. CONTROL PANEL
4.1 Control panel description
90° 60° 40°
30° 20°
1200 1000
400
Delay
Start
Extra
Rinse
Prewash
Easy
Iron
Temperature
Spin
Start/Pause
800
Cottons
Rinse
Duvet Jeans
Synthetics
Delicates
Wool/Handwash
Spin/Drain
Cottons Eco
Sports
14 Min.
Refresh
Synthetics
Cottons
1 2 3 4
910
7
6
8
5
1Programme knob
2Spin reduction touchpad (Spin)
3Temperature touchpad
(Temperature)
4Display
www.electrolux.com6
5Prewash touchpad (Prewash)
6Delay start touchpad (Delay Start)
7Extra rinse touchpad (Extra
Rinse)
8Easy iron touchpad (Easy Iron)
9Start/Pause touchpad (Start/
Pause)
10 Time Manager touchpads

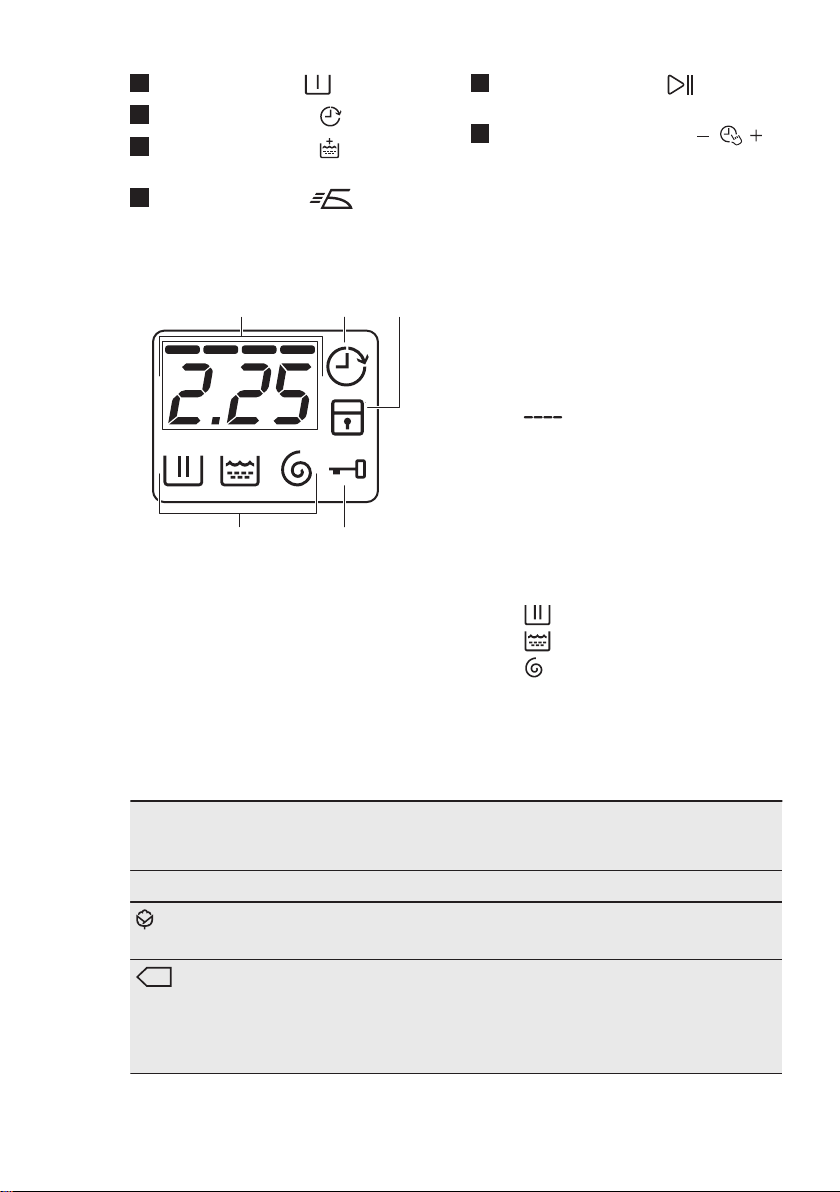

4.2 Display
A B
E D
C
A. The time area:
• Programme time.
• The alarm codes. Refer to the
chapter “Troubleshooting” for their
description.
• The level of the Time Manager
.
B. The Delay Start indicator.
C. The Child Lock indicator.
D. The Door Lock indicator:
• It is on, you cannot open the door.
• It is off, you can open the door.
• It flashes, you cannot open the
door. Wait for some minutes until
the indicator is off.
E. Washing phase indicators.
• : the washing phase
• : the rinses phase
•: the spin phase
5. PROGRAMMES

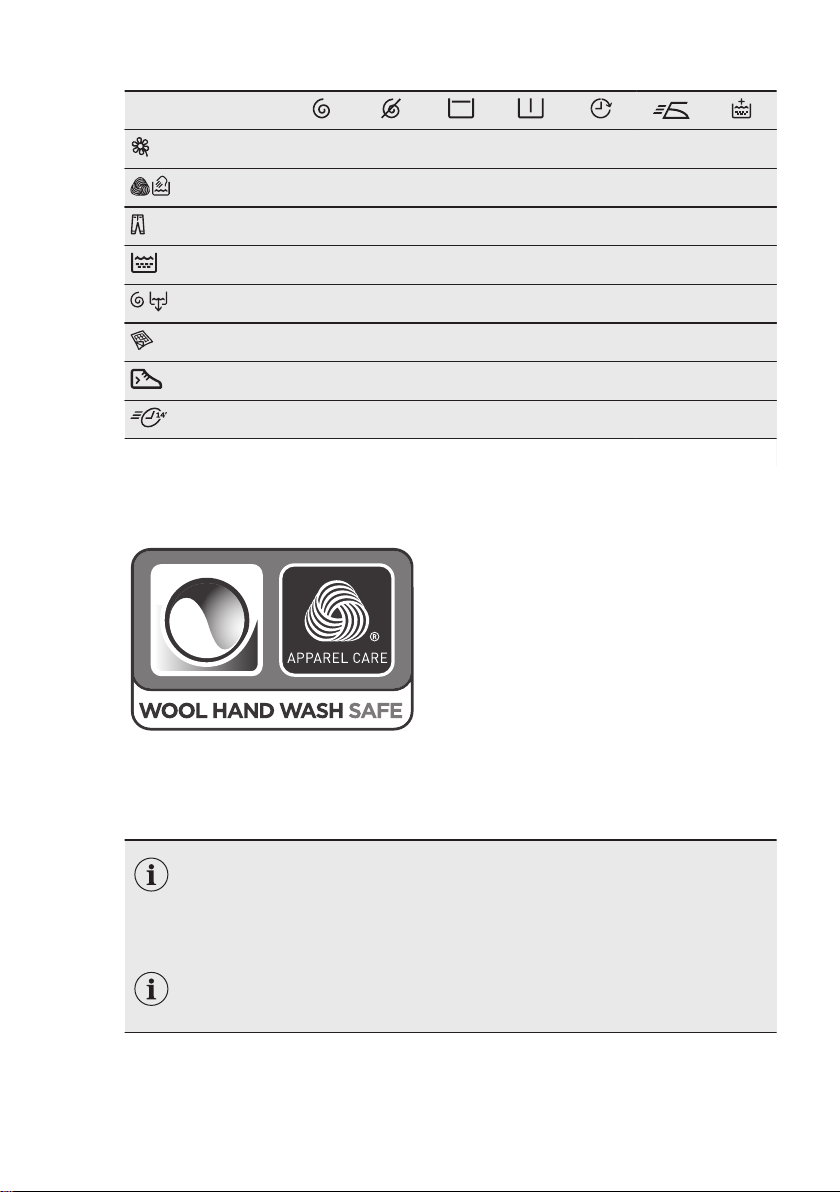

5.1 Programme Chart
Programme
Temperature range
Maximum load
Maximum spin
speed
Programme description
(Type of load and soil level)
Washing programmes
Cottons
90°C - Cold
9 kg
1200 rpm
White cotton and coloured cot‐
ton. Normal soil and light soil.
Cottons Eco
60°C - 40° C
9 kg
1200 rpm
White cotton and fast-coloured
cotton. Normal soil. The energy
consumption decreases and the
time of the washing programme is
extended1).
ENGLISH 7
Programme
Temperature range
Maximum load
Maximum spin
speed
Programme description
(Type of load and soil level)
Synthetics
60°C - Cold
4 kg
1200 rpm
Synthetic items or mixed fabric
items. Normal soil.
Delicates
40°C - Cold
4 kg
1200 rpm
Delicate fabrics such as acrylics,
viscose and mixed fabrics requir‐
ing a mild washing. Normal soil.
Wool/Handwash
40°C - Cold
1,5 kg
1200 rpm
Machine washable wool, hand
washable wool and other fabrics
with «hand washing» care symbol2).
Jeans
60°C - Cold
9 kg
1200 rpm
Items in denim and jersey. Also for
dark coloured items.
Rinse
Cold
9 kg
1200 rpm
To rinse and spin the laundry. All
fabrics, except woollens and very
delicate fabrics. Reduce the spin
speed accordingly to the type of
laundry.
Spin/Drain 9 kg
1200 rpm
To spin the laundry and to drain the
water in the drum. All fabrics, ex‐
cept woollens and delicate fab‐
rics.
Duvet
60°C - 30°C
3 kg
800 rpm
Special programme for one syn‐
thetic blanket, duvet, bedspread
and so on.
Sports
30° C
2,5 kg
800 rpm
Synthetic and delicate items. Light
soil items or items to refresh.
14 Min.
30° C
1,5 kg
800 rpm
Synthetic and mixed fabric items.
Light soil and items to freshen up.
www.electrolux.com8
Programme
Temperature range
Maximum load
Maximum spin
speed
Programme description
(Type of load and soil level)
Steam programmes3)
Steam can be used for dried, washed or worn once laundry. These programmes can
reduce creases and odours and make your laundry softer.
Do not use any detergent. If necessary, remove stains by washing or using localized
stain removal.
Steam programmes do not perform any hygienic cycle.
Do not set a Steam programme with these types of items:
• Items to be washed at a temperature lower than 40°C.
• Items where it is not specified on the care label as being suitable for tumble dry‐
ing.
• All items with plastic, metal, wooden parts or alike.
Steam Refresh
1.5 kg Steam programme for cotton and
synthetic items. This cycle re‐
moves odours from the laundry4).
Steam Synthetics
1.5 kg Steam programme for synthetic
items. This cycle helps to dewrinkle
the laundry.
Steam Cottons
1.5 kg Steam programme for cottons. This
cycle helps to dewrinkle the laundry.
1) Cottons energy saving programme. This programme at 60ºC with a load of 9 kg is the
reference programme for data entered in the energy label, in compliance with EU Commis‐
sion Directive 95/12/EC, measured according to EN 60456/2005. Set this programme to
have a good washing results and decrease the energy consumption. The washing pro‐
gramme time is extended.
2) During this cycle the drum rotates slowly to ensure a gentle wash. It can seem that the
drum doesn't rotate or doesn't rotate properly, but this is normal for this programme.
3) If you set a Steam programme with dried laundry, at the end of the cycle the laundry
could be humid. It is better to expose the items to the fresh air for about 10 minutes to let
the humidity dry. When the programme is completed, quickly remove the laundry from the
drum. After a steam cycle, items may be ironed however with less effort.
4) Steam does not remove animal odours.
Programme options compatibility
Programme
■ ■ ■ ■ ■ ■ ■
■ ■ ■ ■ ■ ■
■ ■ ■ ■ ■ ■ ■
ENGLISH 9
Programme
■ ■ ■ ■ ■ ■
■ ■ ■ ■
■ ■ ■ ■ ■ ■
■ ■ ■ ■ ■
1) ■ ■ ■
■ ■
■ ■ ■
■ ■ ■
1) If you set "No Spin '" option only the drain phase is available.
5.2 Woolmark Apparel Care -
Blue
The wool wash cycle of this machine has
been approved by The Woolmark
Company for the washing of wool
garments labelled as «hand wash»
provided that the garments are washed
according to the instructions issued by
the manufacturer of this washing
machine. Follow the garment care label
for drying and other laundry instructions.
M1230
In UK, Eire, Hong Kong and India the
Woolmark symbol is a certification
trademark.
6. CONSUMPTION VALUES
Stated values are obtained in laboratory conditions with relevant stand‐
ards. Different causes can change the data: the quantity and type of
laundry and ambient temperature. Water pressure, the supply voltage
and the temperature of inlet water may also affect the washing pro‐
gramme duration.
Technical specifications may be changed without prior notice to improve
the quality of product.
www.electrolux.com10
Inhaltsverzeichnis
Sprachen:
Andere Electrolux Waschmaschine Handbücher
Electrolux
Electrolux WH6-20LAC Bedienungsanleitung
Electrolux
Electrolux EOB63100X Bedienungsanleitung
Electrolux
Electrolux W565H Bedienungsanleitung
Electrolux
Electrolux EW6S427W Bedienungsanleitung
Electrolux
Electrolux WASL2E202 Bedienungsanleitung
Electrolux
Electrolux EWF 8586 Bedienungsanleitung
Electrolux
Electrolux EWC 1150 Bedienungsanleitung
Electrolux
Electrolux EW6F428W Bedienungsanleitung
Electrolux
Electrolux EIFLS55IIW - 27" Front-Load Steam Washer Montageanleitung
Electrolux
Electrolux EW 1170 C Bedienungsanleitung
Electrolux
Electrolux EWP 0864 TDW Bedienungsanleitung
Electrolux
Electrolux EWT 1041 Bedienungsanleitung
Electrolux
Electrolux 6 Series Bedienungsanleitung
Electrolux
Electrolux EW7F7649U2 Bedienungsanleitung
Electrolux
Electrolux EWF1042BDWA Bedienungsanleitung
Electrolux
Electrolux EWS 125210 A Bedienungsanleitung
Electrolux
Electrolux EWF 10570 W Bedienungsanleitung
Electrolux
Electrolux LB15A Bedienungsanleitung
Electrolux
Electrolux Swissline L EWF 1090 Bedienungsanleitung
Electrolux
Electrolux EW 511 F Bedienungsanleitung
