eletab GM01-1 Bedienungsanleitung
PRODUCT LINE GRAPH
CAUTION:
IMPORTANT:
Read the entire instrution manual before you start installation and assembly.
If you have any questions regarding any of the instructions or warnings, Please
Use with products heavier than the rated weights indicated may result in
instability causing possible injury.
Ensure that you have received all parts according to the component checklist prior to
installation. If any parts are received damaged or defective, please contact us at
[email protected]. We are happy to replace parts to ensure you have a fully
functioning product.
• Mounts must be attached as specified in assembly instructions. Improper installation
may result in damage or serious personal injury.
• Safety gear and proper tools must be used. This product should only be installed by
professionals.
• Make sure that the supporting surface will safely support the combined weight of the
equipment and all attached hardware and components.
• Use the mounting screws provided and DO NOT OVER TIGHTEN mounting screws.
• This product contains small items that could be a choking hazard if swallowed. Keep
these items away from children.
• This procuct is intended for indoor use only. Using this product outdoors could lead to
product failure and personal injury.

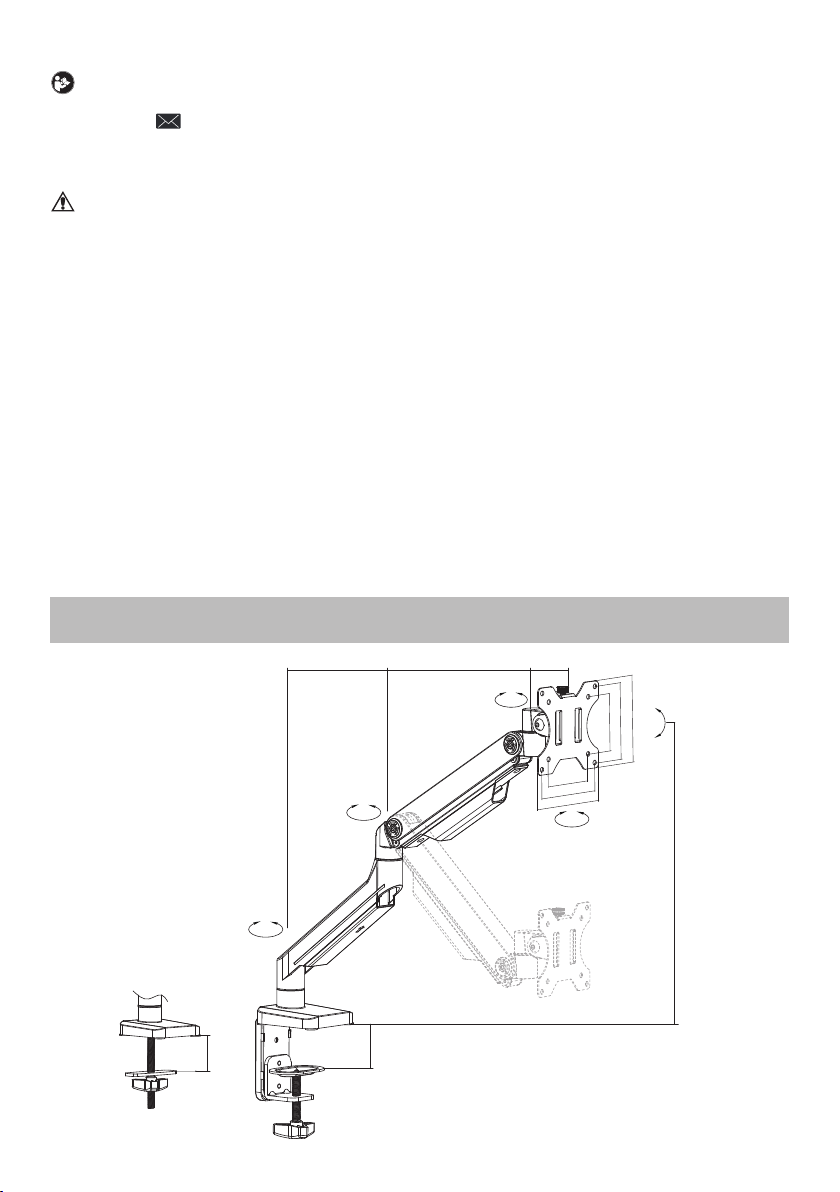

±180°
±180°
±180°
±90°
min10~max85mm
min154~max404mm
170mm 61mmmin258~max300mm
min10~max85mm
+45°
-45°
75mm
100mm
115mm
75mm
100mm
115mm
01

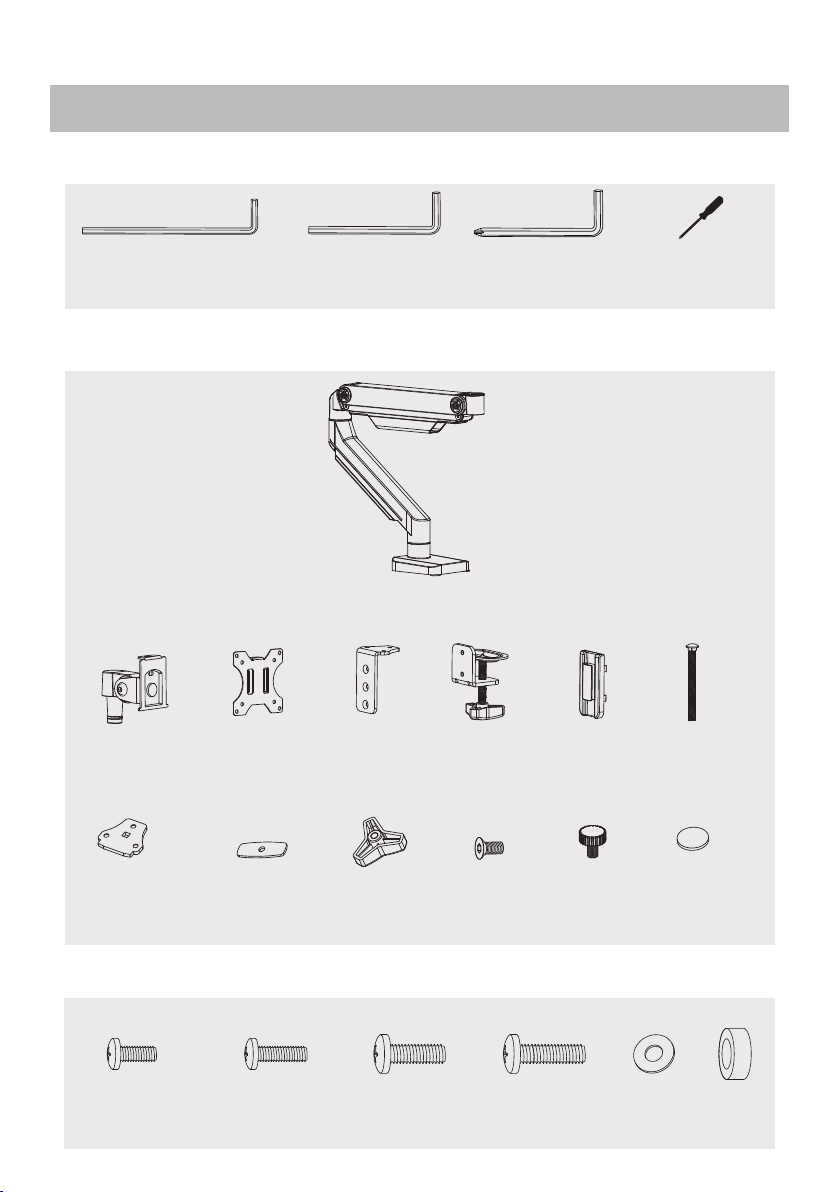

Tools required
Components
Hardware
Parts
N(x1)
4mm Allen
Wrench
O(x1)
5mm Allen
Wrench
B (x1)
Head
C (x1)
VESA Plate
I (x1)
Base Support
L(x1)
Support Plate
J (x1)
Knob
K (x5)
D (x1)
Clamp Base
Support
E (x1)
Clamp
F (x1)
Cable Clip
G(x1)
Long Screw
H(x1)
BoltBolt
P (x1)
6mm Allen
Wrench
A (x1)
Arm
(not included)
Phillips
Screwdriver
M4x12mm (x4)
M-A
M4x16mm (x4)
M-B
M6x12mm (x4)
M-C
M6x16mm (x4)
M-D
D6 (x4)
M-E
M-F (x4)
M(x8)
Pad
02
OPTION A: Clamp Installation

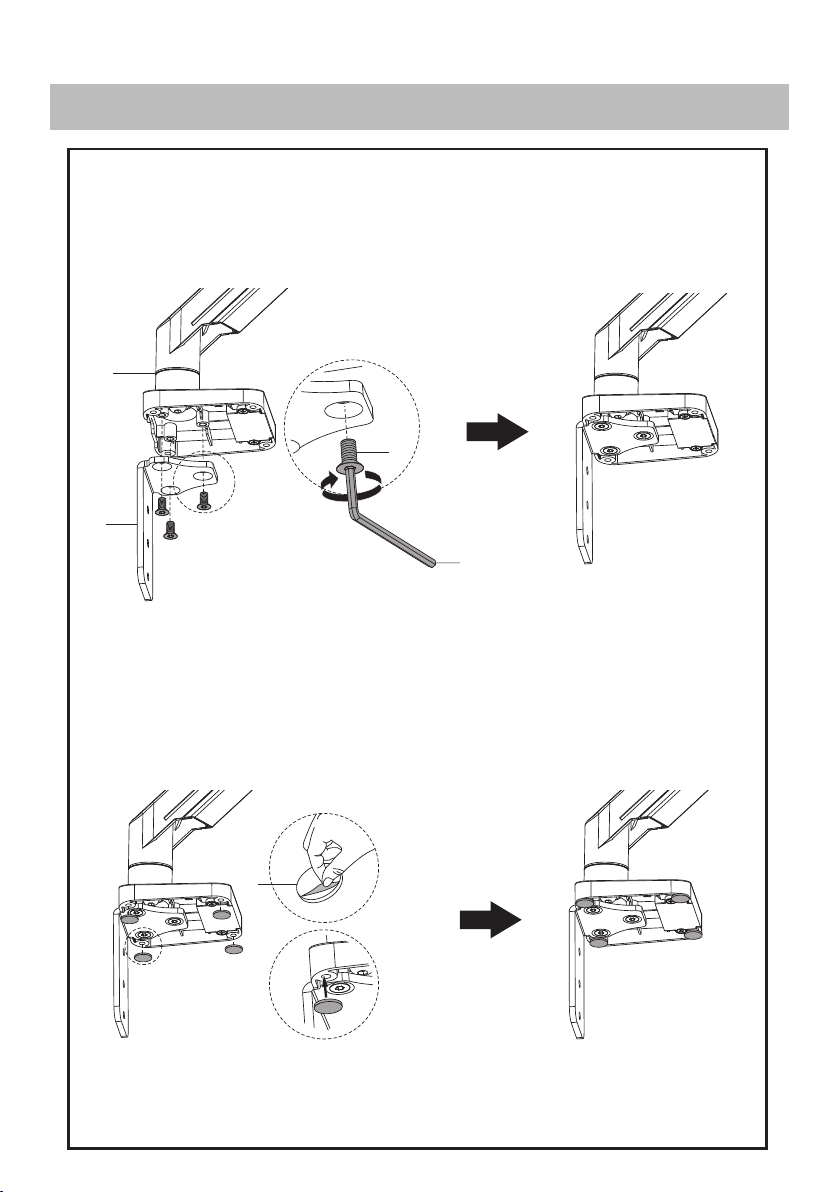

Install clamp base support (D) onto base of monitor stand (A) with bolts (K)
using provided 4mm Allen wrench (N).
STEP 1 Choose a mounting option
A
D
N
K
Apply pads (M) to bottom of base to prevent table top from being scratched.
M
03

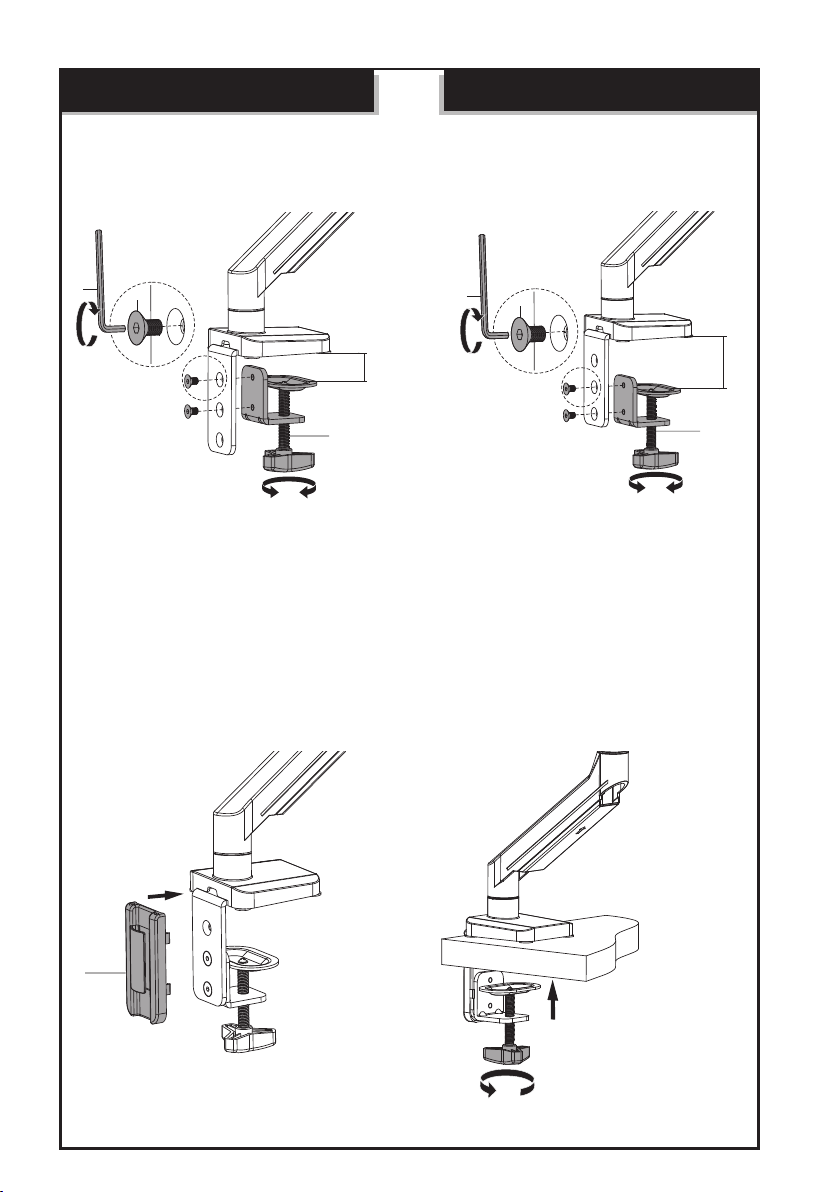

Secure clamp (E) to upper two holes with
bolts (K) using 4mm Allen wrench (N) for
desks with a thickness of 10-55mm.
Secure clamp (E) to lower two holes with
bolts (K) using 4mm Allen wrench (N) for
desks with a thickness of 50-85mm.
Adjust the Mount to the Desktop
Thickness 10-55mm
Adjust the Mount to the Desktop
Thickness 50-85mm
Attach base support cover (F) to clampbase support (D). Tighten the clamp to the
desktop using the plastic knob.
50-85mm
E
NK
10-55mm
E
NK
F
04
STEP 1 (Continued)

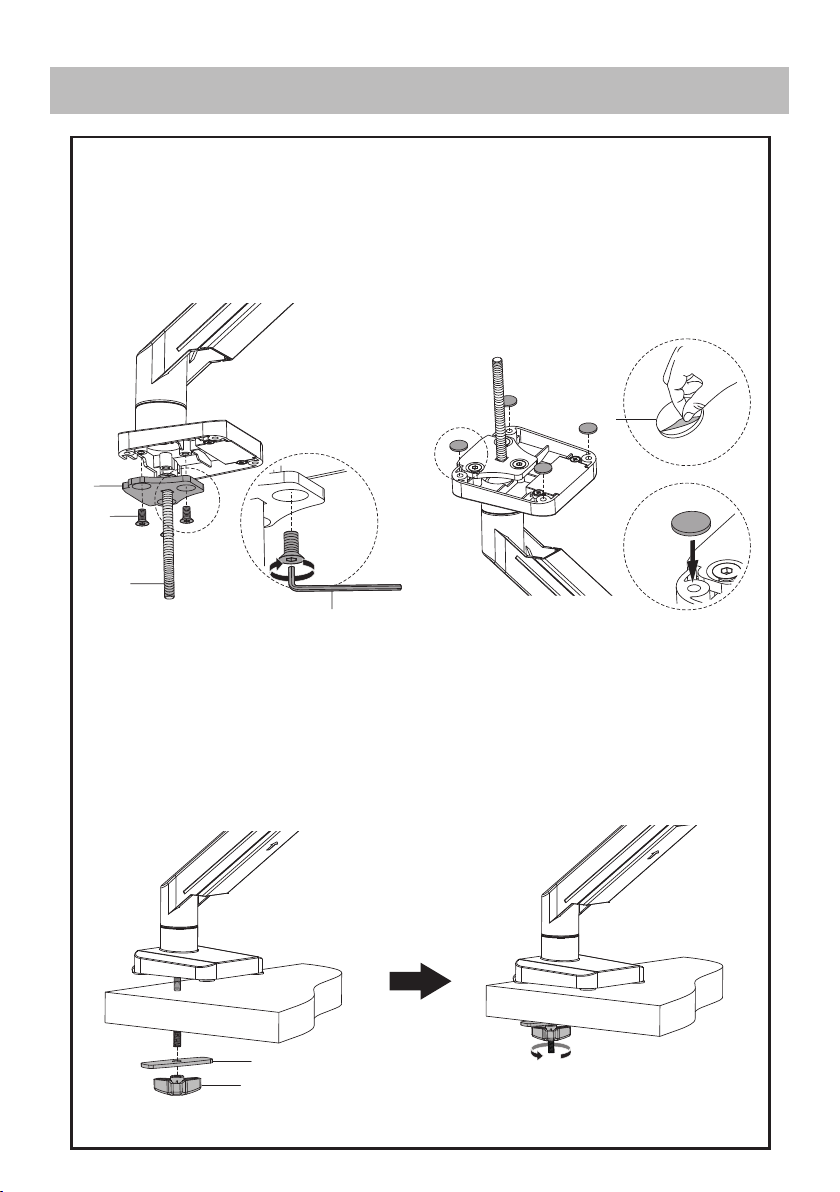

OPTION B: Grommet Base Installation
Slide long screw (G) through the top of the grommet base support (H) and install on base of
monitor stand with bolts (K) using 4mm Allen wrench (N).
Position stand on desk with long screw through hole, and secure by using the support plate (I)
and clamp knob (J) on under side of the mounting surface.
Apply pads (M) to bottom of base to prevent table top from being scratched.
M
H
K
N
G
J
I
05

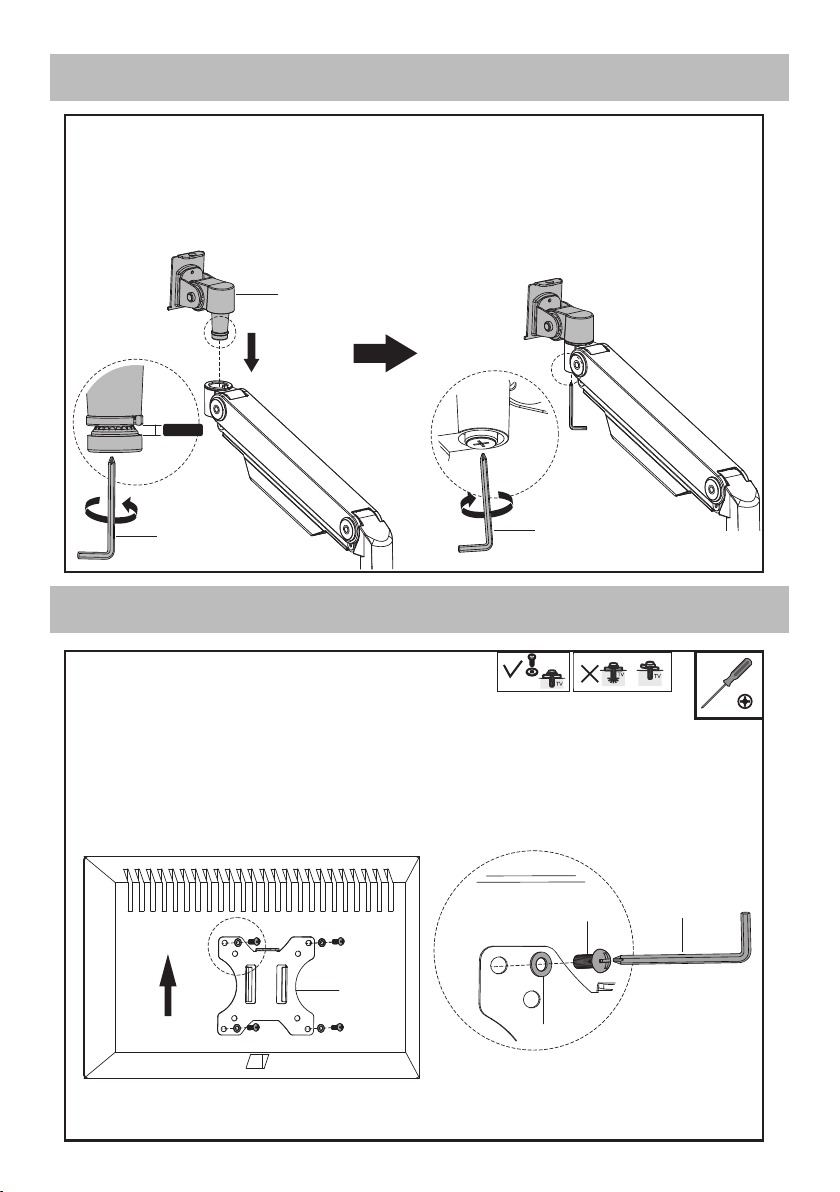

1. Loose the screw little bit to ensure the distance between two plastic spacers is more than 4mm
2. Attach the Head(B) to monitor arm
3. tight the screw to secure
STEP 2
Head attachment process
STEP 3 Attach the monitors to the arm

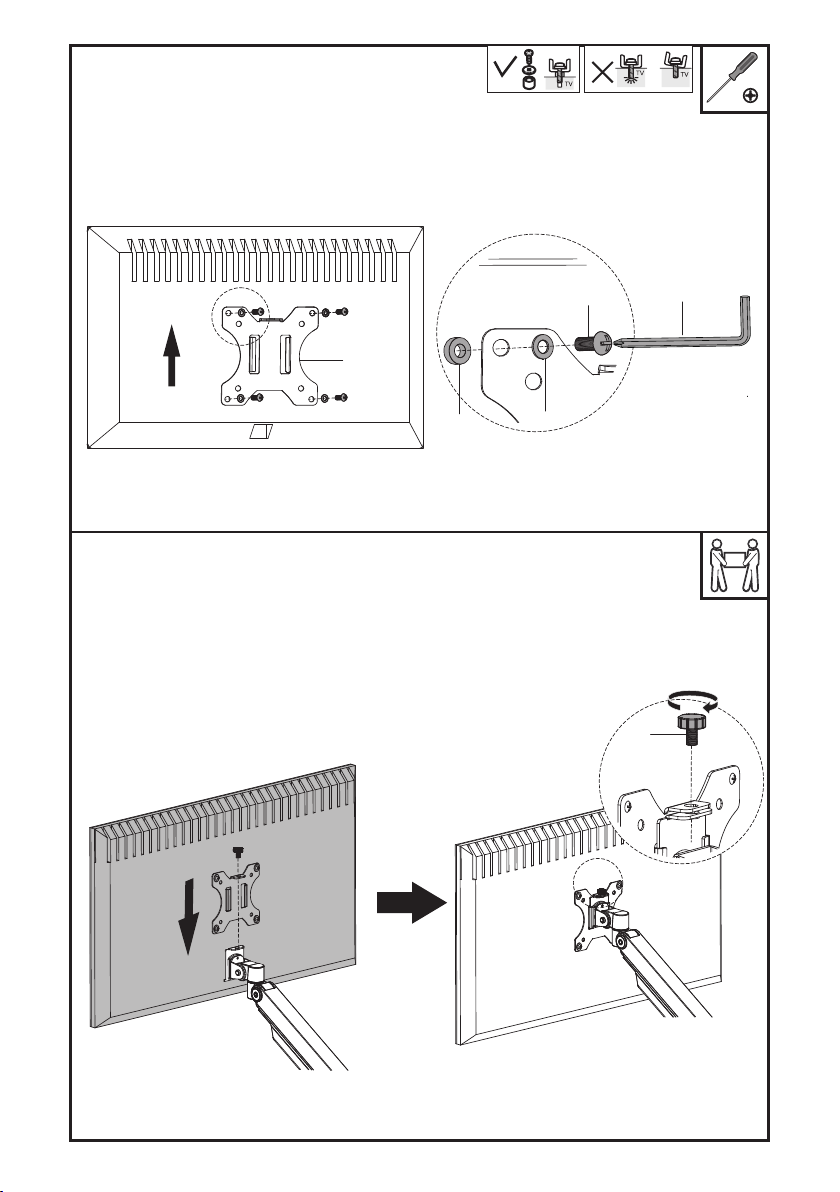

OPTION A:Flat Back Monitor
Attach the VESA plate (B) to back of monitor and
secure with screws(M-A)or(M-C) with washers(M-E).
Avoid excessive tightening screws damage the monitor.
B
M-A
M-C
M-E
P
B
≥4mm
P
P
06
OPTION B:Curved Back Monitor
Attach the VESA plate (B) to back of monitor and secure
with screws (M-B) or ((M-D) with washers (M-E)and
washers(M-F). Avoid excessive tightening screws
damage the monitor.
Attach the monitors whith VESA to the arm. Use screws ( L ) to tight them.
B
M-E
M-F
M-B
M-D P
L
07

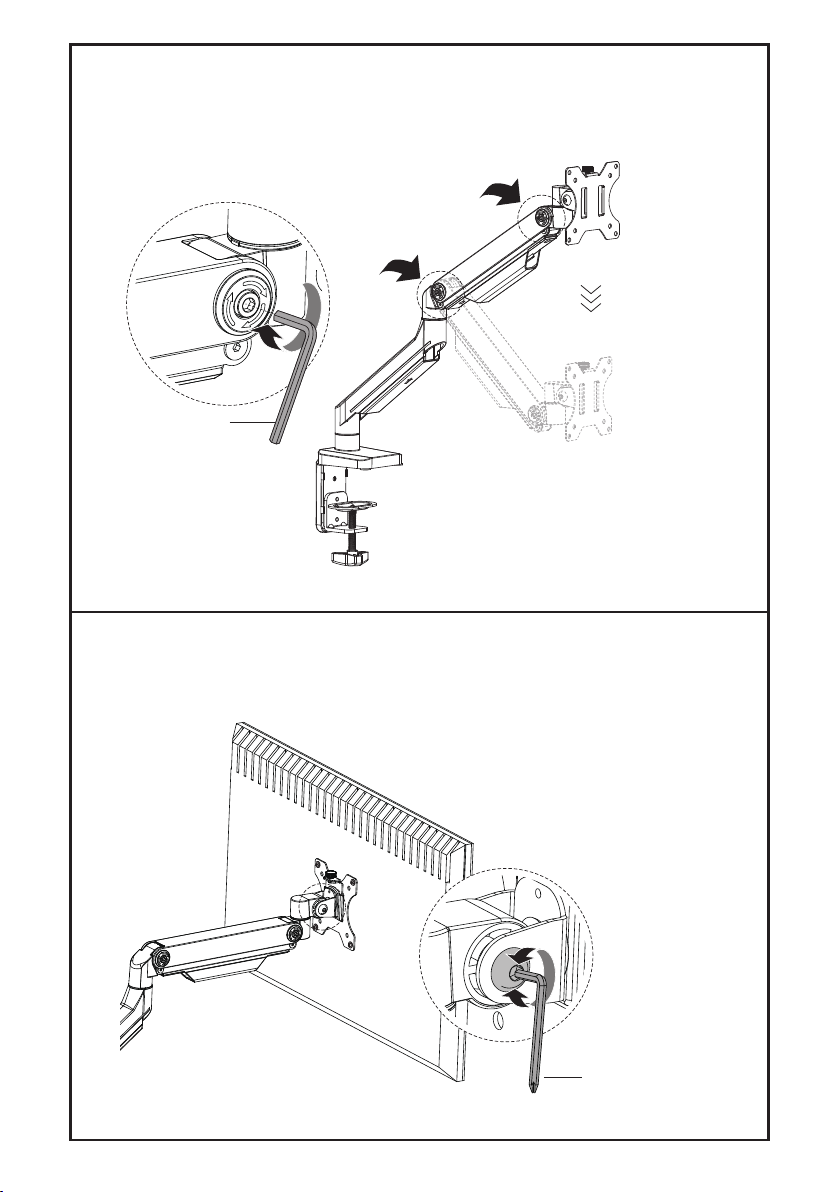

STEP 4 Adjust the tension
pop up
Note: If the clockwise rotation is too tight,
the spring will be too dull and it is difficult
to adjust the arm up and down.
We suggest not to adjust it to be too tight,
but to control your strength.
Adjust the spring tension until it supports your monitor to an optimal position.
The initial spring setting will be in a reasonable range, and generally you don't need to adjust the
spring tension.

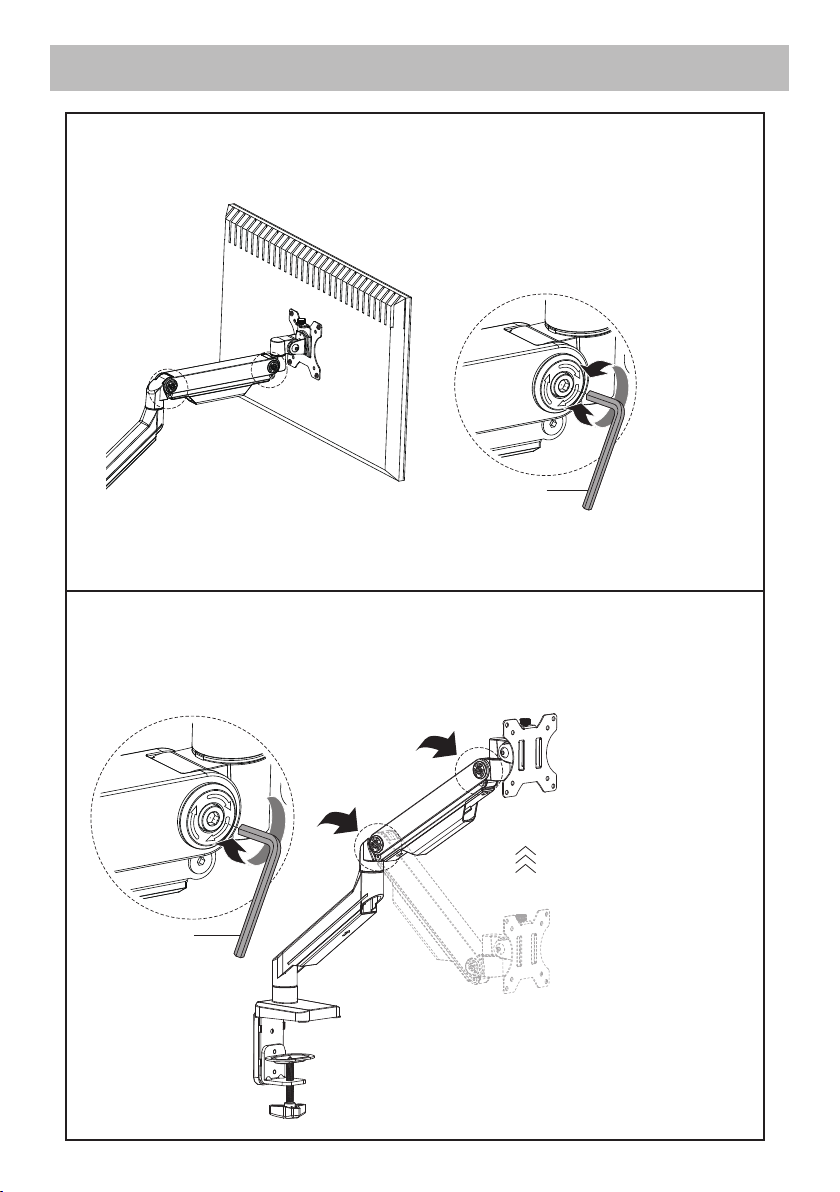

Case 1: Monitor/Arm falls down (after install your monitor)
If your monitor is too heavy and causes the monitor to sink, turn clockwise to increase spring
tension till it can hold the weight of your monitor. (Press the arm to make it keep it in horizontal
position and then use the Allen Key to adjust the screw on the arm. )
O
O
08
Case 2 : Monitor/Arm pops up (after install your monitor)
If your monitor is too light to pop up, or if you accidentally adjust the tension counterclockwise
causing the upper arm to pop up, please adjust the tension clockwise to the appropriate tension!
At this time, we suggest not to
adjust it to be too tight, other
than spring will be too dull and
it is difficult to adjust the arm up
and down.
Case 3: Monitor tilt forward
If needed, adjust the bolt on the side of the hinge behind the VESA plate to tighten the
tilt angle support.
P
fall down
O
09
