User manual

AR2 fixed frame series

(Screw adjustment type)

Rev. V210929DT

Elite Screens China Corp.

User manual AR2 (Screw adjustment type)

Rev. V210929DT Elite Screens China Corp. 2

Product maintenance and precautions

Dust, dirt, and scratches on the projection screen surface will affect the quality and performance of the

projection image. Follow the instructions below to properly maintain the screen.

Cleaning and maintenance:

1) The screen surface has a horizontal linear structure. DO NOT wipe the screen up and down or

in a circular motion. Wipe gently from left to right only.

2) Clean the dust on the screen surface with a soft brush or microfiber cloth. A rough/coarse towel

or cloth may damage the screen’s surface.

3) Gently wipe the screen with a lightly moistened white lint free cloth with water or with a neutral

detergent mixed with water.

Attention:

1) Don’t touch the screen material to avoid leaving fingerprints.

Use gloves when handling the material.

2) Don’t scratch the material, as it will leave permanent markings on the screen’s surface.

3) Don’t point to the screen material with a fingertip or other sharp objects to prevent damage to

the material.

4) Don’t use acetone, benzene, alcohol, and any other organic solvents to clean the screen material.

Using such chemicals will permanently damage the screen.

※ Note: this product is only suitable for ultra-short throw projectors

Prepare tools before installation

1. Tape measure

2. Electric drill

3. Marker x1

4.Screwdriver

5.Hammer

User manual AR2 (Screw adjustment type)

Rev. V210929DT Elite Screens China Corp. 3

Hardware and Parts List

Please check whether the following accessories exist before installation. If there are any missing

accessories, please contact us immediately.

A. Elbow joints x 8

B. Horizontal frame x 2

C. Left/Right vertical frame x 2

D. Edge trim x 4

E. Sliding nut x 4

F. Wall bracket x 4

(Installed in the frame already)

G. M3x8 screw x 20

H. M5x8 screw x 40

I. M5x50 Screw and anchor x 4

(Including 8pcs have been

installed on the sliding nuts)

J. M4x40 screw x 26

K. M3 Hex key x 2

L. Fiberglass rod x 4

M. Center support bar x 1

N. Gloves x 2

O. Screen material

P. Corner cover x 4

Q. Adjustment bar x 6

R. Protection sheet

User manual AR2 (Screw adjustment type)

Rev. V210929DT Elite Screens China Corp. 4

Sectional view

Frame assembly

First, take out all items from packaging, place the Protection sheet (R), and put it on a clean floor, and

install as follows:

1. Insert the Elbow joints (A) into the top section and bottom section at both ends of the Horizontal

frame (B), as shown in the figure.

Reminder: please place the frame in a relative position before assembling to avoid scratching

the frame caused by collision during assembly

2. Connect the two Left/Right vertical frame (C) along the corner, install another Horizontal frame

(B) in the same way, and assemble the frame as shown in the figure.

Elbow joints (A)

Top section

Bottom section

Horizontal frame (B)

Push

Elbow joints (A)

Left/Right vertical frame (C)

User manual AR2 (Screw adjustment type)

Rev. V210929DT Elite Screens China Corp. 5

3. Make sure all four corners are properly in place to form a perfect square, then fasten the four

angles with the M5x8 flat head screws (H).

Four corners join correctly to form

a perfect rectangle.

M5x8 flat head screws (H)

User manual AR2 (Screw adjustment type)

Rev. V210929DT Elite Screens China Corp. 6

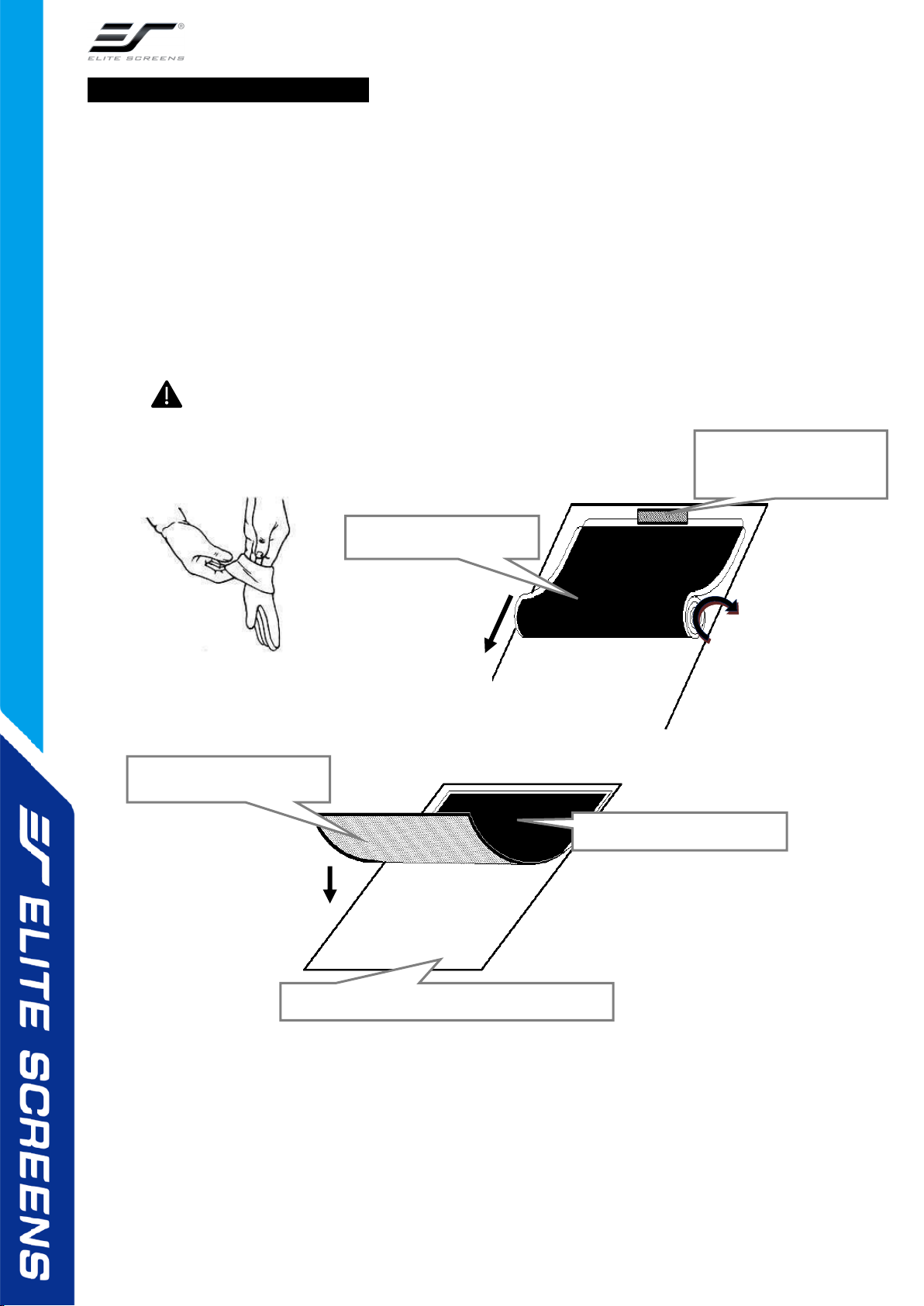

Screen Material Installation

1. First put on the installation Gloves (N) (To avoid fingerprints on the screen that cannot be erased)

(Figure 1), move the completed frame from the Protection sheet (R) to a safe place, and wait for

installation later.

2. Take the Screen material (O) out of the packaging tube and set it gently on the Protection sheet

(R). Gently press one end of the screen (screen edge) with a suitable weighted object or hand

pressure (Cannot press and crush the screen material), face down, and two people hold the other

end (rolled up end) clockwise slowly rotate the screen (Figure 2).

3. Lay the material completely flat with the front facing down on a clean surface in a horizontal position

(Figure 3).

There are thumbtacks fixed on the paper tube at the end of screen expansion, please pay

attention to the thumbtacks to avoid stabbing when removing!

Backside of the screen

Frontside of the screen

Clean, flat and does not harm the screen

Heavy weighted object

or hand pressure

Backside of the screen

(Figure 1)

(Figure2)

(Figure3)

Note: Screen back facing up

(Face down)

User manual AR2 (Screw adjustment type)

Rev. V210929DT Elite Screens China Corp. 7

4. Insert the Fiberglass rods (L) through the openings. The shorter rods (1, 2) are used on the vertical

edges of the screen material, and the longer rods (3, 4) are used on the horizontal edges, as

shown below.

5. Insert two long Adjustment bars (Q) (1, 2) on the fiberglass rod of the short side of the screen

material and two short Adjustment bars (Q) (3, 4, 5, 6) on the fiberglass rod of the long side of

the screen.

Installation direction of Adjustment bars (Q):

Fiberglass rod (L)

Long side of the frame

Short side of

the frame

※ Please noticed that four Angle

adjusting rods have bevel angles

※ The upper and lower middle adjusting

rods are right-angled edges

Short side of

the frame

Long side of the frame

User manual AR2 (Screw adjustment type)

Rev. V210929DT Elite Screens China Corp. 8

Adjustment bar installation

※The adjustment bar is installed into the groove along the fiberglass rod

Center support bar installation

Push the Center support bar (M) in the middle of the frame and align each end of the support bar

with the top and bottom frames.

6. Carefully and gently place the assembled frame on top of the screen material. In order to avoid

puncturing the material, do not allow the angled edge of the frame to come in direct contact with

the screen.

7. Ensure that the sliders in the left and right short frames (two sliders on each side) are fixed 1/4

away from both ends.

Screen material (O)

Adjustment bar (Q)

※ Align the frame with the line

Note: The screen back facing up

※ Make sure the sliders in the grooves are

positioned 1/4 at both frames

Horizontal frame (B)

Center support bar (M)

push

Center support bar

（M）

User manual AR2 (Screw adjustment type)

Rev. V210929DT Elite Screens China Corp. 9

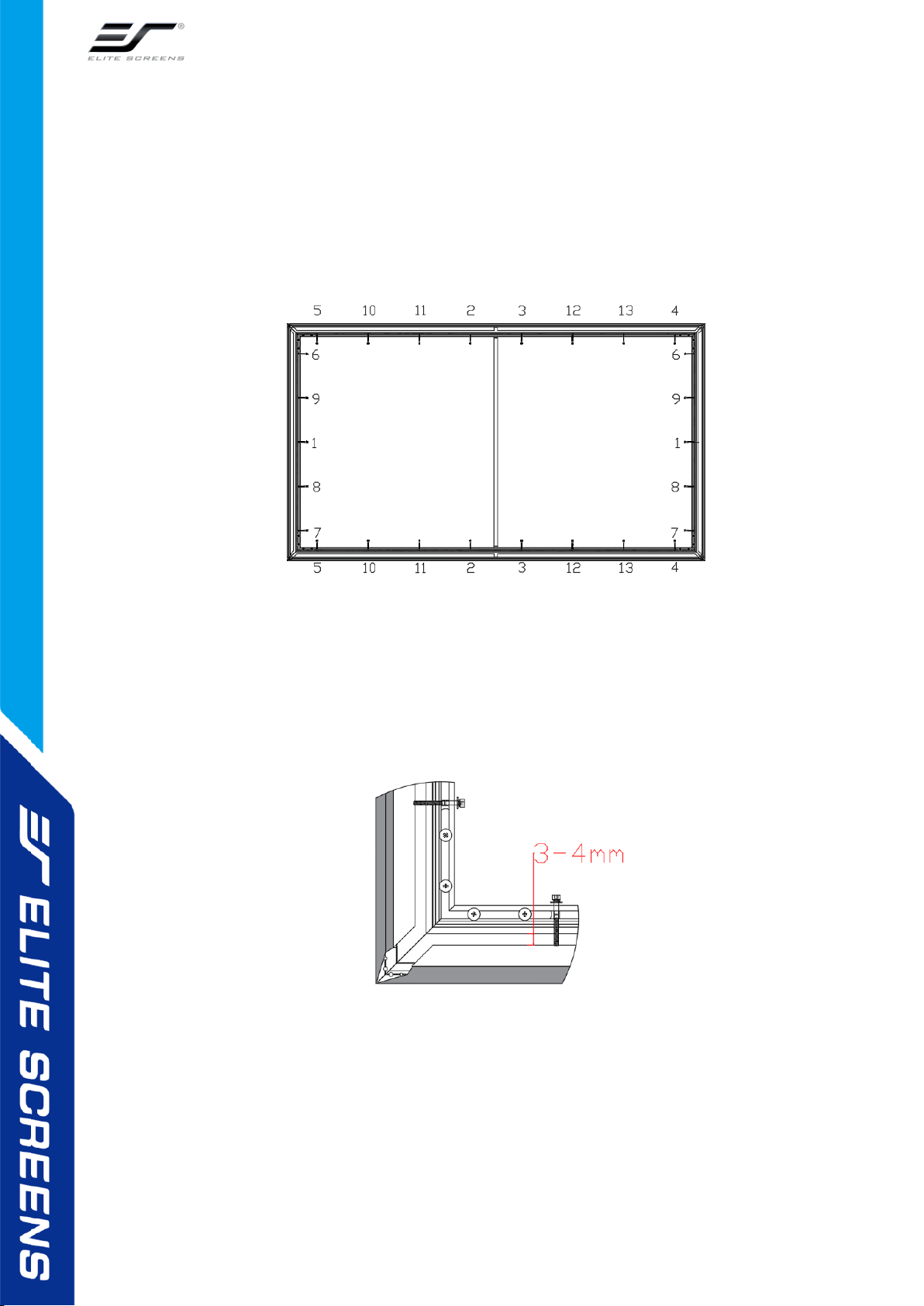

8. Insert the M4x40 screw (J) through the hole on the side of the frame, as shown below picture,

and screw the M4x40 screw (J) and adjustment bar (Q) together with the M3 Hex key (K), as

follows:

1) After the four corners are aligned with the drawing lines on the corners, two people should insert

the M4x40 screw (J) through the frame hole and screw it on the adjustment bar (Q) for two turns

according to the sequence of 1-1 → 2-2 → 3-3 → 4-4 → 5-5 → 6-6 → 7-7 → 8-8 → 9-9 → 10-

10 → 11-11 → 12-12 → 13-13 as shown in the picture below:

2) Fastened the M4x40 screw (J) on the adjustment bar (Q) for 2 turns, and then symmetrically

tighten the screw (J) with M3 Hex key (K) in the order of 1-1 → 2-2 → 3-3 → 4-4 → 5-5 → 6-6

→ 7-7 → 8-8 → 9-9 → 10-10 → 11-11 → 12-12 → 13-13. (The distance between the adjustment

bar and the edge of the frame is 3-4mm. It’s fastened status.)

User manual AR2 (Screw adjustment type)

Rev. V210929DT Elite Screens China Corp. 10

Assemble adjustment bar and screws

3) After installing screws 1-13, two people lift the frame to check the screen surface. Where there

are waves on the screen surface, it can be restored to flat surface by adjusting the tightness of the

screws.

※Two persons screw the

screws on the adjustment

bar 2 turns in sequence

Screen material (O)

M3 Hex Key (K)

Adjustment bar (Q)

Fiberglass rod (L)

※Tighten screws with hex

key

※Turn the adjustment bar

and place it on the back of

the frame

M3 Hex Key (K)

※Diagram of each position of

screw installation

Check the screen

surface is flat of not
