Elite Screens AEON series Bedienungsanleitung

Aeon Series

Fixed Frame Projection Screen

User’s Guide (Z-Type)

Rev. 072219-BR 1 www.elitescreens.com

Thank you for choosing the Aeon Series projection screen! Please read through this user guide before

utilizing the screen. Correct usage and maintenance will ensure a long product life.

Care & Use Instructions

Dust, dirt and scratches on the projection surface will affect the picture quality, please take note of the

points below to prevent that from occurring:

1. Do not touch the projection surface with your hands

2. Do not write or draw on the projection surface

3. Do not use fingers or sharp objects to point on the projection surface; this will damage the screen

material.

4. Use a soft-damp cloth to clean the projection surface; do not use chemical cleaning agents or alcohol.

5. Use clean water when dampening the cleaning cloth and do not rub against the material to clean it.

Hardware Parts List

Please make sure all parts listed below are included before proceeding with the installation.

A. Center Joints

B. Spring

C. Elbow Joints

D. Long Screw, Short Screw &

Washer

E. Pull Hook

F. Wall Bracket

G. Wall Anchors, Screw &

Washer

H. Tension Rods

I. Center Support Bar and

Small screws

J. Rubber End Cap

K. Screwdriver and Rubber

hammer

L. Pair of Gloves

Note: The parts listed above are subject to change without notice.

Aeon Series

Fixed Frame Projection Screen

User’s Guide (Z-Type)

Rev. 072219-BR 2 www.elitescreens.com

Frame and Edge Trim Parts

Qty Item

Main Frame Parts

Qty Item

Edge Trim Parts

2 pcs

Vertical Frame (A)

2 pcs

Vertical Velvet Trim

2 pcs

½ Horizontal Frame (B)

4 pcs

½ Horizontal Velvet Trim

2 pcs

½ Horizontal Frame (C)

Item

Part List

120” Screen

Center Joints

Spring

Elbow Joints

M5x16mm Long Screw, M5x10mm Short Screw & Washer

12/32/32

Pull Hook

Wall Brackets

5x70mm Wall anchors, M5x70mm Screw & Washer

4/4/4

Tension Rods

Center Support Bar & M4x10 Small Screws

1/4

Rubber End Cap

Screwdriver & Rubber Hammer

1/1

Pair of Gloves

Frame Assembly

Step 1. Place a soft-clean cloth on the ground or other flat surface of the area where the screen will be

assembled.

Step 2. Position the pieces of the frame face-down on the soft-clean cloth in the arrangement shown below.

Aeon Series

Fixed Frame Projection Screen

User’s Guide (Z-Type)

Rev. 072219-BR 3 www.elitescreens.com

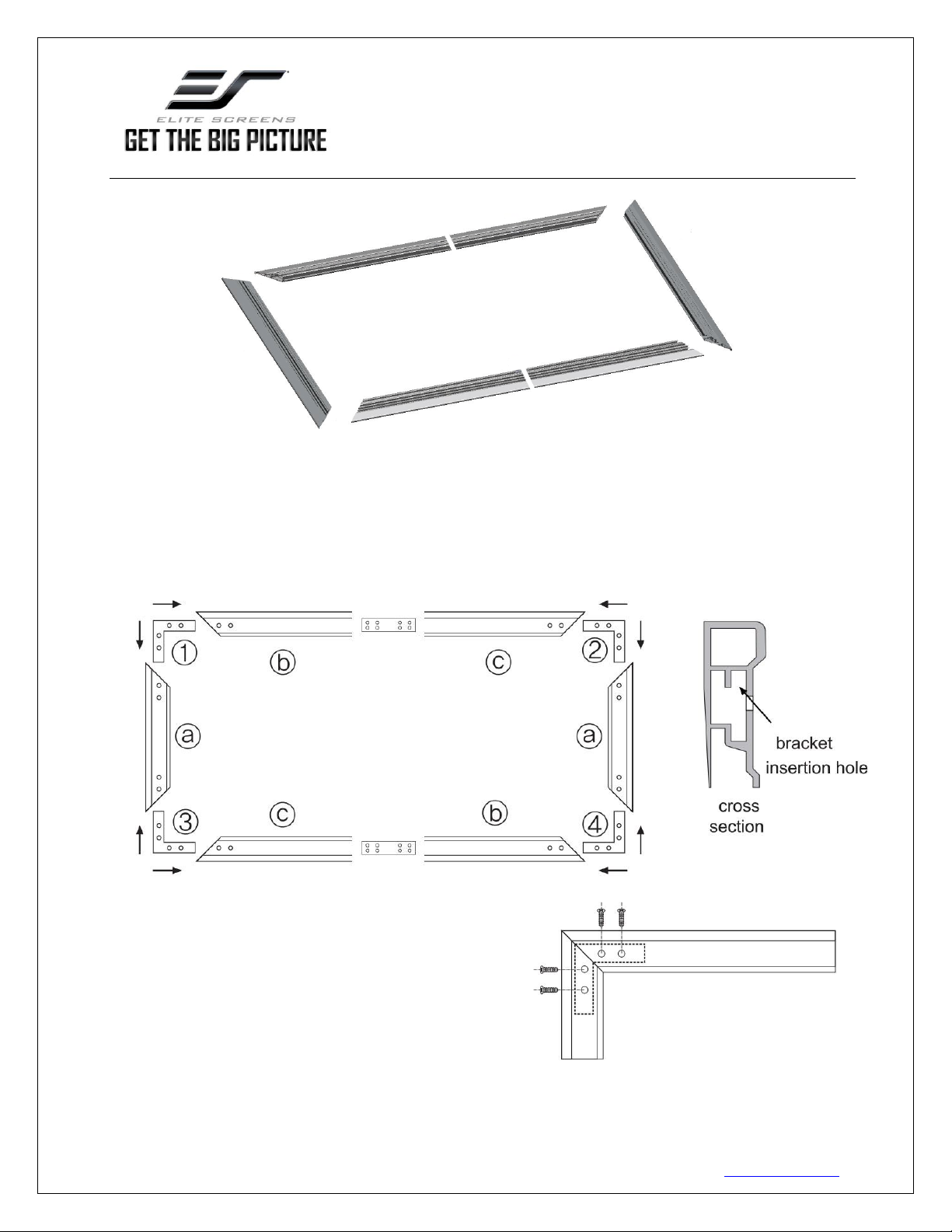

Step 3. Insert the Center Joint (A) connectors into one-half of the horizontal frame and secure with 4

(M5x10mm) screws. Once secure, connect the other half of the horizontal frame and fasten with 4 more

screws.

Step 4. Connect the Elbow Joints (C) to top and bottom sections of the vertical frame. Once inserted,

connect the vertical sections to the horizontal frame sections.

Make sure all the holes are in alignment and the frame

pieces are flush (no gaps). They should form perfect right

angles. NOTE: Do not tighten elbow joints completely

until all frame pieces are assembled correctly.

Aeon Series

Fixed Frame Projection Screen

User’s Guide (Z-Type)

Rev. 072219-BR 4 www.elitescreens.com

Center Support Bar Installation

Step 1. Two people are suggested for this step. Place the Center Support Bar (I) into the top groove of the

back of the frame.

Step 2. Next, slowly push and slide the opposite side of the center support bar towards the center as shown

below.

Step 3. Using the (M4x10) screws, screw both ends of the center support bar and make sure it is secure.

Screen Material Installation

Step 1. Lay the screen material completely flat with the front facing down on a clean surface in a horizontal

position. The back side of the screen material should be placed upwards.

Step 2. Carefully and gently place the assembled frame on top the screen material as shown below. Make

sure to not allow the angle edge of the frame to come in direct contact with the screen material to avoid

puncturing it.

Step 3. Insert the four horizontal and two vertical Tension Rods (H) into the corresponding sides of the

screen material, while keeping the material laying flat. Careful not to snag on the holes at the edge of the

material during this process; forcing the rods may damage the screen material.

Step 4. After the Tension rods (H) have been inserted, make sure to have all corners aligned to the frame

and fold over the material on each corner. NOTE: Make sure to stretch the material tightly over the frame to

maintain a flat surface.

Aeon Series

Fixed Frame Projection Screen

User’s Guide (Z-Type)

Rev. 072219-BR 5 www.elitescreens.com

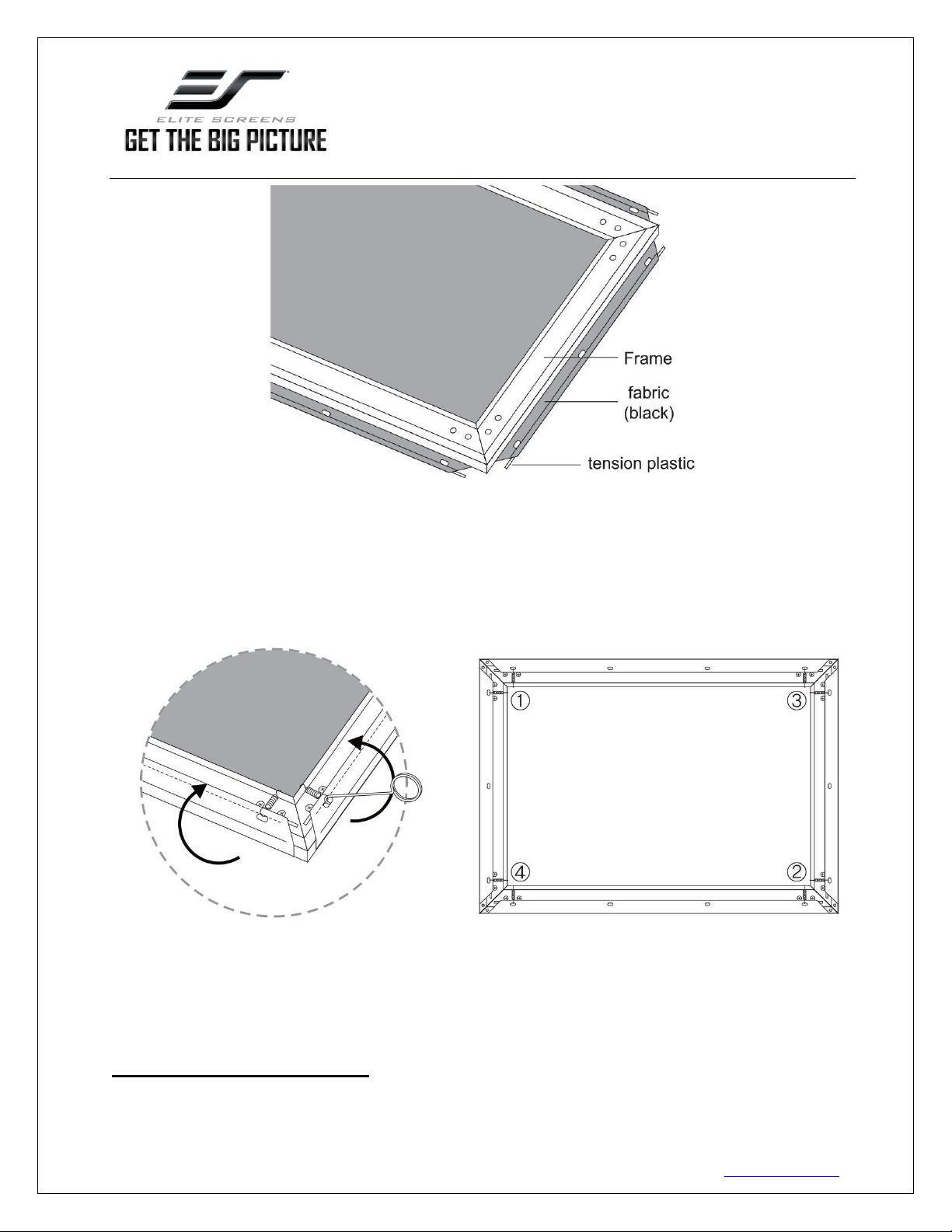

Step 5. Starting from all four corners, hook the Springs (B) through the hole located on the screen

material’s outer edge. First, hook the small spring head to the frame. Then using the Pull hook (E), hook

the other side of the spring to the material.

Step 6. After hooking the corner springs, work your way around the frame to hook the rest of the springs to

the material.

Step 7. Once the material is completely attached, place the black rubber end caps (J) at each of the tension

rod (H) ends.

Velvet Trim Installation

Step 1. Place the velvet frame pieces over each side of the frame and secure it using the M5x16 screws (D).

NOTE: Do not completely tighten the screws until you make sure each corner forms a right angle.

Aeon Series

Fixed Frame Projection Screen

User’s Guide (Z-Type)

Rev. 072219-BR 6 www.elitescreens.com

Step 2. Make sure to secure the corner and center M5x16 screws (D) of the velvet frame.

Wall Mount Installation

Step 1. Locate your desired installation location and mark the drill-hole area of where the screen is to be

installed.

Step 2. Using the marked area, drill holes on the wall where the brackets (F) will be placed.

Step 3. Place the wall anchor (G) through the hole for each bracket on the frame.

Step 4. Line up the wall brackets with the drilled holes on the installation location and screw them in using

the M5x70 screw (G). Make sure the brackets are leveled.

Step 5. Next, using two people, carefully position the screen onto the wall. Your installation is now

complete.

Aeon Series

Fixed Frame Projection Screen

User’s Guide (Z-Type)

Rev. 072219-BR 7 www.elitescreens.com

NOTE: Due to the square design of the frame, we DO NOT recommend using an optional LED lighting kit

with this product. LED lighting kit will not be compatible.

For more information, technical support or your local Elite Screens

contact, please visit www.elitescreens.com
