Elo TouchSystems E-Series Bedienungsanleitung
E-Series Touchcomputer User Guide
Elo TouchSystems E-Series LCD Multi-function Touchcomputer
TE Connectivity Touch Solutions
Elo TouchSystems
E-Series Touchcomputer User Guide
Multi-function Touchcomputer
Revision B
SW601671
TE Connectivity Touch Solutions
1-800-ELOTOUCH (1-800-356-8682)
www.elotouch.com
E-SERIES TOUCHCOMPUTER ERROR!UNKNOWN DOCUMENT PROPERTY NAME.
iii
Copyright © 2011 Tyco Electronics Corporation, a TE Connectivity Ltd. Company. All
Rights Reserved.
No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval
system, or translated into any language or computer language, in any form or by any means,
including, but not limited to, electronic, magnetic, optical, chemical, manual, or otherwise without
prior written permission of Tyco Electronics Corporation.
Disclaimer
The information in this document is subject to change without notice. Tyco Electronics
Corporation and its Affiliates in the TE Touch Solutions business unit in the TE Connectivity Ltd.
family of companies (collectively "TE") makes no representations or warranties with respect to
the contents hereof, and specifically disclaims any implied warranties of merchantability or
fitness for a particular purpose. TE reserves the right to revise this publication and to make
changes from time to time in the content hereof without obligation of TE to notify any person of
such revisions or changes.
Trademark Acknowledgments
Elo (logo), Elo TouchSystems, iTouch, TE Connectivity, TE connectivity (logo) and TE
(logo) are trademarks of the TE Connectivity Ltd. family of companies. Other product
names mentioned herein may be trademarks or registered trademarks of their
respective owners.
E-SERIES TOUCHCOMPUTER ERROR!UNKNOWN DOCUMENT PROPERTY NAME.iv
Table of Contents
Chapter 1: Setup......................................................................................1
Unpacking Your Touchcomputer.....................................................................................1
Adjusting the Display.......................................................................................................2
Calibrating the Touchscreen in Microsoft Windows Operating Systems ......................... 3
Additional Mounting Option for Your System...................................................................4
Chapter 2: Operation...............................................................................5
Elo TouchSystems – E-Series Hardware Monitoring Utility.............................................5
LED Functionality............................................................................................................ 6
Accessing the Input/Output Panel................................................................................... 7
Chapter 3: Safety and Maintenance.......................................................8
Safety..............................................................................................................................8
Care and Handling ..........................................................................................................9
Chapter 4: Technical Support...............................................................11
Technical Assistance..................................................................................................... 11
Regulatory Information............................................................................12
Warranty ...................................................................................................15
E-Series Touchcomputer User Guide 1
C H A P T E R
1
SETUP
This chapter discusses how to set up and test your touchcomputer.
Unpacking Your Touchcomputer
Check that the following items are present and in good condition:
Touchcomputer Power cable US/Canada
Wall Mounting
Brackets and Screws
(8 x M4, 1 x M3)
Power cable Europe
Driver CD and
Quick Install Guide Power Adapter
E-Series Touchcomputer User Guide 2
Adjusting the Display
The display screen can be adjusted from -17 to +75 degrees, as shown below.
CAUTION: To prevent tipping or dropping, be sure to hold the base when
adjusting the display.
17°
75°
-17°+75°
E-Series Touchcomputer User Guide 3
Calibrating the Touchscreen in Microsoft Windows Operating
Systems
The touchscreen is pre-calibrated for accurate touch response.

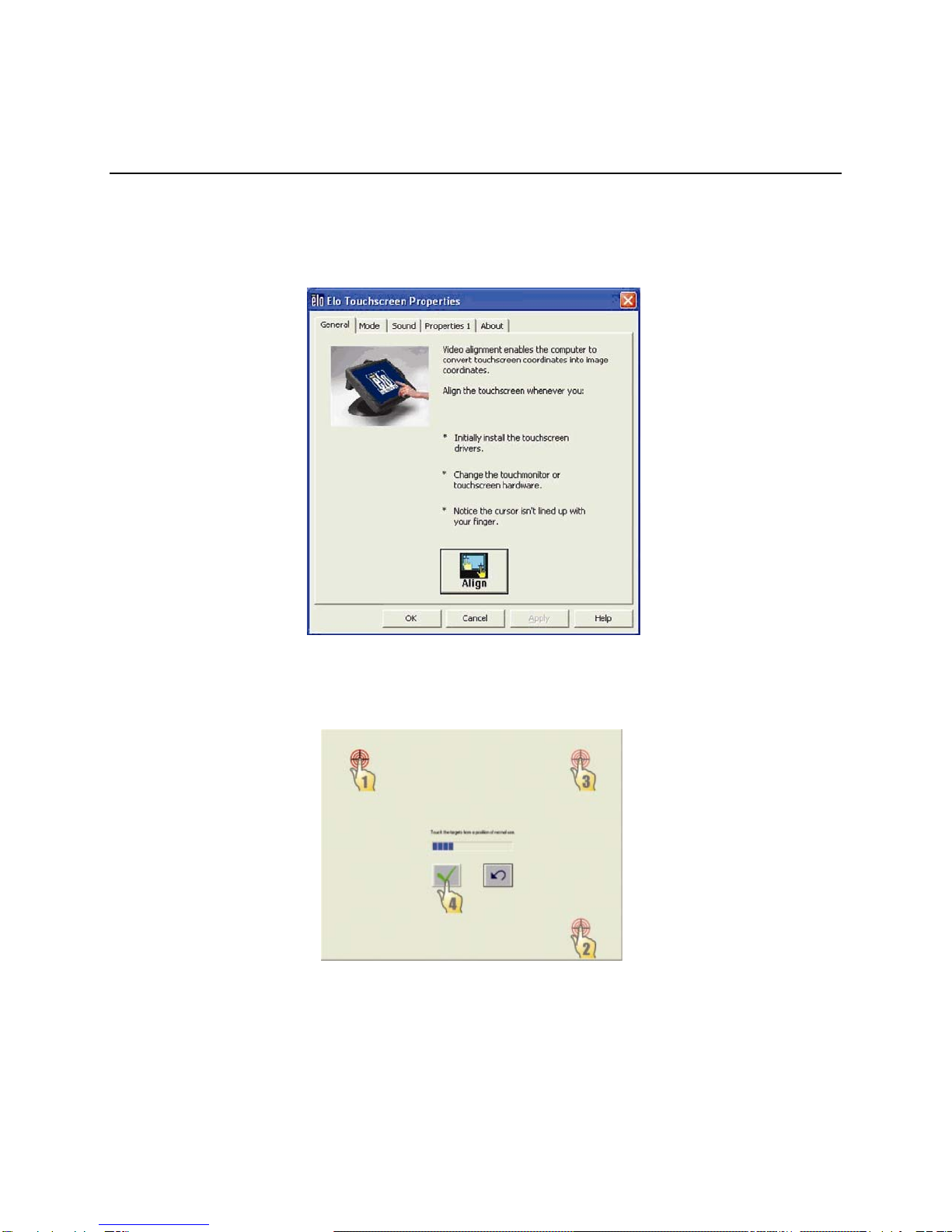

If for any reason the touchscreen needs to be recalibrated, right-click the Elo icon
in the Taskbar and then click “Properties.” The following window opens.
Click the Align button. This launches the calibration program. The window shown
below opens. Follow the instructions to calibrate the touchscreen.
E-Series Touchcomputer User Guide 4

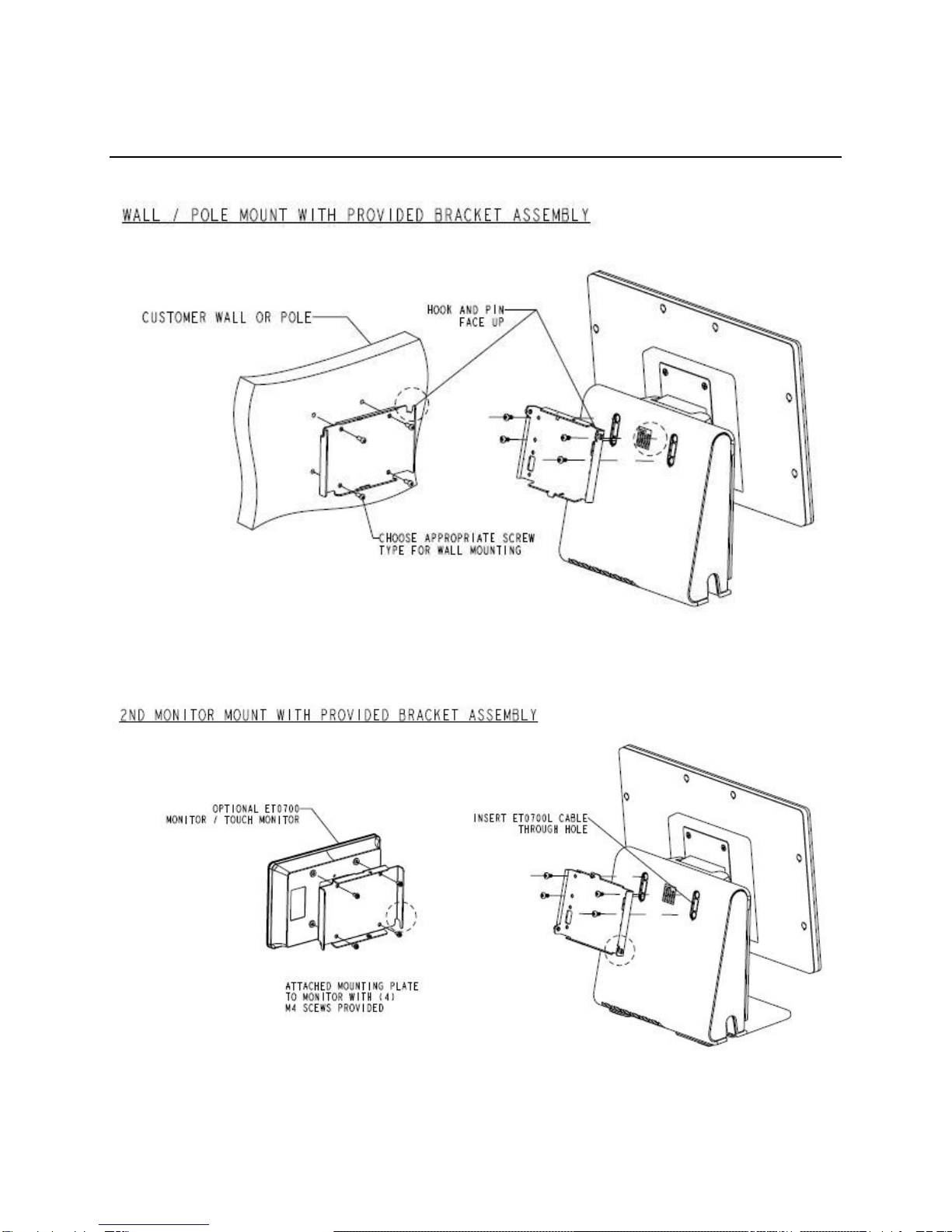

Additional Mounting Option for Your System
1) Mounting on the wall or pole
2) Second monitor mount onto your system (any monitor under 2.5 Kg with 75mm
VESA mount)
E-Series Touchcomputer User Guide 5
C H A P T E R
2
OPERATION
This chapter describes how to interact with the Elo TouchSystems diagnostic tool,
power LED, and input/output panel.
Elo TouchSystems – E-Series Hardware Monitoring Utility
How to Install
The utility is included in the driver CD. Please go to “E-Series Hardware Monitor”
folder located on the driver CD to install the utility.
E-Series Hardware Monitor Menu
E-Series Touchcomputer User Guide 6
The Hardware Monitor tool provides the following features.
Feature Description
System Display the BIOS version, operating system version, memory
information, and drive information.
Display Adjust brightness.
•Brightness: Adjust the backlight of the monitor.
Hardware
Monitor Monitor the CPU temperature, system temperature, and system
output voltages.
Setting Set alarms when the CPU temperature, system temperature, and
output voltages that meet the setting criterion.
Alarm Display the record of all alarms.
About General information for the E-Series diagnostic tool.
LED Functionality
The E-Series base has a LED indicating the state of the touchcomputer. The
table below shows LED state and corresponding color.
LED Color to Observer State
Off No input power — Off mode
Red Input power present – Off or Hibernation mode
Orange Input power present — Standby mode S3
Blinking Green Input power present — Standby mode S1
Green Input power present — Power on
