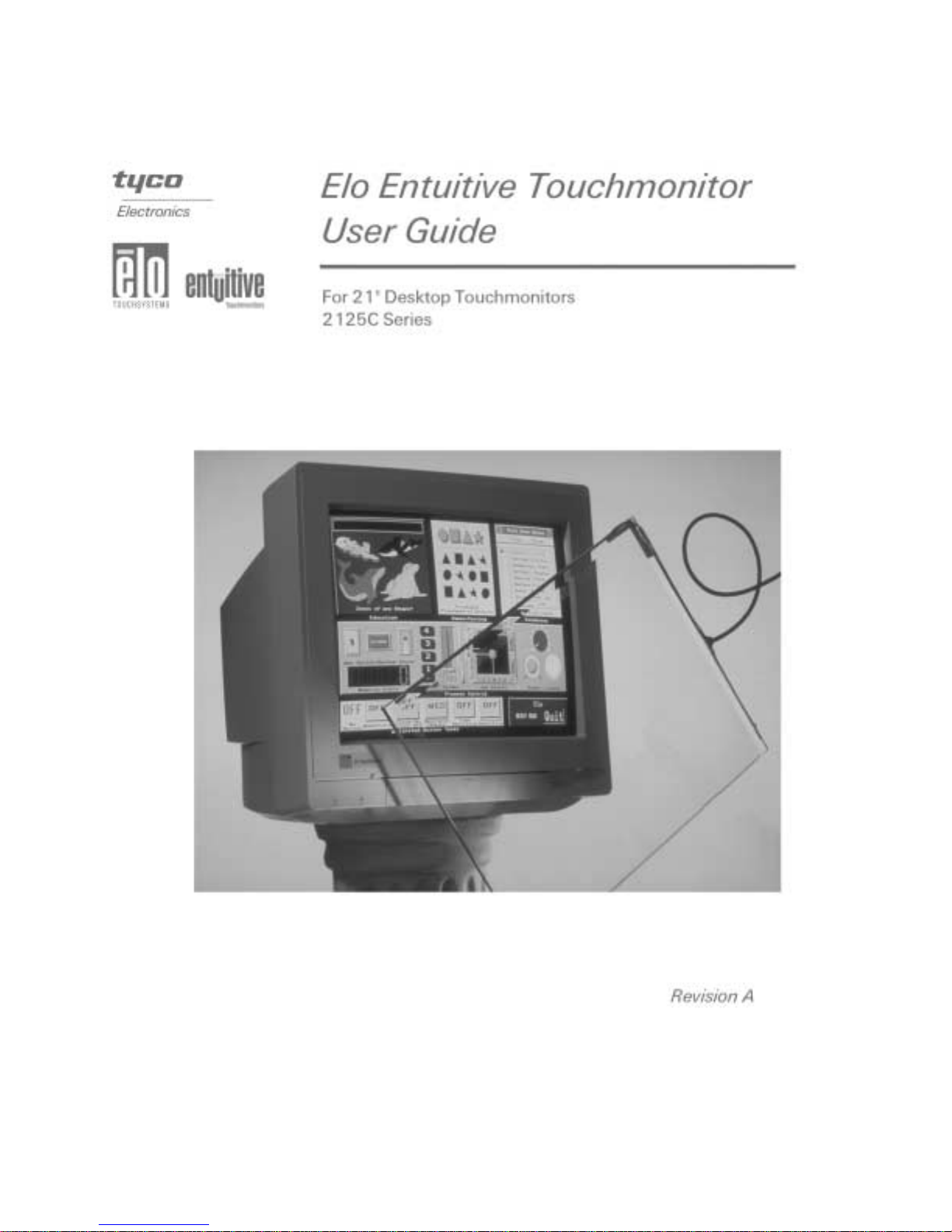

Elo TouchSystems Entuitive 2125C Series Bedienungsanleitung

User Guide

Elo Entuitive 2125C Desktop Touchmonitor

Revision A

P/N 008544

ET2125C Series Models

Elo TouchSystems, Inc.

1-800-ELO-TOUCH

www.elotouch.com

iii

No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system,

or translated into any language or computer language, in any form or by any means, including, but not

limited to, electronic, magnetic, optical, chemical, manual, or otherwise without prior written permis-

sion of Elo TouchSystems.

Disclaimer

The information in this document is subject to change without notice. Elo TouchSystems makes no

representations or warranties with respect to the contents hereof, and specifically disclaims any

implied warranties of merchantability or fitness for a particular purpose. Elo TouchSystems reserves

the right to revise this publication and to make changes from time to time in the content hereof with-

out obligation of Elo TouchSystems to notify any person of such revisions or changes.

Trademark Acknowledgments

IntelliTouch, SecureTouch, AccuTouch, Entuitive, and MonitorMouse are trademarks of Elo Touch-

Systems, Inc.

Other product names mentioned herein may be trademarks or registered trademarks of their respec-

tive companies. Elo TouchSystems claims no interest in trademarks other than its own.

Chapter 1

Introduction 1

Precautions . . . . . . . . . . . . . . . . . . . . 1

About the Product . . . . . . . . . . . . . . . . . 1

Chapter 2

Installation and Setup 3

Unpacking Your Touchmonitor. . . . . . . . . . . 3

Getting Started . . . . . . . . . . . . . . . . . . 4

Installing the Base . . . . . . . . . . . . . . . 4

Selecting a Suitable Location . . . . . . . . . 4

Connecting Your Touchmonitor . . . . . . . . . . 5

Installing the Driver Software . . . . . . . . . . . 8

Installing the Serial Touch Driver for Windows

2000, Me, 95/98 and NT 4.0 . . . . . . . . . 9

Installing the USB Touch Driver for Windows

2000, Windows Me and Windows 98. . . . . 9

Chapter 3

Operation 11

About Touchmonitor Adjustments . . . . . . . . 11

Touchmonitor Controls . . . . . . . . . . . . . 12

Using the On Screen Display (OSD). . . . . 12

Brightness. . . . . . . . . . . . . . . . . 13

Contrast. . . . . . . . . . . . . . . . . . 13

Locking/Unlocking the OSD Functions. . . . 13

OSD Adjustments . . . . . . . . . . . . . . 14

Chapter 4

Troubleshooting 17

Monitor Warning Messages . . . . . . . . . 18

Appendix A

Touch Technology 19

Touchscreens: An Overview. . . . . . . . . . . 19

IntelliTouch Touchscreens. . . . . . . . . . . . 20

AccuTouch Touchscreens . . . . . . . . . . . . 21

Appendix B

Touchmonitor Safety 23

Care and Handling of Your Touchmonitor . . . . 24

Regulatory Information 25

Appendix C

Technical Specifications 27

Touchmonitor Specifications . . . . . . . . . . 27

21" CRT Touchmonitor Dimensions . . . . . 31

Signal PINOUT for 21" Monitor . . . . . . . 33

Power Consumption. . . . . . . . . . . . . . . 34

Preset Timing Table. . . . . . . . . . . . . . . 35

Setting the Refresh Rate . . . . . . . . . . 35

Warranty 37

Index 39

Table of Contents

September 21, 2001 9:10 am (D:\Vera new\8544-21 inch Hyundai CRT UG\21inch Hyundai

CRTTOC.fm)

1-1

CHAPTER

HAPTER

NTRODUCTION

Congratulations on your purchase of an Elo TouchSystems Entuitive

touchmonitor. Your new high-resolution touchmonitor combines the reliable

performance of Elo’s touch technology with the latest advances in CRT display

design. This combination of features creates a natural flow of information

between a user and the touchmonitor.

Precautions

Follow all warnings, precautions and maintenance as recommended in this

user’s manual to maximize the life of your unit. See Appendix B for more

information on touchmonitor safety.

About the Product

Your CRT touchmonitor is a color display with the following features:

• 20-inch viewable image 0.25mm dot pitch CDT

• Supports a widerange of screen refresh rates with flicker-free picture quality.

• Plug and Play functionality automatically adjusts the monitor to its optimum

performance.

• VESA DPMS (Display Power Management Signaling).

• VESA DDC1/2B compatibility.

• Patented touch technology from Elo TouchSystems.

• RS-232 or Universal Serial Bus (USB) touch interface.

1-2 Elo Entuitive Touchmonitor User Guide

2-3

CHAPTER

HAPTER

NSTALLATION

AND

ETUP

This chapter discusses how to install your CRT touchmonitor and how to install

Elo TouchSystems driver software.

Unpacking Your Touchmonitor

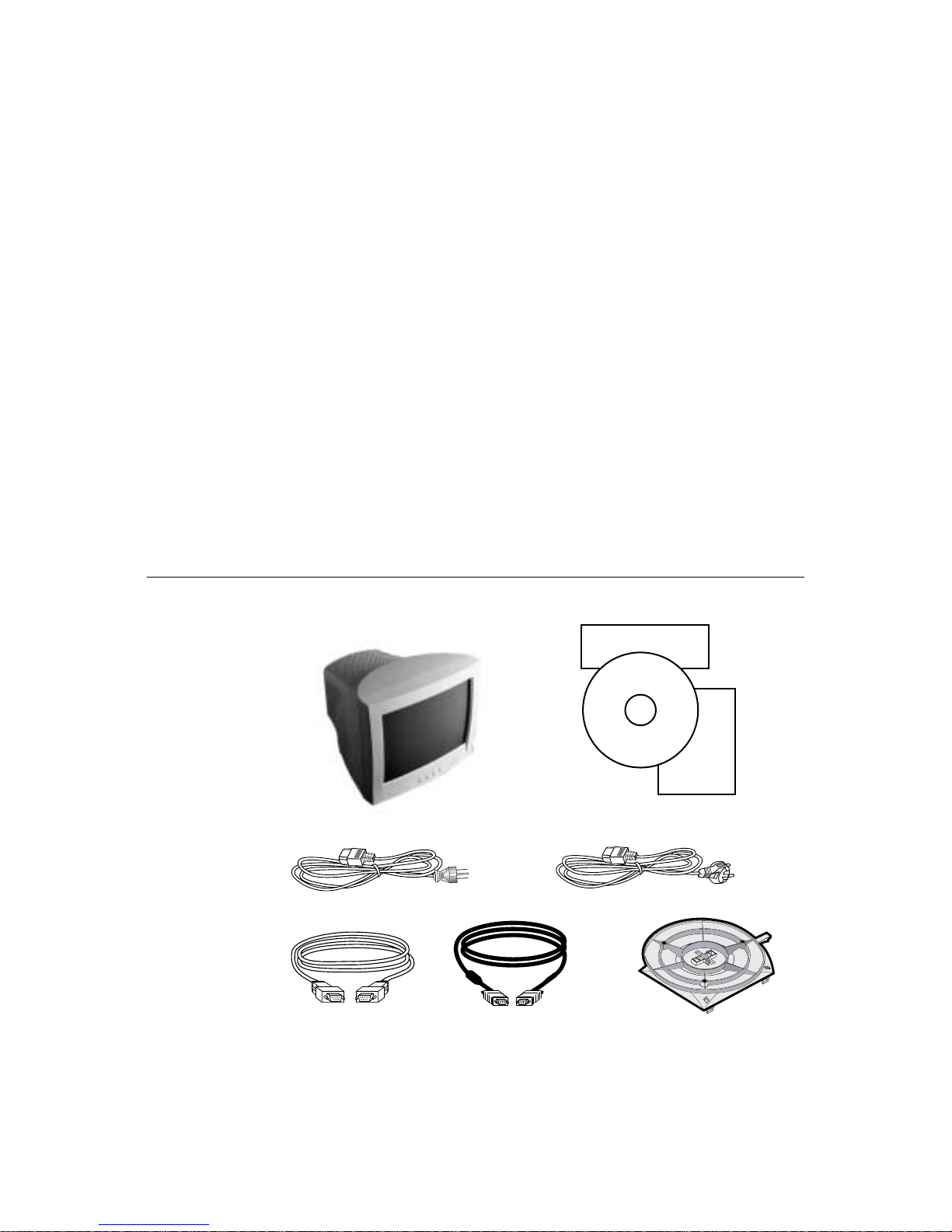

Check that the following 9 items are present and in good condition:

Quick Installation Guide

User's

Guide

Software

Base

Monitor power cable (US/Canada)

User’s Guide, Quick Install Guide,

and TouchTools CD-ROM

Serial touchscreen cable

European power cable

Video cable

CRT Touchmonitor

2-4 Elo Entuitive Touchmonitor User Guide

Getting Started

Installing the Base

• Carefully turn the touchmonitor upside-down.

• Place the base against the bottom of the monitor so that the base fasteners are

aligned with appropriate slots.

• Push the base towards the front of the monitor until the latch locks into

position.

• Carefully turn the touchmonitor right-side up.

Selecting a Suitable Location

• Place the monitor at least 12 inches from other electrical or heat-emitting

equipment and allow at least 4 inches on each side for ventilation.

• Place the monitor in a position where no light shines or is reflected directly

on the screen.

• To reduce eye strain, avoid installing the display unit against a bright

background such as a window.

• Position the monitor so the top of the screen is no higher than eye level.

• Position the monitor directly in front of you at a comfortable reading

distance.
