17A2 17" All-in-One Touchcomputer

Expanded Versatility for POS Applications

Elo TouchSystems 17A2 17" All-in-one touchcomputer

provides an attractive ultra-compact 17” touch solution

that can fit virtually anywhere in any point-of-service

environment.

Expanded versatility, bigger screen, and improved

serviceability all in a compact design

The 17A2 touchcomputer with dual video display support

includes a choice of Elo TouchSystems newest breakthrough

touch technology, Acoustic Pulse Recognition, AccuTouch

five-wire resistive, IntelliTouch surface acoustic wave or

CarrollTouch Infrared. Its 1280 X 1024 SX A resolution

with a 5 x 4 aspect ratio displays clear, precise graphics

for improved readability. A variety of optional field-replace-

able peripherals can easily be integrated into the 17A2's

compact design including: magnetic stripe reader, vacuum

fluorescent, rear-facing customer display, biometric finger-

print recognition device, and speaker bar with/without a

built-in single or omni-directional barcode scanner.

Designed for public access

The silent, fanless, spill and tamper resistant design of the

17A2 and its compact integrated peripherals, make this

touchcomputer a preferred choice for point-of-sale, kiosk

and point-of-interest applications.

Features

■Space saving, integrated, all-in-one touchcomputer

with the footprint of a standard 17" LCD display

■Silent, fanless Intel Celeron M design-ideal for POS,

kiosk and POI applications

■Industry standard VESA mounting options—

configurable as a desktop or wall-mount

■Choice of Microsoft Windows Embedded for POS

(WEPOS), XP Professional or Microsoft Windows XP

Embedded operating systems

■Full range of “field” replaceable and serviceable POS

options such as an integrated MSR, vacuum fluorescent,

rear-facing customer display, biometric fingerprint

recognition device, and speaker bar with/without a

built in single or omni-directional barcode scanner

■Available with AccuTouch five-wire resistive, CarrollTouch

Infrared, IntelliTouch surface acoustic wave or Acoustic

Pulse Recognition (APR) touch technologies

■Integrated (optional) wireless LAN & DVD for expanded

access and advanced media applications

■One Ethernet, two serial, and four high-speed USB 2.0

ports for maximum expansion

■Designed for public access with cables hidden from

user's view; OSD and cable lockout function to mini-

mize public tampering

17A2 17" All-in-One Touchcomputer Specifications

Case/Bezel color Dark ray

Processor Intel Celeron M 1 Hz CPU

Chipset Intel 915 ME/ICH6

Video Up to 128MB sharedi

Memory (RAM) 1 B DDR2 standard on 1 of 2 slots; Expandable to 2 B maximumii

Supported Operating Systems Microsoft Windows XP Professional Service Pack 2

Microsoft Windows Embedded for Point of Service (WEPOS)

Microsoft Vista

Serial Ports 2 x RS232 serial (RJ45, 8 position); COM2 is RS232, RS422 and RS485 selectable

USB Port 4 x 2.0 high-speed USB self powered: 1 (of 4 port) is 12V USB Port (1.5A) for POS Peripherals

V A Port 1 x V A D-SUB

Ethernet 100/10Base-T Port 1 x LAN RJ45

Cash Drawer Port 1 x cash drawer (RJ11, 6 position)

PS/2 Port 1 x PS/2 Universal (default to Keyboard compatibility)

Audio Port 1 x 3.5mm audio-out; 1 x 3.5mm mic-in

Hard Drive 1 x 2.5” 80 B SATA hard driveiii

Compact Flash Slot 1 x Compact Flash type I (internal)

Display Size 17.0 in. diagonal; Type: Active matrix TFT LCD; Aspect Ratio: 5 x 4

Optional Touchscreens AccuTouch Five-Wire Resistive; IntelliTouch Surface Wave; CarrollTouch Infrared; Acoustic Pulse Recognition (APR)

Optional Peripherals Magnetic Stripe Reader, Serial Customer Display; (20x2 VFD), Biometric Fingerprint Reader,

Speaker Bar; Line or Omni Barcode Scanner, DVD Burner, drive (internal); Wireless Card

Useful Screen Area 337.92 mm (13.31 in.); 270.33 mm (10.65 in.)

Maximum Touchcomputer Width: 391 mm (15.40 in.)

Dimensions with Standiv Height: 380.6 mm (15.00 in.)

Depth: 239 mm (9.42 in.)

Tilt Adjust From -5° to 75°

Optimal Resolution 1280 x 1024 at 60Hz (native); scalar support for 1024 x 768 or 800 x 600 at 60Hz

Colors 16.7 million colors

Brightness (typical) No Touchscreen: 300 cd/m2

with AccuTouch: 240 cd/m2

with IntelliTouch: 276 cd/m2

with CarrollTouch: 276 cd/m2

with APR: 276 cd/m2

Viewing Angle (from center) Horizontal (left/right): ±80° or 160° total; Vertical (up/down): ±80° or 160° total

Contrast Ratio 800:1 (typical)

Temperature Operating: 0°C to 35°C; Storage: -20°C to 60°C

Humidity (non-condensing) Operating: 20% to 80%; Storage: 5% to 95%

Weight with All Options (approx.) Actual: +20 lb. (+9.09 kg); Shipping: +25 lb. (11.36 kg)

Agency Approvals UL/cUL (Recognized component), FCC, CE, VCCI, C-tick, EN60950

Warranty 3 years

Backlight Lamp Time to Minimum 50,000 hours

1/2 Brightness

MTBF (mean time between failures) 50,000 hours demonstrated

Other Features 100mm VESA mounting; removable base; threaded holes on bottom of base for secure mounting;

2 watt/channel speakers located in display head; touchscreen sealed to bezel; touchscreen sealed to LCD

Power Supply Type: External brick; Input (line) voltage: 100-240 VAC, 50-60 Hz; Output voltage/current: 12 V at 10.0 amps max.

i Memory supports both system and video. Accessible system memory may be up to 128 MB less than the amount stated, depending on the video mode.

ii Maximum memory using 2 slots.

iii B equals one billion bytes when referring to storage capacity. Accessible capacity may be less. May not be applicable for XP Embedded Systems.

iv Dimensions vary with stand position and options selected.

Other restrictions and regional differences may apply. For a copy of the terms and conditions of the Elo TouchSystem's Limited Warranty, please contact

your Elo representative or reseller.

Tyco Elec ronics reserves he righ o change or upda e, wi hou no ice, any informa ion con ained herein, o change,

wi hou no ice, he design, cons ruc ion, ma erials, processing or specifica ions of any produc s, and o discon inue or

limi produc ion or dis ribu ion of any produc s.

AccuTouch, CarrollTouch, Elo logo, Elo TouchSys ems, In elliTouch, TE Logo, and Tyco Elec ronics are rademarks.

Copyrigh 2009 Tyco Elec ronics Corpora ion 2/09

North America

Elo TouchSystems

301 Constitution Drive

Menlo Park, CA 94025-1110

800-ELO-TOUCH

Tel 1-650-361-4800

Fax 1-650-361-4722

eloinfo@elotouch.com

Europe

Tel +32 (0)16 35 21 00

Fax +32 (0)16 35 21 01

elosales@elotouch.com

Asia-Pacific

Tel +81 (45) 478-2161

Fax +81 (45) 478-2180

www.tps.co.jp

Latin America

Tel 786-923-0251

Fax 305-931-0124

www.elotouch.com.ar

To find out more about Elo's extensive range of touch solutions, go to www.elotouch.com, or call the office nearest you.

Andere Handbücher für 17A2

Andere Elo TouchSystems Touch-Terminal Handbücher

Elo TouchSystems

Elo TouchSystems M60 Pay Bedienungsanleitung

Elo TouchSystems

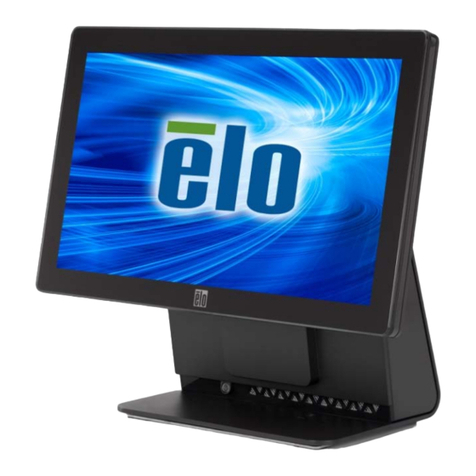

Elo TouchSystems E-Series Bedienungs- und Sicherheitshinweise
