USER MANUAL

Elo Touch Solutions

1002L and 1502L Touchmonitors

UM600012 Rev A

User Manual: 1002L, 1502L

UM600012 RevA, Page 2 of 25

No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated

into any language or computer language, in any form or by any means, including, but not limited to, electronic,

magnetic, optical, chemical, manual, or otherwise without prior written permission of Elo Touch Solutions, Inc.

Disclaimer

The information in this document is subject to change without notice. Elo Touch Solutions, Inc. and its Affiliates

(collectively "Elo") makes no representations or warranties with respect to the contents herein, and specifically

disclaims any implied warranties of merchantability or fitness for a particular purpose. Elo reserves the right to

revise this publication and to make changes from time to time in the content hereof without obligation of Elo to

notify any person of such revisions or changes.

Trademark Acknowledgments

Elo (logo), Elo Touch Solutions, IntelliTouch, iTouch, are trademarks of Eloand itsAffiliates.Windows is atrademark

of Microsoft Corporation.

User Manual: 1002L, 1502L

UM600012 RevA, Page 3 of 25

Table of Contents

Chapter 1: Introduction

...........................................................................................4

Chapter 2: Installation

.............................................................................................5

Chapter 3: Mounting

................................................................................................9

Chapter 4: Operation

.............................................................................................11

Chapter 5: Technical Support

.............................................................................16

Chapter 6: Safety & Maintenance

......................................................................18

Chapter 7: Regulatory Information

...................................................................20

Chapter 8: Warranty Information

.......................................................................24

User Manual: 1002L, 1502L

UM600012 RevA, Page 4 of 25

Chapter 1: Introduction

Product Description

Your new touchmonitor combines the reliable performance of Elo Touch Solutions touch

products with the latest developments in touch technology and display design. This combination

of features creates a natural flow of information between the user and the touchmonitor.

This touchmonitor incorporates a 16.2M color, active matrix thin film transistor LCD panel to

provide high quality display performance. Its LED backlight significantly reduces power

consumption and eliminates mercury (compared to CCFL-backlit panels). Other features that

enhance this LCD monitor’s performance are Plug & Play compatibility, on-screen display

(OSD) controls, and a family of optional peripherals including magnetic stripe reader (MSR) and

near field communication reader (NFC)

Precautions

Follow all warnings, precautions and maintenance as recommended in this user manual to

maximize the life of your unit, to ensure user safety, and to prevent risks. See the Safety &

Maintenance chapter for more information.

This manual contains information that is important for the proper setup and maintenance of the

unit. Before setting up and powering on your new touchmonitor, read through this manual,

especially the Installation, Mounting, and Operation chapters.

User Manual: 1002L, 1502L

UM600012 RevA, Page 5 of 25

Chapter 2: Installation

Unpacking the Touchmonitor

Open the carton and verify that the following items are present:

•Touchmonitor with Stand (Stand is not included with 1002L monitor)

•User Manuals CD

•Japanese language regulatory information pamphlet

•Quick Install Guide

•Mini-VGA to VGA cable

•HDMI cable

•USB cable

•Audio cable

•Power adaptor with North America, Europe and United Kingdom clipped-in plugs

•2 x Cable clamps

User Manual: 1002L, 1502L

UM600012 RevA, Page 6 of 25

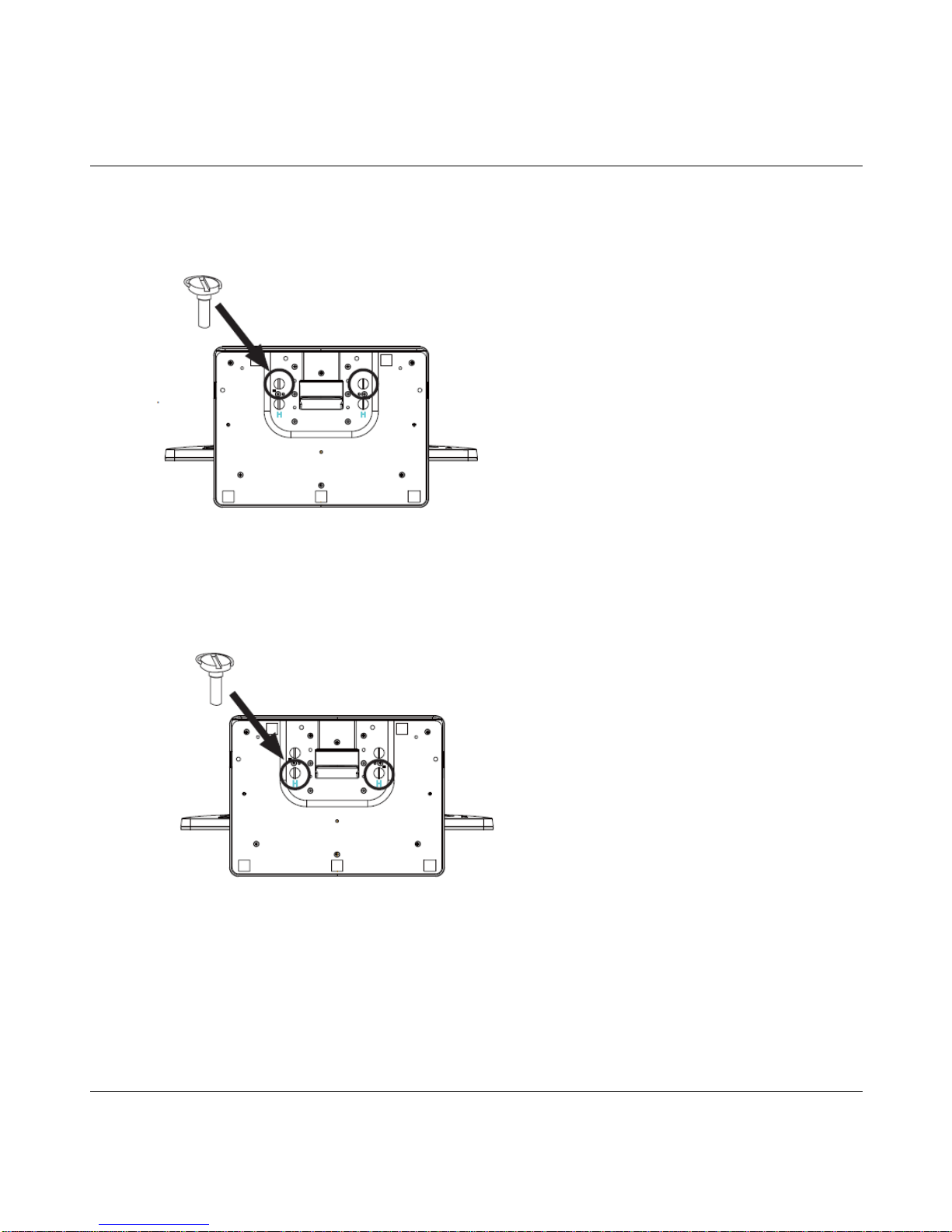

Stand Positions (1502L)

The stand of the touchmonitor can be converted between two positions: the low profile

“hostess” position and the high profile “upright” position. The touchmonitor ships in the low

profile “hostess” position. (1002L monitor does not ship with a stand)

Low profile (“hostess”) position

To convert the stand into the high profile “upright” position, secure the thumbscrews into the

high or “H” screw-holes in the bottom of the base.

Upright position

To convert the stand into the low profile “hostess” position, secure the thumbscrews into the low

or “L” screw-holes in the bottom of the base.

User Manual: 1002L, 1502L

UM600012 RevA, Page 7 of 25

Connector Panel & Interfaces

Touchmonitor Connections

1. Connect the HDMI or Mini-VGA video cables between the monitor’s HDMI/Mini-VGA input

connectors and your HDMI/VGA video source, respectively. Tighten the video cable’s screws

for best performance.

2. Connect the USB touch cable between the monitor’s USB connector and your PC’s USB

port.

3. Connect the audio cable between the monitor’s Audio In jack and your audio source.

4. Select the correct power clip for your region and clip to the power adapter. Connect the power

adaptor’s input connector to the power source. Connect the power adaptor’s DC output

connector to the monitor’s input power jack.

5. The touchmonitor ships in an OFF state. Press the power button to turn it on.

User Manual: 1002L, 1502L

UM600012 RevA, Page 8 of 25

Installing the Touch Technology Software Drivers

No additional drivers are required for your projected-capacitive touchmonitor with Windows 7

and 8 operating systems, it uses Windows HID drivers. If the monitor is used with Windows XP

operating system, follow below steps to install Windows XP touch driver.

To download latest touch drivers

1.Visit www.elotouch.com/Support/Downloads/Driver/DriverDownload/Default.aspx

2.Select the operating system from “Operating System” dropdown menu.

3.Select the technology from “Technologies” dropdown menu.

4.Click on the driver version required for your touchmonitor.

5.Click “Accept” once you are directed to the “Driver License Agreement” page.

6.Enter you email address, Click on “Next Step”. Your driver download will start automatically.

7.If you are a new user, fill in the required information and Click on “Register”. Your driver

download will start automatically.

User Manual: 1002L, 1502L

UM600012 RevA, Page 9 of 25

Chapter 3: Mounting

Rear VESA Mount

For the 10-inch touchmonitor, a four-hole 75x75mm and 100x100mm mounting pattern

available.The VESA FDMI-compliant counting is coded: VESA MIS-B, 75, C and VESA MIS-B,

100, C.

For the 15-inch touchmonitor, a four-hole 75x75mm and 100x100mm mounting pattern for M4

screws is provided on the rear of the monitor. Remove the stand using a Phillips screwdriver to

access this mounting interface. The VESA FDMI-compliant counting is coded: VESAMIS-B, 75,

C and VESA MIS-B, 100, C.

User Manual: 1002L, 1502L

UM600012 RevA, Page 10 of 25

Base Mount

For the 15-inch touchmonitor, a threaded three-hole mounting pattern for M4 screws is provided

on the bottom of stand base for mounting or securing.
