Elo TouchSystems 2270L Bedienungsanleitung

User Manual

Elo Touch Solutions

2270L, 2470L, 2770L

Touch monitors

USER MANUAL: <70 Series Monitor>

UM600633 Rev B

User Manual<70 Series Monitor>

UM600633

Rev

No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or

computer language, in any form or by any means, including, but not limited to, electronic, magnetic, optical, chemical, manual, or

otherwise without prior written permission of Elo Touch Solutions, Inc.

Disclaimer

The information in this document is subject to change without notice. Elo Touch Solutions, Inc. and its Affiliates (collectively “Elo”) makes

no representations or warranties with respect to the contents herein, and specifically disclaims any implied warranties of merchantability

or fitness for a particular purpose. Elo reserves the right to revise this publication and to make changes from time to time in the content

hereof without obligation of Elo to notify any person of such revisions or changes.

Trademark Acknowledgments

Elo, Elo (trademark), Elo Touch, Elo Touch Solutions and InteliTouch are all the trademarks of Elo and its Affiliates.. Windows is the

trademark of Microsoft Corporation.

User Manual<70 Series Monitor>

UM600633

Rev

Table of Contents

Section 1: Introduction 4

Section 2: Installation 5

Section 3: Mounting 8

Section 4: Operations 10

Section 5: Technical Support 18

Section 6: Safety and Maintenance 20

Section 7: Regulatory Information 21

Section 8: Warranty Information 29

User Manual <70 Series Monitor>

UM600633 Rev B 3

User Manual<70 Series Monitor>

UM600633 Rev B

Section 1: Introduction

Product Description

Your new touchscreen display combines Elo’s latest developments in touch technology and display design with the

reliability for use in high-traffic environment.

This touchscreen incorporates a 24-bit color, active matrix thin-film-transistor LCD panel to provide high quality display performance. The

70 Series offers sizes that range from 21.5’’ to 27’’ and support a full HD resolution of 1920x1080. The LED backlight significantly reduces

power consumption and eliminates mercury (compared to CCFL-backlit panels). Other features that enhance this LCD monitor’s display

performance are Plug & Play compatibility, interactive TOUCH OSD controls and flexible mounting options

Precautions

Follow all warnings, precautions and maintenance as recommended in this user manual to maximize the life of your unit and prevent risks

to user safety. See the Safety & Maintenance Section for more information.

This manual contains information that is important for the proper setup and maintenance of the unit. Before setting up and powering on

your new touchscreen, read through this manual, especially the Installation, Mounting, and Operation Sections

User Manual<70 Series Monitor>

UM600633 Rev B

Section 2: Installation

Unpacking the Touch Monitor

Open the carton and verify that the following items are present:

• Touch Monitor

• Quick installation guide

• HDMI cable

• USB touch cable

• Europe power cord

• North American power cord

• EEI label

• Tie wraps

• Replaceable plastic cover plates of feet

User Manual<70 Series Monitor>

UM600633

Rev

Connector panel

Note: the cable tie hole is the position through which the tie wrap passes to bind the cable. It just needs to pass the tie warp through

the hole and bind the cable to fix the cable connection.

Touch Monitor Connections

Connect one end of the DP, HDMI or VGA video cable to the DP/HDMI/VGA input connector of the monitor and the other end to

the DP/HDMI/VGA video source. (Tighten the screws on the VGA cable connector for best performance.)

Connect the USB touch line between the USB-B interface of the monitor and the USB-A port on your PC.

Connect the audio cable between the audio out of the monitor and your audio source.

Use the power cable to connect the power supply with the power input interface of the monitor.

The touch monitor ships in an OFF status. Press the power button to switch it on.

AC power input

HDMI signal input

Audio input or output

DP signal input

VGA signal input

USB-B interface

USB-A interface

Cable tie hole

User Manual<70 Series Monitor>

UM600633 Rev B

Installing the Touch Technology Software Drivers

No additional drivers are required for your projected-capacitive touch monitor with Windows 7 or 10 operating systems, as it will use the

Windows HID drivers. If the monitor is used with the Windows XP operating system, follow the steps below to install the Windows XP

touch driver.

To download the latest touch-control driver:

please visit https://www.elotouch.com/support/downloads#/

Select an operating system from the drop-down menu “Operating System.”

Select the technology from the drop-down menu “Technology.”

Download the driver version necessary for your touch monitor.

User Manual<70 Series Monitor>

UM600633

Rev

Section 3: Mounting

Kickstand

The Kickstand angle is manually adjustable in a range of “20° to

70°” by

pushing the machine or pull/push the kickstand by hand.

Note: 1. Once the kickstand leaves the table, the open angle will automatically rebound to the minimum angle. Close the kickstand

to prevent damage during moving the touch monitor.

2. Do not tamper the kickstand to avoid accidental damage.

3. Do not lift the kickstand when handling / moving the monitor to avoid the damage of touch monitor. This kickstand is not

designed for carrying the monitor.

Minimum angle 20°

Maximum angle 70°

User Manual<70 Series Monitor>

UM600633

Rev

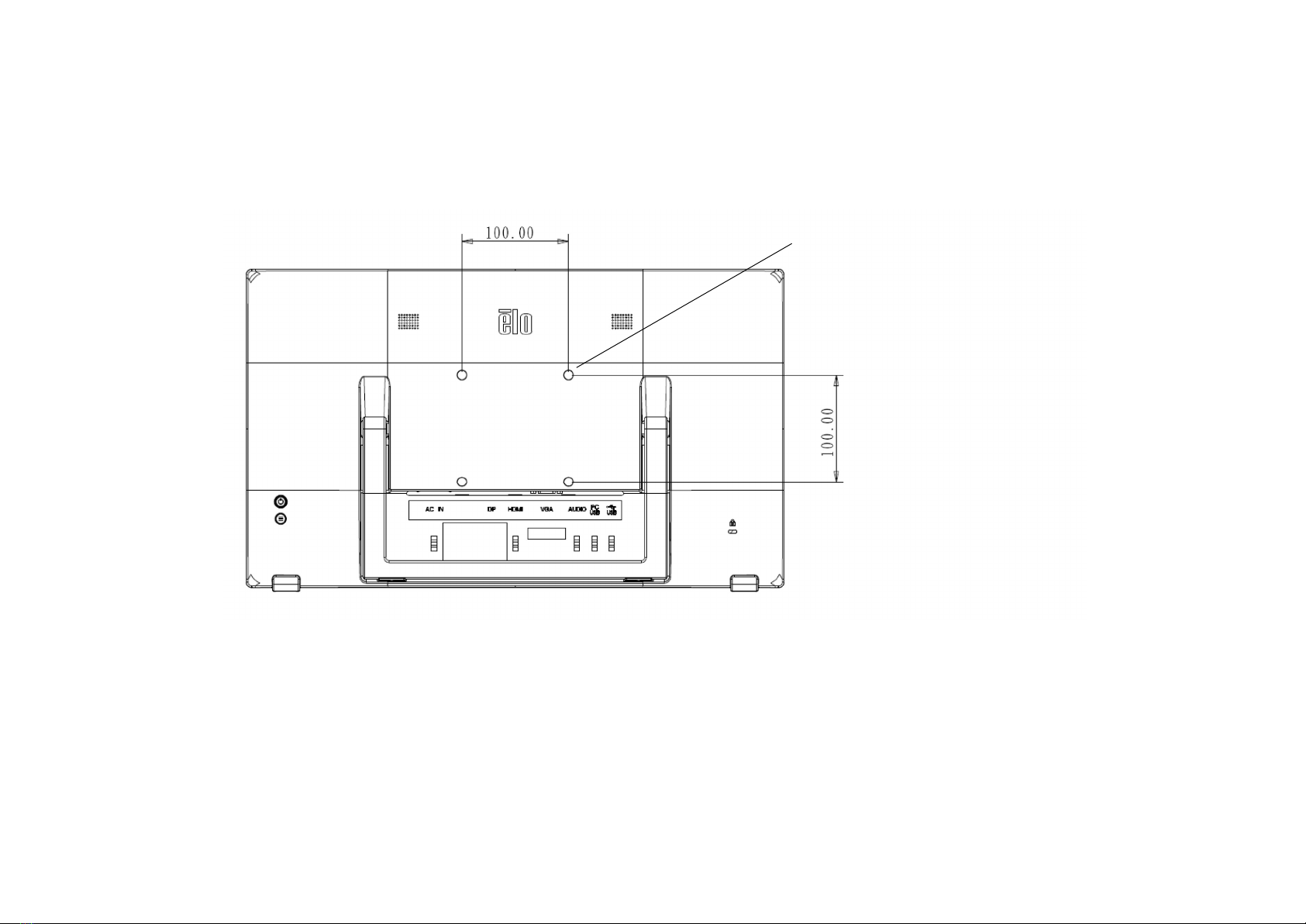

Rear VESA Mount

A 4-hole 100x100mm mounting interface for M4 screws is provided on the back of the monitor. Peel off the cover mylar, then use a cross

screwdriver to remove the screws so as to access the mounting interface. The interface is compatible with the stand of VESA MIS-D, 100,

C defined by VESA FDMI.

M4 screw, X4

Maximum thread depth = 8MM

Material: steel

User Manual<70 Series Monitor>

UM600633 Rev B

Section 4: Operations

Power supply

To power on or off the touch monitor, press the power button.

The power status LED on the back of the touch monitor functions as follows:

Touch monitor Status LED Status

Off Off

Sleep Pulsing

On Power-on (green)

The system consums minimum power when in Sleep or Off modes. For the detailed power consumption specification, refer to the

technical specifications on Elo website http://www.elotouch.com

Touching the screen will bring the connected host PC out of sleep mode (similar to moving mouse or pressing keyboard key).

In order to improve the reliability and decrease the useless power consumption, disconnect the AC power cable when the machine will be

unused for long time.

Touch control

No calibration is required for projected capacitive technology. The touch monitor can support up to 10 touches at once.
