PPC-E10

ARM Cortex A8 Panel PC

User Manual

REV. 2.0

EMAC, Inc.

Table of Contents

PPC-E10 Product Summary.................................................................................................................... 3

1.1 Features........................................................................................................................................................................3

1.2 Standard PPC Specifications........................................................................................................................................4

1.3 Description...................................................................................................................................................................5

PPC-E10 Product Details......................................................................................................................... 6

1.4 Jumper Configuration & Connector Descriptions........................................................................................................6

1.5 Power Connectors........................................................................................................................................................6

1.6 Ethernet........................................................................................................................................................................7

1.7 Serial Ports...................................................................................................................................................................7

1.8 USB Host Ports............................................................................................................................................................8

1.9 Audio Port....................................................................................................................................................................9

1.10 LCD Brightness Control ..............................................................................................................................................9

1.11 MicroSD Card Socket..................................................................................................................................................9

1.12 Keyboard/Mouse..........................................................................................................................................................9

1.13 Analog Inputs...............................................................................................................................................................9

1.14 I/O Expansion ............................................................................................................................................................10

1.15 Real-Time Clock........................................................................................................................................................10

1.16 Status LEDs and Reset...............................................................................................................................................10

Software................................................................................................................................................... 11

1.17 Introduction................................................................................................................................................................11

1.18 EMAC Support Wiki .................................................................................................................................................11

1.19 U-Boot Bootloader.....................................................................................................................................................11

1.20 Linux Tools................................................................................................................................................................11

1.21 Linux Operating System ............................................................................................................................................12

1.22 Android Operating System ........................................................................................................................................13

Appendix A: Connector Pinouts............................................................................................................. 14

1.23 Ethernet 10/100 Base-T connector (JK2)...................................................................................................................14

1.24 USB Connector (JK3, JK4, HDR5) ...........................................................................................................................14

1.25 Power Jack (JK1).......................................................................................................................................................14

1.26 Power Connector (J1) ................................................................................................................................................15

1.27 MicroSD Socket (SOK1)...........................................................................................................................................15

1.28 TTL LCD/Touch/Backlight (CN6) ............................................................................................................................15

1.29 LVDS LCD/Touch/Backlight (HDR6)......................................................................................................................16

1.30 PCD-E12 Expansion connector (ABJ1).....................................................................................................................16

1.31 COMA RS-232 serial port (CN2)..............................................................................................................................16

1.32 COMB RS-232 Serial Port (HDR3)..........................................................................................................................17

1.33 COMC RS-232/422/485 Serial Port (HDR4) ...........................................................................................................17

1.34 COMD RS-232 Serial Port (HDR2) .........................................................................................................................17

1.35 Misc. General Purpose I/O (HDR1)...........................................................................................................................18

1.36 Touch Screen Connector (CN1).................................................................................................................................18

1.37 Touch Screen Connector (CN3).................................................................................................................................18

1.38 LCD Backlight Connector (CN4) ..............................................................................................................................18

Appendix B: Jumper Settings................................................................................................................. 19

Appendix C: Mechanical drawing of Mounting Plate with dimensions .............................................. 20

Disclaimer

EMAC Inc. does not assume any liability arising out of the application or use of any of its products or designs.

Products designed or distributed by EMAC Inc. are not intended for, or authorized to be used in, applications such

as life support systems or for any other use in which the failure of the product could potentially result in personal

injury, death or property damage.

If EMAC Inc. products are used in any of the aforementioned unintended or unauthorized applications, Purchaser

shall indemnify and hold EMAC Inc. and its employees and officers harmless against all claims, costs, damages,

expenses, and attorney fees that may directly or indirectly arise out of any claim of personal injury, death or

property damage associated with such unintended or unauthorized use, even if it is alleged that EMAC Inc. was

negligent in the design or manufacture of the product.

EMAC Inc. reserves the right to make changes to any products with the intent to improve overall quality, without

further notification.

PPC-E10 Product Summary

1.1 Features

Texas Instruments AM3517 600Mhz ARM Cortex A8 based Processor

Inexpensive Open-Frame Design

Up to 512 MB of SDRAM (256 MB Standard)

2GB eMMC Flash

Battery backed Real Time Clock

10/100BaseT Ethernet with on-board PHY

3 RS232 & 1 RS232/422/485 Port

1 USB 2.0 (High Speed) Host ports (USB 1.1 Compatibility)

1 USB 2.0 (High Speed) OTG Host/Device port

1 CAN 2.0B Port

1 Micro SD Flash Card Socket

1 I2S Audio port with Line-In/Line-Out

Timer/Counters and Pulse Width Modulation (PWM) ports

1 Channel 12-bit Analog-to-Digital converter

Operating Voltage of 12 to 26 Vdc.

Graphic LCD Interface with 2D/3D acceleration

WVGA (1024x600) Resolution with LED Backlight

Analog Resistive Touchscreen and Software Controlled Backlight On/Off & Brightness

JTAG for debug, including real-time trace

FREE Eclipse IDE or QT Creator with GCC & GDB development tools for Linux

Android Available

1.2 Standard PPC Specifications

CPU: Fanless ARM Cortex A8 600Mhz Processor

Flash: 2GB of eMMC Flash.

RAM: 256MB of DDR2 RAM.

Video: 1024 x 600 WVGA @ 256K Colors

Touchscreen: 12-Bit, 4 wire analog resistive Touchscreen

Flash Disk: 1 Micro SD flash card socket

System Reset: Processor Internal Reset Management with External Reset Button provision

RTC: Battery backed Real Time Clock/Calendar.

Timers: 11, general purpose Timers, & Counter/PWM

Watchdog Timer: 2 Internal Watchdog Timers

Analog I/O: 1 channel, 12-bit Analog-to-Digital converter (ADC)

GPIO: 16 Programmable 3.3V I/O lines

Serial Interfaces

UARTS: 3 serial RS232 serial ports with handshaking & 1 RS232/422/485 with Auto RS485

SPI: High-Speed SPI port with Chip Selects.

I2C: I2C port

Audio: I2S Synchronous Serial Controller with Stereo Line In/Out

CAN: CAN 2.0B Port

USB: 2 USB 2.0 (High Speed) Host ports

1 USB 2.0 (High Speed) OTG Host/Device port

LCD

Display Type: 10" TFT Color LCD

Resolution: 1024 x 600 WVGA @ 256K Colors

Dot pitch: 0.19mm x 0.19mm

Luminance: 330 (cd/m²)

Viewing Angle: 55°

Brightness: Software controlled

Backlight: White LED (33 LEDS)

Touchscreen

Type: 4 Wire Analog Resistive

Resolution: Continuous

Controller: Built-In

Driver: Linux

Durability: Over one million touches

Ethernet interface

Ethernet MAC: Built-In

Ethernet PHY: Micrel KSZ8041

Ethernet Type: 10/100 Base-T Ethernet

Ethernet Interface: On-Board RJ-45 connector

Solid-state Flash Disk

Supports: External Removable SDIO SDHC/MMC interface up to 32+ GB Flash Disk

Mechanical and environmental

Power Supply Voltage: +12 to +26 Vdc.

Power Consumption: typical ~250 ma. @ 24 Vdc.

Operating Temperature: 0 ~ 60° C (32 ~ 140° F; LCD Constraint)

Standard Parts Inventory

PPC-E10 Assembly with 10” Touchscreen LCD

Stainless Steel Mounting Bracket

Resident on-board flash disk loaded with Operating System

Three Serial Port cables

CD ROM with manuals and drivers

1.3 Description

The PPC-E10 is a rugged embedded Open Frame Panel PC (PPC). The PPC-E10 utilizes a modular System on Module

(SoM) design which extends the longevity and flexibility of the PPC-E10.

The PPC-E10 is comprised of a Processor Module and a Carrier board in which the Module plugs into. If more memory

is required or speed is required a different pin compatible Module offering these features can be inserted into the Carrier

board in place of the standard Module that is provided. Additionally, if the processor or memory go End Of Life another

processor Module can be utilized extending the life of the product.

PPC-E10 Product Details

1.4 Jumper Configuration & Connector Descriptions

The PPC-E10 comes factory configured. In the event that jumpers need to be verified or modified this section

provides the information required, including instructions on setting jumpers and connecting peripherals, switches

and indicators. Be sure to read all the safety precautions before you begin any configuration procedure. See

Appendix A for connector pinouts and Appendix B for Jumper Setting descriptions.

Table 1: Jumpers

Label

Function

Default

JB1

Boot0 Source Selection

Position B

JB2

Boot1 Source Selection

Position A

JB3

Resident Flash Write Protect (GPIO_62)

Position A

JB4

RTC Battery ON/OFF

Off

JB5

Serial Port RS422/485 Tx Enable

422

JB6

Serial Port RS232 or 422/485 Mode

232

Table 2: Connectors

Label

Function

CN1

7” Touch Screen Connector

CN2

Serial Port COM A

CN3

10” Touch Screen Connector

CN4

7” LCD Backlight Connector

CN6

7” LCD Data Connector

Vin Locking Connector

JK1

Vin Power Barrel Jack

JK2

Ethernet

JK3

USB Host Port A & Port B

JK4

USB OTG Port C

JK5

Audio Input Jack

JK6

Audio Output Jack

HDR1

Misc. I/O Connector

HDR2

Serial Port COM D

HDR3

Serial Port COM B

HDR4

Serial Port COM C

HDR5

Bulkhead USB Connector Port A & B

HDR6

LVDS & Touch Signal Connector

SOK1

MicroSD Card Socket

SOK2

200 pin SOM Socket

ABJ1

PCD-E12 Expansion Module Connector

1.5 Power Connectors

The PPC-E10 provides two power connectors. J1 is an AMP/Tyco locking power connector (part# 640445-3),

three-pin type connector that mates with TE Connectivity part# 647402-3 power connector using crimp pins part#

3-647406-1. Using this power input provides for a more rugged/industrial locking connection. JK1 is a standard

5.5mm barrel jack with an inner diameter of 2.1mm with a center V+ connection. This jack allows for easy

connection to a wall mount power supply (EMAC part number PER-PWR-00035). The PPC-E10’s power input

uses a switching regulator and allows a voltage input of +12Vdc to +26Vdc.

The pinout for the J1 power connector is as follows:

Pin Signal

1 +Vin (+12Vdc to 26Vdc)

2 Chassis GND

3 System GND

Before powering up the PPC-E10, jumper JB1 is in the “B” position

1.6 Ethernet

The PPC-E10 provides 10/100 Base-T full duplex Ethernet and uses a standard RJ-45 connector (JK2). It can be

connected straight to a hub, or another computer via a crossover Ethernet cable. The Ethernet MAC & PHY are

integrated into the SoM processor module. Activity and Link LEDs are integrated into the RJ45 connector.

1.7 Serial Ports

The PPC-E10 is equipped with four serial ports, one of which terminates to a male DB9 and the other three which

terminate to 10pin header connectors (see table 2, 3, & 4 below). Three 10-pin header to male DB9 connector

cables are provided, giving easy access to these ports. Baud Rate, stop bits, etc. are all programmable for each

port via software.

COM A is an RS232 compatible port with a full complement of handshaking lines (through the use of GPIO lines)

allowing it to communicate with modems and other devices requiring hardware flow control.

COM B is an RS232 port. This port offers no handshake lines.

COM C can be configured to RS232, RS422, and RS485 via 2 jumpers. To select RS232 set jumper JB6 to 232

(this is the default). For RS422 set jumper JB6 to 4xx and jumper JB5 to 485. To select RS485, set jumper JB6 to

4xx and jumper JB5 to 422.

When using COM C in the RS422/485 mode, a terminating resistor (~120 Ohm) is recommended on the two far

ends of the network.

COM D is an RS232 port. This port offers no handshake lines.

Table 1 (COM A Pinout)

Pin Description for DB9

Connector

DCD

RxD

TxD

DTR

GND

DSR

RTS

CTS

Shield

Table 2 (COM B Pinout)

Pin Description for 10-

Pin Header

Pin Description for DB9

Connector

RxD

TxD

GND

Table 3 (COM C Pinout)

Pin Description for 10-Pin

Header

Pin Description for DB9

Connector

422/485 TX-

232 RX, 422/485 TX+

232 TX, 422/485 RX+

RTS

422/485 RX-

232 TX, 422/485 RX+

GND

CTS

422/485 RX-

RTS

CTS

GND

Table 4 (COM D Pinout)

Pin Description for 10-

Pin Header

Pin Description for DB9

Connector

RxD

TxD

GND

1.8 USB Host Ports

The PPC-E10 provides two, USB 2.0 (USB PortA & PortB) high speed host ports (JK3). USB PortA and PortB

can also be accessed from the bulkhead connector (HDR5). EMAC can provide a cable (CAB-40-004) to access

these ports.

In addition to the two USB Host ports, the PPC-E10 provides a USB On-The-Go (OTG) port. This port can be

used as either a USB Host or USB Device port.

All of the USB ports are equipped with 500mA re-settable Polyfuses. If a USB Device tries to draw more than

500mA from the port, the fuse will open until the device is unplugged or its current requirement is reduced. There

is no software provision for shutting down power to the Ports or detecting when a port is drawing too much

current.

Note: When sizing a power supply, make sure to allow for USB Device consumption. A device can potentially

draw 500mA, therefore these devices could use a total of over 1 amp of power.

1.9 Audio Port

The PPC-E10 provides Audio Line Out and Line In capability through two standard audio jacks (JK5 & JK6).

Audio Jack JK5 is stereo line level input and Audio Jack JK6 is stereo line level output. The processor interfaces

to the Audio CODEC through its I2S interface. Command control of the CODEC is done using the processor’s SPI

interface. The CODEC is the Cirrus CS4271, which is a high performance 24-bit Stereo CODEC offering superior

sound quality.

Both the input and output are line level. You will probably not be able to drive an unamplified speaker although

standard headphones will work. Likewise, an un-amplified microphone probably will not work as an input although

the line out of a CD player will work.

1.10 LCD Brightness Control

The PPC-E10 offers LCD brightness control that can change the brightness of the LCD via software. The LCD

utilizes LED backlighting. The board provides the backlight with approximately 10 volts at about 220mA. The

processor provides a PWM (SoM pin# 85) that is used to drive the LCD backlight. Changing the duty-cycle of the

PWM directly affects the brightness of the LCD. In addition, the backlight can be turned off or on via SoM port line

GPIO0 (SoM pin#114). This allows screensaver software to automatically turn off the backlight when the unit is

not being used and to automatically turn it back on when the touchscreen is touched.

1.11 MicroSD Card Socket

The PPC-E10 provides a high capacity MicroSD socket. The socket is resident on the Carrier and accessible from

the board coast line. The socket is hot-swappable and can accept a wide variety of Flash Cards. A green activity

light (LED LD3) is located towards the left side of the socket on the Carrier. When the processor is accessing the

Flash card this LED will be lit and the card should not be removed at this time. A card that is written to by the

PPC-E10 can be read by another computer using an MicroSD card reader. The MicroSD interface is compatible

with Standard and High Capacity MicroSD cards

1.12 Keyboard/Mouse

The PPC-E10 does not provide a PS/2 type keyboard/mouse interface. However, a USB keyboard and mouse

can be used if required.

1.13 Analog Inputs

A 12-Bit analog input is available on HDR1 (see table 5 below) and is labeled as analog_04.

Inhaltsverzeichnis

Andere EMAC Touchscreen Handbücher

EMAC

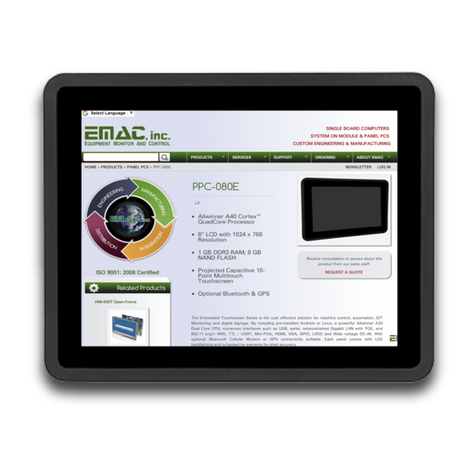

EMAC PPC-E4+ Bedienungsanleitung

EMAC

EMAC PPC-E4-3354 Bedienungsanleitung

EMAC

EMAC PPC-E4 Bedienungsanleitung

EMAC

EMAC PPC-E7+ Bedienungsanleitung

Beliebte Touchscreen Handbücher anderer Marken

FlowLine

FlowLine Data loop Bedienungsanleitung

ALPEX

ALPEX AEx-8 P Series Bedienungsanleitung

Ltech

Ltech E5S Bedienungsanleitung

Harman

Harman AMX MODERO S MSD-701-L2 Bedienungsanleitung

Acnodes

Acnodes PC 1150 Bedienungsanleitung

AIS

AIS IP10IA99 series Bedienungsanleitung

IBASE Technology

IBASE Technology ASTUT-152-RE1S Bedienungsanleitung

YASKAWA

YASKAWA TP 610C Bedienungsanleitung

B&R

B&R Power Panel C Series Bedienungsanleitung

Beijer Electronics

Beijer Electronics X2 control Bedienungsanleitung

AXIOMTEK

AXIOMTEK GOT321W-521 Bedienungsanleitung

TRIDONIC.ATCO

TRIDONIC.ATCO x-touchBOX Bedienungsanleitung

Qomo

Qomo QIT1386 Bedienungsanleitung

DFI

DFI KS104-CD Bedienungsanleitung

AMX

AMX AXP-PPC Leitfaden

Sartorius

Sartorius X3 PR 5410 Bedienungsanleitung

AMX

AMX Modero X Series Bedienungsanleitung

Advantech

Advantech TPC-30 Series Bedienungsanleitung
