eMachines E627 Series Bedienungsanleitung
eMachines E627 Series
Quick Guide
Changes may be made periodically to the information in this publication without obligation
to notify any person of such revisions or changes. Such changes will be incorporated in new
editions of this manual or supplementary documents and publications.
Record the model number, serial number, purchase date and place of purchase information in
the space provided below. The serial number and model number are recorded on the label
affixed to your computer. All correspondence concerning your unit should include the serial
number, model number and purchase information.
This booklet has been reviewed for accuracy. Although Acer makes all reasonable attempts for
this booklet to be printed in an accurate manner, Acer takes no responsibility for any
inadvertent errors or misprints. Acerís liability with respect to this booklet is subject to any
limitation of liability set out in the applicable product warranty.
No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in
any form or by any means, electronically, mechanically, by photocopy, recording or
otherwise,without the prior written permission of Acer Incorporated.
Model number: __________________________________
Serial number: ___________________________________
Date of purchase: ________________________________
Place of purchase: ________________________________
Copyright © 2009. Acer Incorporated.
All Rights Reserved.
eMachines E627 Series Quick Guide
Original Issue: 06/2009
eMachines E627 Series Notebook PC
eMachines and the eMachines logo are registered trademarks of Acer Incorporated. Other
companies' product names or trademarks are used herein for identification purposes only and
belong to their respective companies.
3
First things first
We would like to thank you for making an eMachines notebook your choice for
meeting your mobile computing needs.
Your guides
To help you use your eMachines notebook, we have designed a set of guides:
First off, the Just for Starters... poster helps you get started with setting up your
computer.
The eMachines Generic User Guide contains useful information applying to all
models in the eMachines product series. It covers basic topics such as eMachines
Recovery Management, using the keyboard, audio, etc. Please understand that
due to its nature, the Generic User Guide as well as the eMachinesSystem User
Guide mentioned below will occasionally refer to functions or features which
are only contained in certain models of the series, but not necessarily in the
model you purchased. Such instances are marked in the text with language such
as "only for certain models".
The Quick Guide introduces you to the basic features and functions of your new
computer. For more on how your computer can help you to be more productive,
please refer to the eMachinesSystem User Guide. This guide contains detailed
information on such subjects as system utilities, data recovery, expansion
options and troubleshooting. In addition it contains warranty information and
the general regulations and safety notices for your notebook. It is available in
Portable Document Format (PDF) and comes preloaded on your notebook.
Follow these steps to access it:
1 Click on Start, All Programs, eMachinesSystem.
2 Click on eMachinesSystem User Guide.
Note: Viewing the file requires Adobe Reader. If Adobe Reader is not
installed on your computer, clicking on eMachinesSystem User Guide will
run the Adobe Reader setup program first. Follow the instructions on the
screen to complete the installation. For instructions on how to use Adobe
Reader, access the Help and Support menu.
4
English
Your eMachines notebook tour
After setting up your computer as illustrated in the Just for Starters... poster,
let us show you around your new eMachines notebook.
Top view
#Icon Item Description
1 Integrated
webcam
Web camera for video communication.
(only for certain models)
5
English
Hotkeys
The computer employs hotkeys or key combinations to access most of the
computer's controls like screen brightness and volume output.
To activate hotkeys, press and hold the <Fn> key before pressing the other key
in the hotkey combination.
2 Display screen Also called Liquid-Crystal Display (LCD),
displays computer output.
3 Touchpad toggle Turns the internal touchpad on and off.
Power button Turns the computer on and off.
Wireless LAN
communication
button/indicator
Enables/disables the wireless LAN function.
Indicates the status of wireless LAN
communication.
4 Speakers Left and right speakers deliver stereo
audio output.
5 Keyboard For entering data into your computer.
6 Touchpad Touch-sensitive pointing device which
functions like a computer mouse.
7 Click buttons
(left and right)
The left and right buttons function like the
left and right mouse buttons.
8 Palmrest Comfortable support area for your hands
when you use the computer.
9 HDD Indicates when the hard disk drive is active.
Num Lock Lights up when Num Lock is activated.
Caps Lock Lights up when Caps Lock is activated.
Hotkey Icon Function Description
<Fn> + <F4> Sleep Puts the computer in Sleep mode.
<Fn> + <F5> Display toggle Switches display output between the
display screen, external monitor (if
connected) and both.
<Fn> + <F6> Screen blank Turns the display screen backlight off
to save power. Press any key to
return.
#Icon Item Description
6
English
Closed front view
1. The front panel indicators are visible even when the computer cover is closed
up.

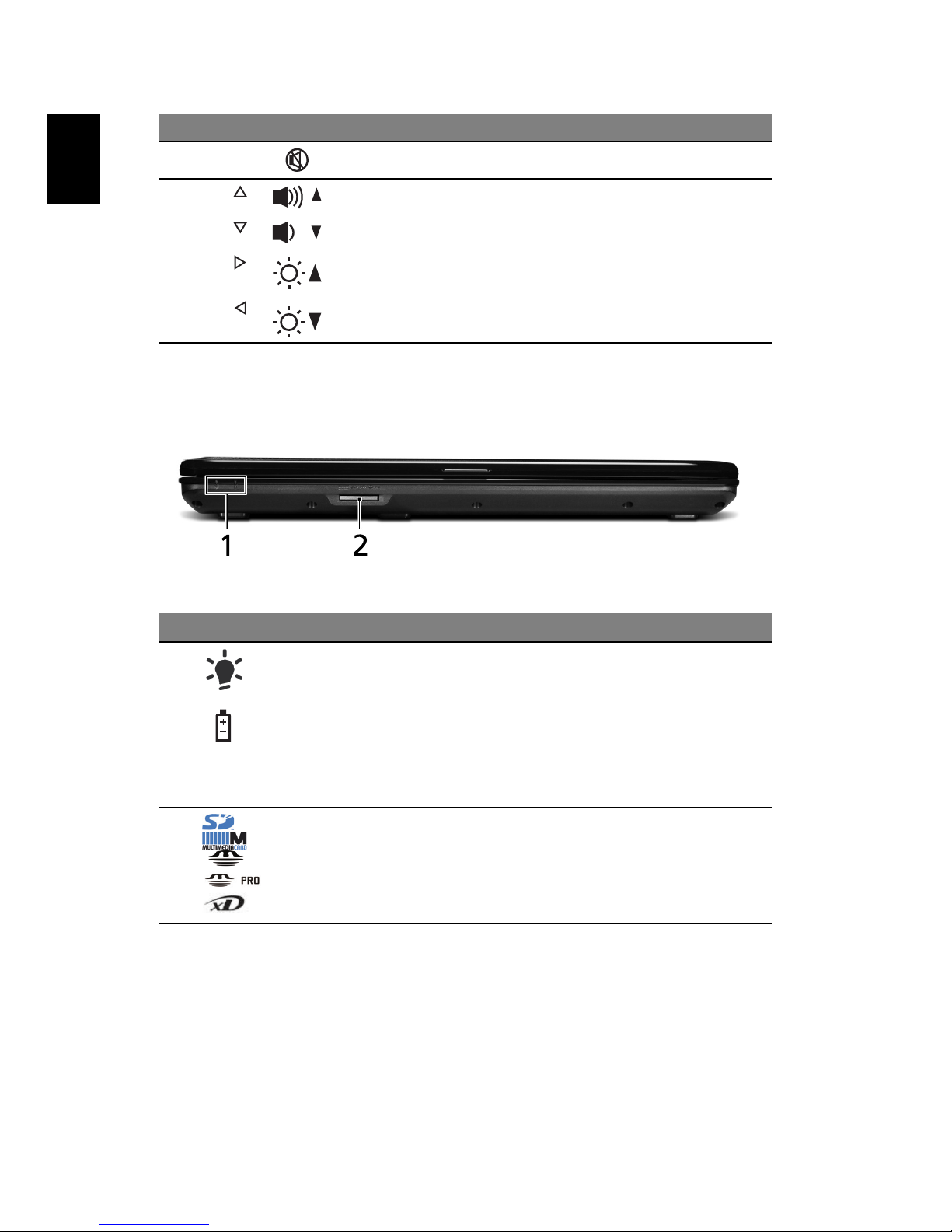

<Fn> + <F8> Speaker toggle Turns the speakers on and off.
<Fn> + < > Volume up Increases the sound volume.
<Fn> + < > Volume down Decreases the sound volume.
<Fn> + < > Brightness up Increases the screen brightness.
<Fn> + < > Brightness
down
Decreases the screen brightness.
#Item Description
1Power1Indicates the computer's power status.
Battery1Indicates the computer's battery status.
1. Charging: The light shows amber when the
battery is charging.
2. Fully charged: The light shows blue when in
AC mode.
2 Multi-in-1
card reader
Accepts Secure Digital (SD), MultiMediaCard
(MMC), Memory Stick (MS), Memory Stick PRO
(MS PRO), xD-Picture Card (xD).
Note: Push to remove/install the card. Only one
card can operate at any given time.
Hotkey Icon Function Description
7
English
Rear view
Left view
#Item Description
1 Ventilation slots Enable the computer to stay cool, even after prolonged
use.
#Icon Item Description
1 DC-in jack Connects to an AC adapter.
2 Ethernet (RJ-45) port Connects to an Ethernet 10/100-based
network.
3 External display (VGA)
port
Connects to a display device (e.g.,
external monitor, LCD projector).
4 USB 2.0 port Connect to USB 2.0 devices (e.g., USB
mouse, USB camera).
5Microphone-in jack Accepts inputs from external
microphones.
Headphones/speaker/
line-out jack
Connects to audio line-out devices
(e.g., speakers, headphones).
8
English
Right view
#Icon Item Description

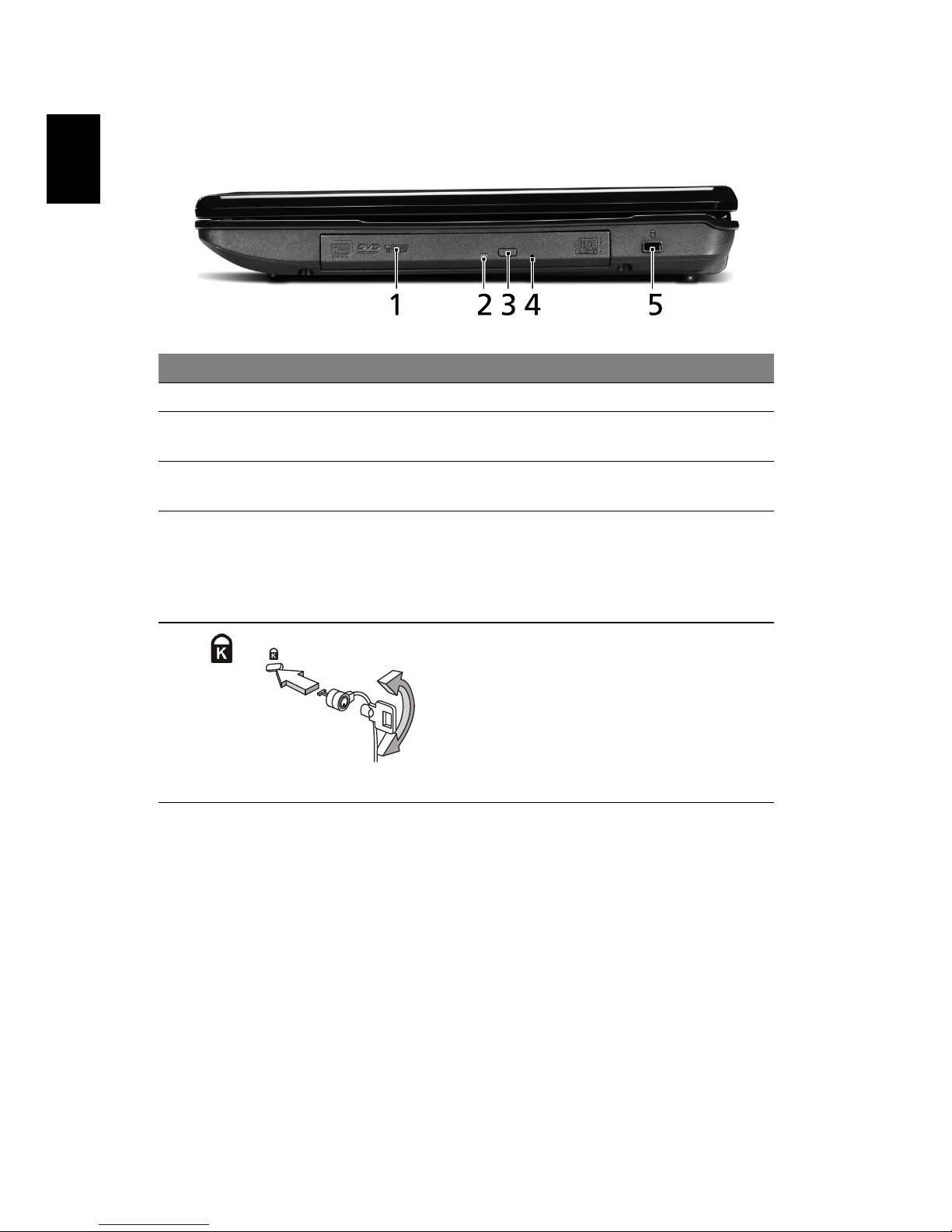

1 Optical drive Internal optical drive; accepts CDs or DVDs.
2 Optical disk access
indicator
Lights up when the optical drive is active.
3 Optical drive eject
button
Ejects the optical disk from the drive.
4 Emergency eject
hole
Ejects the optical drive tray when the
computer is turned off.
Note: Insert a paper clip to the emergency
eject hole to eject the optical drive tray
when the computer is off.
5 Kensington lock slot Connects to a Kensington-compatible
computer security lock.
Note: Wrap the computer security lock
cable around an immovable object such as
a table or handle of a locked drawer. Insert
the lock into the notch and turn the key to
secure the lock. Some keyless models are
also available.
9
English
Base view

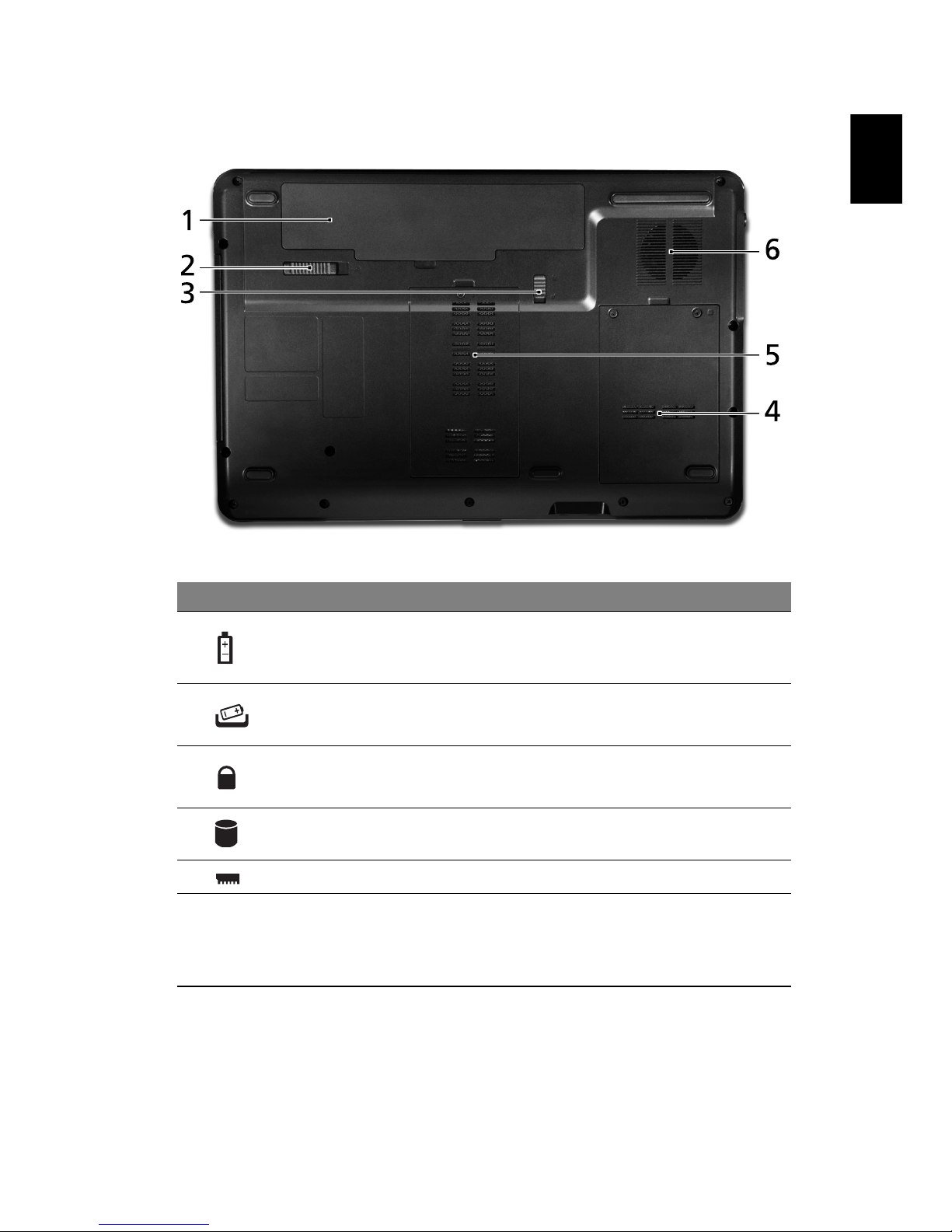

#Icon Item Description
1 Battery bay Houses the computer's battery pack.
2 Battery release latch Releases the battery for removal.
3 Battery lock Locks the battery in position.
4 Hard disk bay Houses the computer's hard disk (secured
with screws).
5 Memory compartment Houses the computer's main memory.
6 Ventilation slots and
cooling fan
Enable the computer to stay cool, even
after prolonged use.
Note: Do not cover or obstruct the
opening of the fan.
10
English
Specifications
Operating
system
•Genuine Windows Vista®
Platform •AMD Better By Design Program, featuring:
• AMD Athlon™ 64 X2 dual-core processor*
• AMD Athlon™ 64 single-core processor*
• AMD M780G Chipset
• IEEE 802.11b/g
System memory •Dual-channel support
•Up to 2 GB of DDR2 667 MHz memory, upgradeable
to 4 GB using two soDIMM modules
Display •15.6" HD 1366 x 768
•16:9 aspect ratio
Graphics •ATI Radeon™ HD 3200 Graphics
Storage
subsystem
•2.5" hard disk drive
• DVD-Super Multi double-layer drive
• Multi-in-1 card reader
Audio •Two built-in stereo speakers
•High-definition audio support
• MS-Sound compatible
Communication •Integrated webcam*
•WLAN: IEEE 802.11b/g
•LAN: Fast Ethernet; Wake-on-LAN ready
Dimensions •372.3 (W) x 246.5 (D) x 26.8/39.6 (H) mm
(14.4 x 10.8 x 1.1/1.5 inches)
•2.7 kg (6.0 lbs.) with 6-cell battery pack
Privacy control •BIOS user, supervisor, HDD passwords
•Kensington lock slot
Power
subsystem
•ACPI 3.0
•48.8 W 4400 mAh
•3-pin 65 W AC adapter
•ENERGY STAR®4.0*
Special keys
and controls
•99-/100-/103-key keyboard
•Touchpad pointing device
