OWNER'SMANUAL

CKD2300

AM/FMStereo Clock Radio

withDualAlarms

and CompactDisc Player

Visitourweb siteatwww.emersonradio.com

CKD2300_060305.p65 3/6/2005, 11:0428

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN

EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES

CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE

ORSHOCKHAZARD,DONOTEXPOSETHISAPPLIANCETORAINORMOISTURE.

IMPORTANTSAFETYINSTRUCTIONS

1.) Read these instructions.

2.) Keep these instructions.

3.) Heed all warnings.

4.) Follow all instructions.

5.) Do not use this apparatus near water.

6.) Clean only with dry cloth.

7.) Do not block any ventilation openings. Install in accordance with the manufacturer’s

instructions.

8.) Do not install near any heat sources such as radiators, heat registers, stoves, or other

apparatus (including amplifiers) that produce heat.

9.) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has

two blades with one wider than the other. A grounding type plug has two blades and a third

grounding prong. The wide blade or the third prong is provided for your safety. If the provided

plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10.) Protect the power cord from being walked on or pinched particularly at plugs, convenience

receptacles, and the point where they exit from the apparatus.

11.) Only use attachments / accessories specified by the manufacturer.

12.) Unplug this apparatus during lightning storms or when unused for long periods of time.

13.) Refer all servicing to qualified service personnel. Servicing is required when the apparatus

has been damaged in any way, such as power-supply cord or plug is damaged, liquid has

been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain

or moisture, does not operate normally, or has been dropped.

14.) This appliance shall not be exposed to dripping or splashing water and no object filled with

liquids such as vases shall be placed on the apparatus.

15.) Do not overload wall outlet. Use only power source as indicated.

16.) Use replacement parts as specified by the manufacturer.

17.) The product may be mounted to a wall only if recommended by the manufacturer.

18.) Upon completion of any service or repairs to this product, ask the service technician to

perform safety checks.

CAUTION

RISK OFELECTRICSHOCK

DONOTOPEN

The lightning flashwitharrow-

head symbol,withinan equi-

lateraltriangleisintended to

alertthe usertothe presence

ofuninsulated‘dangerousvoltage’

withinthe product’s enclosure

thatmaybe ofsufficient

magnitude toconstitutearisk

ofelectricshock topersons.

The exclamation pointwithin

an equilateraltriangleisin-

tended toalertthe userto

the presenceofimportant

operating and maintenance

(servicing)instructionsin

the literatureaccompany-

ing the appliance.

WARNING:TOREDUCETHE

RISK OFELECTRICSHOCK

DONOTREMOVE COVER

(ORBACK),NOUSER

SERVICEABLEPARTSINSIDE

REFERSERVICINGTO

QUALIFIEDSERVICE

PERSONNEL.

CAUTION

CKD2300_060305.p65 3/6/2005, 11:041

Thankyou…………………

forpurchasing thisEmerson DualAlarmStereo Clock RadiowithCDPlayer.This

compactsized unithasbeen designed tofitcomfortablyon anydesk orbedside

table.

The CD Playerhasa20-track programmablememoryplusone-track/all tracks

automaticrepeatplayback.The clock radiofeaturesabright, easilyreadable,0.6”

red LEDdisplaythatisvisiblefromanywhereinthe room.The dualalarmscan be

setand used independently.You can seteitherorbothalarmstowakeyou toan

electronicbuzzertone,yourfavoriteradiostation,oryourfavoriteCD.And ofcourse

there’s abatteryback up systemthatwill maintainthe timeand alarmsettingsin

the eventofatemporarypowerinterruption

Thissystemwasdesigned togiveyou manyyearsofenjoymentwithan absolute

minimumofcareand maintenance.Pleaseread thisOwner’s Manualcarefullyand

completelytoensurethatyou getthe maximumbenefitfromall the outstanding

featureswehaveincluded inthisproduct. If you encounteranyproblemwiththe

setup oroperation ofthismodelpleasedo notreturnittothe retail store.Please

call the Emerson CustomerServiceHotline toll free at1-800-898-9020.One of

ourservicetechnicianswill trytodiagnosethe problemforyou.

Onceagainthanks forchoosing thisEmerson audioproduct.

CKD2300_060305.p65 3/6/2005, 11:042

FCC Information

Thisequipmenthasbeen tested and found tocomplywiththe limitsforaclass B

digitalDevice,pursuanttopart15 ofthe FCC Rules.Theselimitsaredesigned to

provide reasonableprotection againstharmfulinterferenceinaresidential

installation.Thisequipmentgenerates,uses,and canradiateradiofrequencyenergy

and,ifnotinstalledand usedinaccordancewiththeinstructions,maycauseharmful

interferencetoradiocommunications.However,thereisno guarantee that

interferencewill notoccurinaparticularinstallation.If thisequipmentdoescause

harmfulinterferencetoradioortelevision reception,whichcan be determined by

turning the equipmentoff and on,the userisencouraged totrytocorrectthe

interferencebyone ormoreofthe following measures:

•Reorientorrelocatethe receiving antenna.

•Increasethe separation between the equipmentand receiver.

•Connectthe equipmentintoan outleton acircuitdifferentfromthattowhichthe

receiverisconnected.

•Consultthe dealeroran experienced radio/TVtechnician forhelp.

Thisdevicecomplieswithpart15 ofthe FCC Rules.Operation issubjecttothe

following twoconditions:

(1)Thisdevicemaynotcauseharmfulinterference,and

(2)Thisdevicemustacceptanyinterferencereceived,including interference

thatmaycauseundesired operation.

IMPORTANTNOTES

CLASS 1LASERPRODUCT

ThisproductcontainsalowpowerLaserDevice.

CAUTION

INVISIBLELASERRADIATION

WHENOPENANDINTERLOCKS

DEFEATED.

AVOIDEXPOSURETOBEAM

CLASS 1LASERPRODUCT

APPAREILÁLASERDECLASSE 1

PRODUCTOLASERDECLASE 1

•Avoidinstalling thisunitinplaces

exposed todirectsunlightorcloseto

heatradiating appliancessuchas

electricheaters,on top ofotherstereo

equipmentthatradiatestoo much

heat, placeslacking ventilation or

dustyareas,placessubjecttoconstant

vibration and/orhumidormoistareas.

•Operatecontrolsand switchesas

described inthe manual.

•Beforeturning ‘On’the power,make

certainthatthe powercordisproperly

installed.When moving the set, be

suretofirstdisconnectthepowercord.

•StoreyourCDs,inacoolarea toavoid

damage fromheat.

CKD2300_060305.p65 3/6/2005, 11:043

PREPARATIONFORUSE

Unpacking and Set Up

• Carefullyremovethe unit from thedisplay carton. Remove allthepacking material

from the unit and remove any small strips of tape that may have been used to

prevent the CD door from opening in transit.

• Unwind theAC power cord and extend it to its full length.

• Unwind the FM antenna wire and extend it to its full length.

• This unit was shipped with a dummy CD transit card in the CD player. This

dummy CD prevents the laser pick up from moving during shipment. This card

must be removed before you can insert your own CDs. Open the CD door,

remove the transit card and discard it.

• Place the unit on a flat, level surface such as a table, desk, counter, shelf, etc,

convenient to a 120V 60 Hz AC outlet, out of direct sunlight, and away from

sources of excess heat, dust, moisture, or strong magnet fields.

Battery Back Up System

This model includes a battery back up circuit that will maintain the clock and alarm

settings in the event of a temporary power interruption. The battery back up system

requires one 9-Volt battery, not included. The battery compartment is located on

the bottom of the cabinet.

1.) Press the battery door-locking tab in the direction of the arrow and remove the

battery door.

CKD2300_060305.p65 3/6/2005, 11:044

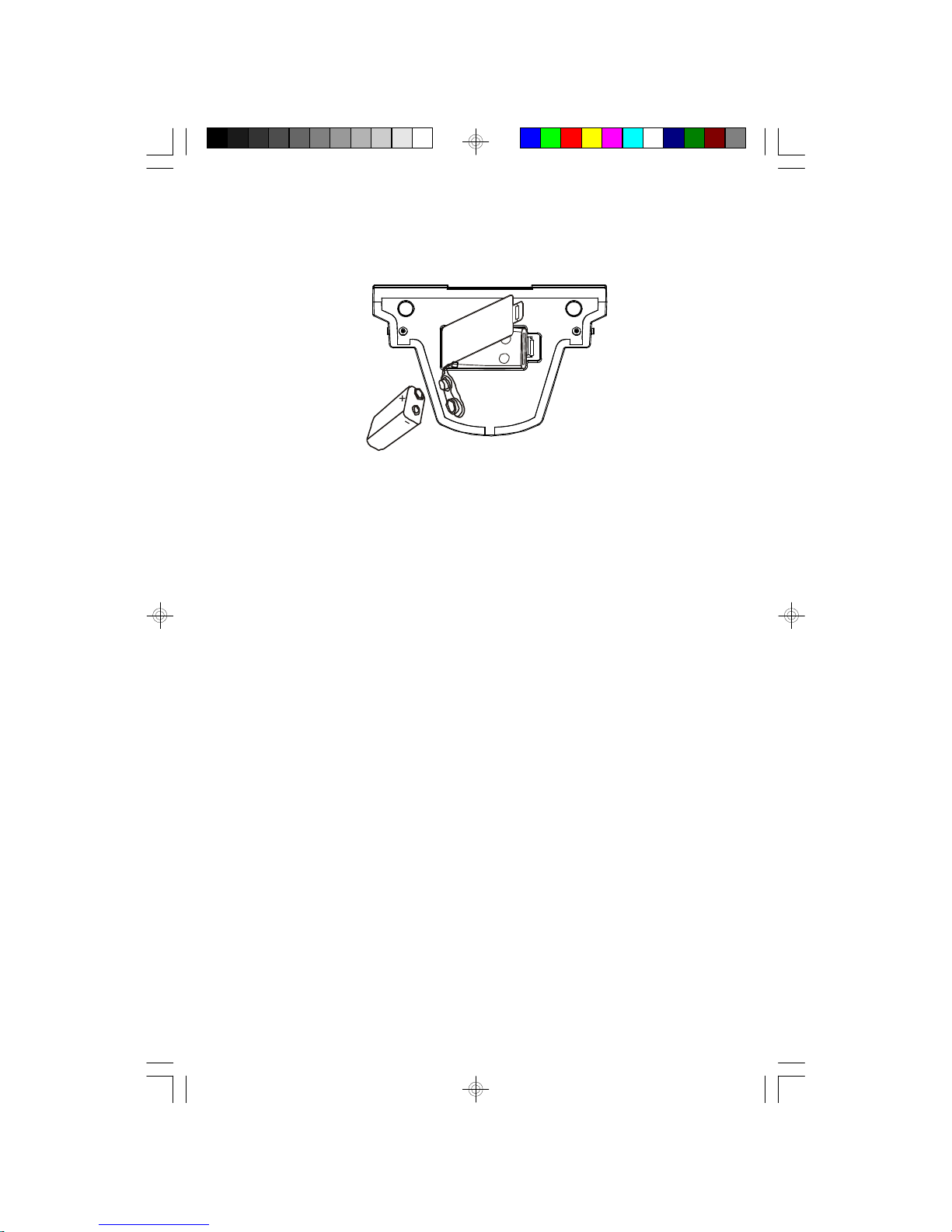

2.) Connect a fresh 9-Volt alkaline battery to the battery terminal in the battery

compartment. It can only be connected one way.

3.) Replace the battery door.

If the power is interrupted the display will go ‘Off’ and the radio will not work. However

the battery will maintain the clock and alarm settings in memory. When the power

is restored the display will come on again and the clock and alarm settings will be

correct.

The life of the back up battery will depend on the frequency and length of the

power interruptions that you experience.

For best results we suggest you install a fresh battery every 9 to 12 months.Always

use a well-known brand of alkaline battery.

CKD2300_060305.p65 3/6/2005, 11:045

AC Plug

AC Outlet

Power Source

This radio is designed to operate on 120V 60Hz AC only. Attempting to operate

this radio on any other power source could cause damage to the unit and such

damage is not covered by your warranty.

Make sure the radio is connected to an AC outlet that is always “live”. Do not

connect the radio to an outlet that is controlled by a wall switch.

Note:The systemhaspolarized ACplug withone wide blade and one narrow

blade.The plug will onlyfitintomatching polarized ACoutlets.

Thisisasafetyfeaturetoreducethe possibilityofelectricshock.If the plug will not

fitinyourACoutlet, you probablyhavean outdated non-polarized outlet. You should

haveyouroutdated outletchanged byaqualified,licensed electrician.

Donotfilethe wide blade on the plug,or

usean adaptertomakethe plug fitinto

youroutlet. Thisdefeatsthe safety

featureand couldexposeyou toelectric

shock.

Protect Your Furniture

Thismodelisequipped withnon-skidrubber'feet'topreventthe productfrom

moving when you operatethe controls.These'feet'aremade fromnon-migrating

rubbermaterialspeciallyformulated toavoidleaving anymarks orstainson your

furniture.Howevercertaintypesofoil based furniturepolishes,wood preservatives,

orcleaning sprays maycausethe rubber'feet'tosoften,and leavemarks ora

rubberresidue on the furniture.Topreventanydamage toyourfurniturewestrongly

recommend thatyou purchasesmall self-adhesivefeltpads,availableathardware

storesand homeimprovementcenterseverywhere,and applythesepadstothe

bottomofthe rubber'feet'beforeyou placethe producton fine wooden furniture.

CKD2300_060305.p65 3/6/2005, 11:046

LOCATIONOFCONTROLSAND INDICATORS

21 22 23 24 25 26

FrontPanel

713

1.)Speakers.

2.)POWER‘On/Off’Button.

3.)STOPButton.

4.)PLAY/PAUSE Button.

5.)REPEATButton.

6.)RANDOMButton.

7.)AL1‘On’Indicator.

8.)PMIndicator.

9.)CD compartment.

10.)CDDoorOPEN/CLOSE Area.

11.)SNOOZEButton.

12.)LEDDisplay.

13.)AL2‘On’Indicator.

14.)SLEEP Button.

15.)CD DISPLAYButton.

16.)PROGRAMButton.

17.)CLOCK SETButton.

18.)SKIP/SEARCH-HOUR Button.

19.)SKIP/SEARCH-MIN.Button.

20.)Tuning Dialpointer.

21.)SLEEP Indicator.

22.)POWER‘On’Indicator.

23.)REPEATIndicator.

24.)PROGRAMIndicator.

25.)RANDOMIndicator.

26.)FMST.Indicator.

CKD2300_060305.p65 3/6/2005, 11:047

29 30

27 32

35 33

Left SidePanelRightSidePanel

27.)VOL.(Volume)Control.

28.)ALARM2(SET-ON-OFF)SelectorSwitch.

29.)ALARM1(SET-ON-OFF)SelectorSwitch.

30.)BUZZ-CD-RADIOSelectorSwitch.

31.)FMST.-FM-AMSelectorSwitch.

32.)TUNINGControl.

33.)ACPowerCord.

34.)Back UpBatteryCompartment(BottomCabinet).

35.)FMWireAntenna.

CKD2300_060305.p65 3/6/2005, 11:048

•Make sure you have installed the back-up battery in the battery

compartment.

•Make sure you have extended the AC power cord and the FM antenna

wire to their full lengths.

•Connect the AC power cord plug to a 120V 60Hz AC outlet.

Setting The Clock

When the radio is connected to the AC outlet for the first time “12:00” (AM) will

flash in the display.

1.) First depress and hold the CLOCK SET button and then press the SKIP/

SEARCH / HOUR button to set the clock to the correct hour, AM or PM. If

the PM indicator is ‘Off’ the time displayed is AM.

2.) Continue to depress the CLOCK SET button and then depress the SKIP/

SEARCH / MIN. button to adjust the display to the correct minute.

3.) When the correct time appears on the display release all the buttons. The

clock begins to run.

OPERATINGINSTRUCTIONS

AL 1

AL 2

AL 1

AL 2

CKD2300_060305.p65 3/6/2005, 11:049

Inhaltsverzeichnis

Andere Emerson Radiowecker Handbücher

Emerson

Emerson girlpower GP808 Bedienungsanleitung

Emerson

Emerson cK5027 Bedienungsanleitung

Emerson

Emerson SmartSet CKS1900 Bedienungsanleitung

Emerson

Emerson CK5052 Bedienungsanleitung

Emerson

Emerson RET23 Bedienungsanleitung

Emerson

Emerson CK5051 Bedienungsanleitung

Emerson

Emerson CK5250 Bedienungsanleitung

Emerson

Emerson CK5029 Bedienungsanleitung

Emerson

Emerson CK5038 Bedienungsanleitung

Emerson

Emerson SmartSet ER100202 Bedienungsanleitung

Emerson

Emerson CKS2288 Bedienungsanleitung

Emerson

Emerson CKS3038S Bedienungsanleitung

Emerson

Emerson CK7330 Bedienungsanleitung

Emerson

Emerson Research SmartSet iC172 Bedienungsanleitung

Emerson

Emerson RET66TQ Bedienungsanleitung

Emerson

Emerson CK5028 Bedienungsanleitung

Emerson

Emerson Research AC100 Bedienungsanleitung

Emerson

Emerson CK5888 Bedienungsanleitung

Emerson

Emerson Barbie Story Teller BAR805 Bedienungsanleitung

Emerson

Emerson CKD1100, CKD1100BL, CKD1100GN, Bedienungsanleitung

Emerson

Emerson CK5859 Bedienungsanleitung

Emerson

Emerson SpongeBob Squarepants SB816 Bedienungsanleitung

Emerson

Emerson SMARTSET CKS1708 Bedienungsanleitung

Emerson

Emerson Research CKA1100 Bedienungsanleitung

Beliebte Radiowecker Handbücher anderer Marken

Denver

Denver CRQ-105 Bedienungsanleitung

Audiovox

Audiovox CE90 Bedienungsanleitung

Sony

Sony Dream Machine ICF-C763L Bedienungsanleitung

Sanyo

Sanyo DMP-P6 Bedienungsanleitung

RCA

RCA RPC100 Bedienungsanleitung

Yamaha

Yamaha ISX-80 Bedienungsanleitung

Pyle

Pyle PLMR20W Bedienungsanleitung

Blaupunkt

Blaupunkt CR7BK Bedienungsanleitung

Philips

Philips AJ3180 Bedienungsanleitung

HoMedics

HoMedics SS-5500-2EU Bedienungsanleitung

RCA

RCA RC66i Bedienungsanleitung

Versaudio

Versaudio Vers Bedienungsanleitung

SOUNDMASTER

SOUNDMASTER UR8100 Bedienungsanleitung

Audiovox

Audiovox CE90 Bedienungsanleitung

Jensen Audio

Jensen Audio JCR-222 - AM/FM Projection Alarm Clock Radio Bedienungsanleitung

Roberts

Roberts ChronoDAB Bedienungsanleitung

AEG

AEG MRC 4132 BT Bedienungsanleitung

Tokai

Tokai TC-155 Bedienungsanleitung
