Empire Comfort Systems LS48THF-1 Kurzanleitung

LOG SET FOR USE WITH

DIRECT VENT FIREPLACE

MODELS:

DVLL48BP92(N,P)-1

WARNING: If not installed, operated and maintained

in accordance with the manufacturer's instructions,

this product could expose you to substances in fuel

or from fuel combustion which can cause death or

serious illness.

INSTALLER: Leave this manual with the appliance.

CONSUMER: Retain this manual for future

reference.

GAS-FIRED

INSTALLATION INSTRUCTIONS

AND

OWNER’S MANUAL

LS48THF-1

LOGS AND ROCKS SET

WARNINGS

If the information in this manual is not followed

exactly, a re or explosion may result causing

property damage, personal injury or loss of life.

– Do not store or use gasoline or other ammable

vapors and liquids in the vicinity of this or any

other appliance.

– Installation and service must be performed by

a qualied installer, service agency or the gas

supplier.

WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use

any phone in your building.

• Immediately call your gas supplier from

neighbor’s phone. Follow the gas supplier’s

instructions.

• If you cannot reach your gas supplier, call the

re department.

This decorative media set includes an unusual

assortment of logs and rocks in varying textures

and colors to complement your linear replace -

plus stainless steel coils to add a unique air.

For ease of installation, unpack all pieces and lay

out so that any identifying letters are visible.

Page 1

36474-0-0316Page 2

TABLE OF CONTENTS

Important Installation Guidelines..............................................................................3

General Information .................................................................................................3

Rock Identication....................................................................................................4

Log Identication ......................................................................................................5

Rock and Log Placement ..................................................................................6 - 22

Master Parts Distributor List...................................................................................23

How To Order Repair Parts ....................................................................................23

SECTION PAGE

HARDWARE PACK

R12061 (QUANTITY 12)

8-32 X 3/4”

PH PN HD SCREW

R8234 (QUANTITY 12)

1/4” OD X 9/16”SPACER

Note: For the LS48THF Logs and Rock set, only (8) each of the above screws and spacers will be

used.

36474-0-0316 Page 3

Before You Begin

It is recommended that prior to installing the LS48THF Logs and

Rock Kit, test re the replace to make sure it is operational.

Proper Log Placement

Log placement is critical to proper burner performance. Logs

must be correctly positioned. The photos in this manual show

the proper pinned position for logs and rocks on this set. Owners

need to be shown proper log and rock placement and instructed

not to move the logs and rocks.

Logs and rocks must t rmly onto the locating pins when

positioned as shown in the photos. Malformed logs, rocks, or logs

with sloppy pin holes must be replaced.

Proper Placement of Crushed Glass Media

This replace is designed to use one layer deep of crushed glass

media on the burner. The maximum amount of crushed glass

media on the burner screen should not exceed 2-1/2 lbs. An

additional 5 lbs. of crushed glass media maybe spread out over

the burner cover and accent light glass panels.

It is recommended that prior to placing the rocks and logs, add

the single layer of crushed glass on the burner screen after only.

Then the remainder of crushed glass media be added after the

log and rock set has been properly installed.

Qualied Installing Agency

Installation and replacement of gas piping, gas utilization

equipment or accessories and repair and servicing of

equipment shall be performed only by a qualied agency.

The term "qualied agency" means any individual, rm,

corporation, or company that either in person or through

a representative is engaged in and is responsible for (a)

the installation, testing, or replacement of gas piping or

(b) the connection, installation, testing, repair, or servicing

of equipment; that is experienced in such work; that

is familiar with all precautions required, and that has

complied with all the requirements of the authority having

jurisdiction.

The installation must conform with local codes or, in the

absence of local codes, with the National Fuel Gas Code,

ANSI Z223.1/NFPA54.*

*Available from the American National Standards Institute, Inc. 11 West

42nd St., New York, N.Y. 10018.

IMPORTANT INSTALLATION GUIDELINES

GENERAL INFORMATION

CAUTION: Do not place crushed glass around the pilot

assembly. Crushed glass must be placed on the burner screen

in a single layer. Additional crushed glass may be placed on

the barrier cover areas away from the barrier screen. See

complete installation section on page 22.

Make Owners Aware of Proper Log Set Operation

Properly installed and properly maintained log sets do not deposit

soot on the logs. If users see soot appear on a log, call for

service. Do not continue to operate the replace.

State of Massachusetts: The installation must be made

by a licensed plumber or gas tter in the Commonwealth

of Massachusetts.

Sellers of unvented propane or natural gas-red supple-

mental room heaters shall provide to each purchaser a

copy of 527 CMR 30 upon sale of the unit.

Appliance Certication

This logset is design certied in accordance with American

National Standard/CSA Standard ANSI Z21.88/CSA 2.33 and

by Underwriters Laboratories for use with a Direct Vent Gas

Fireplace Heater and shall be installed according to these

instructions.

36474-0-0316Page 4

ROCK IDENTIFICATION

TOP VIEW FRONT VIEW DESCRIPTION &

PART NUMBER

Rock A

35777

Rock B

35778

Rock E

35781

Rock F

35782

Rock G

35783

Rock H

35784

Rock I

35785

Rock J

35786

36474-0-0316 Page 5

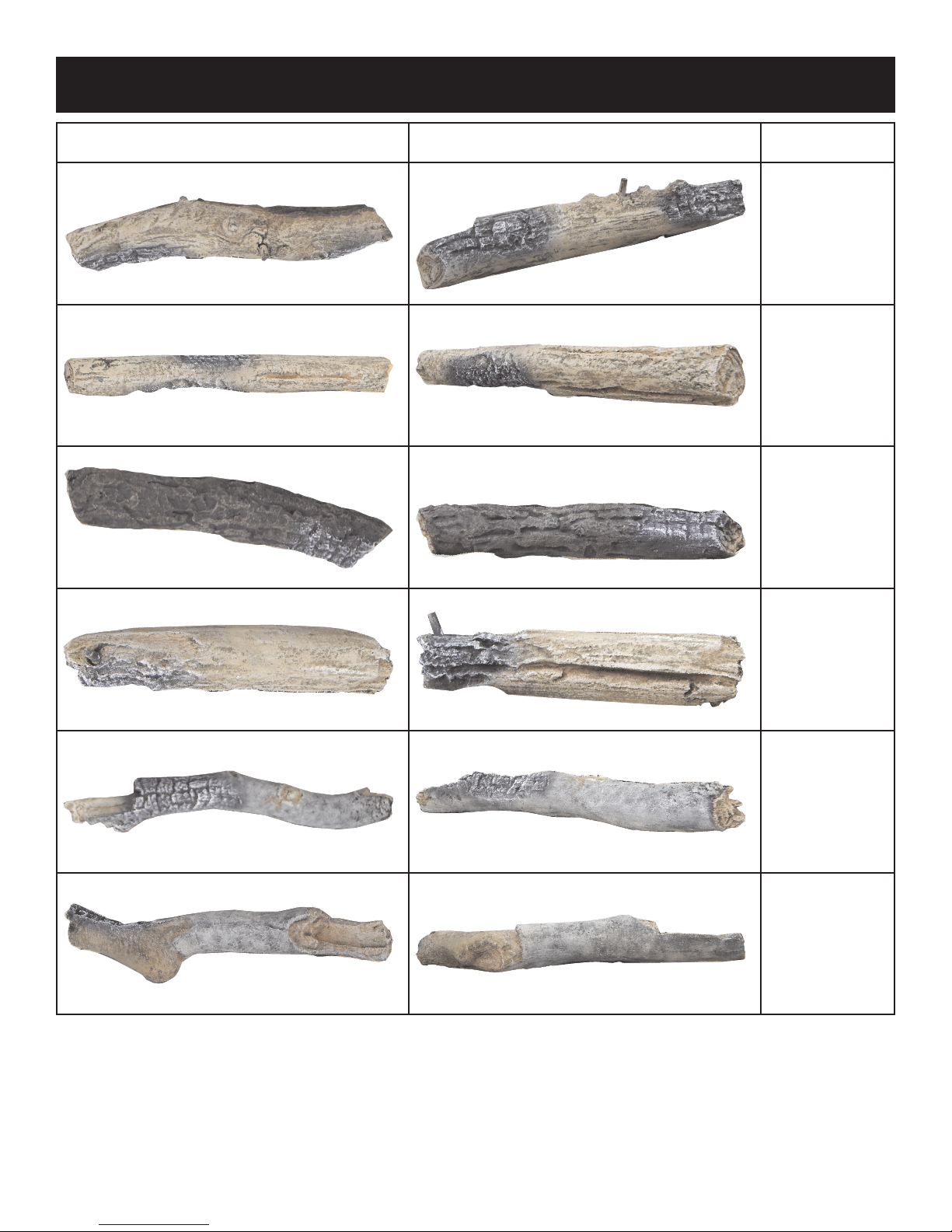

LOG IDENTIFICATION

TOP VIEW FRONT VIEW DESCRIPTION &

PART NUMBER

Log L

35788

Log M

35789

Log N

35790

Log O

35791

Log P

35792

Log Q

35793

36474-0-0316Page 6

Tools Needed:

Protective Gloves

Phillips Screw Driver or Power Drill with Phillips Drive

Before you begin: Do not, handle these logs with your bare

hands! Always wear gloves to prevent skin irritation. After

handling logs, wash your hands gently with soap and water.

All Logs

The positioning of the logs is critical to the safe and clean

operation of this heater. Sooting and other problems may result if

the logs are not properly and rmly positioned in the appliance.

Refer to Figure 1 for the following warning.

Warning: Failure to position the parts in accordance with this

diagram or failure to use only parts specically approved with

this appliance may result in property damage or personal injury.

Attention: Refer to Pages 4 and 5 Parts List and Parts View to

order logs or rocks.

ROCK AND LOG PLACEMENT

NOTE: Once the installation is complete with the logs, rocks,

and crushed glass media in place, operate the replace to verify

ame appearance. If there are ames directly impinging a log,

turn off replace, then remove the crushed glass media directly

below where the ame impingement occurred. This should

eliminate sooting on the log, and provide a more pleasing ame

appearance.

Installation of the Pins for Log and Rock Placement

The LS48THF Log and Rock Hardware kit includes twelve

8-32x3/4" long self-threading screws, and twelve 9/16" long

spacers. For this log and rock set, only eight screws and spacers

are needed. Install the screws and spacers prior to the log and

rock placement.

Note: It is highly recommended that the replace liner be installed

prior to installing the log and rock spacers so interference with

the locator pins is avoided.

Use a power drill with a Phillips drive to install the screws through

a spacer at each of the eight pilot hole locations provided in the

burner cover. See Figure 1. These will be the locator pins for the

logs and rocks.

Note: If the replace includes the accent light glass panels,

please remove the glass panels prior to installing the Logs and

Rock screws and spacers. Replace the glass panels after the

spacers are installed.

Rock and Log Placement - Figure 1

36474-0-0316 Page 7

1. Place Rock A onto Burner Pins 1 and 2.

ROCK AND LOG PLACEMENT

TOP VIEW

FRONT VIEW

12345

Burner Pin Locations

36474-0-0316Page 8

2. Place Rock J onto Burner Pin 3.

ROCK AND LOG PLACEMENT

TOP VIEW

FRONT VIEW

36474-0-0316 Page 9

3. Place Rock E onto Burner Pin 4.

ROCK AND LOG PLACEMENT

TOP VIEW

FRONT VIEW

12345

Burner Pin Locations

36474-0-0316Page 10

4. Place Rock F between Burner Pins 6 and 7. Do not place the rock over the burner screen. See image below for proper placement.

ROCK AND LOG PLACEMENT

TOP VIEW

FRONT VIEW
