Empire Comfort Systems DCA1ABL-1 Bedienungsanleitung

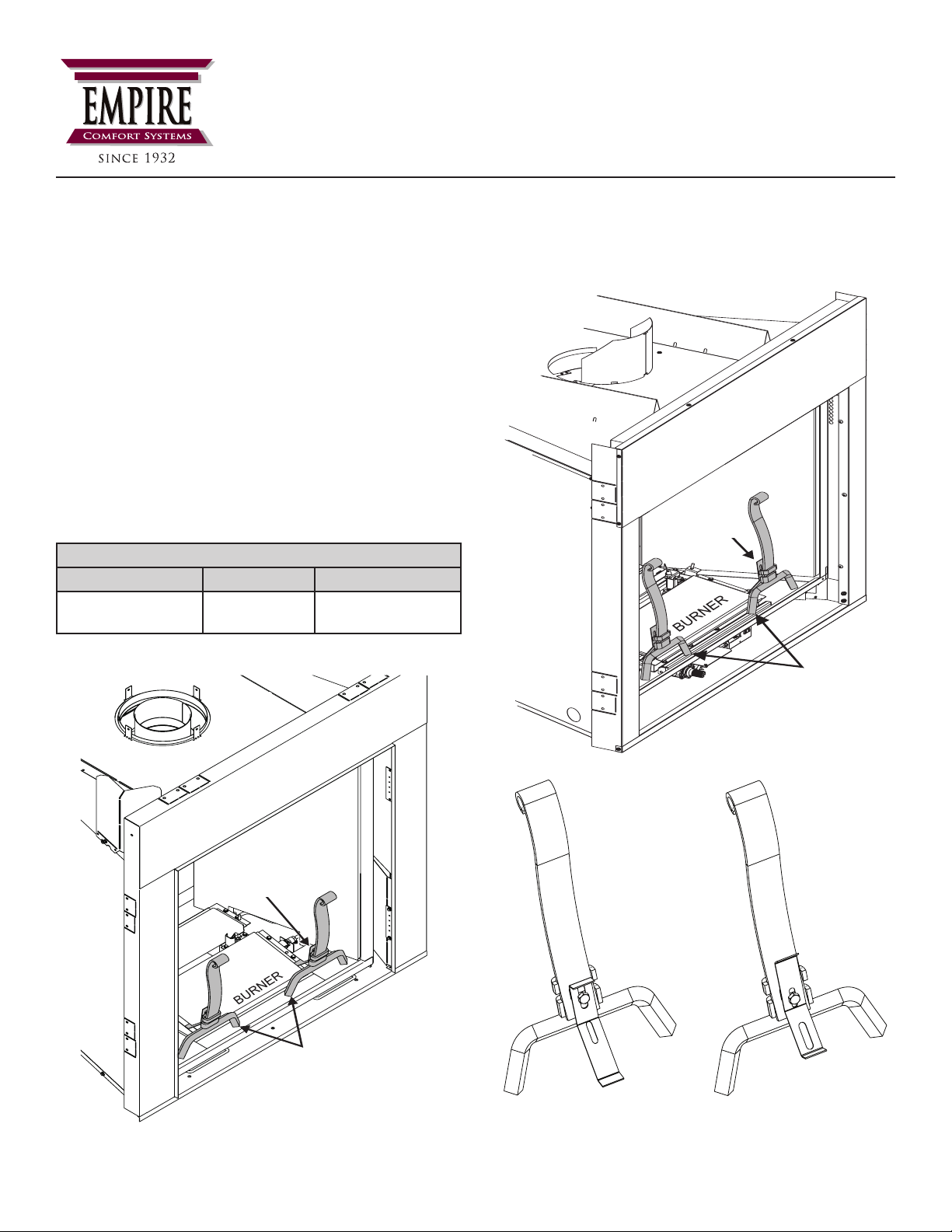

34498-3-0819 Page 1

1. Remove Offset Frame and Glass Frame assembly.

See Fireplace Installation Instructions.

(A)DVCX models only: Remove control panel.

See Fireplace installation instructions.

2. Adjust bracket to correct position depending on unit you

have. See Figure 3 below.

3. Place Andirons into Firebox.

• TheAndiron“legs”mustsitonthereboxoor,brick,

emberbed,stone,orsheetmetalliners.

• TheRearBracketofeachAndironmustrestuponthe

leftorrightedgeoftheBurner.

• Ifnecessary,adjusttheheightoftheRearBracketby

loosening the nut on the back side. Use a 7/16-inch

wrench or socket.

4. Replace items removed in Step 1. See Fireplace Installation

Instructions.

DCA1ABL-1 PARTS LIST

Part Number Description Quantity Supplied

33971 Andiron

Assembly 2

(A) DVTL FIREPLACE

Figure 1

NOTE: Logs and embers removed for clarity.

INSTALLATION INSTRUCTIONS

DCA1ABL-1 ANDIRONS

INSTRUCTIONS MUST BE LEFT WITH THE OWNER FOR FUTURE REFERENCE AFTER INSTALLATION.

FOR USE ON: (A)DVTL27FP90, (A)DVCX FIREPLACES, DVCT(36,40,50)CFP95, AND DVCT40CSP

(A) DVCX FIREPLACE

Figure 2

POSITION A

POSITION B

POSITION (A)

For All Other Units

POSITION A

POSITION B

POSITION (B)

ForSee-Thru

Figure 3

ANDIRONS

ANDIRONS

REAR

BRACKET

REAR

BRACKET

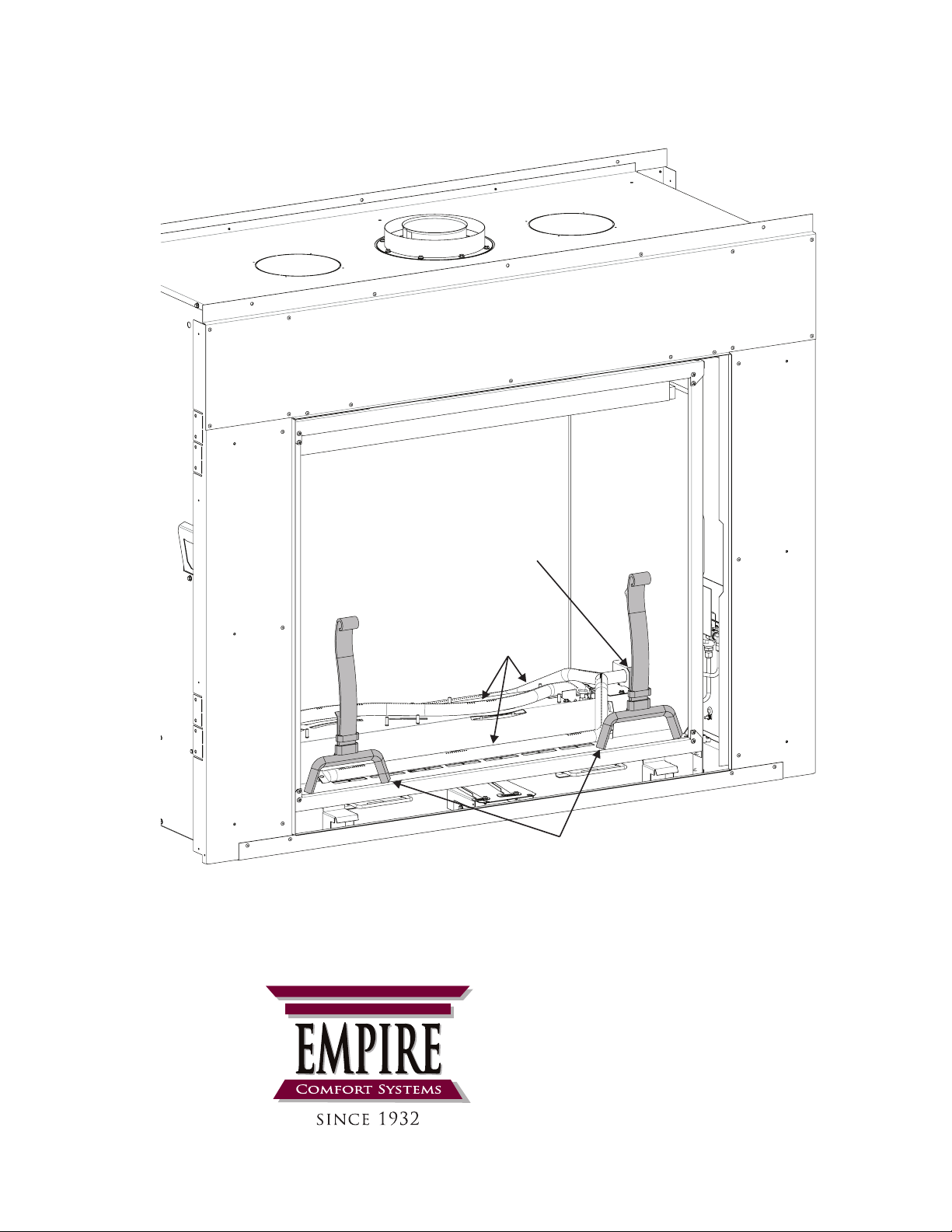

34498-3-0819Page 2

REAR BRACKET

BURNERS

ANDIRONS

NOTE: Logs and embers removed for clarity.

DVCT(36,40,50) FIREPLACE

www.empirecomfort.com

Empire Comfort Systems Inc.

Belleville, IL

If you have a general question

aboutourproducts,pleasee-mail

us at [email protected].

If you have a service or repair

question,pleasecontactyourdealer.
