ENCAD 212528-05 Bedienungsanleitung

NovaJet®500/630/700 Series

Printer Quick Start Guide

P/N 212528-05 Rev. AA

(Text P/N 212529-1 Rev. H

ENCAD®, NovaJet®, CADJET®, NovaXsell™, Posterizer™, Vivid Extend™

(VX), Graphic Extended™ (GX), Graphic Standard Plus™ (GS Plus) and

Graphic Outdoor Matched System™ (GO) are trademarks of ENCAD,

Inc.

Other trademarks and registered trademarks are the property of their

respective owners.

No part of this manual may be copied or distributed, transmitted,

transcribed, stored in a retrieval system, or translated in any human or

computing language, in any form or by any means, electronic,

mechanical, magnetic or otherwise, or disclosed to a third party without

the express written permission of: ENCAD, Inc., 6059 Cornerstone Court

West, San Diego, CA 92121, U.S.A.

Revision History

Rev. A April 1999

Rev. B May 1999

Rev. C June 1999

Rev. D August 1999

Rev. E March 2001

Rev. F March 2001

Rev. G June 2001

Rev. H July 2001

ENGLISH

NovaJet 500/630/700 Series Printer Quick Start Guide

Other reference materials

In addition to this guide, the following additional documentation is included with your

printer:

NovaJet System CD-ROM - the system CD-ROM contains:

• Printer Reference Guide, which provides complete reference information regarding

the printer's options;

• Quality Primer, a guide to help you get high-quality output from your NovaJet

printer;

• HP-GL/2 Guide, provides reference information regarding the HP-GL/2 features of

your printer.

• Maintenance Guide, instructions for maintaining your NovaJet printer;

• Sample print files;

• Windows 95/98/ME/NT/2000 drivers*; and

• other software.

* Note that the NovaJet 500 and 700 Windows drivers on the System CD are series

drivers. The NovaJet 500 driver also supports the NovaJet 505. The NovaJet 700

driver also supports the NovaJet 750.

ENGLISH

NovaJet 500/630/700 Series Printer Quick Start Guide

NovaJet Printer Models ............................................................................. 5

Unpacking your printer ............................................................................. 5

Assembling the printer stand .................................................................... 6

Assembling the dryer on the NovaJet 500, 505, 630 and 700 .................... 8

Assembling the dryer on the NovaJet 750 ............................................... 10

Removing protective shipping material .................................................... 12

Connecting power and your computer ..................................................... 12

Using the control panel ........................................................................... 12

Choosing menu functions ....................................................................... 13

Setting the language .............................................................................. 13

Loading media ........................................................................................ 14

Using the second feed roll ...................................................................... 16

Using the optional takeup roll ................................................................. 17

Moving the carriage ................................................................................ 19

Installing the cutter ................................................................................. 19

Filling the ink reservoirs .......................................................................... 20

Inspecting the ink cartridges ................................................................... 21

Installing the 500 series ink cartridges .................................................... 21

Priming the 500 series ink delivery lines ................................................. 23

Installing the 630/700 series ink cartridges ............................................. 26

Installing needle assemblies and priming the 630/700 ink delivery lines .. 27

Installing needle assemblies and priming the NovaJet 736 or 750 ink

delivery lines .................................................................................... 31

Printing the color test ............................................................................ 35

Printing the prime pattern ....................................................................... 36

Clogged jets ........................................................................................... 37

Aligning the ink cartridges ...................................................................... 38

Paper axis calibration ............................................................................. 41

Cartridge recognition .............................................................................. 41

Pausing the printer ................................................................................. 42

Canceling a print .................................................................................... 42

Registering your printer .......................................................................... 42

Contents

NovaJet 500/630/700 Series Printer Quick Start Guide

This page is intentionally blank.

ENGLISH

NovaJet 500/630/700 Series Printer Quick Start Guide

Quick Start

Congratulations on your purchase of a NovaJet wide format color printer. This

guide gives you details on the following:

• unpacking and assembling the printer

• loading media

• filling ink reservoirs

• installing ink cartridges

• installing the media cutter

• testing ink cartridges

NovaJet Printer Models

This manual provides instructions for the NovaJet 500, 630 and 700 series

printers. There may be more than one printer model in each series. When the

manual refers to the 500, 630 or 700 printer, it refers to all printer models within

that series. Any features or functionality unique to one printer model will be

noted. The NovaJet 700 Windows driver on the System CD is a 700 Series

driver that also supports the NovaJet 750. The following table lists the printer

models that are currently available.

NovaJet Printer Models

500 Series 630 Series 700 Series

NovaJet 500 NovaJet 630 NovaJet 700

NovaJet 505 NovaJet 736

NovaJet 750

Unpacking your printer

The printer is quite large and heavy. Two people (or a forklift) are recommended

to move the box. Before assembly, you may want to measure halls and elevators

to determine whether the unit should be assembled in the area where it will be

used.

NovaJet 500/630/700 Series Printer Quick Start Guide

Assembling the printer stand

1 Locate the box containing the printer head and turn it upside down.

Open and remove the Accessory box which contains the screws and

screwdriver to use for the next steps.

2 Open the box containing the stand and remove the stand and feet

from the box.

3 Note that each foot has two casters, only one of which locks. Attach

the feet to the stand legs using the screwdriver and screws provided

in the setup box. Locate the casters so that they are diagonally

opposite each other. Lock the casters to prevent the stand from

rolling during subsequent assembly.

4 One of the stand legs has a connector on it. Pull the connector from

the access hole in the leg and remove the tiewrap holding the

connector in place. Attach the connector to the receptacle on the

bottom of the print head. Note: The NovaJet 736 does not include

the leg connector. Orient the stand legs so that the roll holder

brackets are facing the center of the printer head and align with the

holes in the bottom of the printer head. Attach both stand legs to the

printer head using the screwdriver and eight screws contained in the

Accessory box. Note: To help ensure that the legs seat properly,

attach screws snugly in opposite corners first. Then, when all

screws are in place, tighten them securely.

CAUTION: Be careful not to pinch the cable when attaching the leg.

Note: The NovaJet 736 and 750 printers will look slightly diffeent

from the printer in the following illustration. Also, the legs for your

printer may look slightly different.

ENGLISH

NovaJet 500/630/700 Series Printer Quick Start Guide

Foot

Stand Leg

Attach Connectors

Stand Leg to Printer Head

(Not Required on NovaJet 736)

5 Two persons are required to lift the printer. Remove the assembled

printer and stand from the box. Save the boxes and packing

materials in case you need to ship the printer.

6 Check to be sure that the media sensor is plugged in to the

connector on the right stand leg.

7 On the NovaJet 736, attache the left and right roll

guides to the back of the printer as shown. Turn

th thumbscrew (blue knob) to secure them in

position.

The NovaJet 505 and 736 does not include a takeup and

dryer system. Proceed to the section on Removing protec-

tive shipping material. For all other printers, continue with

the following sections to install the dryer system.

NovaJet 500/630/700 Series Printer Quick Start Guide

Assembling the dryer on the NovaJet 500, 505, 630 and 700

Use this section, if you ordered a takeup and dryer for the NovaJet 500, 505, 630

or 700. The following section will describe the installation of a takeup and dryer

system on the NovaJet 750.

1 Remove the wing nut and mount the dryer assembly in the slots

provided at the base of the stand. Be sure fans will blow upward and

toward the printer. Position the dryer assembly to the desired angle.

Replace and tighten the wing nut on the left side.

Set dr

er assembl

into

the slot on the bracket

ust to desired position

and tighten wing nut

2 Plug the dryer connector into the receptacle on the right stand leg.

Media

sensors

Dryer

connector

Sensor

connector

ENGLISH

NovaJet 500/630/700 Series Printer Quick Start Guide

3 Attach the clamp for the grounding strap to the right lower rear edge

of the dryer assembly bracket and tighten the thumbscrew securely

so that the paint is penetrated, ensuring a good ground.

Affix clamp to bottom

edge of bracket

and tighten thumbscrew

4 Check to be sure that the media sensor is plugged into the

connector on the right stand leg.

NovaJet 500/630/700 Series Printer Quick Start Guide

Assembling the dryer on the NovaJet 750

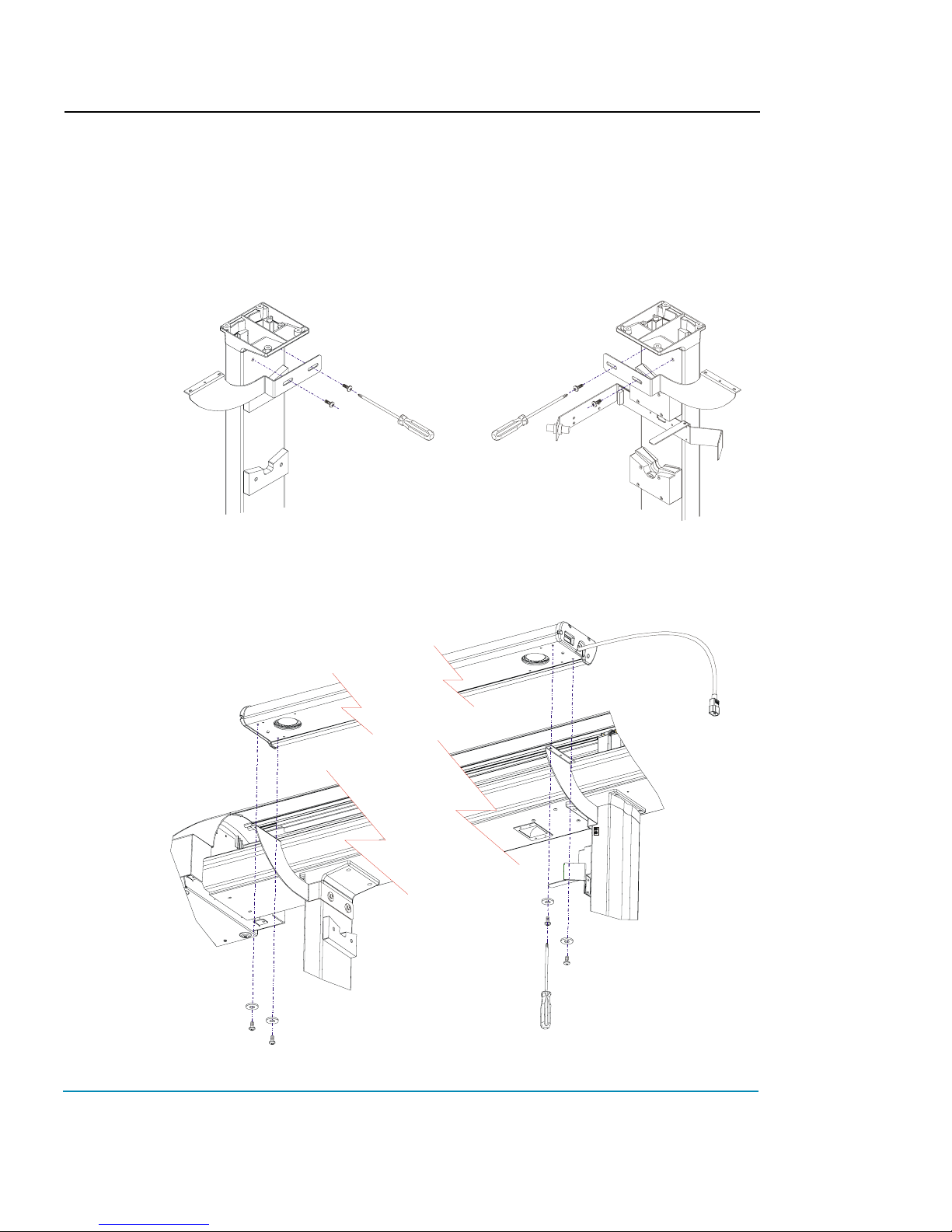

1 Attach the brackets for the dryer to the stand legs using four size 8-

32 screws. Orient the brackets as shown below. Note: The legs

are shown below without the printer head. Attach the dryer brackets

after the printer head as been attached and the assembled printer

removed from the packing box.

2 Place the dryer on top of the dryer brackets while aligning the guide

pins on the bottom of the dryer with the holes on the dryer brackets.

Secure using four size 8-32 screws.
