NovaJet800SeriesPrinterQuickStartGuide
2
Other reference materials
In addition to this guide, the following additional documentation is included with your
printer:
SystemCD-ROM- contains:
•Printer Reference Guide, which provides complete reference information regarding
the printer's options;
•Maintenance Guide, instructions for maintaining your printer;
•Graphic Troubleshooting Guide;
•Print Quality Guide;
•Windows Drivers;
•Print Server Software; and
•utility software.
ENGLISH
NovaJet 800 Series Printer Quick Start Guide
3
Contents
Unpackingyour printer...............................................................................5
Assemblingthe printer...............................................................................6
Removingprotective shippingmaterial .....................................................13
Connectingpower ....................................................................................14
Using the control panel ............................................................................14
Choosingmenu functions ........................................................................15
Settingthe language................................................................................15
Loadingmedia .........................................................................................15
Loadingmedia on theNovaJet880 ..........................................................18
Printing rigid media ..................................................................................20
Using the second feed roll .......................................................................23
Using the takeup roll................................................................................23
Movingthe carriage..................................................................................25
Installing the cutter ..................................................................................25
Cartridgesets ..........................................................................................26
Fillingtheinkreservoirs ...........................................................................27
Inspecting the ink cartridges....................................................................28
Installingink cartridges ............................................................................29
Priming the ink delivery lines ...................................................................31
Printing the color test ..............................................................................35
Printingtheprimepattern ........................................................................36
Cloggedjets.............................................................................................38
Aligning the ink cartridges .......................................................................39
Paperaxis calibration ..............................................................................42
Cartridgerecognition................................................................................43
Connecting the printerto your computer ..................................................44
Pausingthe printer ..................................................................................45
Cancelingaprint......................................................................................45
NovaJet800SeriesPrinter QuickStartGuide
4
Thispage is intentionally blank.
ENGLISH
NovaJet 800 Series Printer Quick Start Guide
5
NovaJet Quick Start
Congratulations on your purchase of a NovaJet wide format color printer. This
guide gives you details on the following:
•unpacking and assembling the printer
•loadingmedia
•fillingink reservoirs
•installingink cartridges
•installing the media cutter
•primingink system
•cartridge alignment
If your printer is a NovaJet 880, it has an adjustable platen which provides the
capability of printing on almost any coated rigid media up to .5 inches thick.
The key to printing rigid media is the ability to get it flat enough for high-quality
inkjet printing. The kit includes special flattening rollers that attach to the back of
the printer. These rollers give you an insertion point for the rigid media and also
help to flatten the rigid media to provide a good surface for inkjet printing.
When printing rigid media in the standard NovaJet 880 configuration, the media
exits the printer over the top of the dyer. To give rigid media the drying capabili-
ties of the 800 series dryer, special hardware is included. This hardware allows
the dryer to be rotated upward to point down on the rigid media as it exits the
printer. This feature provides excellent dry time to lamination for rigid media.
Make sure you review this entire guide before starting the installation process.
Unpacking your printer
Your printer is shipped in three separate boxes. If your printer is a NovaJet 880,
you may have fourth box containing the Rigid Media Kit. The Rigid Media Kit
can be shipped as a separate box four or included in the same box as the printer
head. The printer and stand boxes are quite large and heavy. We recommend
you have two people (or a forklift) move these boxes. Before assembly, you may
want to measure halls and elevators to determine whether the unit should be
assembled in the area where it will be used.
NovaJet800SeriesPrinter QuickStartGuide
6
Assembling the printer
1Open the box containing the stand/takeup. Remove the entire
contents of this box and place nearby for easy access. In the same
box, locate the screws for use in subsequent steps. There are two
types of screws: 1) Sixteen size 10-24 screws to attach the feet to
the stand legs and the stand legs to the printer; and 2) Eight size 8-
32 screws to attach the dryer brackets to the stand legs and the
dryer to the dryer brackets. (The 10-24 screws are a larger diameter
than the 8-32 screws.)
2Attach the feet to the stand legs using eight of the size 10-24
screws. Note that each foot has two casters, only one of which
locks. Lock the casters to prevent the stand from rolling during
subsequent assembly.
3Locate the box containing the printer head. It should already be open
with the underside of the printer facing up.
4One of the stand legs has a connector in the center of the leg. (See
the following illustration.) Pull the connector from the access hole in
the leg and remove the tiewrap holding the connector in place.
Attach the connector to the receptacle on the bottom of the printer
head. Orient the stand legs so that the roll holder brackets are
facing the center of the printer head and align with the holes in the
bottom of the printer head. Attach both stand legs to the printer head
using eight of the size 10-24 screws. Note: To help ensure that the
legs seat properly on the printer head, attach screws snugly in
opposite corners first. Then, when all screws are in place, tighten
them securely.
ENGLISH
NovaJet 800 Series Printer Quick Start Guide
7
CAUTION: Be careful not to pinch the cable when attaching the
leg.
Attach connector from
stand leg to printer head
Stand leg
Foot
5We recommend two people lift the printer. Remove the assembled
printer and stand from the box. Save the boxes and packing
materials in case you need to ship the printer.
NovaJet800SeriesPrinter QuickStartGuide
8
6Check to make sure the media sensors are plugged into their
respective connectors on the right stand leg. If your printer is a
NovaJet 850, continue with step 7. If your printer is a NovaJet 880,
go to step 9.
7Attach the brackets for the dryer to the stand legs using four of the
size 8-32 screws. Orient the brackets as shown below. Note: The
legs are shown below without the printer head. Attach the dryer
brackets after the printer head as been attached and the assembled
printer removed from the packing box.
ENGLISH
NovaJet 800 Series Printer Quick Start Guide
9
8Place the dryer on top of the dryer brackets while aligning the
guide pins on the bottom of the dryer with the holes on the dryer
brackets. Secure using four of the size 8-32 screws.
9Locate the box containing the Rigid Media Kit. Remove the entire
contents and place nearby for easy access.
10 Attach the left and right dryer brackets to the stand legs,using four of
the size 8-32 screws. Orient the brackets as shown below with pull
pins at the top of the brackets facing towards the inside of the printer.
NovaJet800SeriesPrinter QuickStartGuide
10
Note: The dryer brackets have slots for the screw holes. Use these
slots to position the dryer further away from the printer when using
thick roll media.

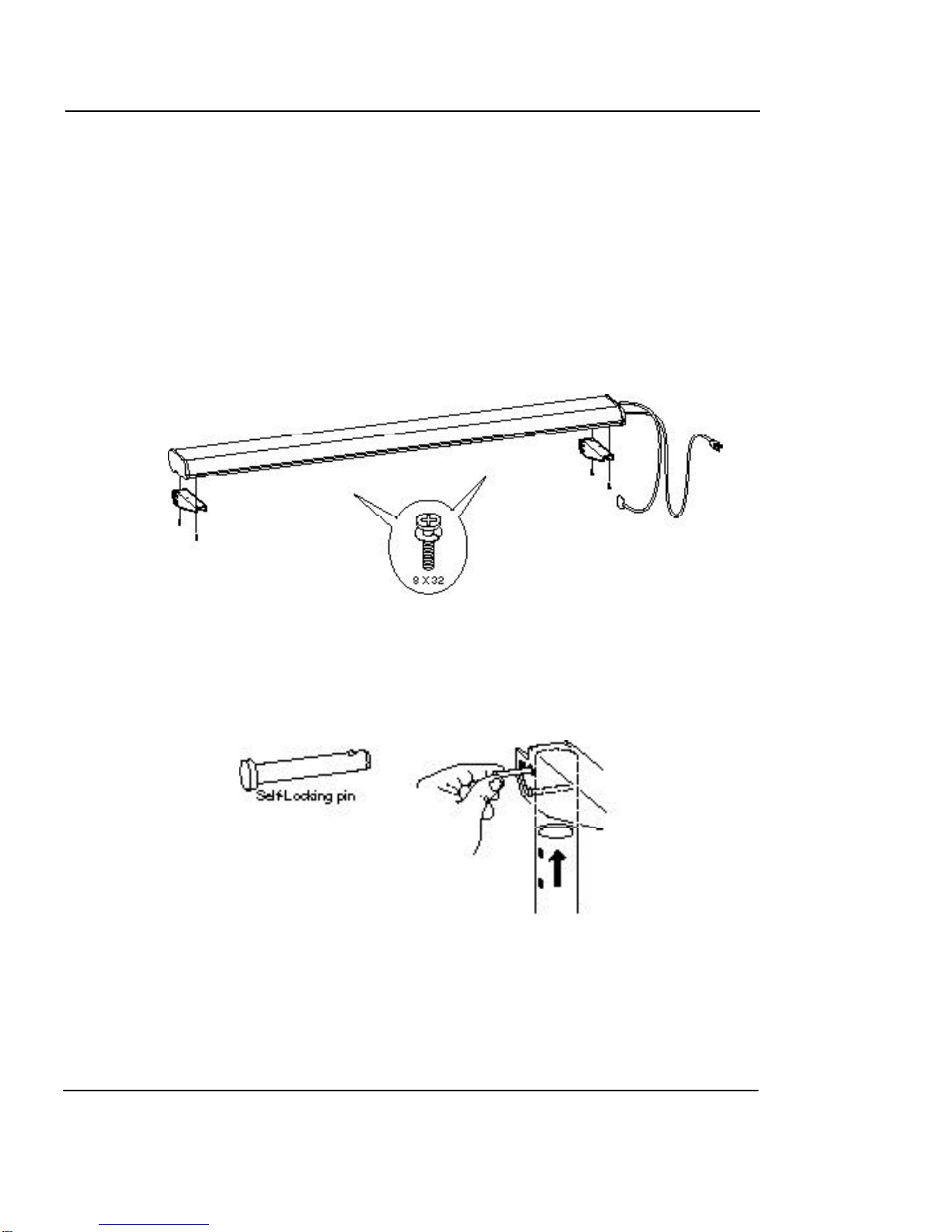

11 Locate the pivot brackets with attached risers. Remove the self-
locking pins securing the risers to the brackets. Place the self-
locking pins and risers nearby for installation in the next step.
12 Attach the two pivot brackets to the dryer using four of the size 8-32
screws. The small end of the sloping bracket should point away
from the printer.
13 Next, slide a riser into each of the pivot brackets. Align the two holes
on the riser with the two holes in the bracket. Secure with the two
self-locking pins on each bracket from the inside of the printer to the
outside.
