1 QUICK START GUIDE
Generally, we send devices pre-configured. If your devices are pre-configured by us, please go through
the user-friendly procedure to get started with your ER Beam system, which takes only a few minutes to
get the process rolling.
1 Power on Gateway and turn on its inbuilt Wi-Fi network.
2 Connect your Android phone to the ER Beam Wi-Fi network.
3 Connect the Android cable to the phone first using the OTG adapter.
4 Open the ER Beam Offline Android app.
5 Load the project and tap on it to go to the home screen of the app.

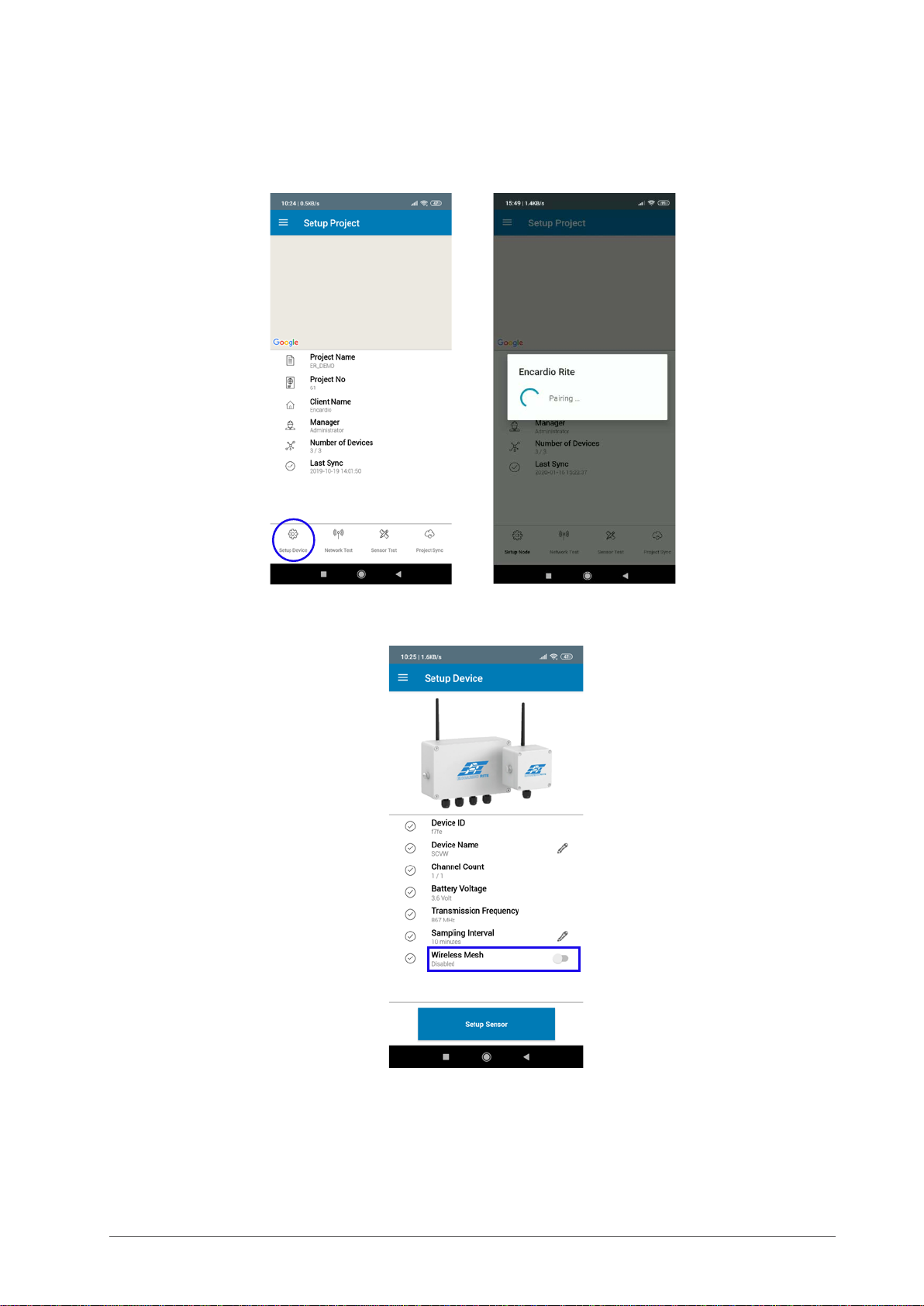

6 Then connect the Android cable's other end to the Node and click on Setup Device and follow the
wizard.
7 Repeat step 6 for all your Nodes.
8 Then press the Cloud Sync on the app to sync back all the Node settings to the gateway.
9 Now the Nodes will send the sensor data at the configured time intervals.
10 Optionally, the data can be exported and engineering conversions can be set using the Gateway
software.
