Encore ENUWI-2XN4x Bedienungsanleitung

Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.

All trademarks and brand names are the properties of their respective holders.

www.encore-usa.com

TABLE OF CONTENTS

CHAPTER 1: OVERVIEW ...................................................................... 3

1.1 PRODUCT OVERVIEW .......................................................... 3

1.2 LED INDICATOR .................................................................. 4

1.3 PACKAGE CONTENTS .......................................................... 4

1.4 SYSTEM REQUIREMENTS..................................................... 4

CHAPTER 2: INSTALLATION................................................................ 5

2.1 HARDWARE INSTALLATION ................................................... 5

2.2 SOFTWARE INSTALLATION.................................................... 6

2.2.1 Windows®7 and Windows Vista®..................................... 6

2.2.2 Windows®XP ................................................................... 9

2.3 REMOVING THE ENUWI-2XN4X OR ENUWI-1XN4X

SOFTWARE ....................................................................... 12

2.4 UPGRADING THE ENUWI-2XN4X OR ENUWI-1XN4X

SOFTWARE ....................................................................... 12

CHAPTER 3: CONNECTING TO WIRELESS NETWORKS IN

WINDOWS 7®................................................................. 13

CHAPTER 4: CONNECTING TO WIRELESS NETWORKS IN

WINDOWS VISTA®........................................................ 15

CHAPTER 5: CONNECTING TO WIRELESS NETWORKS IN

WINDOWS®XP.............................................................. 17

CHAPTER 6: TECHNICAL SUPPORT ................................................ 20

CHAPTER 7: WARRANTY INFORMATION......................................... 20

APPENDIX A. WIRELESS SECURITY OVERVIEW............................. 21

A1. WEP, WPAAND WPA2 COMPARISON ................................ 21

www.encore-usa.com

A2. WEP /WPA /WPA2 802.1X ............................................ 21

A3. ENABLING 802.1X IN WINDOWS®....................................... 22

APPENDIX B. USING ENCORE WIRELESS MANAGER IN WINDOWS

XP®................................................................................. 23

B1. STARTING ENCORE WIRELESS MANAGER........................... 23

B2. ENCORE WIRELESS MANAGER OVERVIEW ......................... 24

B3. MANUAL CONNECTION ...................................................... 26

B4. EASY CONNECTION WITH WPS ......................................... 27

B4.1. WPS — PBC (Push Button Configuration)..................... 28

B4.2. WPS — PIN (Personal Information Number)................. 29

B5. USING 802.1X.................................................................. 32

APPENDIX C. CONNECTING TO WIRELESS NETWORKS WITH

WIRELESS ZERO CONNECTION IN WINDOWS XP®.33

APPENDIX D. REGULATORY INFORMATION..................................... 35

D1. FEDERAL COMMUNICATION COMMISSION INTERFERENCE

STATEMENT ...................................................................... 35

D2. EUROPE –EU DECLARATION OF CONFORMITY ................... 36

APPENDIX E. SOFTWARE END USER LICENSE AGREEMENT....... 38

APPENDIX F. USER’S NOTICE............................................................ 40

Product specifications, size, and shape are subject to change without notice, and actual

product appearance may differ from that depicted herein.

All trademarks and brand names are the properties of their respective holders.

www.encore-usa.com

Chapter 1: Overview

Thank you for choosing Encore Electronics’ Wireless N300/N150 USB Adapter. With just a

few steps, you will be enjoying the convenience of wireless networking at the speed that is

much faster than the prior Wireless G technology. Place the laptop or desktop computer at

any place you want to avoid the hassle and unsightly view of wires. Moreover,

ENUWI-2XN4x and ENUWI-1XN4x support Wi-Fi Protected Access (WPA/WPA2) data

encryption to help protect your data and privacy.

With Encore Electronics’ Wireless N300/N150 USB Adapter, you can smoothly browse

websites, play games, stream video, make phone calls and download files over the

Internet. You also can easily share files with other users and access peripherals, such as

network drives, printers and cameras, in your home or office networks.

1.1 Product Overview

A. WPS Button

B. External Detachable Antennas*

C. Activity LED

D. USB 2.0 Connector

E. Antenna Connectors

Note:

*N300 Series come with two antennas and

N150 Series come with one antenna. The

antennas shown in the picture on the right

are 5dBi antennas. Adapters with other type

of antennas are also available.

www.encore-usa.com

1.2 LED Indicator

The Activity LED will be blinking when:

The adapter is scanning for available wireless networks.

The adapter is transferring and/or receiving data.

1.3 Package Contents

N300 Series (ENUWI-2XN4x)

Wireless N300 USB Adapter x 1

External Detachable Antennas*x 2

Quick Installation Guide x 1

Installation CD (User Manual on CD) x 1

N150 Series (ENUWI-1XN4x)

Wireless N150 USB Adapter x 1

External Detachable Antenna*x 1

Quick Installation Guide x 1

Installation CD (User Manual on CD) x 1

Note:

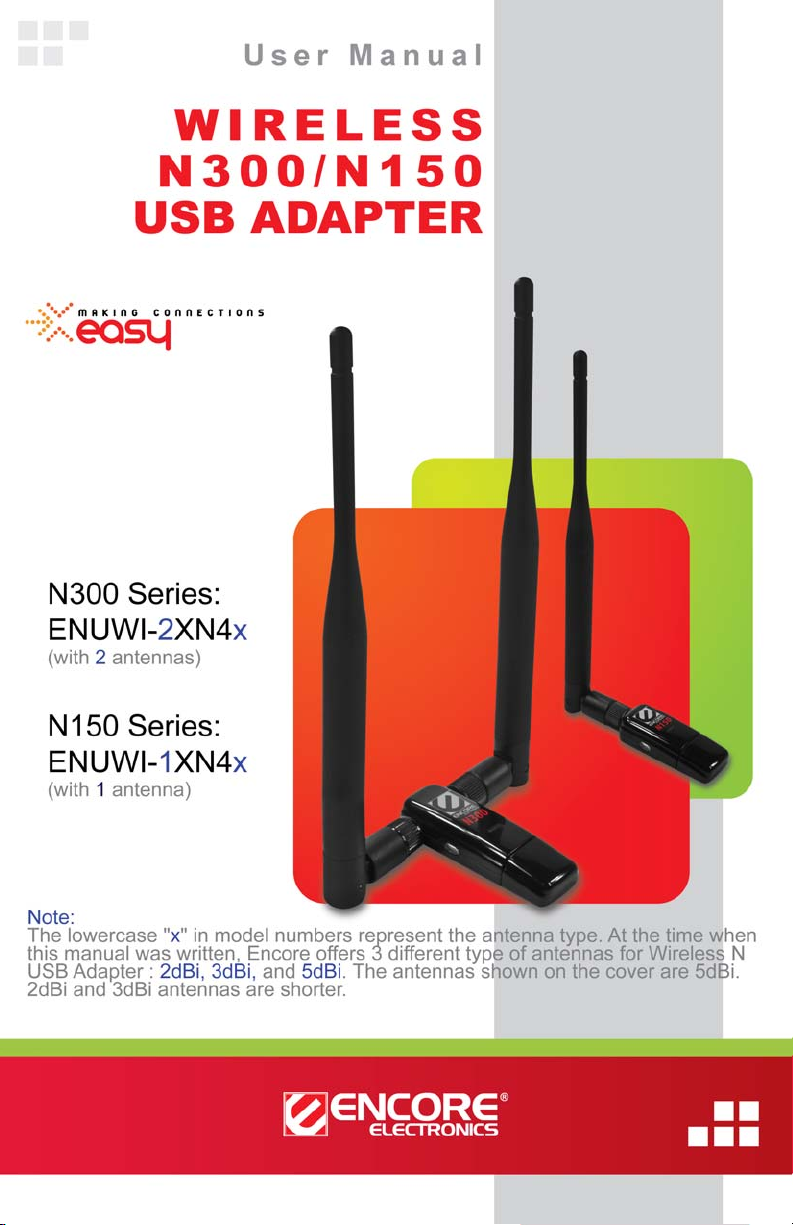

*The antennas shown on the front cover are 5dBi antennas. Other type of antennas, such

as 2dBi and 3dBi antennas, are also available.

1.4 System Requirements

Available USB port

Operating System: Windows®7, Windows Vista®or Windows®XP

CD-ROM Drive

www.encore-usa.com

Chapter 2: Installation

2.1 Hardware Installation

1. Attach the antenna(s) to the wireless adapter.

2. No need to shutdown your computer.

3. Insert the Wireless N300/150 USB Adapter to an available USB port on your

computer.

www.encore-usa.com

2.2 Software Installation

2.2.1 Windows®7 and Windows Vista®

The installation procedures are similar between Windows®7 and Windows Vista®.

1. Click “Cancel,”

if you see the ‘Found New Hardware Wizard’

window.

B. Insert the ‘Installation CD” that comes with the package to the CD-ROM drive. Depending

on your computer’s configuration, one of the following 3 scenarios will happen (B-1 to B-3).

B-1

The ‘Encore Welcome Screen’ appears

automatically, and then the ‘Quick Setup’

window in Step C will appear.

B-2

Instead of the ‘Encore Welcome Screen,’ the

‘AutoPlay’ window appears.

Select “Run autorun.exe.”

www.encore-usa.com

B-3

If neither the ‘Encore Welcome

Screen’ nor the ‘AutoPlay’ window

appears, type “D:\autorun.exe” in the

“Run” command window in the Start

menu (‘D’ is the drive letter of your

CD-ROM drive).

If the “Run” command window is not in

the Start menu, go to the Start menu

→type “run” in the “search box”

→select “Run” in the list of results.

Note: You can use “Browse” to find the

CD-ROM drive number.

Click “Software & Driver Installation

” in the ‘Quick Setup’ window.

Click “Yes” to continue,

if you see ‘Do you want to allow the

following program to make changes to

this computer?’ in the ‘User Account

Control’ window.

www.encore-usa.com

Click “Install this driver software

anyway,”

if you see ‘Windows can’t verify the

publisher of this driver software’ in the

‘Windows Security’ window.

Click “Next” to continue,

when you see the ‘ENCORE Wireless

LAN Driver – USB Adapter’window.

1. Save any opened file in other program.

2. Check “Yes, I want to restart my

computer now.”

3. Click “Finish” to restart the computer,

when you see ‘InstallShield Wizard

Complete’ in the ‘ENCORE Wireless LAN

Driver – USB Adapter’window.

www.encore-usa.com

2.2.2 Windows®XP

1. Click “Cancel,”

if you see the ‘Found New Hardware

Wizard’ window when you start Windows

for the first time after installing the

hardware.

B. Insert the ‘Installation CD” that comes with the package to the CD-ROM drive. Depending

on your computer’s configuration, one of the following 2 scenarios will happen (B-1 or B-2).

B-1

The ‘Encore Welcome Screen’

appears automatically, and then the

‘Quick Setup’ window in Step C will

appear.

B-2

If the ‘Encore Welcome Screen’ does

not appear, type “D:\autorun.exe” in

the “Run” command window in the

Start menu (‘D’ is the drive letter

of your CD-ROM drive).

Note: You can use “Browse” to find the

CD-ROM drive number.
