Encore EN-4000 Gebrauchsanweisung

For information on trademarks, safety, limitations

of liability, and similar topics, see

http://www.encorenetworks.com/disclaimer.htm.

o to Ta

of Contents

Configuring General Settings for

the EN-4000

he EN-4000 is the newest member of Encore Networks’ family of routers. It

provides wireless and cabled connections to a local area network (LAN) and to

peripheral devices and remote devices.

Follow the procedures in this discussion to configure the EN-4000:

•Using the EN-4000’s Management System

•Navigating the EN-4000’s Management System

•Basic Configuration

•Configuration for the Network

Also see the following documents:

•Configuring Chassis Ports in the EN-4000

•Configuring the EN-4000’s Serial Ports

•Configuring a MultiWAN for the EN-4000

4.1

Using the

EN-4000

’s Management System

See the following discussions in this document:

•Connecting to the EN-4000

•Logging In

•Ending the Session

4.1.1 Connecting to the EN-4000

The EN-4000’s management system displays in a browser window. A management

terminal (a computer) connects to the EN-4000. That management terminal can run

on any platform (for example, a Windows, Mac, or Linux platform) that supports a

web browser.

EN-4000™ Reference Manual

Document 4

Version A.3, August 2014

Page 4-2 EN-4000™ Reference Manual, Document 4

o to Ta

of Contents

Note: You can also use a command line interface (CLI) to manage the EN-4000.

However, we recommend using the web interface to manage the EN-4000.

The LAN ports on the EN-4000’s rear panel (Figure 4-1) are on a single private

network. The EN-4000 software includes a DHCP server that assigns IP addresses

to devices connected to those LAN ports. Devices connected to those LAN ports

see the gateway address 192.168.1.1 representing the EN-4000.

The EN-4000’s WAN port (also on the rear panel) is on a separate network from

its LAN ports. The EN-4000’s WAN port is a DHCP client, by default.

4.1.2 Logging In

1Make sure you have a terminal available to manage the EN-4000, and make

sure the terminal’s power is on.

2Connect the EN-4000 to an AC power adaptor or a DC power source.

❖The EN-4000 powers on.

3Use an Ethernet cable to connect your management terminal to an Ethernet

LAN port (in the set labeled eth1) on the EN-4000’s rear panel.

Caution: Do not connect the management terminal to the EN-4000’s WAN

port (labeled eth0).

❖The LAN port assigns an IP address to your management terminal.

4On the management terminal, open a web browser.

5In the browser's address field, type the EN-4000’s gateway IP address

192.168.1.1 (or, if you prefer, type http://192.168.1.1), and press the

console’s Enter key (Figure 4-2).

Figure 4-2. Browser Address Field

Note: If the browser asks whether the EN-4000 router (192.168.1.1) may

set cookies, answer Yes, or Yes for the Session, or something similar.

Figure 4-1. EN-4000 Rear Panel

http://192.168.1.1

Configuring General Settings for the EN-4000 Page 4-3

o to Ta

of Contents

Caution: Do not block cookies for the EN-4000. Otherwise, you might not

be able to manage the EN-4000.

❖The browser navigates to the specified IP address and displays the

EN-4000 Log-In Screen (Figure 4-3).

Note: The Username field might display the user name. (Figure 4-3 shows

the default user name root.)

Caution: The EN-4000 management system uses JavaScript in its

browser-based display. A message to enable JavaScript (similar to the

message in Figure 4-4) might display in your browser.

If you see the message in Figure 4-4, do the following:

• On the browser menu, open Tools or Options (or an equivalent menu

item in your browser).

• In the browser’s menu system, Enable JavaScript, and Save that setting.

• Right-click on the browser screen, and select Refresh, Rewrite, or

Reload (or the equivalent for your browser).

❖The EN-4000 Log-In Screen is redisplayed, without a message to enable

JavaScript.

6Type your user name and password in the appropriate fields of the EN-4000

Log-In Screen. Use the default log-in values:

• The default user name is root.

• Its associated default password is encore!1.

Note: You may wish to change the user name and password in the future.

Check with your network administrator for all names and passwords.

7Then press the console’s Enter key or select the screen’s Login button (to

the lower right of the Log-In Fields).

Figure 4-3. EN-4000 Log-In Screen

Figure 4-4. Message to Enable JavaScript

JavaScript required!

You must enable JavaScript in your browser or the management system will not work properly.

Page 4-4 EN-4000™ Reference Manual, Document 4

o to Ta

of Contents

❖The system accepts your log-in. Then the EN-4000 Status Overview

Screen is displayed (Figure 4-5). This screen provides an overview of the

EN-4000’s status.

Note: If the EN-4000’s WAN port is connected to a network, you may see

the WAN port’s assigned IP address. (The WAN port is a DHCP client.) In

Figure 4-5, the IP address assigned to the WAN port is 192.168.101.109.

On the EN-4000 management screens, the top row of tabs indicates the

management areas.

◆

Status

◆

System

◆

Network

◆

Statistics

◆

Logout

There is a second row of tabs under each management area. The second row

provides detail for the selected management area. (The EN-4000 senses its

hardware configuration and displays tabs to represent that configuration.) In

Figure 4-5, the Status management area shows the following detail tabs:

◆

Overview

◆

Firewall

◆

Routes

◆

System Log

◆

Kernel Log

◆

Processes

◆

Realtime Graphs

Figure 4-5. EN-4000 Status Overview Screen

Configuring General Settings for the EN-4000 Page 4-5

o to Ta

of Contents

An Auto Refresh button (to the right of the Encore Networks logo) is

displayed on several screens. You can select this button to turn automatic

screen refreshment on or off.

8To manage your EN-4000, do the following:

aTo set values for the EN-4000’s IP address and other parameters, see

Navigating the EN-4000’s Management System.

bTo review the EN-4000’s settings and performance, see the document

Monitoring the EN-4000.

4.1.3 Managing the Browser Display

Sometimes a browser lets part of a display bleed off the screen (as in Figure 4-6).

Figure 4-6. Browser Screen Bleeding (Configure Custom Commands Screen)

In that case, hold down the Control key (sometimes marked Ctrl) and press the

Minus key (-, also called the Hyphen key) until all the information displays

within the browser (Figure 4-7).

Figure 4-7. Browser Screen without Bleeding (Configure Custom Commands Screen)

Page 4-6 EN-4000™ Reference Manual, Document 4

o to Ta

of Contents

4.2 Navigating the EN-4000’s Management

System

4.2.1 Saving or Discarding Changes

Buttons to Reset, Save, or Save & Apply are displayed in the lower righthand

corner of EN-4000 configuration screens. You can use them as described below:

• Select the Save & Apply button to save changes that take effect immediately.

• Select the Save button to save changes that will take effect after the EN-4000

is rebooted.

• Select the Reset button to discard changes you have made but have not yet

saved, and to see the screen with its values before you made those changes.

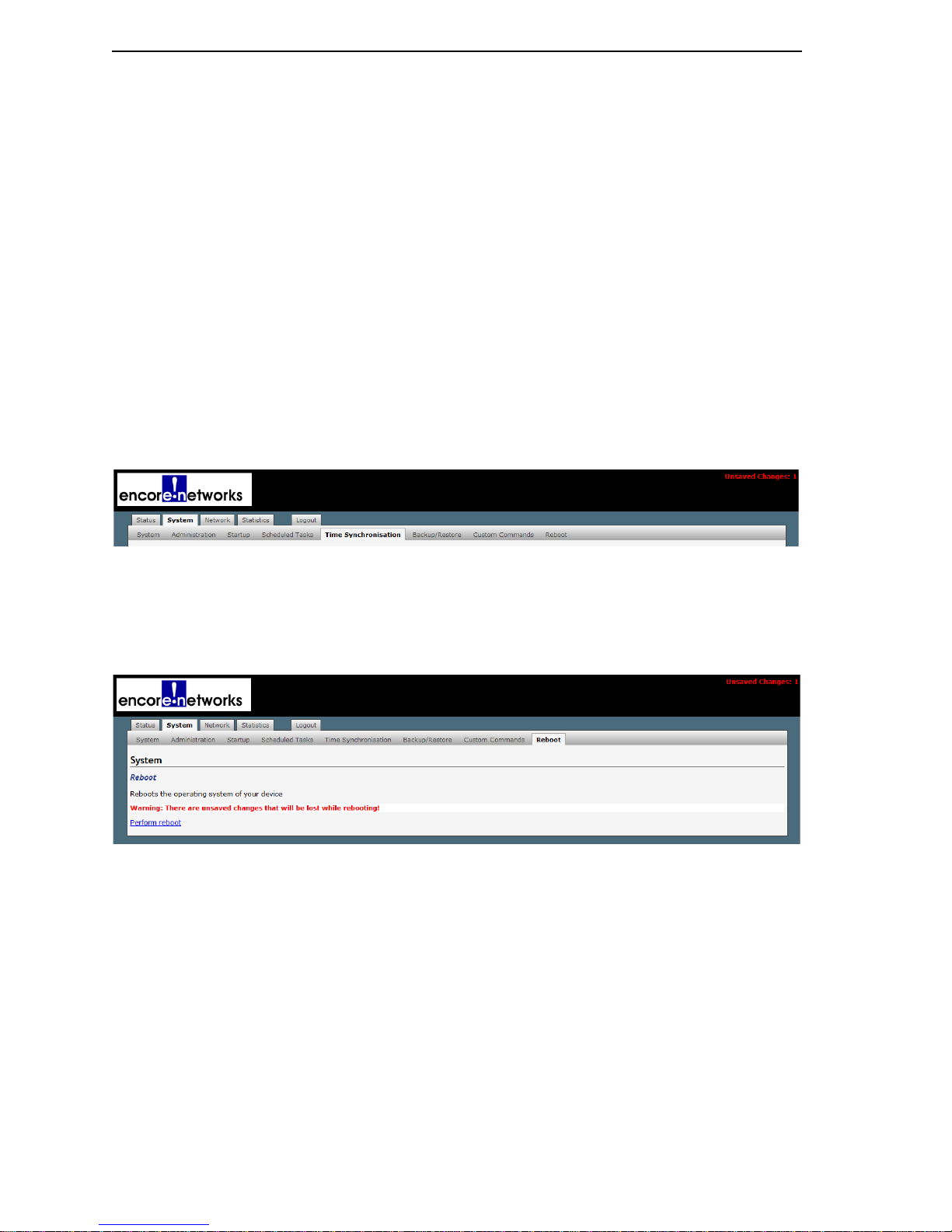

Note: The browser will display a message in the upper right corner of its

screen when there are unsaved changes in the configuration (Figure 4-8).

Figure 4-8. Message about Unsaved Changes

Note: The browser will also display a message if you use the EN-4000

screens to reboot the chassis before you have saved changes in the

configuration (Figure 4-9).

Figure 4-9. Message to Save Configuration before Rebooting

Caution: If you use a rebooting process that is not under the control of the

EN-4000 management system’s screens—for example, if you close the

browser or if you manually reboot the chassis—you will not see a message

about unsaved changes in the configuration. If you wish to save changes,

make sure you select the Save button or the Save & Apply button before

you close the browser window, or manually reboot the chassis, or use the

screens to reboot.

Note: If you close the browser without saving changes in the configuration,

the previous configuration is used when you reopen the EN-4000

management system in the browser.

Configuring General Settings for the EN-4000 Page 4-7

o to Ta

of Contents

The most recently saved configuration will be used only after the EN-4000

chassis has been restarted (rebooted). For that reason, the message

“Unsaved Changes” will persist in the upper right corner of the EN-4000

management system screens until the EN-4000 chassis has been restarted.

4.2.2 Restarting (Rebooting) the EN-4000

There may be times when the EN-4000 needs to be restarted. We recommend

using the menu system to restart the EN-4000, because that provides a

controlled approach to restarting. Any processes that are running will be shut

down properly before the router restarts.

Caution: In general, do not manually restart the EN-4000 by disconnecting

it from its power source and then reconnecting it to power. That method of

rebooting might interrupt processes running on the EN-4000.

1To restart the EN-4000, select the System management area.

2Then select the Reboot tab.

❖The System Reboot screen is displayed (Figure 4-10).

Figure 4-10. EN-4000 System Reboot

3On this screen, select Perform Reboot.

❖The menu system restarts the EN-4000. During the reboot, a message

similar to one of the messages in Figure 4-11 might be displayed.

Figure 4-11. Message while Rebooting

4After a few seconds, select the tab for the Status management area.

❖The EN-4000 Log-In Screen is displayed (Figure 4-12).

Waiting for 192.168.1.1...

Please wait. Device rebooting.

Page 4-8 EN-4000™ Reference Manual, Document 4

o to Ta

of Contents

4.2.3 Ending the Session

1When you wish to log out, select the Logout tab.

❖The system logs out, and the EN-4000 Log-In Screen is redisplayed (recall

Figure 4-12).

4.3 Basic Configuration

Basic configuration includes assigning the EN-4000 its IP address, device name,

and similar items. See the following:

•Revising Lists in the EN-4000’s Management System

•Configuring the Management System Language

•Configuring the Device Name and Time of Day

•Synchronizing the EN-4000’s Time of Day

•Configuring System Logging

•Overriding the MAC Information

4.3.1 Revising Lists in the EN-4000’s Management

System

For lists in the EN-4000 management system:

• To add an item to a list, click on [+] (the line-item add button).

• To delete an item from a list, highlight the item and press the Delete key on

your keyboard.

Note: Some items can be deleted by clicking on [x] (the line-item delete

button).

• When you have finished modifying items, click the Save & Apply button on

the screen.

Figure 4-12. EN-4000 Log-In Screen

Configuring General Settings for the EN-4000 Page 4-9

o to Ta

of Contents

4.3.2 Configuring the Management System Language

1To set the language used for the EN-4000 management system, do the

following:

aSelect the System management area tab.

bThen select the System configuration area tab.

cThen select the Language and Style detail tab.

❖The Screen to Set the Management System Language is displayed

(Figure 4-13).

Figure 4-13. Screen to Set the Management System Language

2On the Screen to Set the Management System Language, select the

Language pulldown menu and select your preferred language.

Note: Currently, the management system interface is available only in

English.

To set time-of-day synchronization, see Synchronizing the EN-4000’s Time

of Day.

4.3.3 Configuring the Device Name and Time of Day

1To configure the EN-4000’s identity within the network, and to configure time

zone and time-of-day synchronization source for the EN-4000, do the

following:

aSelect the System management area tab.

bThen select the System configuration area tab.

cIf necessary, select the General Settings detail tab.

❖The System Screen for General Settings is displayed (Figure 4-14).

Page 4-10 EN-4000™ Reference Manual, Document 4

o to Ta

of Contents

On the System Screen for General Settings, you can set a unique name for

this EN-4000. You can also set its local time, and you can set a hierarchy of

network time protocol (NTP) servers for synchronizing the EN-4000’s time of

day.

Figure 4-14. System Screen for General Settings

2In the Hostname field, type a name for the EN-4000, to identify it in the

network. Then click the Save & Apply button (in the lower right corner of

the screen).

Note: The name must be unique within the network. Get all names and IP

addresses from your network administrator.

❖The EN-4000 saves its new name and uses the new name immediately.

Caution: If you type a non-permitted character, the entire name displays

in red. If you try to save a name with non-permitted characters, a

message similar to the message in Figure 4-15 is displayed.

Figure 4-15. Message about Invalid Entry

In that case, click the OK button to close the message. Examine the name

and remove special characters until the name display returns to black. Then

save the name again.

Inhaltsverzeichnis

Andere Encore Netzwerk-Router Handbücher

Encore

Encore ENHWI-G2 Bedienungsanleitung

Encore

Encore ENHGS-800 Bedienungsanleitung

Encore

Encore EN-MGS24 Bedienungsanleitung

Encore

Encore ENDSL-A2+R2 Bedienungsanleitung

Encore

Encore ENMGS-16+2 Bedienungsanleitung

Encore

Encore EN-MGS12 Bedienungsanleitung

Encore

Encore ENDSL-AR Bedienungsanleitung

Encore

Encore ENHWI-G2 Bedienungsanleitung

Encore

Encore ENH916P-NWY Bedienungsanleitung

Encore

Encore ENDSL-AR Bedienungsanleitung

Encore

Encore ENH-WI-3GN3 Bedienungsanleitung

Encore

Encore ENH905-NWY Bedienungsanleitung

Encore

Encore EN-MS24 Bedienungsanleitung

Encore

Encore ENHGS-800X3 Bedienungsanleitung

Encore

Encore EN-2000 Bedienungsanleitung

Encore

Encore ENH916P-NWY Bedienungsanleitung

Encore

Encore ENH924-AUT Bedienungsanleitung

Encore

Encore ENDSL-A2+WIGX2 Bedienungsanleitung

Encore

Encore ENRTR-104 Bedienungsanleitung

Encore

Encore ENH908-NWY Bedienungsanleitung

Encore

Encore ENMGS-16+2 Bedienungsanleitung

Encore

Encore ENHWI-1AN42 Bedienungsanleitung

Beliebte Netzwerk-Router Handbücher anderer Marken

Allnet

Allnet ALL0333AU Bedienungsanleitung

HomeSeer

HomeSeer HT-SEL Bedienungsanleitung

Sercomm

Sercomm Genesis OC3505D Bedienungsanleitung

Billion

Billion BIPAC 5102 Series Bedienungsanleitung

TP-Link

TP-Link TD-8817 Bedienungsanleitung

Motorola

Motorola MR1900 Bedienungsanleitung

Digi

Digi IX14 Bedienungsanleitung

Cisco

Cisco NCS 540 Handbuch

XAVi

XAVi X8821e Bedienungsanleitung

BEC

BEC 6200WZL Bedienungsanleitung

MikroTik

MikroTik hAP ac3 Series Bedienungsanleitung

Korenix

Korenix JetNet 5428G Series Bedienungsanleitung

NETGEAR

NETGEAR FS526T - Switch Bedienungsanleitung

Korenix

Korenix JetNet 5710G Series Bedienungsanleitung

Automated Logic

Automated Logic ZN551 Betriebsanleitung

Cisco

Cisco ASR 1000 Series Bedienerhandbuch

EnGenius

EnGenius ESR-9710 Bedienungsanleitung

Cisco

Cisco 805 Series Bedienungs- und Sicherheitshinweise
