INSTALLATION AND OPERATION MANUAL

for

HDD-2080MIR

Table of contents

1. Safety Instructions and Notes….......................................................................................................

2. General Descriptions............................................................................……………………………...

3. Supplied Items......................................................................................……………………………...

4. Part names…………………………….…...................................................…………………………...

5. Installation Instructions......................................................................................……………………...

6. Setup Menu ……………............................................................................…………………………...

7. Specifications ………………………………………………..................................................................

8. Dimensional Drawings ……………………………………………............................................................

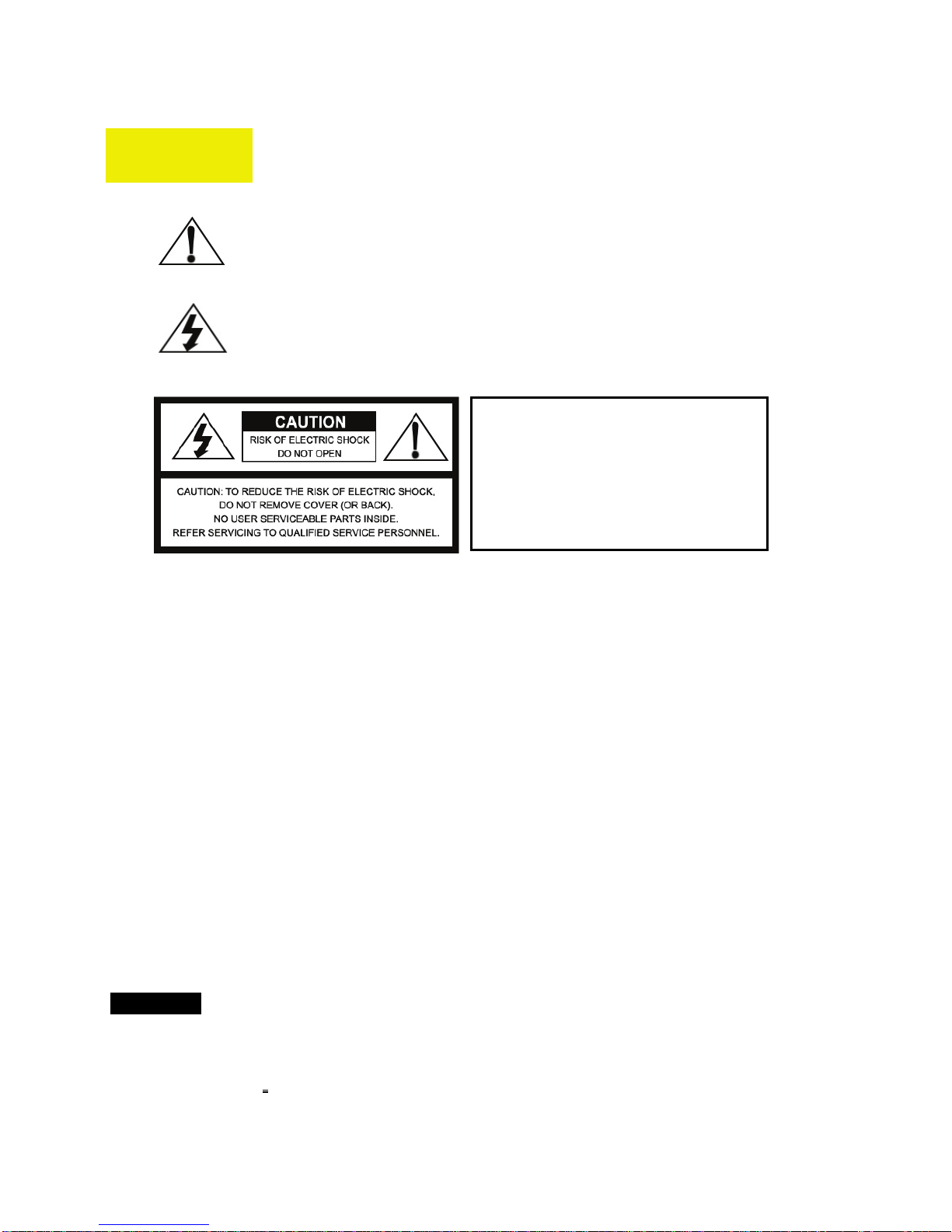

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

The symbol is intended to alert the user to the presence of important

operating and maintenance(servicing) instructions in the literature

accompanying the unit.

The symbol is intended to alert the user to the presence of

uninsulated "dangerous voltage" within the product's enclosure that

may be of sufficient magnitude to constitute a risk of electric shock

to persons.

Warning(NTSC version) -- This equipment has been tested and found to comply with the limits for a Class

A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is operated in a commercial environment. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference in which case the

user will be required to correct the interference at his own expense.

Caution -- Any changes or modifications in construction of this device which are not expressly approved by

the party responsible for compliance could void the user's authority to operate the equipment.

Mains power quality should be that of a typical commercial environment. If the user of the model requires

continued operation during power mains interruptions, it is recommended that the model be powered from

an uninterruptible power supply (UPS) or a battery.”

Notice -- The images used in manual are processed to help comprehension and may

differ from actual video of the camera.

WARNING

NEVER USE THIS CAMERA

1. IN AREA WHERE HAS SHOCK OR VIBRATION WHICH RESULTS IN THE

PROBLEM.

Caution

To prevent electric shocks

and risk of fire hazards, do

NOT use other than specific

power source.

WARNING

1. Safety Instructions and Notes

•Please read this safety and operating instructions before putting the camera into operation.

•Keep the manual in a safe place for later reference.

• Pay attention to safety when laying the connection cable and observe that the cable is not subjected to

heavy loads, kinks or damage and no moisture can get in.

• Never open the device such as boards or lens.

The warranty becomes void if repairs are undertaken by unauthorized persons.

• Maintenance and repair have to be carried out only by authorized service centers.

•Use only a mild detergent to clean the housing.

•The camera should never be operated beyond the technical specifications. This can lead to destruction.

•The camera should never be operated in the water.

2. General Descriptions

FULL HD WDR HD-SDI CAMERA, 1920 x 1080/30p(25p)

Highly detailed pictures can be achieved and color reproducibility deserves attention

With ICR mechanism,

- Enhances its sensitivity about 10x at night time

- Can accepts the infrared light

With Intelligent Focus Indicator and FOCUS ADJUST menu,

- Offers easy adjustment of Focus

- Eliminates the mistake of the erratic focus adjustment

With 24VAC/12VDC dual power design,

- Offers the flexibility of installation

- Ensures the reliability

Main features are;

•Full HD, 1920 x 1080/30p(25p)

•True Wide Dynamic Range

•DUAL Filter Switcher – No Focus Shift at Night.

•Day & Night Simulation

•Built-in Mega Pixel Vari-focal Lens (f=2.8~10mm)

•Non Compression digital streaming up to 1.485Gbps

•Intelligent Focus Status Indicator on Screen

•Pointing Zoom which enables the flexible zooming at any area.

•Smart Motion Zoom in combining with Pointing Zoom.

•Scale down the image to 720p without loss of field of view

•Top performance at low light sensitivity (Sense-up On)

•Improved Noise figure with the enhanced 3D-NR

•D-WDR, BLC/HLC, Digital Zoom(1.1x~8x)

•Motion Detect, Privacy Mask, Anti-Fog, Sense-up(x8)

•LSC(Lens Shade Compensation)

•RS-485(Pelco-D)

•OSD MENU & CVBS Video Sub-out port for easy installation & Maintenance

•Circuit protection against faulty connection.

•Isolated power supply against ground loop problem.

•Hard coated polycarbonate clear Bubble

•Surface / flush mount available

•3-Axis gimbal

•Zoom & Focus Adjustment on gimbal

•IP 68 / IK 10 Protection

•30 LEDs

3. Supplied Items

•1x Vandalproof Dome camera

•1x Installation and Operating Instructions

•1x ①Pipe hole cap

•1x ②Pipe Spacer

•1x ③L-shape hex wrench

•1x ④Focus Adjust Driver

•3x ⑤Wrench Bolt for surface mount

•4x ⑥Anchors

•4x ⑦Mount screws

•1x ⑧BM Screw

•1x ⑨Sub-out cable

①

④

②

③

⑤

⑥

⑧

⑦

⑨

4. Control and Part names

ⓐZoom & Focus

ⓑ

Lens hood

ⓒ

Light sensor for IR LEDs

ⓓ

IR LEDs

ⓔ

Dome base

ⓕ

Mount holes(x3) for dome base

ⓖ

OSD control joy stick

ⓗ

Video Sub-output

ⓘClear bubble

ⓙRing cover fixing screws(x3)

ⓚ

Ring cover

ⓛPipe hole

ⓜDome base fixing screw taps(x3)

ⓝSurface mount holes(x4)

ⓐ

ⓑ

ⓒ

ⓓ

ⓔ

ⓖ

ⓕ

ⓗ

Dome base assembly

ⓝ

ⓜ

ⓛ

Surface Mount Base

ⓘⓙⓚ

Dome Bubble Assembly

5. Installation

5.1 Surface mount

Surface mount base

⑦Mount screws

and ②pipe hole

cap for surface

mount base

Dome base

assembly

⑤Wrench bolts

for fitting to

surface mount

base

Dome bubble

assembly

L-Wrench

Quick installation guides;

1. Locate the mounting template at the installation position

and drill the ceiling or wall if needed.

2. Place Surface mount base on pre-drilled position and fix it

through ⓝSurface mount holes(x4) by using ⑦Mount screws.

Assemble the cable pipe, otherwise tighten ①pipe hole cap.

3. Open Dome bubble assembly by loosening ⓙRing cover

fixing screws(x3)

CAUTION

Extreme care should be taken NOT to scratch the dome

surfaces and to protect it from dirt or dust at any time.

ⓕ

Mount holes(x3) for dome base and

ⓜ

hole should be

aligned before fixing Dome base assembly to Surface mount

base by using ⑤Wrench bolts. And tighten ⑤wrench bolts

5. Route the power/ video cable to the connecting place.

CAUTION

Care should be taken the cable is NOT to be damaged,

kinked or exposed in the hazardous area.

6. Set the camera’s angle (Pan, Tilt, inclination)

7. Adjust

ⓐ

Zoom & Focus by using ④focus adjust driver.

8 Put Dome bubble assembly over Dome camera assembly and

tighten ⓙRing cover fixing screws(x3) by using ③L-shape hex

wrench

CAUTION

Tighten enough

ⓙ

Ring cover fixing screws(x3) so that

there should be NO gap between

ⓑ

Lens hood and

ⓘ

Clear bubble to avoid the light inflow from IR LEDs.

Ceiling or wall

5.2 Flush mount

⑦Mount screws

Dome base

assembly

Dome bubble

assembly

L-Wrench

Quick installation guides;

1. Locate the mounting template at the installation position

and drill the ceiling or wall if needed.

2. Open Dome bubble assembly by loosening ⓙRing cover

fixing screws(x3)

CAUTION

Extreme care should be taken NOT to scratch the dome

surfaces and to protect it from dirt or dust at any time.

3. Place Dome base assembly on pre-drilled position and fix it

through

ⓕ

mount holes(x3)

by using ⑦Mount screws.

(Use three screws only out of ⑦Mount screws(4x))

4. Route the power/ video cable to the connecting place.

CAUTION

Care should be taken the cable is NOT to be damaged,

kinked or exposed in the hazardous area.

5. Set the camera’s angle (Pan, Tilt, inclination)

6. Adjust

ⓐ

Zoom & Focus by using ④focus adjust driver.

7. Put Dome bubble assembly over Dome camera assembly and

tighten ⓙRing cover fixing screws(x3) by using ③L-shape hex

wrench

CAUTION

Tighten enough

ⓙ

Ring cover fixing screws(x3) so that

there should be NO gap between

ⓑ

Lens hood and

ⓘ

Clear bubble to avoid the light inflow from IR LEDs.

Ceiling or wall

5.3. Setup of the Zoom and FOCUS

• Remove the dome bubble assembly and power up the camera.

•Adjust

ⓐ

Zoom setting using ④focus adjust driver.

•Adjust

ⓐ

Focus setting using ④focus adjust driver.

•Close the dome bubble assembly and tighten ⓙRing cover fixing screws(x3) using ③L-shape hex wrench.

Tips for the precise adjustment of lens at outside

1. It is recommended to place a ND (Neutral Density) filter in front of the lens.

This results the lens iris open and narrow depth of field and allows the precise focus adjustment.

2. When ND filter is NOT available, follow the process carefully.

CAUTION : This process is a little complicated and requires 'MUST FOLLOW THE STEPS'.

1) Enter SETUP menu.

2) Select MANUAL at MAIN menu-1>LENS .and Exit SETUP menu.

3) Adjust

ⓐ

Zoom & Focus.

4) Enter SETUP menu again.

Restore FACTORY DEFAULT

by MAIN menu-2>CAMERA RESET (See 7.15 CAMERA RESET).

Save the restored parameters

by moving cursor to SAVE ALL and pressing ●button.

7) Set all other functions if necessary.

Save the changes

by moving cursor to SAVE ALL and pressing ●button.

9) Exit SETUP menu

5.4 Limit of pan and tilt

1. Pan limit

Pan is limited to +/- 165°.

Do NOT force to rotate the gimbal over the limit to prevent from the internal damage.

2. Tilt limit

Tilt is limited to 25° min ~ 90° max. with reference to the ceiling when the inclination of camera module

is 0°, that is, the image is aligned horizontally.

CAUTION Tilt may NOT reach 25° min. if some IR light reflects to the lens when the inclination is NOT 0°.

When Tilt is set to near the minimum limit, examine and verify that NO IR refection occurs.

3. Inclination limit (Horizontal image alignment)

Inclination limited to +/-60° max.

5.5 Power connector

Camera can work with either 24AC or 12VDC, dual voltage power.

It is strongly required the polarity-matched connection for 12VDC supply,

otherwise IR LEDs will not operate at night.

Primary and secondary grounds are completely isolated to avoid the possible ground-

loop problems.

In case that HD-SDI Inputs are not supported in Monitor, please use HD-SDI Converter

to connect HD-SDI cable with Monitor.

Some monitors for PC purpose in the market may not support 30p/25p and cannot

display picture. Please check Specification of Monitor before installation.

AC24V/DC12V (RED WIRE)

AC24V/GND (BLACK WIRE)

HD-SDI CABLE

RS-485

Inhaltsverzeichnis

Andere Eneo Sicherheitskamera Handbücher

Eneo

Eneo MEP-62M2812M0A Bedienungsanleitung

Eneo

Eneo IPD-62M2712P5A Bedienungsanleitung

Eneo

Eneo TPP-72A0030P0A Bedienungsanleitung

Eneo

Eneo MEB-62V2713P0A Bedienungsanleitung

Eneo

Eneo MEB-62V2812M0A Bedienungsanleitung

Eneo

Eneo ITB-7SF0075M0A Bedienungsanleitung

Eneo

Eneo HDB-2280Z10IR D Bedienungsanleitung

Eneo

Eneo ICB-68M3611M0A Bedienungsanleitung

Eneo

Eneo IPD-72A0003M0B Bedienungsanleitung

Eneo

Eneo IPP-82A0030MIA Bedienungsanleitung

Eneo

Eneo IED-62V2812P0A Bedienungsanleitung

Eneo

Eneo VKC-13100/IR-2810 Bedienungsanleitung

Eneo

Eneo 232572 Bedienungsanleitung

Eneo

Eneo IPP-82A0030MHA Bedienungsanleitung

Eneo

Eneo VKC-1415 Bedienungsanleitung

Eneo

Eneo VKC-1327B-IR/W3 Bedienungsanleitung

Eneo

Eneo TVB-2080Z10IR Bedienungsanleitung

Eneo

Eneo IEB-62V2812M0A Bedienungsanleitung

Eneo

Eneo VKCD-1324B/IR Bedienungsanleitung

Eneo

Eneo VKC-1374-1/IR Bedienungsanleitung

Eneo

Eneo VKCD-1323/IR Montageanleitung

Eneo

Eneo VKC-1341A/12-24 Bedienungsanleitung

Eneo

Eneo ISD-59P0010P0A Bedienungsanleitung

Eneo

Eneo EDMC-3221/E Bedienungsanleitung

Beliebte Sicherheitskamera Handbücher anderer Marken

Okina USA

Okina USA SIR36-870VF650LP Bedienungsanleitung

Divio

Divio NDR155PA Bedienungsanleitung

Canon

Canon VB-C500D Bedienungsanleitung

Easy Access

Easy Access EasyGuard Bedienungsanleitung

Vivotek

Vivotek FD9389-EHV-v2 Bedienungsanleitung

TUYA

TUYA COSMO W2 Bedienungsanleitung

Eusso

Eusso UNC7500-IR Einrichtungshandbuch

urmet domus

urmet domus 1096/204 Bedienungsanleitung

VC VC20 series Bedienungsanleitung

Axis

Axis Q1614 Bedienungsanleitung

ieGeek

ieGeek DD201 Bedienungsanleitung

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Bedienungsanleitung

Vicon

Vicon V662-D-1 Betriebsanleitung

Grundig

Grundig GCH-K0274P Bedienungsanleitung

Lorex

Lorex VANTAGE LBC7032 Bedienungsanleitung

4xem

4xem WPT Bedienungsanleitung

Samsung

Samsung SCV-3082 Bedienungsanleitung

Vitek

Vitek VTC-C544 Bedienungsanleitung
