Eneo MSM-42F0037MPA Bedienungsanleitung

User Manual

1/2.8” HD Board Camera, Colour,

1920x1080, WDR, 12VDC

MSM-42F0037MPA

MSM-42F0028M0A

Safety Precaution

ULTRA CLEAR RESOLUTION CAMERA

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

To prevent electric shocks and risk of fire hazards, do NOT use other than

specific power source.

The symbol is intended to alert the user to the presence of important

operating and maintenance(servicing) instructions in the literature

accompanying the unit.

The symbol is intended to alert the user to the presence of uninsulated

"dangerous voltage" within the product's enclosure that may be of

sufficient magnitude to constitute a risk of electric shock to persons.

Warning :

This equipment has been tested and found to comply with the limits for a Class

A digital device, pursuant to part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference when the equipment

is operated in a commercial environment. This equipment generates, uses, and

can radiate radio frequency energy and, if not installed and used in accordance with

the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at

his own expense.

Caution :

Any changes or modifications in construction of this device which are not expressly

approved by the party responsible for compliance could void the user's authority

to operate the equipment.

Mains power quality should be that of a typical commercial environment. If the user

of the model requires continued operation during power mains interruptions, it is

recommended that the model be powered from an uninterruptible power supply

(UPS) or a battery.

ULTRA CLEAR RESOLUTION CAMERA

Safety Precaution

NOTICE

The image used in this instruction manual are processed to help comprehension

and may differ from actual video of the camera.

Avoid installing areas where has shock or vibration which results in the problems.

Pay attention to safety when laying the connection cable and observe that the cable

is not subjected to heavy loads, kinks or damage and no moisture can get in.

The warranty becomes void if repairs are undertaken by unauthorized persons.

Maintenance and repair have to be carried out only by authorized service centers.

Use only a mild detergent to clean the housing.

The camera should never be operated beyond the technical specifications.

This can lead to destruction.

The camera should never be operated in water.

ULTRA CLEAR RESOLUTION CAMERA

Contents

Safety Precaution

p.03~04

Contents

p.05

Features

p.06

Composition

p.07

Dimensions

p.07

p.08~09

Installation Instructions

p.10~24

Operating Instructions

Specifications

p.25

ULTRA CLEAR RESOLUTION CAMERA

Features

Key Features

• Full-HD 2Mega pixel, HD-SDI/EX-SDI CAMERA, 1920x1080(30p/25p)

• The best low light performance with 1/2.8” SONY’s STARVIS sensor

• Video output EX-SDI 1.0,2.0 / HD-SDI / TVI mode / AHD mode /

CVI mode or CVBS Selectable

• TVI mode / AHD mode / CVI mode, Video Transmission Distance

over Coax.; 500M

• Lens selectable

> MSM-42F0037MPA : f=3.7mm Pin-hole lens

> MSM-42F0028M0A : f=2.8mm Fixed lens

• Sensitivity of Color 0.08 Lux, B/W 0.005 Lux

• True WDR(Wide Dynamic Range) 30/25fps

• ROI (Region of Interest) WDR mode:

- Proper compensation of exposure for each inside and outside of

interested area.

- Better contrast and No motion ghost effect

• Improved Noise figure with the enhanced 3DNR

• Motion Detection, Privacy Mask, Defog, Sens-up(~x32), D-WDR,

Sharpness, Mirror/Flip, BLC/HLC, Title Set

• Top performance at low light sensitivity (Sens-up On)

• Selectable Digital output 1080p or 720p

• OSD Menu & Video Sub-out port for easy installation & maintenance

(Available by mini jig OSD control board only)

• Remote control through Pelco-C(UTC/HD-TVI), Hikvision

• Circuit protection against faulty connection in power polarity

• Power: DC12V

Composition

Dimensions

ULTRA CLEAR RESOLUTION CAMERA

(unit : mm)

Operating

Instruction

Mounting Screw:

BH 3x10mm (2pcs)

Mini JIG

OSD Control board

MSM-42F0028M0A

MSM-42F0037MPA

45.7

37.8

45.7

37.8

43.5

21.5

ULTRA CLEAR RESOLUTION CAMERA

Installation Instructions

• Care should be taken the cable is NOT to be damaged, kinked or exposed in

the hazardous area.

• Do not expose the camera directly to a strong light source such as the sun or

spot light.

CAUTION

Mounting Screw

BH 3x10mm

Power/Video Cable

Bracket

OSD Controller

Connector

Power

Connector

Video

Connector

1. Place the camera bracket at the installation position and fix it by using

mounting screws.

2. Connect the power/video cable then setup the camera menu if neccessory.

(Use the mini jig OSD control board)

3. Adjust the camera’s viewing angle (Tilt, Rotation)

[ REAR VIEW ]

TILT

ROTATION

ULTRA CLEAR RESOLUTION CAMERA

Installation Instructions

Power Supply Connections

Camera can be operated with the regulated or unregulated 12VDC but

the regulated power supply of 12VDC is recommended.

Camera is protected from the damage by the reverse connection of polarity.

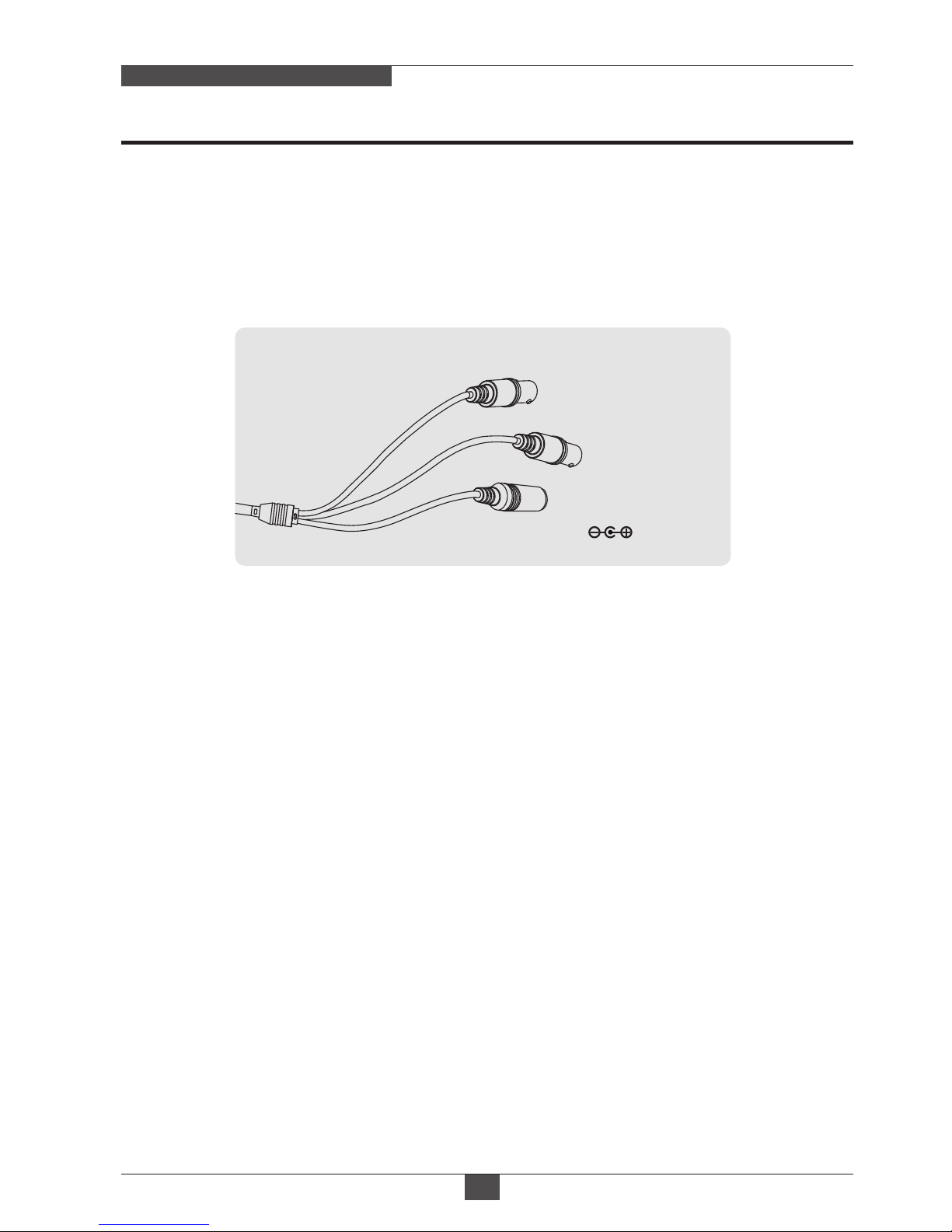

※SDI OUTPUT

(Yellow)

ANALOG OUTPUT

(Black)

POWER ( )

※Please use the cable as provided with camera. If camera cable is cut

and re-wired, the transmission distance of video can be reduced.

Especially SDI cable should not be cut because it requires detailed

wiring job and affects the transmission distance.

ULTRA CLEAR RESOLUTION CAMERA

Operating Instructions

OSD menu Table

Camera setup menu can be accessed and controlled by OSD controller.

ANALOG OUT0, ANALOG OUT1, SDI OUTPUT

MENU SUB MENU CONFIGURATION

LENS

FOCUS Ast.

EXPOSURE

BACKLIGHT

MANUAL

ON, OFF

MODE (INDOOOR, OUTDOOR, DEBLUR)

0~20

WEIGHT

MODE ROI WINDOW ZONE/USE,

H/V-POS, H/V-SIZE

NORMAL

OFF

HLC LEVEL, COLOR

H/V-POS, H/V-SIZE

BLC

WDR

COLOR

DAY & NIGHT

3D-NR


AWB

COLOR GAIN

EXTERN

AUTO

COLOR

B&W

SHARPNESS

GAMMA

SMART IR, ANTI-SAT., D>N THRES, N>D THRES, DELAY

SMART IR, ANTI-SAT., AGC THRES, AGC MARGIN, DELAY

SMART IR, ANTI-SAT.

AUTO, AUTOext, PRESET, MANUAL (C-TEMP, R/B-GAIN)

OFF, LOW, MIDDLE, HIGH

0.45, 0.55, 0.65, 0.75

MAIN OUTPUT

ANALOG OUT0

ANALOG OUT1

SDI OUTPUT

AHD MODE, CVI MODE, TVI MODE, CVBS

CVBS, TVI MODE, OFF

HD-SDI, EX-SDI 1.0, EX-SDI 2.0, OFF

BRIGHTNESS

SHUTTER

SENS-UP

AGC

0~20

AUTO

MANUAL

(SPEED)

FLICKERLESS

1/25, 1/50, 1/100, 1/200, 1/400, 1/800,

1/1600, 1/3200, 1/6400, 1/12800, 1/25600

0~10

OFF, x2, x4, x8, x16, x32

OFF, ON

MIRROR

• EXIT : Enters ‘EXIT’ menu with save current setting or without save.

• RETURN : Returns to the previous menu.

TARGET-BRT LOW, MIDDLE, HIGH

LOW, MIDDLE, HIGH

ULTRA CLEAR RESOLUTION CAMERA

Operating Instructions

DEFOG

D-WDR

MODE (AUTO, MANUAL)

LEVEL (LOW, MIDDLE, HIGH)

OFF, LOW, MIDDLE, HIGH

OFF, ON

FLIP

MOTION OSD

TEXT ALARM

SYSTEM

EXIT

OUTPUT

RESOLUTION

TV SYSTEM

SAVE, CANCEL

CAM TITLE

RESET

LANGUAGE ENG, CHN(S), CHN, JPN, KOR, GER

OFF, ON

SDI OUTPUT

ANALOG OUT0

HD-SDI, EX-SDI 1.0, EX-SDI 2.0, OFF

AHD MODE, CVI MODE, TVI MODE, CVBS

1080 25P, 720 25P, 720 50P(Cropped)

US(NTSC), EU(PAL)

DET WINDOW

DET TONE

MDRECT FILL

SENSITIVITY

OFF, ON

0~10

0~4

WINDOW ZONE, WINDOW USE, DET

H/V-POS, DET H/V-SIZE

MOTION

OFF, RIGHT UP, LEFT DOWN


PRIVACY ZONE NUM, ZONE DISP, H/V-POS, H/V-

SIZE, Y LEVEL, CB/CR LEVEL, TRANS

OFF, ON

If CVBS video is enabled through ANALOG OUT0 or Sub-out port, WDR

and 3D-NR functions are disabled in all video outputs.

It should be considered when installer adjusts the video with installation

monitor via CVBS video signal.
