Eneo VKC-12140F2810IR Bedienungsanleitung

Full Manual

1/3” Camera, Day/Night, Efﬁo V, 2.8-10mm,

750TVL, WDR, Infrared, 12/24V, IP67

VKC-12140F2810IR

Safety Precaution

ULTRA CLEAR RESOLUTION CAMERA

CAUTION: TO REDUCE THE RISK OF ELECTIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

To prevent electric shocks and risk of fire hazards, do NOT use other than

specific power source.

Warning :

This equipment has been tested and found to comply with the limits for a Class

A digital device, pursuant to part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference when the equipment

is operated in a commercial environment. This equipment generates, uses, and

can radiate radio frequency energy and, if not installed and used in accordance with

the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at

his own expense.

Caution :

Any changes or modifications in construction of this device which are not expressly

approved by the party responsible for compliance could void the user's authority

to operate the equipment.

Mains power quality should be that of a typical commercial environment. If the user

of the model requires continued operation during power mains interruptions, it is

recommended that the model be powered from an uninterruptible power supply

(UPS) or a battery.

The symbol is intended to alert the user to the presence of important

operating and maintenance(servicing) instructions in the literature

accompanying the unit.

The symbol is intended to alert the user to the presence of uninsulated

"dangerous voltage" within the product's enclosure that may be of

sufficient magnitude to constitute a risk of electric shock to persons.

ULTRA CLEAR RESOLUTION CAMERA

Safety Precaution

NOTICE

The image used in this instruction manual are processed to help comprehension

and may differ from actual appearance of the camera.

Avoid installing areas where has shock or vibration which results in the problems.

Pay attention to safety when laying the connection cable and observe that the cable

is not subjected to heavy loads, kinks or damage and no moisture can get in.

Never open the device such as boards or lens.

The warranty becomes void if repairs are undertaken by unauthorized persons.

Maintenance and repair have to be carried out only by authorized service centers.

Use only a mild detergent to clean the housing.

The camera should never be operated beyond the technical specifications.

This can lead to destruction.

The camera should never be operated in water.

ULTRA CLEAR RESOLUTION CAMERA

Contents

Safety Precaution

p.03~04

Contents

p.05

Features

p.06

Composition

p.07

Dimensions

p.07

Part Names

p.08

Installation Instructions

p.09~11

Operating Instructions

p.12~31

Specifications

p.32~33

ULTRA CLEAR RESOLUTION CAMERA

Features

Key Features

General Description

This is an ultra-clear resolution camera which realizes over 750TVL resolution

and a crisp color reproduction with SONY 960H CCD and Effio-V Enhanced

image signal processor.

• 1/3” High density Sony CCD (960H)

• 750TVL High-Resolution

• True WDR

• TDN with Dual Filter Switcher

• Built-in f=2.8~10mm F1.4 Mega pixel DC Auto Iris vari-focal lens

• Improved noise reduction 2D+3DNR

• Improved IR-Optimizer

• DIS(Digital Image Stabilizer)

• Scene preset select, LSC (Lens shading compensation), Motion detection,

Polygon privacy mask(polygon mask up to 15), Defog, Sens-up, BLC/HLC,

E-Zoom, IR Shade compensation, Flickerless, Anti-CR, Flip

• External Zoom & Focus adjustment

• IR-LED 28pcs

• LED ON/OFF Control

• Up the Coaxial (UTC) communication

• RS-485 control

• OSD MENU & Video Sub-out port for easy installation & Maintenance

• Circuit protection against faulty connection in power polarity

• Isolated power supply against ground loop problem

• One touch 3-Axis bracket, easy bracket

• IP67 protection

• With Effio-V/A series Enhanced digital imaging system,

- Delivers the crystal clear images providing 750TVL resolution in conjunction

with SONY 960H High density CCD.

-Provides‘TRUE WDR’ function

-Color signal processing provides the optimum balance between the luminance

and chroma signals for high color reproducibility even for the detail scene which

contains very high spatial frequency.

-Incorporates 2D+3DNR signal processing.

• With ICR mechanism,

- Enhances its sensitivity about 10x at night time

- Can accepts the infrared light

ULTRA CLEAR RESOLUTION CAMERA

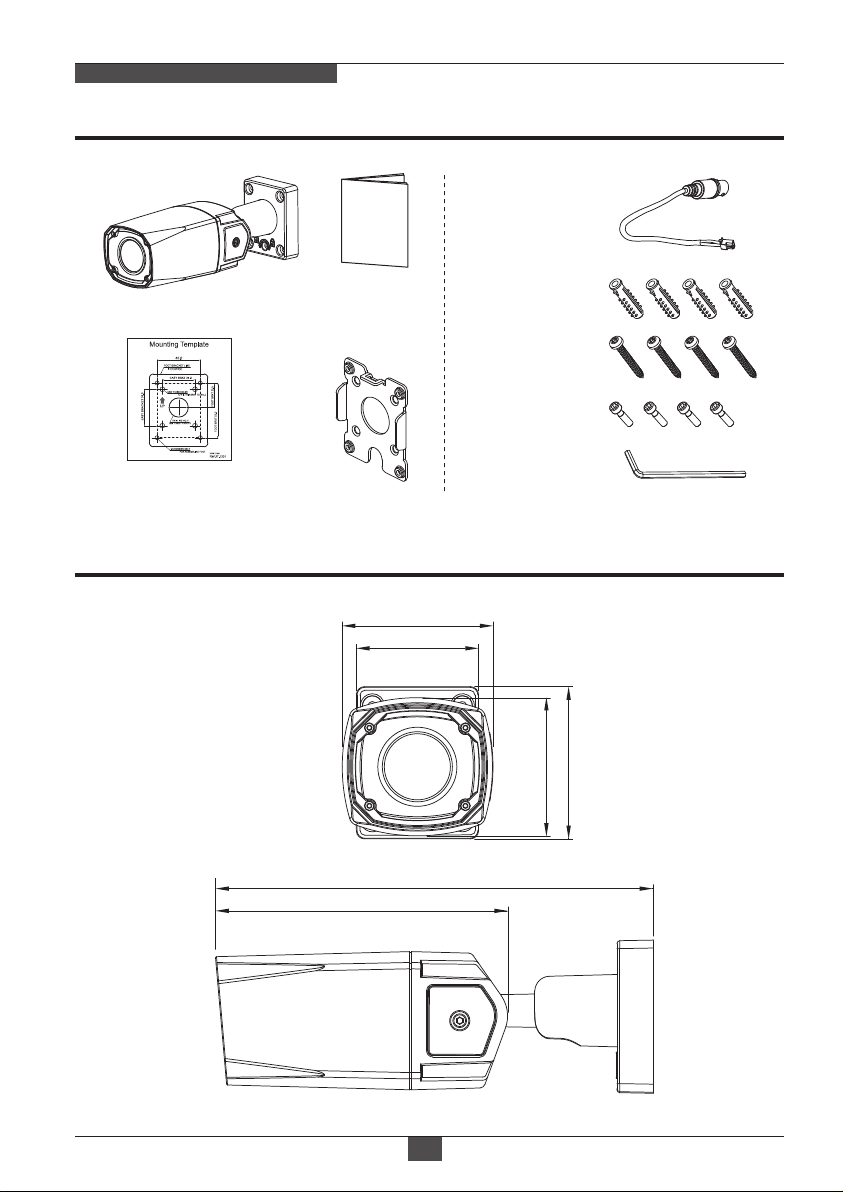

Composition

Dimensions

(unit : mm)

Operating

Instruction

Camera

75.3

218.5

145.8

Mounting Template

Torque Wrench:

3mm (1pc)

Assembly Screw:

4 x 14mm (4pcs)

Mounting Screw:

4 x 30mm (4pcs)

Plastic Anchor:

6 x 30mm (4pcs)

Easy

Bracket

Video Sub-out

Cable (1pc)

ULTRA CLEAR RESOLUTION CAMERA

Part Names

REAR

VIEW

FOCUS ZOOM

DUAL WINDOW

POWER CABLE

FRONT CASE

EASY

BRACKET

OSD Setup

CONTROL COVER

BRACKET

REAR CASE

•Extreme care should be taken NOT to scratch the window in front of lens.

• Care should be taken the cable is NOT to be damaged, kinked or exposed in the

hazardous area.

• Do not expose the camera directly to a strong light source such as the sun or spot

light.

CAUTION

ULTRA CLEAR RESOLUTION CAMERA

Installation Instructions

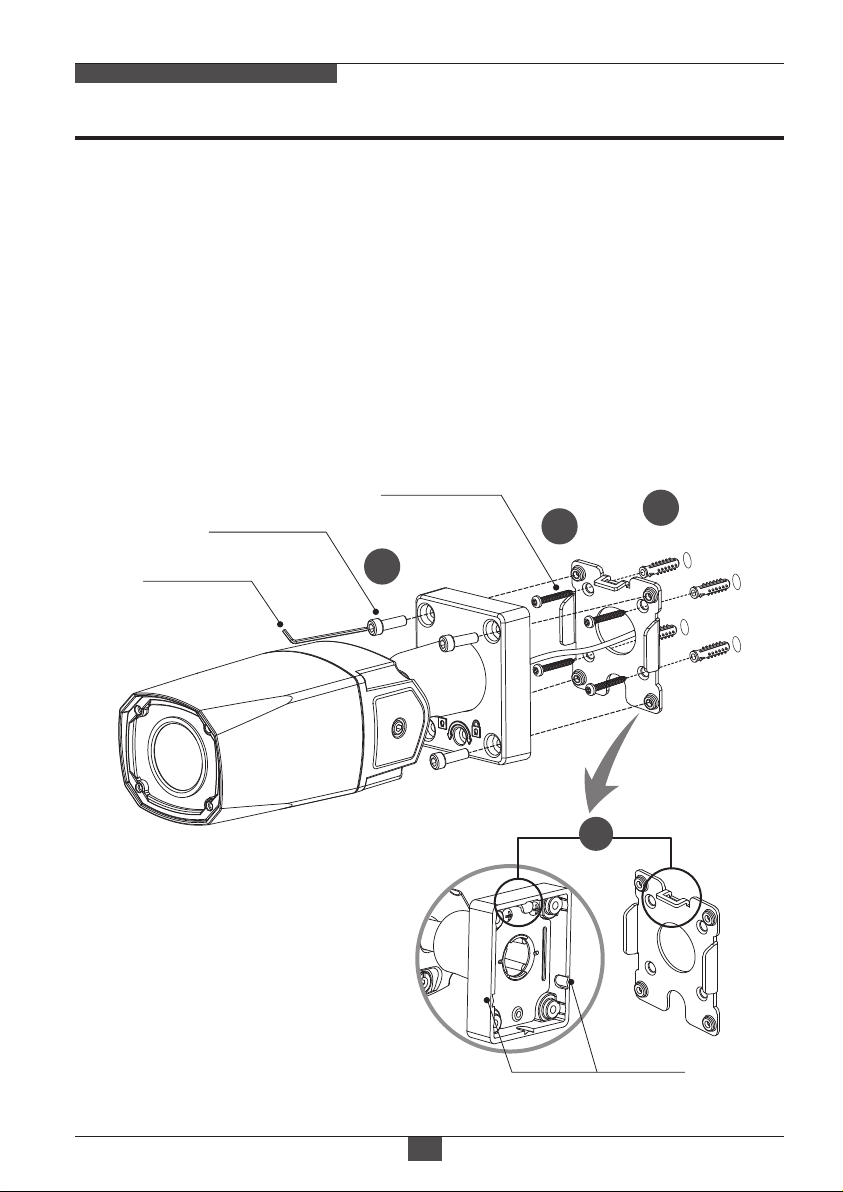

1. Locate the mounting template at the installation position and drill the ceiling or wall if

needed. ( *The easy bracket can not be installed on the ceiling)

2. Place the easy bracket on pre-drilled position and fix it through using mounting screws

(4x30mm). Skip this step when an easy bracket is not installed.

3. Route the Power cable to the connecting place.

Hook up the camera bracket with the easy bracket as illustrated below.

4. Fix the camera bracket through using assembly screws (4x14mm).

5. Set the camera’s viewing angle and adjust zoom/focus of lens by using the torque wrench.

Torque Wrench

Assembly Screw

: 4x14mm

Mounting Screw

: 4x30mm

REAR VIEW

Cable exit

ULTRA CLEAR RESOLUTION CAMERA

Installation Instructions

Pan & Tilt adjustments

Zoom & Focus adjustments

1) Pan limit:

Pan is limited to +/- 80°.

3) Inclination limit

(Horizontal image alignment):

Inclination limited to +/-90° max.

2) Tilt limit:

Tilt is limited to 0° min ~ 90° max.

for wall(ceiling) installation respectively with

reference to the wall(ceiling) when the

inclination of camera module is 0°, that is,

the image is aligned horizontally.

80° 80°

160°

• Turn the Focus gear to “N”(Near) or “∞”(Far)

until the sharpest focus is made.

• To widen the viewing angle, turn the Zoom to

“W”(Wide) and to obtain a closer view, turn it

to “T”(Tele)

Use the torque wrench supplied.

• Unlock the screw on the camera bracket through using the torque wrench supplied

• Set the camera’s viewing angle then lock the screw on the bracket.

90°

±90°

F Z
