Enfora 600/650 Bedienungsanleitung

Users’ Guide:

WLN1500UG001

Enfora® Wi-Fi® Adapter for

Treo 600/650 Smartphone

Users’ Guide

Revision 1.00

WLN1501/WLN1502 Wi-Fi Adapter Page 2

photocopied, reproduced, transmitted, transcribed, stored in a retrieval system or translated into

any language or computer language, in any form or by any means, electronic, mechanical,

magnetic, optical, chemical, manual or otherwise, without the prior written permission of Enfora

Inc.

Disclaimer

Enfora Inc. makes no representations or warranties, either expressed or implied, with respect to

the contents hereof and specifically disclaims any warranties, merchantability or fitness for any

particular purpose. Further, Enfora Inc. reserves the right to revise this publication, and to make

changes from time to time in the contents hereof without obligation of Enfora Inc. to notify any

person of such revision or changes.

ALL INFORMATION IS PROVIDED BY ENFORA INC. ON AN “AS IS” BASIS ONLY.

THIS COMPANY PROVIDES NO REPRESENTATIONS AND WARRANTIES, EXPRESS

OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF FITNESS FOR A

PARTICULAR PURPOSE, MERCHANTABILITY AND NONINFRINGEMENT.

All product names mentioned within this document are the trademark of their respective owners.

Enfora, Inc. Proprietary Information

WLN1500MAN001

Adobe and Acrobat are trademarks of Adobe Systems Inc.

WLN150x Wi-Fi Adapter

Table of Contents

SAFETY INFORMATION FOR WIRELESS HANDHELD DEVICES.................... 1

GENERAL SAFETY INSTRUCTIONS ........................................................................ 3

PACKAGE CONTENTS ................................................................................................. 4

APPEARANCE................................................................................................................. 5

HARDWARE AND SOFTWARE INFORMATION.................................................... 6

BATTERY OPERATION...................................................................................................... 6

SYSTEM REQUIREMENTS.................................................................................................. 6

SOFTWARE INSTALLATION............................................................................................... 6

INSTALLING THE TREO SMARTPHONE INTO THE ENFORA® WI-FI® ADAPTER ................ 7

REMOVING THE ENFORA® WI-FI® ADAPTER FROM THE TREO 600/650......................... 8

NETWORK AND BATTERY STATUS LED DESCRIPTION..................................................... 8

CONFIGURING YOUR ENFORA® WI-FI® ADAPTER .......................................... 9

ADDITIONAL INFORMATION.................................................................................. 13

NETWORK INFORMATION............................................................................................... 13

ADVANCED CONFIGURATION................................................................................ 14

POWER SAVE ................................................................................................................. 14

RESTORE DEFAULT SETTINGS ........................................................................................ 14

SOFTWARE LICENSE AGREEMENT...................................................................... 15

LIMITED WARRANTY................................................................................................ 17

SCOPE ............................................................................................................................ 17

HARDWARE.................................................................................................................... 17

SOFTWARE..................................................................................................................... 17

OTHER CONSIDERATIONS............................................................................................... 18

WLN1501/WLN1502 Wi-Fi Adapter Page 1

Safety Information for Wireless Handheld Devices

The equipment certifications appropriate to your device are marked on the device and product

specific information. The use of the equipment is subject to the following conditions:

FCC COMPLIANCE STATEMENT

This device complies with the limits for a Class B digital device, pursuant to Part 15 of the FCC

Rules. Operation is subject to the following two conditions: (1) This device may not cause

harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation.

CAUTION

Changes or modifications without the express consent of Enfora, Inc. void the user’s authority to

use the equipment.

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in an appropriate installation. This equipment generates, uses, and

can radiate radio frequency energy and, if not used in accordance with instructions, can cause

harmful radiation to radio communication. However, there is no guarantee that interference will

not occur in a particular installation. If the equipment does cause harmful interference in radio

and television reception, which can be determined by turning the equipment on and off, the user

is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation distance between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

• Contact Enfora, Inc. Technical Support for assistance.

FCC Radiation Exposure Statement

1. CAUTION: This equipment complies with FCC RF radiation exposure limits set forth for an

uncontrolled environment.

2. This Transmitter must not be co-located or operating in conjunction with any other antenna or

transmitter. (This does not apply to the antenna that is part of the Treo 600/650.)

The Federal Communications Commission (FCC) with its action in ET Docket 96-8 has adopted

a safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by

FCC certified equipment. Enfora products meet the uncontrolled environmental limits found in

OET-65 and ANSI C95.1, 1991.Proper operation of this radio according to the instructions found

in this manual and the hardware and software guides on the CD will result in user exposure that is

substantially below the FCC recommended limits.

Customers in European countries

Battery is not replaceable, for service center only.

WLN1501/WLN1502 Wi-Fi Adapter Page 2

CAUTION

RISK OF EXPLOSION IF BATTERY IS REPLACED BY INCORRECT TYPE.

DISPOSE OF BATTERIES ACCORDING TO THE INSTRUCTIONS.

Use the following or equivalent certified Power Supply.

Make: PHIHONG, Model PSA11R-050

Rated Input: 100-240Vac, 0.5A, 50-60hz,

DC Output: 5V DC, 2.0A

Limited Power Source.

WLN1501/WLN1502 Wi-Fi Adapter Page 3

General Safety Instructions

• Check if all peripherals are properly connected before turning on any equipment.

• Make sure to disconnect the power plug from the power source before installing or

removing the Enfora® Wi-Fi® Adapter.

• Always hold the product with dry hands. Droplets of water may cause it to short circuit

and damage to the product.

• Use the product only under a dry environment. Humid places are not appropriate for the

product.

• DO NOT use the product in a damp environment.

• DO NOT place the product on an unstable surface. Keep the product out of the reach of

children.

• DO NOT share the same extension power line for the product with high power-

consuming appliances to avoid power overload.

• NEVER attempt to disassemble the product! Doing so may cause permanent damage to

the product and will void the warranty.

WLN1501/WLN1502 Wi-Fi Adapter Page 4

Package Contents

Check the contents of the package. The following items should be included. If there is any item

that is damaged or missing, please contact your dealer immediately.

The following contents are included in the WLN1501 – Wi-Fi® Adapter for Treo 600:

Description Quantity

Enfora® Wi-Fi® Adapter for Treo Smartphone 1

Install CD-ROM 1

AC/DC Power Supply 1

The following contents are included in the WLN1502 – Wi-Fi® Adapter for Treo 650:

Description Quantity

Enfora® Wi-Fi® Adapter for Treo Smartphone 1

Install CD-ROM 1

AC/DC Power Supply 1

Battery Cover Door for the Treo 650 1

Appearance

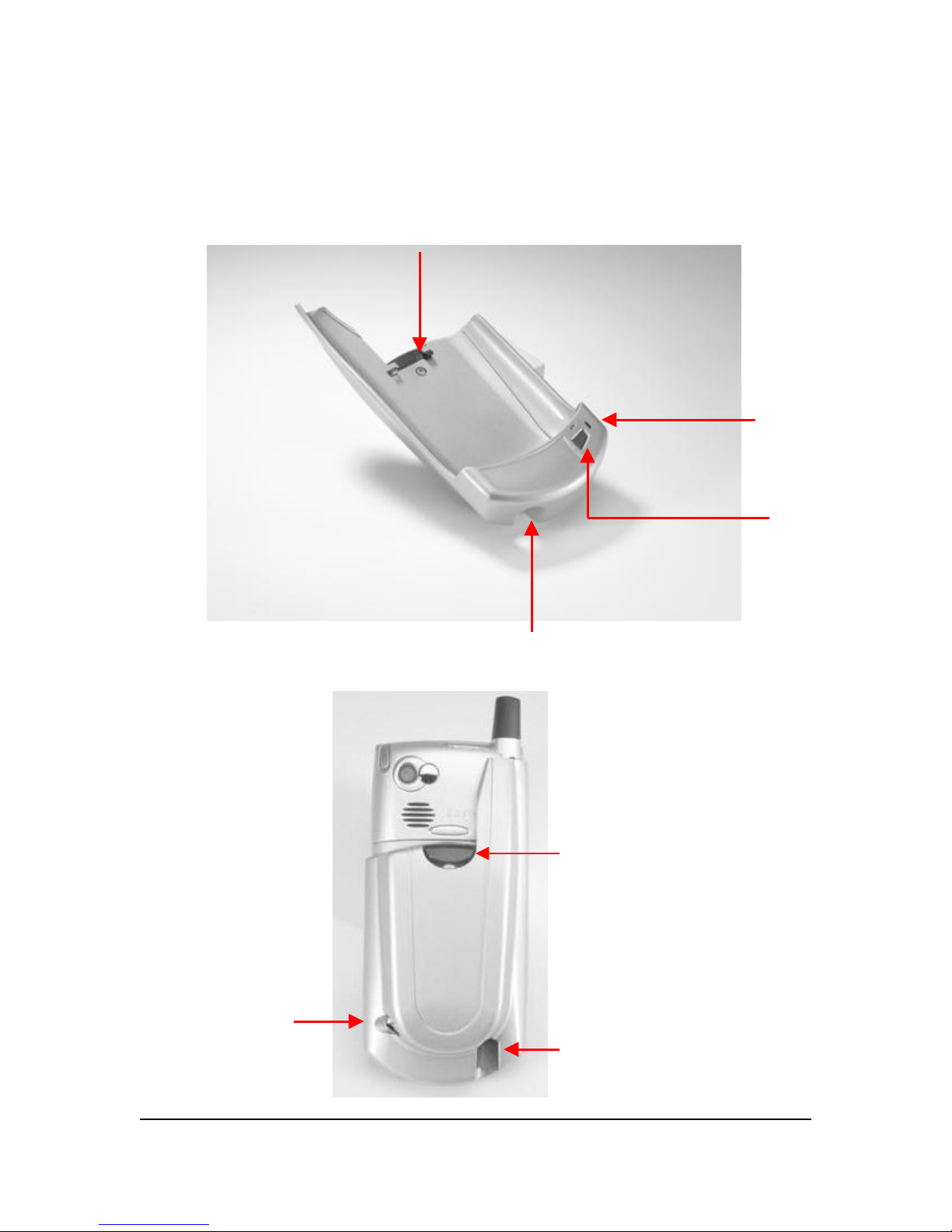

The following images show the Enfora® Wi-Fi® Adapter for the Treo 600/650 Smartphone.

Lock Release Button

Power On/Off

Button

Treo Smartphone Headphone Jack

Network/ Battery

Status LED

Enfora Wi-Fi

Adapter DC Power

Input Treo Smartphone Headphone Jack

Lock/Release Button

WLN1501/WLN1502 Wi-Fi Adapter Page 5

WLN1501/WLN1502 Wi-Fi Adapter Page 6

Hardware and Software Information

Battery Operation

Prior to using the Enfora® Wi-Fi® Adapter, charge the new battery for a minimum of 2 hours

to obtain a full charge. The Enfora® Wi-Fi® Adapter derives its power from a self-contained

battery pack to ensure there is no battery drain on the handheld device.

The Enfora® Wi-Fi® Adapter will also charge your Treo 600/650 Smartphone if the Treo

600/650 is placed in the Enfora® Wi-Fi® Adapter.

Note: The Enfora® Wi-Fi® Adapter WILL NOT act as a spare

battery for the Treo Smartphone.

To power down the Enfora® Wi-Fi® Adapter, hold down the power button for three

seconds, until the adapter turns off.

System Requirements

Check your hardware and software to see if they satisfy the requirements below. If you are not

sure, please consult your dealer or operator.

• Treo 600

• Treo 650 (with the updated battery cover attached)

Software Installation

1. Insert the CD that came with your Enfora® Wi-Fi® Adapter into your computer’s

CD drive.

2. If the enclosed CD-ROM does not start automatically, run the Enfora program

EnforaWiFi.exe and follow the Install Wizard. The Enfora program is located on

the CD-ROM in the install directory.

3. After completing the installation you will be prompted to perform a Hot Sync®

synchronization. This will install all necessary drivers and software to your Treo

600/650. (Please refer to the Treo Users’ Manual for details on HotSync®.)

4. Dock your Treo 600/650 device in its cradle, or connect the sync cable, and

perform Hot Sync®.

Installing the Treo Smartphone into the Enfora® Wi-Fi® Adapter

Attach the updated Battery Cover to the Treo 650

These instructions apply only to the Treo 650 Smartphone. If you have the Treo

Smartphone 600, please skip these instructions, and proceed to Attach the Enfora® Wi-

Fi® Adapter to the Treo 600/650.

1. If you haven’t replaced the Battery Door with the enclosed Battery Door, grasp

your Treo 650, and look at the Battery Door on the back of the unit.

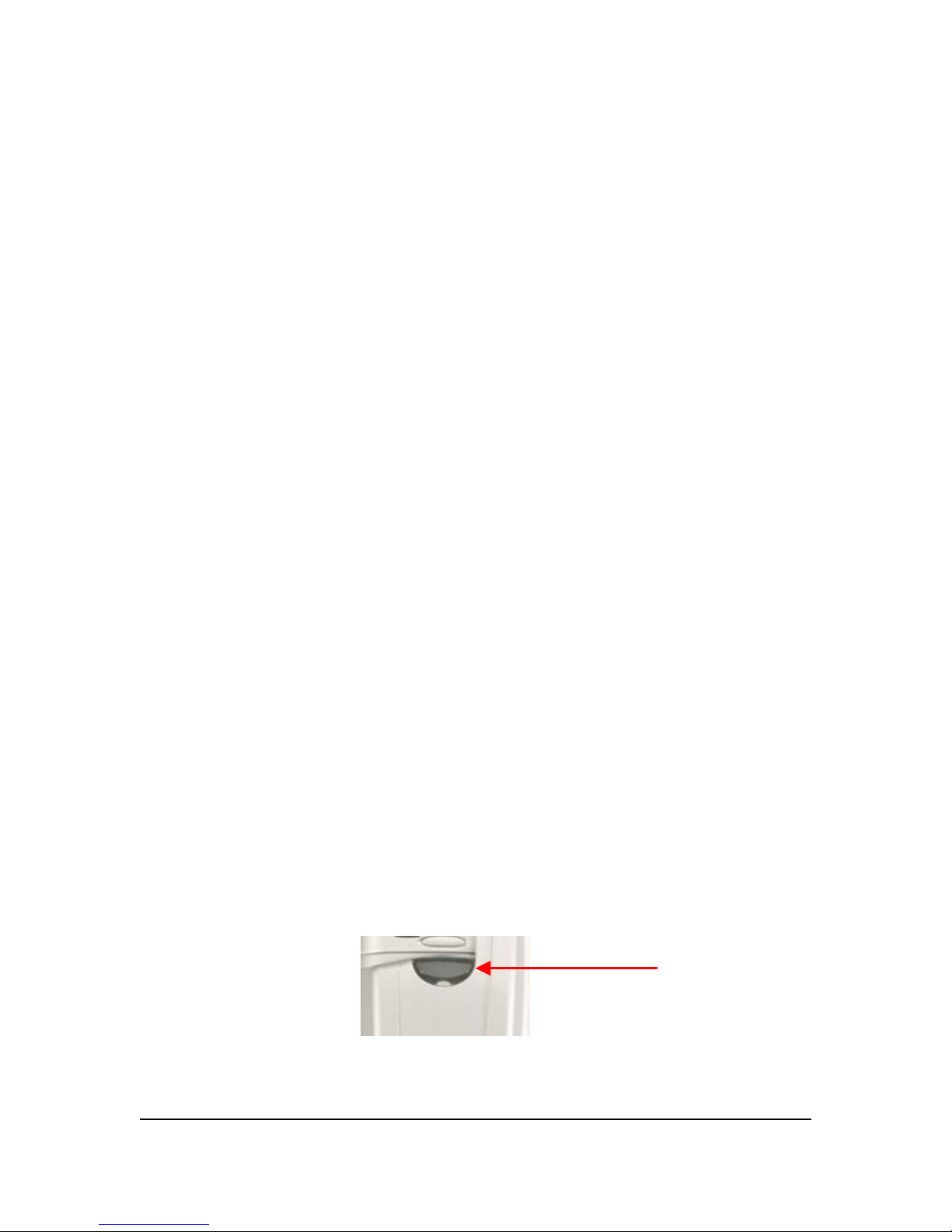

2. Press in the elliptical button, just above the Battery Door, to release the current

Battery Door. Slide the door down approximately .1” (one-tenth of an inch) to

remove it from the Treo 650.

3. Place the Updated Battery Door in the position of the existing one, and slide the

Door up until it “seats” in place.

Attach the Enfora® Wi-Fi® Adapter to the Treo 600/650

These instructions apply to the Treo 600 and Treo 650 (with the updated battery cover

attached to the Treo 650).

1. Ensure the Enfora® Wi-Fi® Adapter is turned off.

2. Hold the Enfora® Wi-Fi® Adapter upright in one hand.

3. Grasp the edges of the Treo and slide the Treo into the bottom portion of the

Enfora® Wi-Fi® Adapter.

4. With the Treo positioned at about a 5º to 10º from the inner surface of the

Enfora® Wi-Fi® Adapter; push the Treo, gently down, onto the mating connector

of the Enfora® Wi-Fi® Adapter. You will hear/feel a click as the Enfora® Wi-

Fi® Adapter connector is seated into the Treo.

5. While grasping the Enfora® Wi-Fi® Adapter with one hand (depress the Lock/

Release Button down with the index finger), press the Treo flat into the Enfora®

Wi-Fi® Adapter, with your other hand, seating the short rib/ribs, near the Lock/

Release Button, into the receptacles in the back of the Treo. Release your hold on

the Lock/Release Button.

6. The Enfora® Wi-Fi® Adapter is now attached to the Treo.

Lock/Release Button

WLN1501/WLN1502 Wi-Fi Adapter Page 7

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Enfora Adapter Handbücher

Enfora

Enfora WiFi Adapter Bedienungsanleitung

Beliebte Adapter Handbücher anderer Marken

PCB Piezotronics

PCB Piezotronics 090B274 Bedienungsanleitung

Auvidea

Auvidea J20 Produkthandbuch

Gossen MetraWatt

Gossen MetraWatt AT3-III E Bedienungsanleitung

Akribis

Akribis ITF-21-BISS-MIT Bedienungsanleitung

Tenda

Tenda W54U Bedienungsanleitung

ROHO

ROHO AGILITY Bedienungsanleitung

PROLiNK

PROLiNK WN2001 Bedienungsanleitung

Hawking

Hawking HUF2 Bedienungsanleitung

Airlink101

Airlink101 AWLC4030 Bedienungsanleitung

NETGEAR

NETGEAR XAV101v1 - Powerline AV Ethernet Adapter Bedienungsanleitung

Philips

Philips SWA4554S/10 Bedienungsanleitung

JVC

JVC TS-C9D2B Gebrauchsanweisung

NETGEAR

NETGEAR A6100 Bedienungsanleitung

D-Link

D-Link DWA-121 Bedienungsanleitung

Philips

Philips SWA2037 Bedienungsanleitung

Basalte

Basalte 0610-20 Bedienungsanleitung

Yealink

Yealink EHS40 Bedienungsanleitung

Balluff

Balluff BIC 1B0-IT1A7-Q40KFU-SM4A4A Bedienungsanleitung
